Place of Origin:
Jinan, Shandong
Brand Name:
WANYOU
Model Number:
WY-1
Video
Video
Video

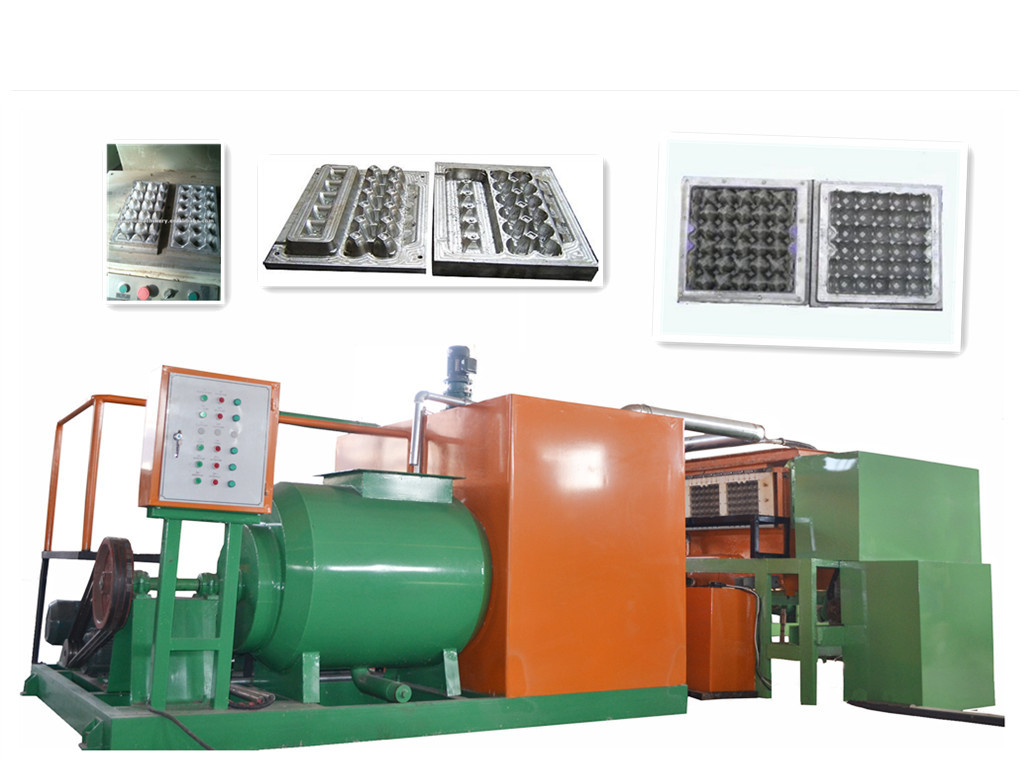

To make paper pulp, raw material and water are added to the hydraulic pulper and mixed for 10-20 minutes. Once the pulp is ready, it is transferred to the slurry pool by the pulp pump. The pulp concentration is then mixed by the pulp pond beater, and finally, the pulp is transferred to the forming machine using the pulp pump.

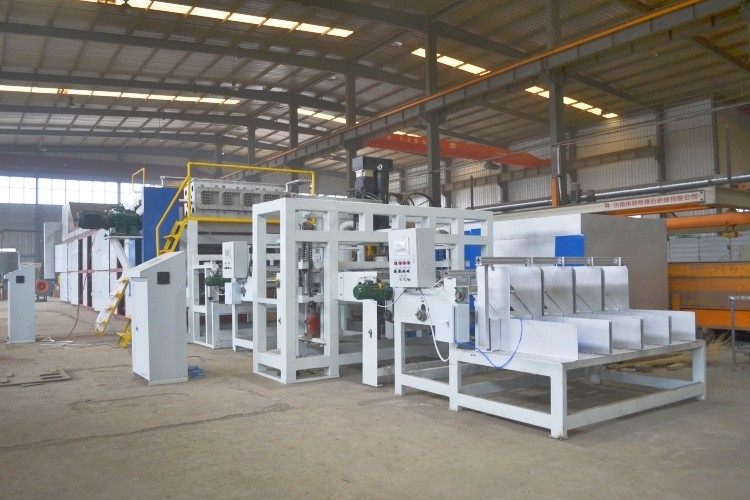

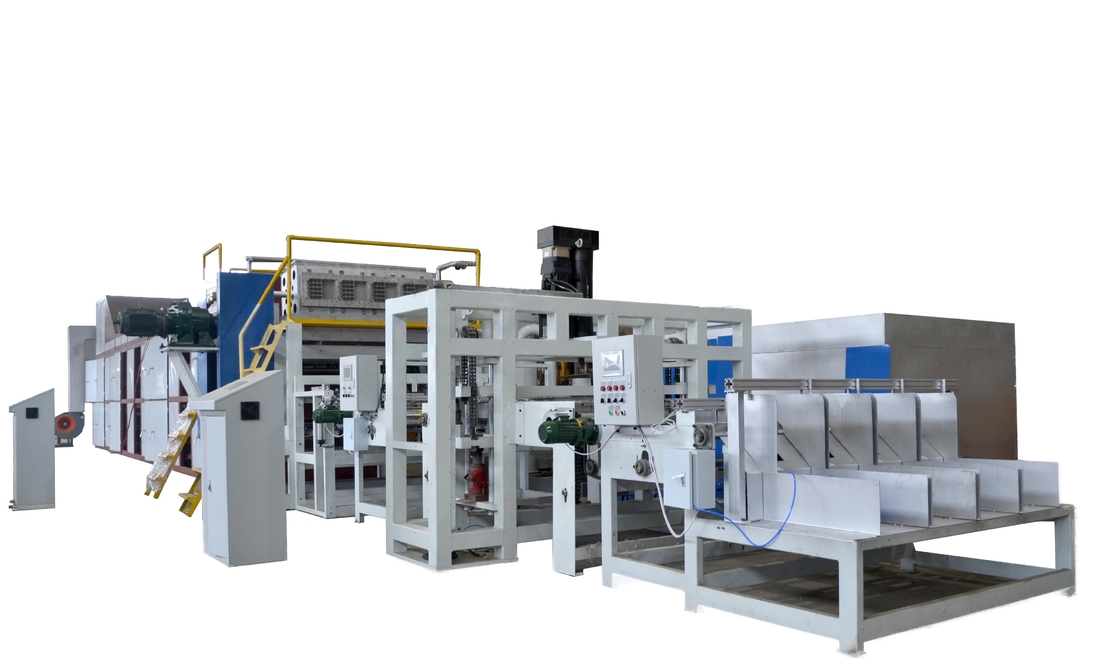

The molding machine uses a vacuum system to absorb the pulp into the molding mold. Excess water is then separated from the pulp in the gas-water separation tank before being pumped to the tank for storage. The molding mold absorbs the pulp and forms it, and the transfer mold takes out the finished product and sends it to the drying tray inside the dryer oven.
The drying system uses natural gas, diesel, liquefied petroleum gas, and other combustion liquids and gases as a heat source. The industrial transmission chain drives the net plate transmission, which runs in the drying line.
The equipment is packed with waterproof material that meets international export standards and can be delivered by 20ft, 40ft, 40hp container. Fittings, electric motor, and power cabinet will be packed in wooden case or iron box. Other equipment will be packed by color-stripes plastic cloth. Alternatively, packing can be done as per customer's requirements.
The latest date of shipment is 15-20 working days after receipt of prepayment. Payment terms are 30% advance payment by TT, 70% before delivery of goods, or 100% paid by L/Cat sight against shipping documents.
| Egg Tray Mold Quantity | 12pcs(3pcs*4) | 16pcs(4pcs*4) | 24pcs(3pcs*8) | 32pcs(4pcs*8) | |
| Raw material | Waste paper | Waste paper | Waste paper | Waste paper | |
| Egg tray Capacity(pcs/hour) | 2000 | 2500 | 3000 | 4000 | |
| Net weight per piece (gram) | 70-75 | 70-75 | 70-75 | 70-75 | |
| Waste paper consumption | 150kg/ h | 150kg/h | 188kg/h | 225kg / hour | |
| Water Consumption | 0.45ton / h | 0.6ton/h | 0.68ton/h | 0.9ton / h | |
| Natural Gas Consumption of Dryer | 75cbm/h | 90cbm/h | 110cbm/h | 120cbm/h | |
| Boiler model (natural gas fuel Kcal) | 800*103 | 1000*103 | 1200*103 | 1500*103 | |
| Worker requirement | 5-7workers | 5-7workers | 8-10workers | 8-10workers | |
| Power Requirement | Without dryer | 70KW | 80KW | 100KW | 100KW |
| With dryer | 100KW | 120KW | 130KW | 150KW | |
| Area of workshop | Without dryer | More than 200 M² |
More than 200 M² | More than 250 M² | More than 250 M² |
| With dryer | More than 400M² Dryer18M |
More than 400M² Dryer20M |
More than 520M² dryer30M | More than 520M² Dryer32M |
|
| Container Requirement | Without dryer | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 |
| With dryer | 40ft*4 | 40ft*4 | 40ft*5 | 40ft*5 | |
| Remarks: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client's plant. 3. The above specification is for reference only, due to continuous technology development, data will be updated from time to time. 4. Pulp Molding Equipment are non-standard equipment, we are able to provide customized solution according to specific requirements from customer. 5. Welcome to contact us anytime, our professional team will provide more effective help and supports for you. |
|||||
4*4 molds Egg carton Production line data
| Technical Parameters | ||
| Egg Carton mould quantity | 16pcs (4*4) | Container |
| Raw material | Waste paper |
About 40HQ*5 |
| Output for egg carton | 2600-3000pcs/hour | |
| Net weight per piece (10 hole) | 50g | |
| Waste paper consumption | 150kg/h | |
| Water consumption | 450kg/h | |
| Natural Gas consumption of the dryer | 80cbm/h around | |
| Electricity Power |
96kw Practical usage is 70% of this power 96kw. |
|
| Machine Weight | 45tons around | |
| Egg carton size | customized | |
| Area of workshop | no less than 30mL*15mW | |

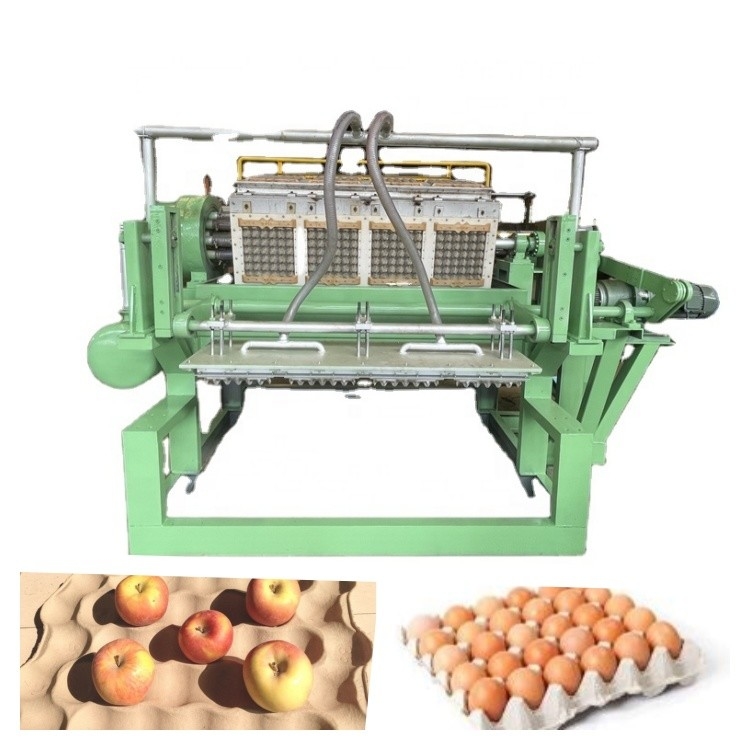

Paper egg trays are the final products that result from the process of manufacturing egg trays. These trays are essential in providing a protective layer to eggs as they are transported and stored. Typically, egg trays have 30 holes, but the machine can produce trays with 6, 10, 12, 15, 18, and 24 holes if the mold is changed. Additionally, the machine can be used to create other types of trays such as egg cartons, apple trays, shoe trays, seedling trays, and so on.
The raw materials required to make egg trays include craft paper, A4 paper, paper boxes, old newspapers, old books, cardboards, and other types of recycled paper.

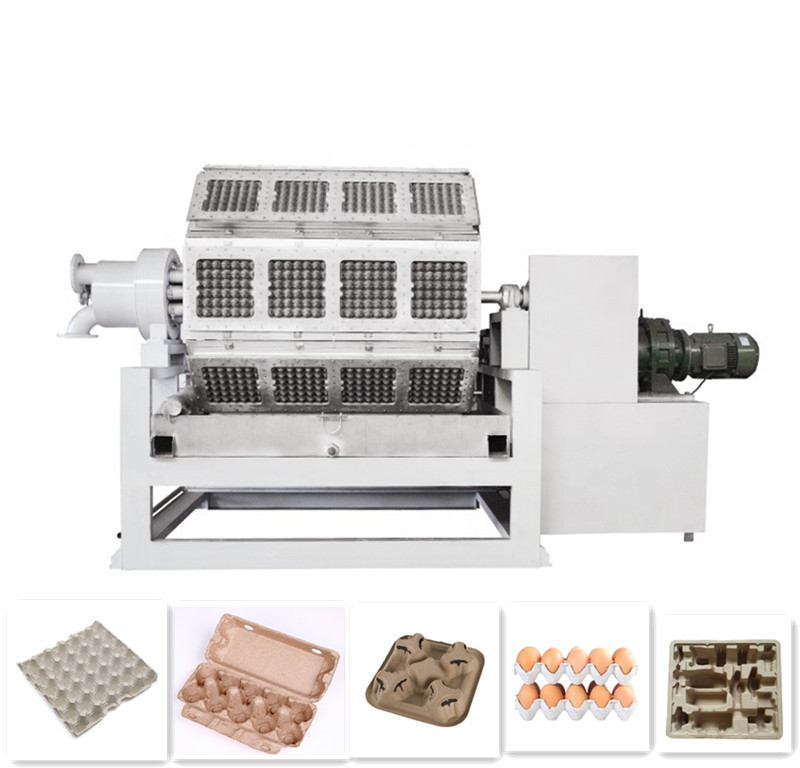

Our WANYOU brand offers product customization services for the WY-1 rotary egg tray machine. This egg tray forming machine is equipped with a pulp egg tray forming system and can also produce egg cartons, apple trays, and various paper trays.

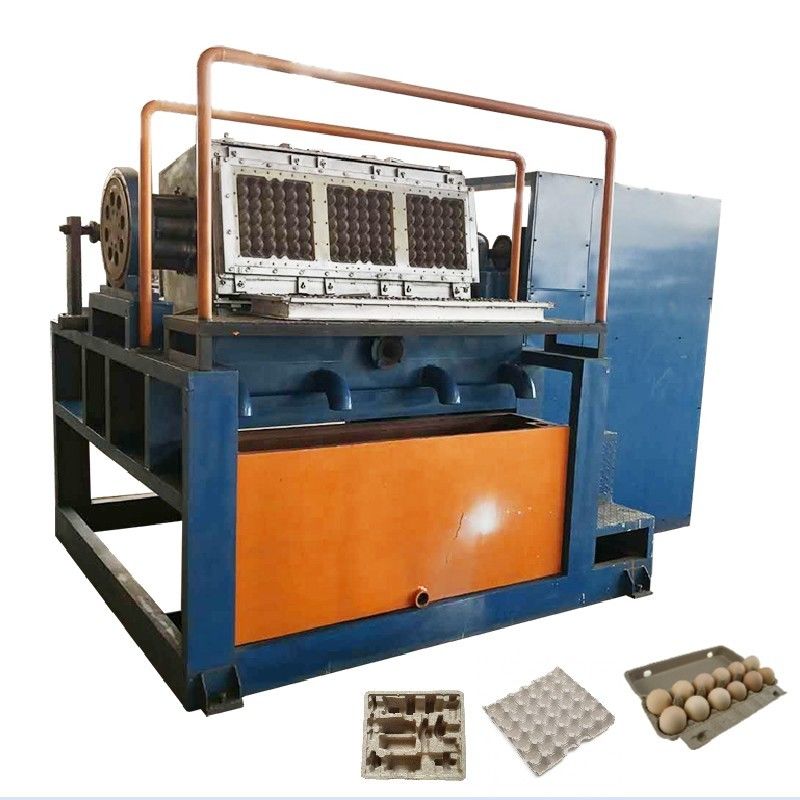

The machine is made of cast iron and steel materials and operates at an economic speed of 6s/times with a frequency of 50Hz. The raw material used is recycled paper, which supports sustainability efforts.
The minimum order quantity is 1 set with a price range of 6500usd-18000usd. The packaging details include plastic films, and the delivery time depends on the order. Payment terms accepted are TT, and the supply ability is 1 set/month.
Our egg carton machine is proudly made in Jinan, Shandong, ensuring high-quality standards. Contact us today to customize your order.
The Rotary Egg Tray Machine is a reliable and efficient solution for producing high-quality egg trays. Our technical support team is available to assist with any questions or concerns regarding the operation and maintenance of the machine. In addition, we offer a range of services to ensure optimal performance, including:
With our comprehensive support and services, you can be confident in the performance and longevity of your Rotary Egg Tray Machine.
Product Packaging:
Shipping:
Q: What is the brand name of the egg tray machine?
A: The brand name of the egg tray machine is WANYOU.
Q: What is the model number of the egg tray machine?
A: The model number of the egg tray machine is WY-1.
Q: Where is the egg tray machine manufactured?
A: The egg tray machine is manufactured in Jinan, Shandong.
Q: What is the minimum order quantity for the egg tray machine?
A: The minimum order quantity for the egg tray machine is 1 set.
Q: What is the price range of the egg tray machine?
A: The price range of the egg tray machine is between 6500usd-18000usd.
Q: What are the packaging details for the egg tray machine?
A: The packaging details for the egg tray machine are plastic films.
Q: What is the delivery time for the egg tray machine?
A: The delivery time for the egg tray machine depends on the order quantity and other factors.
Q: What are the payment terms for the egg tray machine?
A: The payment terms for the egg tray machine are TT.
Q: What is the supply ability of the egg tray machine?
A: The supply ability of the egg tray machine is 1 set per month.
