Place of Origin:
Jinan, Shandong, China
Brand Name:
WANYOU
Certification:
CE
Model Number:
WY-1
Video
Video
Video

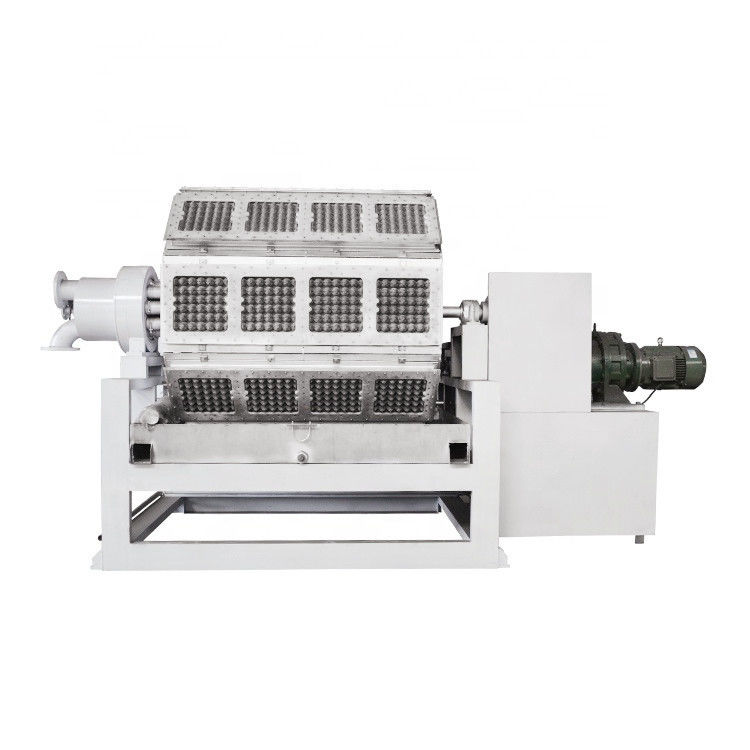

Rotary Paper Egg Tray Machine 2000-3000pcs/H Orange And Green Pulp Molding Machine For Waste Paper Recycling
Pulping System
1. Put the raw material and water into the hydraulic pulper, you will get the paper pulp after mixed 10-20 minutes.
2. Pulp pump will transfer the finished paper pulp into the slurry pool.
3. The pulp pond beater will mix the pulp concentration.
4. The pulp pump will transfer the pulp into forming machine.
Molding System

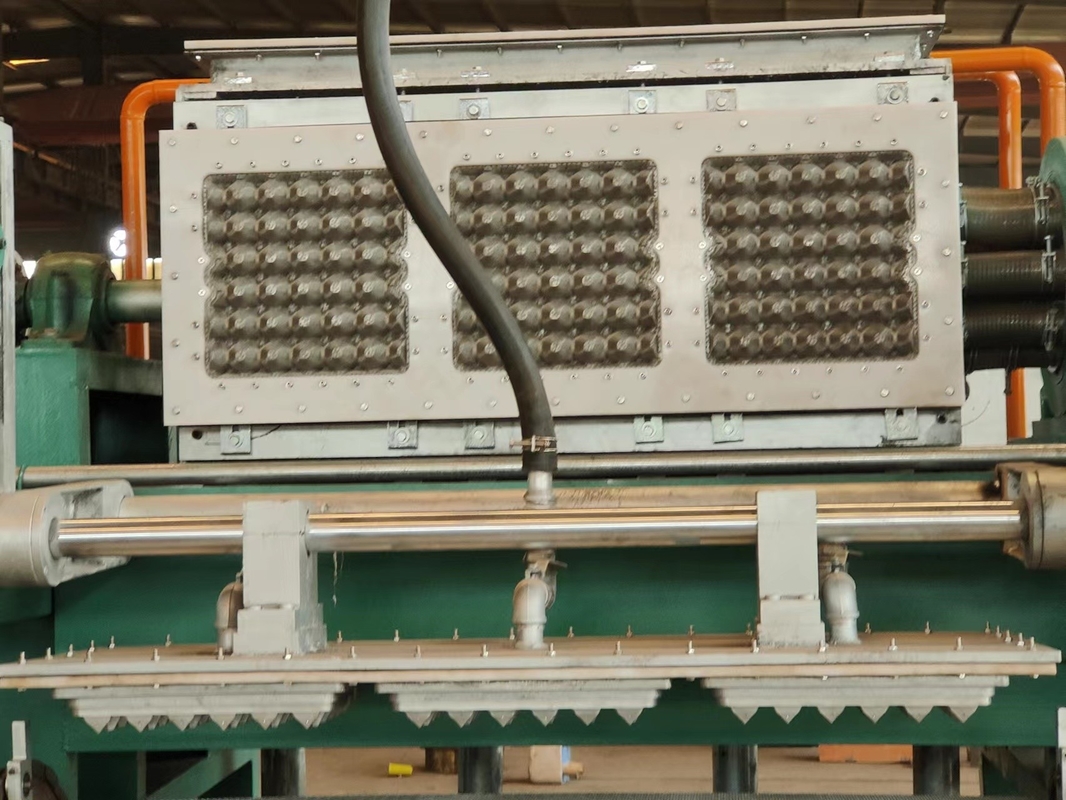

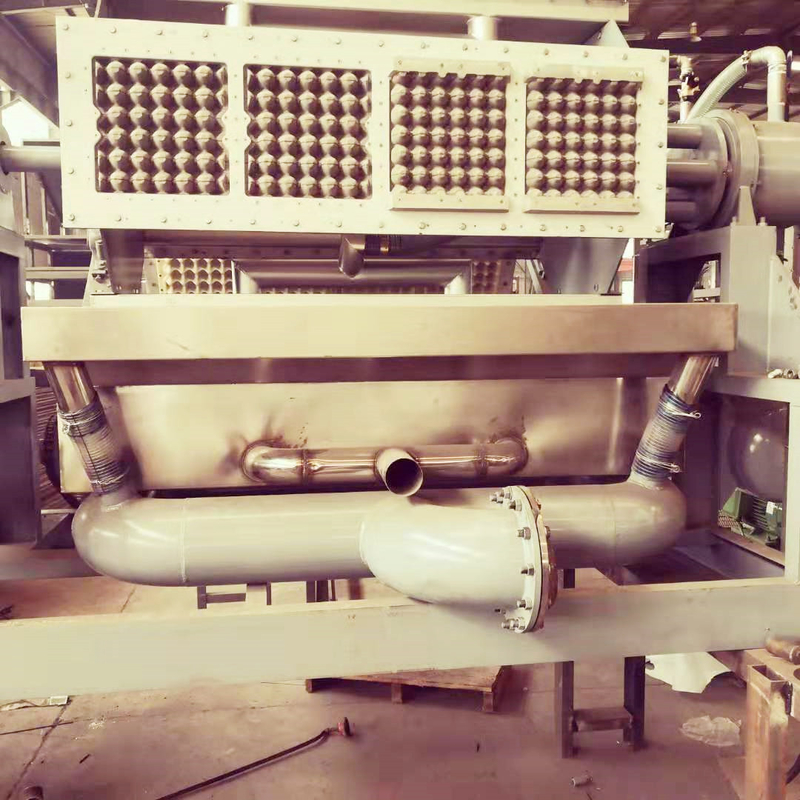

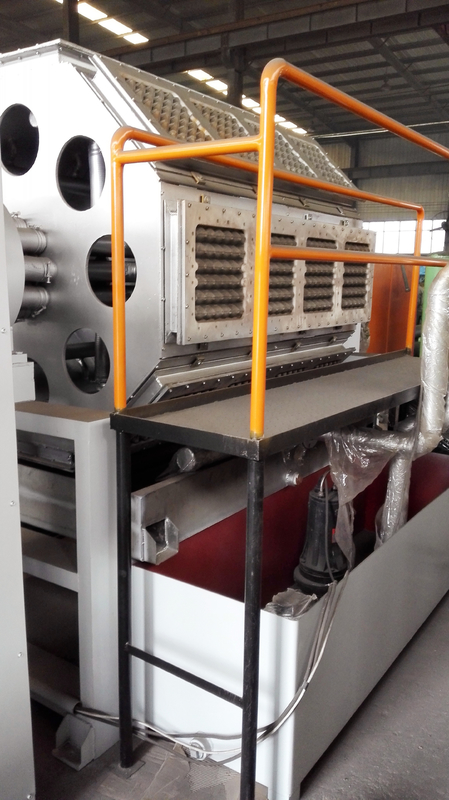

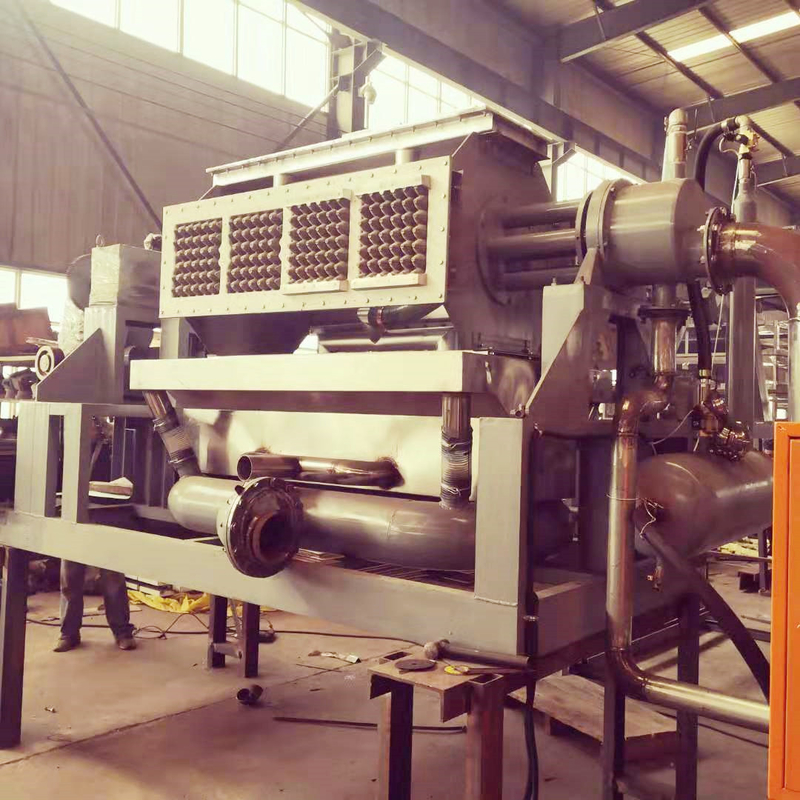

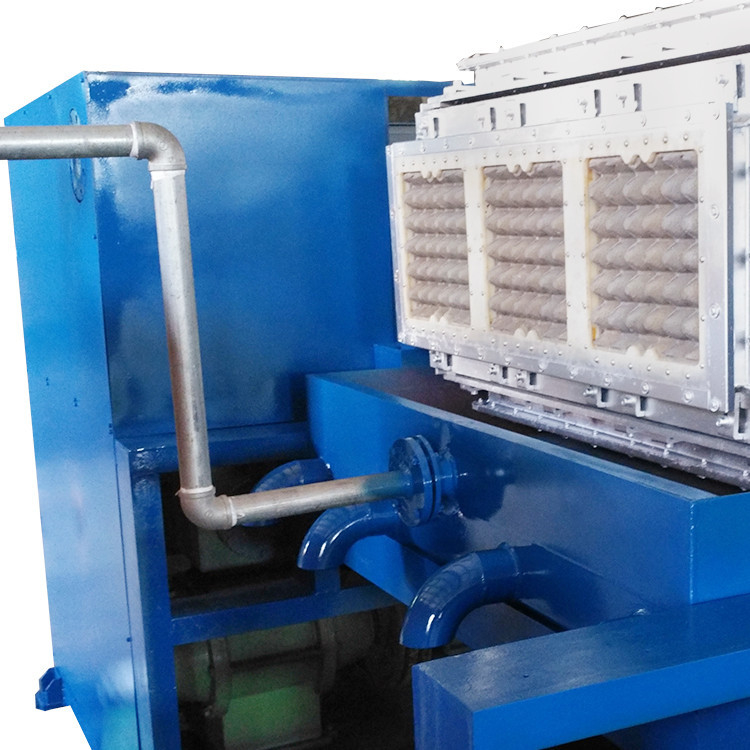

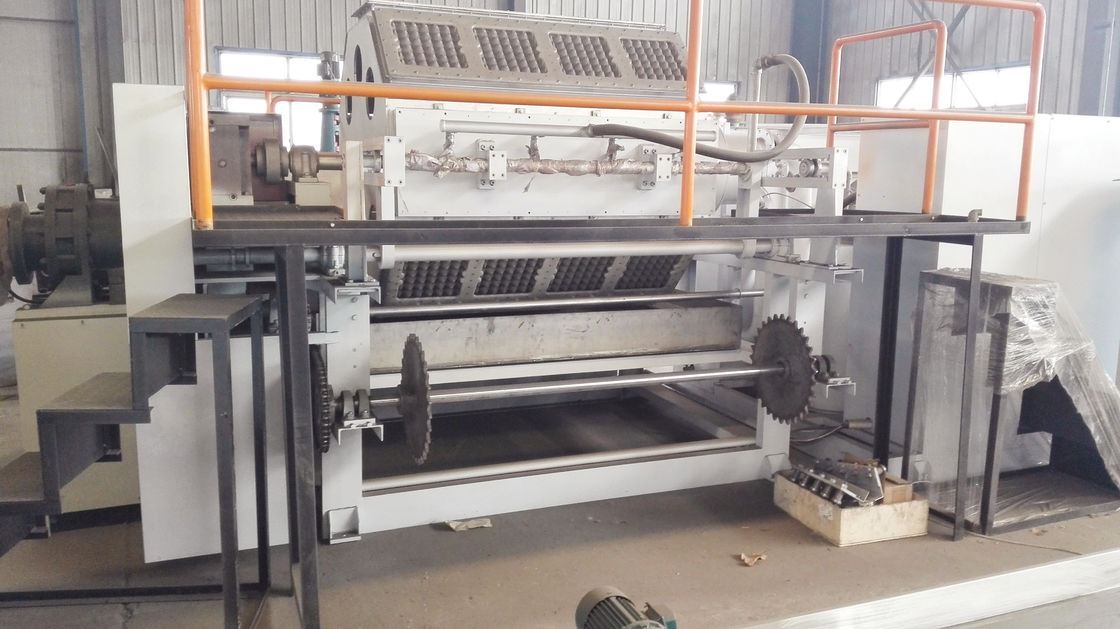

1. The molding machine is to adsorb the pulp to the molding mold, adsorb the pulp to the molding mold through the suction of the vacuum system to absorb the excess water into the gas-water separation tank, and then pump the water to the tank for storage.
2. The molding mold adsorbs the pulp and then forms it. and then the transfer mold takes out the finished product and sends it to the they drying tray.
Drying System
1.Heat source: natural gas, diesel, liquefied petroleum gas and other combustion liquids and gases.The transmission mode adopts industrial transmission chain to drive the net plate transmission, which runs in the drying line.
Packing
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
Terms of delivery
Latest date of shipment rime:15-20 working days after reciept prepayment.
Payment terms:
30% advance payment by TT, 70% before delivery the goods.Or 100% Paid by L/Cat sight against shipping documents
| Egg Tray Mold Quantity | 32pcs(4*8) | |
| Raw material | Waste paper | |
| Egg tray Capacity | 3000-4000pcs/hour | |
| Net weight per piece (gram) | 70g-75g | |
| Waste paper consumption | 225kg / hour | |
| Water Consumption | 0.6ton / hour | |
| Natural Gas Consumption of Dryer | 80cbm/h | |
| Worker requirement | 8-10workers | |
| Power Requirement | Without dryer | 100KW |
| With dryer | 150KW | |
| Area of workshop | Without dryer | More than 250 M² |
| With dryer | More than 520M² | |
| Container Requirement | Without dryer | 40ft*1 |
| With dryer | 40ft*5 | |
| Remarks: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client's plant. 3. The above specification is for reference only, due to continuous technology development, data will be updated from time to time. 4. Pulp Molding Equipment are non-standard equipment, we are able to provide customized solution according to specific requirements from customer. 5. Welcome to contact us anytime, our professional team will provide more effective help and supports for you. |
||
FAQ
Our production line has Fully Automatic and Semi Automatic two types , both have computer control system .
1. What is Semi Automatic type ?
If only order The 1st and 2nd compulsory parts , that's Semi Automatic because you'll have to do the work of drying up egg tray manually;
2. What is Fully Automat type ?
Meaning: the production line includes the Drying system and the whole procedure can be done Automatically .
Of course, the price and the required work space would have big difference from the semi-automatic type.
3. Quality
--- Our machines use UK Technical and part of the components are Germany-made (ex: Ball valve) .
-- Our machine is made by Tooling NOT by Welding , insuring a minimum of 10 years’ lifespan .
-- The Egg tray moulds material is Aluminium which can keep the fixed shape much better than that made of rubber material.
--- 99.9% of Success rate: Even if there is a failed egg tray , just throw it back to Pulping area and it can be re-used avoiding waste ;
--- Our machine has been sold to worldwide for over 10 years with continued re-order by some customers with their business grow .
4 .What capacity per hour do you offer ?
Our machines’ capacity is from 350pcs/hr to 6000pcs/hr.
5.Do your products come with a warranty ?
Yes , we have 2 years warranty according the international practice.
6.Can I customize this kind of machine from your factory?
Yes ,we offer custom-made service to our customers, you need to provide us some samples,such as photos,dimensions etc.
