Place of Origin:
Jinan, Shandong
Brand Name:
WANYOU
Model Number:
WY-1
The pulping system is an important process in the paper making industry. To obtain paper pulp, raw materials and water are mixed in the hydraulic pulper for 10-20 minutes. The pulp pump then transfers the finished paper pulp to the slurry pool, where the pulp pond beater mixes the pulp concentration. Finally, the pulp pump transfers the pulp into the forming machine.

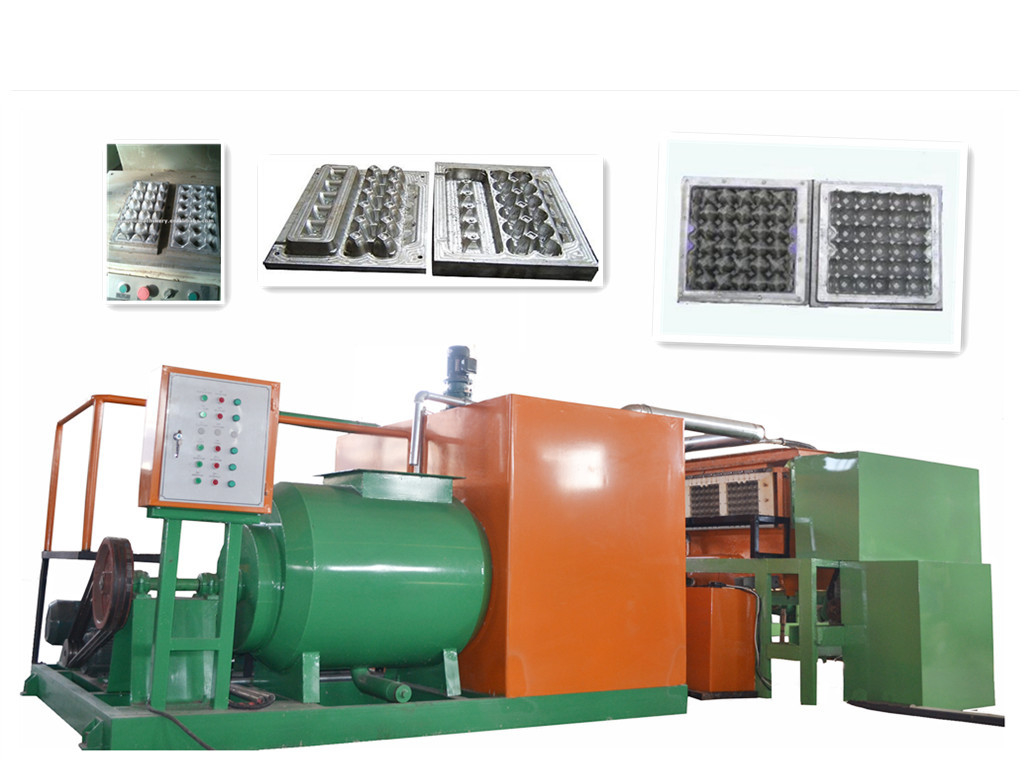

The molding system plays a crucial role in shaping the paper pulp into the desired form. Firstly, the molding machine absorbs the pulp to the molding mold using the suction of the vacuum system. The excess water is then absorbed into the gas-water separation tank before being pumped to the tank for storage. Then, the molding mold absorbs the pulp and forms it before the transfer mold takes out the finished product and sends it to the drying tray inside the dryer oven.

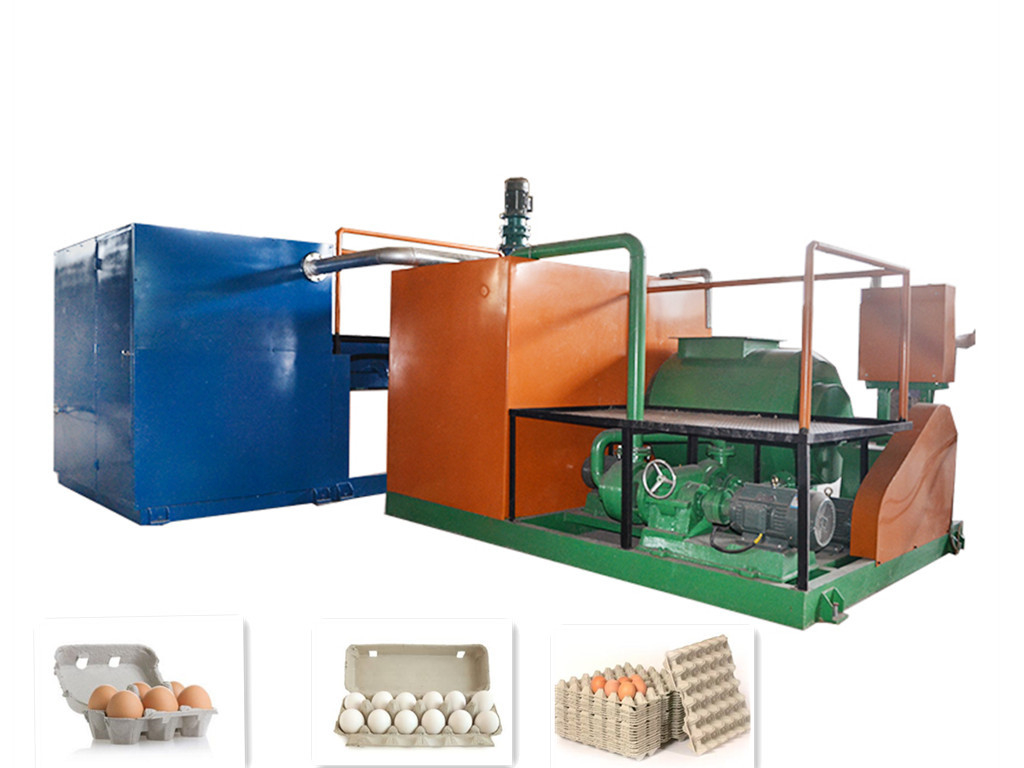

The drying system utilizes a range of heat sources, such as natural gas, diesel, liquefied petroleum gas, and other combustion liquids and gases. The transmission mode of the drying line employs industrial transmission chain to drive the net plate transmission, ensuring efficient drying of the paper pulp within.
The latest date of shipment time is 15-20 working days after receipt of the prepayment. Payment terms require a 30% advance payment by TT, with the remaining 70% to be paid before delivery of the goods. Alternatively, 100% payment can be made by L/C at sight against shipping documents.
Egg Tray Mold Quantity | 12pcs(3pcs*4) | 16pcs(4pcs*4) | 24pcs(3pcs*8) | 32pcs(4pcs*8) | 40(5pcs*8) | 48(6pcs*8) | |
Raw material | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | |
Egg tray Capacity(pcs/hour) | 2000 | 2500 | 3000 | 4000 | 5000 | 6000 | |
Net weight per piece (gram) | 70-75 | 70-75 | 70-75 | 70-75 | 70-75 | 70-75 | |
Waste paper consumption | 150kg/ h | 150kg/h | 188kg/h | 225kg / hour | 375kg/h | 450kg/h | |
Water Consumption | 0.45ton / h | 0.6ton/h | 0.68ton/h | 0.9ton / h | 1.1t/h | 1.35ton/h | |
Natural Gas Consumption of Dryer | 75cbm/h | 90cbm/h | 110cbm/h | 120cbm/h | 150cbm/h | 180cbm/h | |
Boiler model (natural gas fuel Kcal) | 800*103 | 1000*103 | 1200*103 | 1500*103 | 1800*103 | 2000*103 | |
Worker requirement | 5-7workers | 5-7workers | 8-10workers | 8-10workers | 10-12 | 10-12 | |
Power Requirement | Without dryer | 70KW | 80KW | 100KW | 100KW | ||
With dryer | 100KW | 120KW | 130KW | 150KW | 180kw | 200kw | |
Area of workshop | Without dryer | More than 200 M² |
More than 200 M² | More than 250 M² | More than 250 M² | ||
With dryer | More than 400M² Dryer18M |
More than 400M² Dryer20M |
More than 520M² dryer30M | More than 520M² Dryer32M |
600m2 Dryer 36m |
750m2 Dryer 40m |
|
Container Requirement | Without dryer | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | ||
With dryer | 40ft*4 | 40ft*4 | 40ft*5 | 40ft*5 | 40ft*6+20ft*1 | 40ft*7 | |
Remarks: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client's plant. 3. The above specification is for reference only, due to continuous technology development, data will be updated from time to time. 4. Pulp Molding Equipment are non-standard equipment, we are able to provide customized solution according to specific requirements from customer. 5. Welcome to contact us anytime, our professional team will provide more effective help and supports for you. |

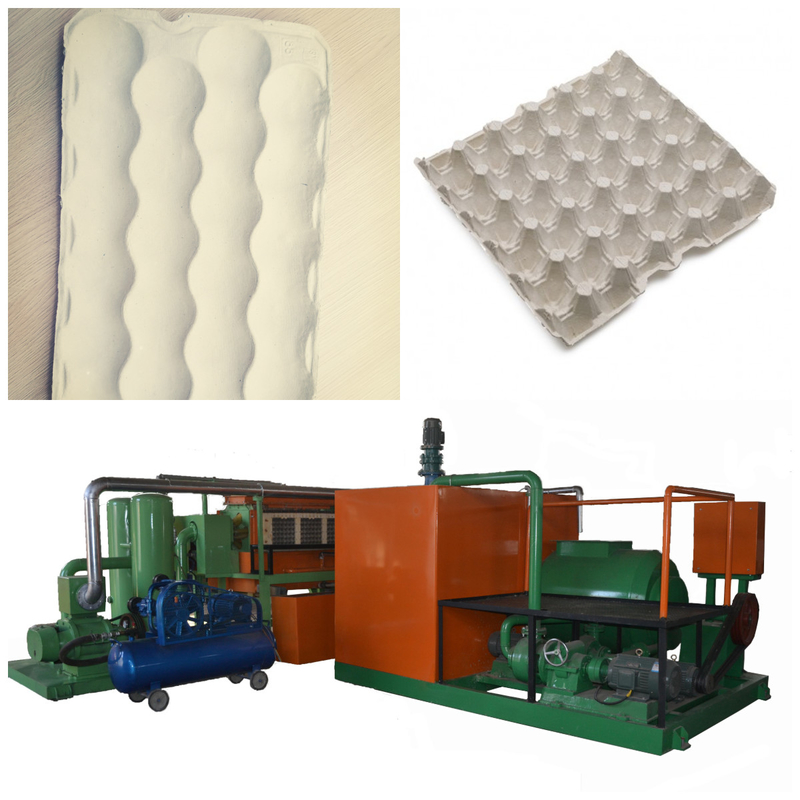

At the egg tray plant, the end product produced is the paper egg tray. These trays serve as a protective shell for eggs during transportation and storage. Typically, an egg tray is equipped with 30 holes.

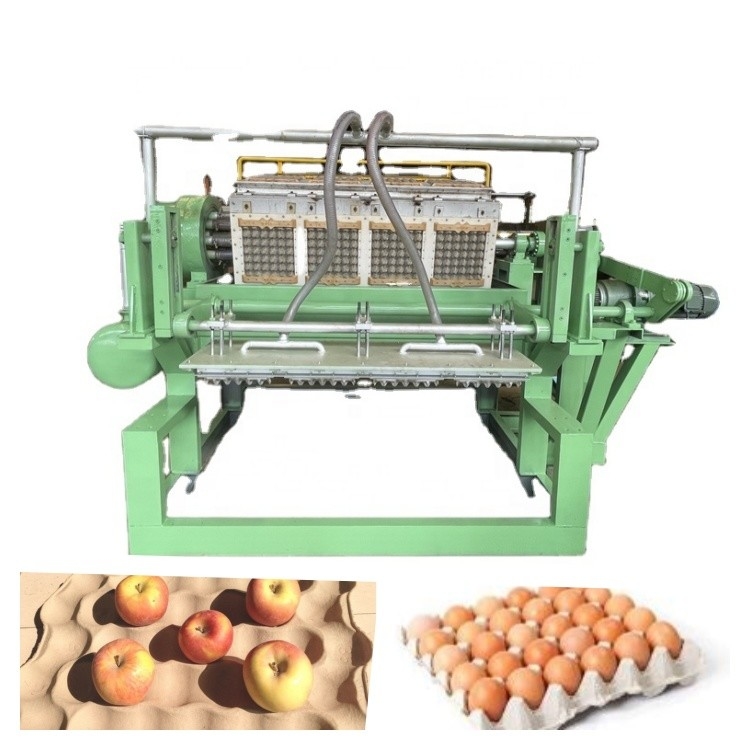

If you change the mold, the machine can also be used to produce egg trays and cartons with varying numbers of egg holes ranging from 6 to 24. Additionally, the machine can produce trays for other products like apples, shoes, and seedlings.
The making of egg trays requires the use of various types of recycled papers such as original wood pulp, craft paper, A4 paper, paper boxes, old newspapers, and books.
Brand Name: WANYOU
Model Number: WY-1
Place of Origin: Jinan, Shandong
Minimum Order Quantity: 1 set
Price: 6500usd-18000usd
Packaging Details: plastic films
Delivery Time: depends
Payment Terms: TT
Supply Ability: 1set/month
Color: Customized
Design Speed: Customized
Economic Speed: 6s/times
Raw Material: Recycled Paper
Material: Cast Iron, Steel
This Paper egg tray making machine, also known as Egg tray forming machine or Egg tray manufacturing machine, can be customized to meet your specific needs and requirements. Contact us to learn more.

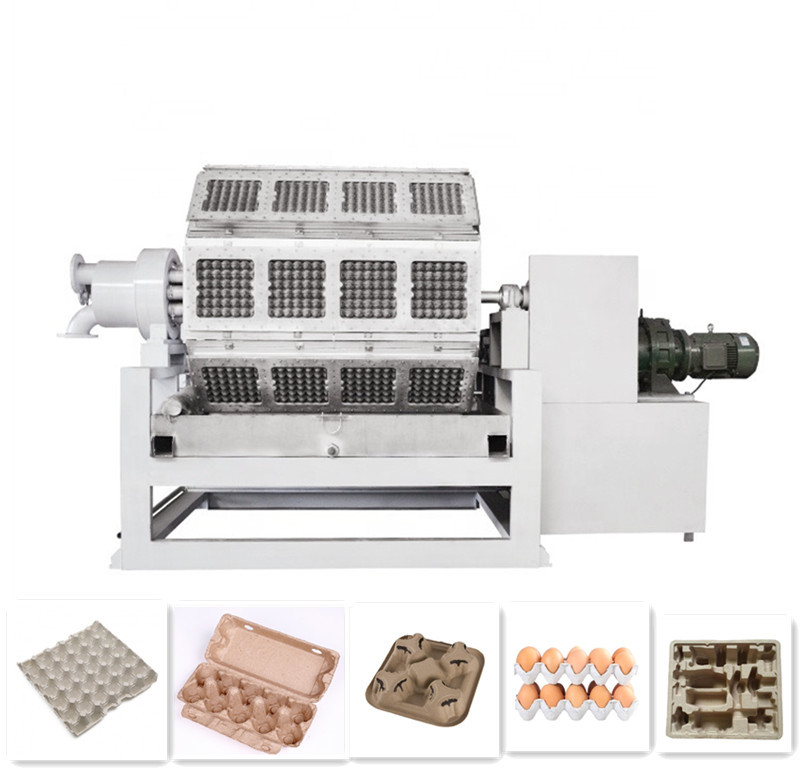

The Rotary Egg Tray Machine is a high-tech equipment designed to produce egg trays, fruit trays, and other pulp molding products. It is made of high-quality materials to ensure durability and efficiency. Our product technical support and services include:
- Installation and commissioning services
- Training and technical support for machine operation and maintenance
- Regular maintenance services to ensure machine performance and longevity
- Troubleshooting and repair services in case of machine malfunction
We are committed to providing our customers with the best technical support and services to ensure that their production processes run smoothly and efficiently. Our team of experienced technicians and engineers are always ready to assist you in any way possible.
Product Packaging:
The Rotary Egg Tray Machine will be securely packed in wooden crates to prevent any damage during transportation. The machine will be disassembled and each part will be wrapped in bubble wrap to provide extra protection.
Shipping:
The Rotary Egg Tray Machine will be shipped via sea or air freight, depending on the customer's preference and location. The shipping cost will be calculated based on the destination and the weight of the product. We will ensure that the machine is shipped in a timely manner and delivered to the customer's specified address.
Q: What is the brand name of this egg tray machine?
A: The brand name of this egg tray machine is WANYOU.
Q: Where is this egg tray machine made?
A: This egg tray machine is made in Jinan, Shandong.
Q: What is the minimum order quantity for this egg tray machine?
A: The minimum order quantity for this egg tray machine is 1 set.
Q: What is the price range of this egg tray machine?
A: The price range of this egg tray machine is between 6500usd-18000usd.
Q: What are the packaging details for this egg tray machine?
A: The packaging details for this egg tray machine is plastic films.
Q: What is the delivery time for this egg tray machine?
A: The delivery time for this egg tray machine depends on the order quantity and destination.
Q: What are the payment terms for this egg tray machine?
A: The payment terms for this egg tray machine is TT.
Q: What is the supply ability of this egg tray machine?
A: The supply ability of this egg tray machine is 1 set per month.
