Place of Origin:
Jinan, Shandong
Brand Name:
WANYOU
Model Number:
WY-1
To create paper pulp, the raw material and water are added to the hydraulic pulper and mixed for 10-20 minutes. The finished pulp is then transferred via the pulp pump to the slurry pool. The pulp pond beater mixes the pulp concentration before transferring it to the forming machine.
The molding machine uses a vacuum system to absorb the pulp into the molding mold and remove excess water into the gas-water separation tank. The molding mold absorbs the pulp and forms it before the transfer mold takes out the finished product and sends it to the drying tray inside the dryer oven.
The drying system utilizes natural gas, diesel, liquefied petroleum gas, and other combustion liquids and gases as the heat source. The system uses an industrial transmission chain drive to drive the net plate transmission, which runs in the drying line.
The products are packed using waterproof materials according to international export standards in 20ft, 40ft, or 40hp containers. Equipment fittings, electric motor, and power cabinet are packaged in wooden cases or iron boxes, while other equipment is packed utilizing color-striped plastic cloth. Custom packing requirements are also available.
The latest date for shipment is 15-20 working days after receipt of prepayment. Payment terms require a 40% advance payment by TT and 60% before delivery of the goods, or payment of 100% by L/C at sight against shipping documents.
Paper egg trays are the final products of an egg tray plant. Its primary function is to serve as a protective shell for eggs during transportation and storage. Typically, an egg tray has 30 holes. However, the machine can produce egg trays or cartons with 6 holes, 10 holes, 12 holes, 15 holes, 18 holes, 24 holes, or even trays for other purposes such as apple trays, shoe trays, and seedling trays by simply changing the mold.
The materials used to make egg trays include raw materials such as original wood pulp, craft paper, A4 paper, and recycled papers such as paper boxes, old newspapers, and old books, among others.
| Egg Tray Mold Quantity | 12pcs(3pcs*4) | 16pcs(4pcs*4) | 24pcs(3pcs*8) | 32pcs(4pcs*8) | 40(5pcs*8) | 48(6pcs*8) | |
| Raw material | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | |
| Egg tray Capacity(pcs/hour) | 2000 | 2500 | 3000 | 4000 | 5000 | 6000 | |
| Net weight per piece (gram) | 70-75 | 70-75 | 70-75 | 70-75 | 70-75 | 70-75 | |
| Waste paper consumption | 150kg/ h | 150kg/h | 188kg/h | 225kg / hour | 375kg/h | 450kg/h | |
| Water Consumption | 0.45ton / h | 0.6ton/h | 0.68ton/h | 0.9ton / h | 1.1t/h | 1.35ton/h | |
| Natural Gas Consumption of Dryer | 75cbm/h | 90cbm/h | 110cbm/h | 120cbm/h | 150cbm/h | 180cbm/h | |
| Boiler model (natural gas fuel Kcal) | 800*103 | 1000*103 | 1200*103 | 1500*103 | 1800*103 | 2000*103 | |
| Worker requirement | 5-7workers | 5-7workers | 8-10workers | 8-10workers | 10-12 | 10-12 | |
| Power Requirement | Without dryer | 70KW | 80KW | 100KW | 100KW | ||
| With dryer | 100KW | 120KW | 130KW | 150KW | 180kw | 200kw | |
| Area of workshop | Without dryer | More than 200 M² |
More than 200 M² | More than 250 M² | More than 250 M² | ||
| With dryer | More than 400M² Dryer18M |
More than 400M² Dryer20M |
More than 520M² dryer30M | More than 520M² Dryer32M |
600m2 Dryer 36m |
750m2 Dryer 40m |
|
| Container Requirement | Without dryer | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | ||
| With dryer | 40ft*4 | 40ft*4 | 40ft*5 | 40ft*5 | 40ft*6+20ft*1 | 40ft*7 | |
| Remarks: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client's plant. 3. The above specification is for reference only, due to continuous technology development, data will be updated from time to time. 4. Pulp Molding Equipment are non-standard equipment, we are able to provide customized solution according to specific requirements from customer. 5. Welcome to contact us anytime, our professional team will provide more effective help and supports for you. |
|||||||

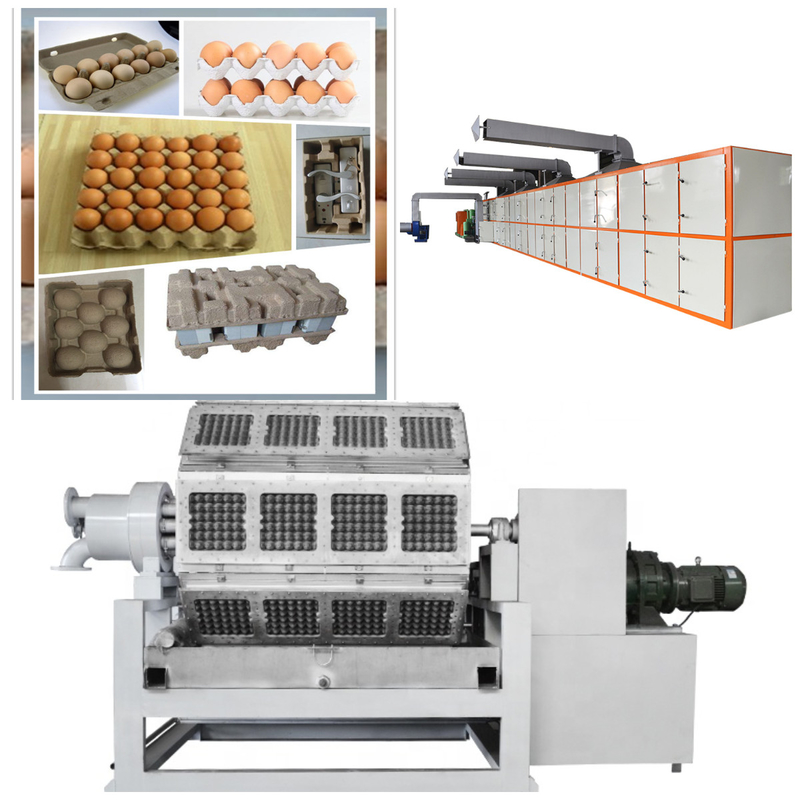

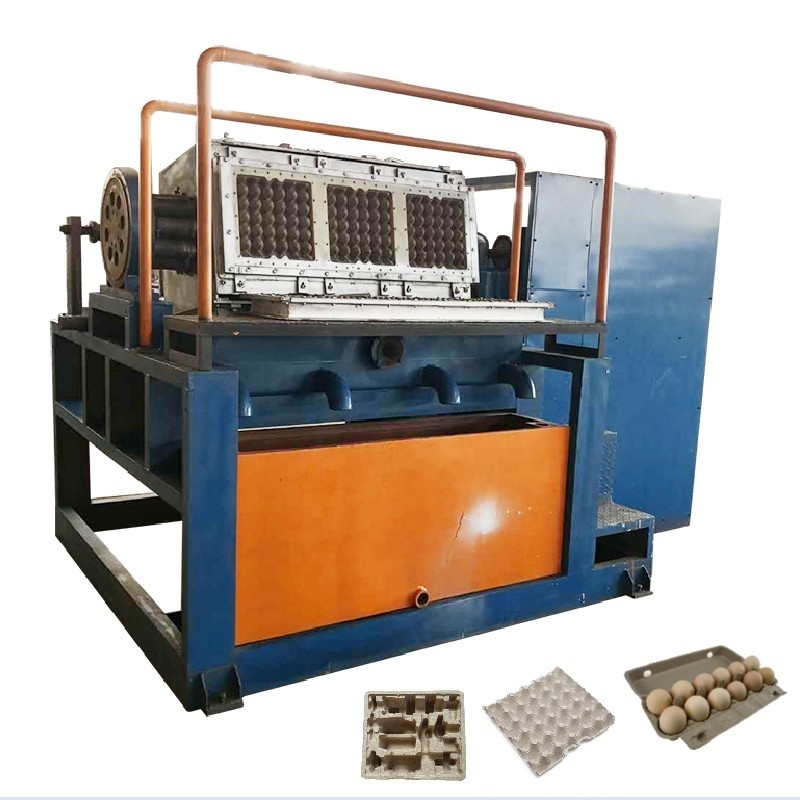

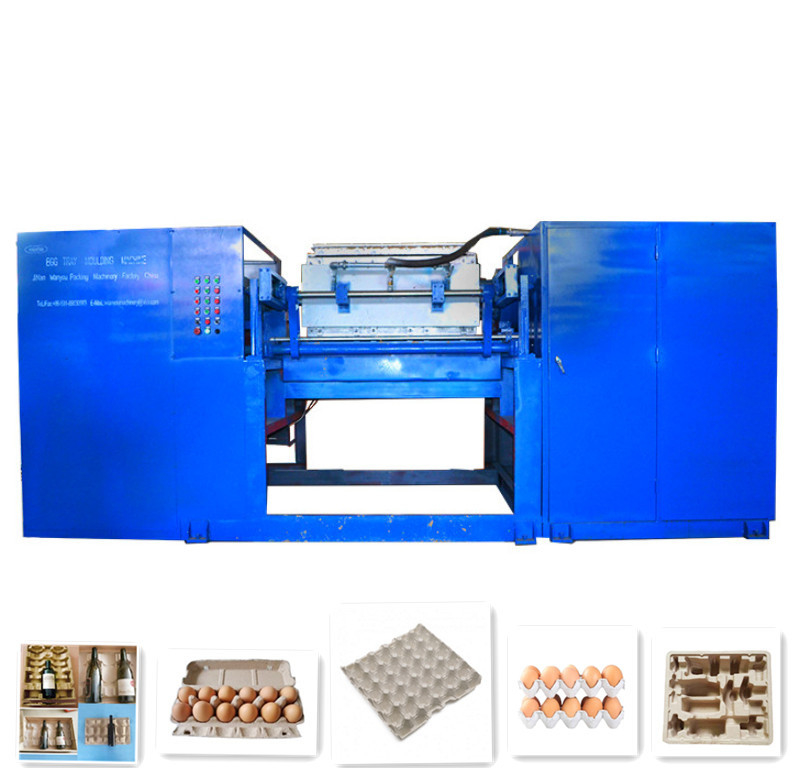

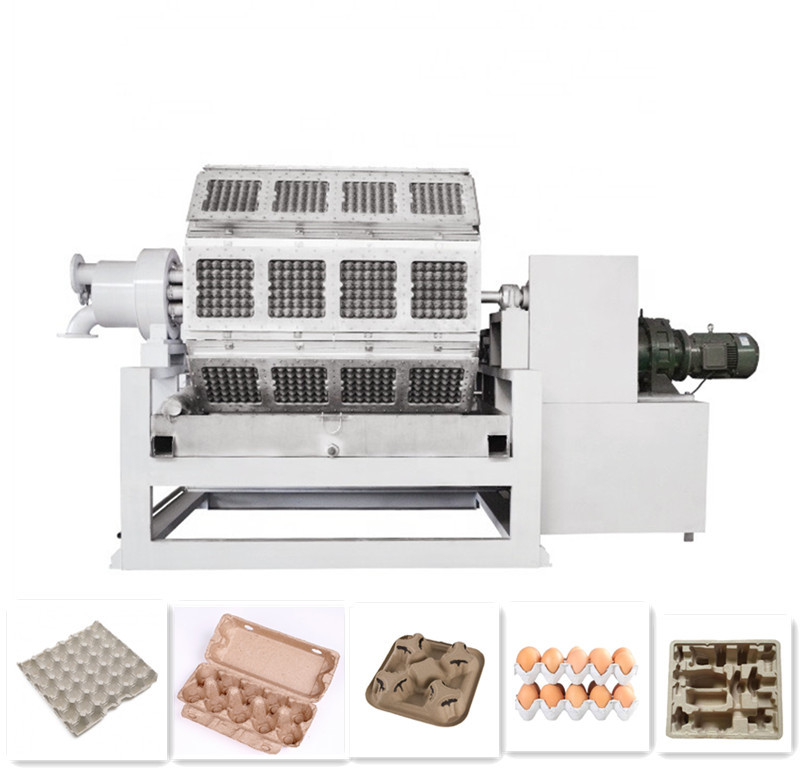

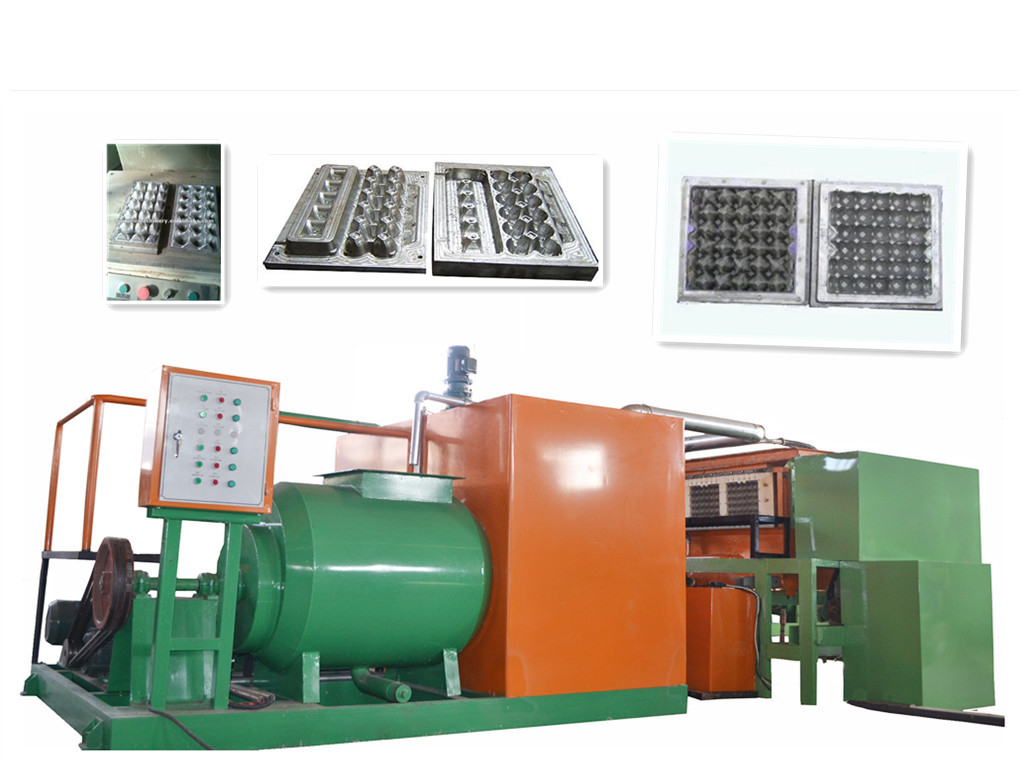

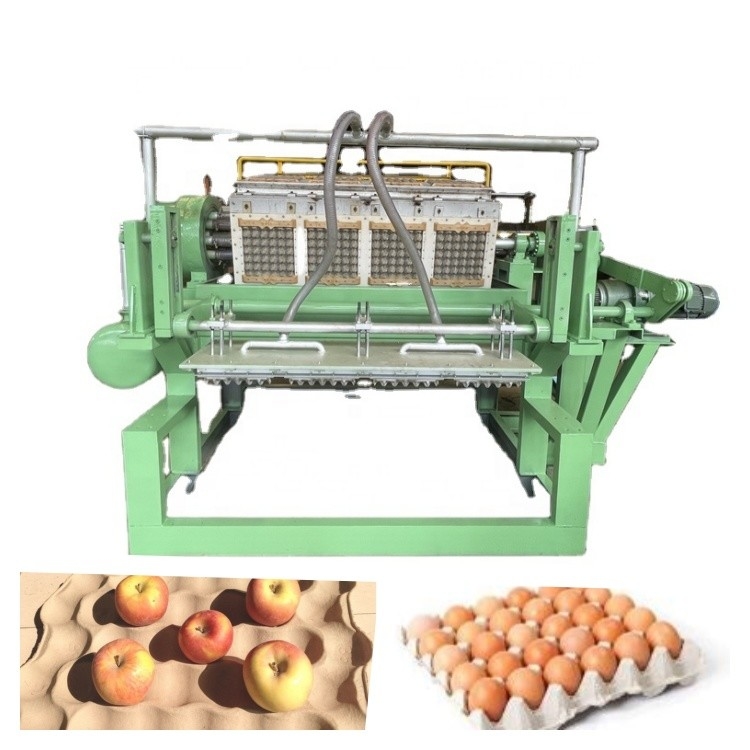

This egg tray shaping machine is ideal for producing egg trays and egg cartons efficiently.
Our Rotary Egg Tray Machine is designed to produce high-quality egg trays with maximum efficiency. We provide technical support and services to ensure that our customers are satisfied with the performance of the machine. Our team of experts is available to provide assistance with installation, operation, maintenance, and troubleshooting. We also offer training programs to help our customers operate the machine effectively and efficiently. In addition, we provide spare parts and upgrades to ensure that the machine remains in optimal condition. Our goal is to provide reliable and comprehensive support to our customers to help them achieve their production goals.
Product Packaging:
The Rotary Egg Tray Machine is securely packed in a wooden crate to ensure safe transportation. The machine is covered with foam padding and plastic wrap to protect it from scratches and other damages during shipping.
Shipping:
We ship the Rotary Egg Tray Machine via sea or air freight depending on the customer's location and preference. The delivery time may vary depending on the shipping method and destination. We will provide a tracking number once the product has been shipped.
Q1: What is the brand name of this egg tray machine?
A1: The brand name of this egg tray machine is WANYOU.
Q2: Where is this egg tray machine manufactured?
A2: This egg tray machine is manufactured in Jinan, Shandong.
Q3: What is the minimum order quantity for this egg tray machine?
A3: The minimum order quantity for this egg tray machine is 1 set.
Q4: What is the price range for this egg tray machine?
A4: The price range for this egg tray machine is between 6500usd-18000usd, depending on the specific model and customization options selected.
Q5: What are the packaging details for this egg tray machine?
A5: The packaging details for this egg tray machine include plastic films.
Q6: What is the delivery time for this egg tray machine?
A6: The delivery time for this egg tray machine depends on the specific model and customization options selected, as well as the location of the buyer.
Q7: What are the payment terms for this egg tray machine?
A7: The payment terms for this egg tray machine are TT (telegraphic transfer).
Q8: What is the supply ability for this egg tray machine?
A8: The supply ability for this egg tray machine is 1 set/month.
