Streamlined Operation Automatic Egg Tray Forming Machine With PLC Control

Streamlined Operation Automatic Egg Tray Forming Machine With PLC Control
Streamlined Operation Automatic Egg Tray Forming Machine With PLC Control
Streamlined Operation Automatic Egg Tray Forming Machine With PLC Control Streamlined Operation Automatic Egg Tray Forming Machine With PLC Control Streamlined Operation Automatic Egg Tray Forming Machine With PLC Control Streamlined Operation Automatic Egg Tray Forming Machine With PLC Control Streamlined Operation Automatic Egg Tray Forming Machine With PLC Control Streamlined Operation Automatic Egg Tray Forming Machine With PLC Control Streamlined Operation Automatic Egg Tray Forming Machine With PLC Control

Large Image :  Streamlined Operation Automatic Egg Tray Forming Machine With PLC Control

Product Details:
Place of Origin: Jinan, Shandong
Brand Name: WANYOU
Model Number: WY-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 6500usd
Packaging Details: plastic films
Delivery Time: depends
Payment Terms: TT
Supply Ability: 1set/month

Streamlined Operation Automatic Egg Tray Forming Machine With PLC Control

Description
Speed: 20-30pcs/min Voltage: 380V
Power: Depends On Final Machine Capacity Type: Automatic
Warranty: 1 Year Capacity: 300-1000pcs/h
Frequency: 50HZ Name: Apple Tray Making Machine
High Light:

PLC Automatic Egg Tray Forming Machine

,

Streamlined Operation Automatic Egg Tray Forming Machine

Streamlined Operation Automatic Egg Tray Forming Machine with PLC Control

Product Description:

The Apple Tray Making Machine is an automatic and highly efficient production line for making apple trays. It is powered by an adjustable capacity motor, and its size is 3000*2000*1800mm. It features PLC control for smooth and efficient operation and can reach up to a maximum speed of 20-30pcs/min, allowing for an output of 300-1000pcs/h. With this machine, you will be able to produce apple trays with perfect shape and size effortlessly and quickly. Its PLC control system ensures 100% accuracy and a consistent production rate. The Apple Tray Making Machine is perfect for any size apple tray production process, and it can save you time and money.

Streamlined Operation Automatic Egg Tray Forming Machine With PLC Control 0Streamlined Operation Automatic Egg Tray Forming Machine With PLC Control 1Streamlined Operation Automatic Egg Tray Forming Machine With PLC Control 2Streamlined Operation Automatic Egg Tray Forming Machine With PLC Control 3

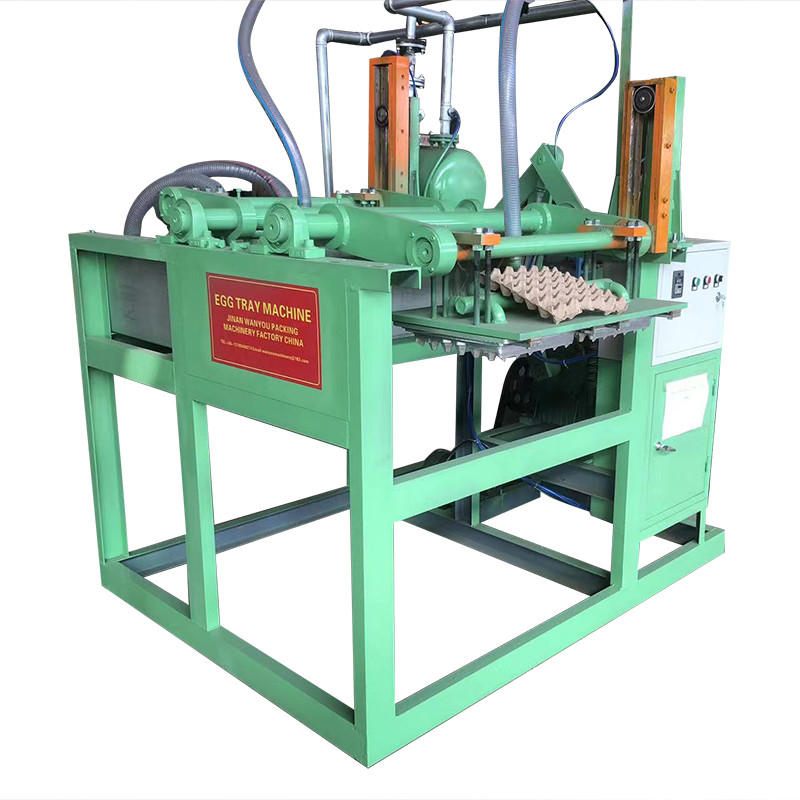

Egg tray forming machine is a kind of machine which absorbs paper pulp-the raw material, on the surface of mould by vacuum to get various shape and ratio of wet and dry by regulating time. After such working procedure as transferring moulds, releasing moulds to complete paper tray production.
Our forming machines adopts advanced PLC programmable controller; selecting of high quality electronic devices and pneumatic components; using stainless steel pulp barrels with high performance and long service life.
Our Egg Tray Machine production line has Fully Automatic and Semi Automatic two types , both have computer control system. If you don't want this drying system, it is also OK. Then you will have to do the work of drying up the product trays manually.
Pulp tray molding machine now is widely used in pulp molding products manufacturing, the raw material is waste paper like Newspaper, Carton, Paper box, Books, Corrugated paper etc.

Pulping System
1. Put the raw material and water into the hydraulic pulper, you will get the paper pulp after mixed 10-20 minutes.
2. Pulp pump will transfer the finished paper pulp into the slurry pool.
3. The pulp pond beater will mix the pulp concentration.
4. The pulp pump will transfer the pulp into forming machine.
Molding System
1. The molding machine is to adsorb the pulp to the molding mold, adsorb the pulp to the molding mold through the suction of the vacuum system to absorb the excess water into the gas-water separation tank, and then pump the water to the tank for storage.
2. The molding mold adsorbs the pulp and then forms it. and then the transfer mold takes out the finished product and sends it to the they drying tray.


Applications:

The Apple Tray Making Machine is a reliable and efficient machine designed and manufactured by WANYOU. With Model Number WY-1 and the Place of Origin Jinan, Shandong, the machine is of guaranteed quality with good performance. The Minimum Order Quantity is 1 set, and the Price is 6500usd. The product is wrapped with plastic films for safe delivery and the Delivery Time depends on the order. Customers will need to pay by TT and the Supply Ability is 1set/month. The Warranty is 1 Year. The power of the machine depends on the Final Machine Capacity while the Capacity is 300-1000pcs/h and the Speed is 20-30pcs/min. This Egg Tray Forming Machine is suitable for making Fruit Tray and other Fruit Tray Making Machine.

Technical data of 4 molds forming type egg tray machine

                          Main sections                               Equipment

Pulping system





Including :

mill pulp pump -1set

water pump-2sets

pulp pump -2sets

1M³pulping machine –1sets

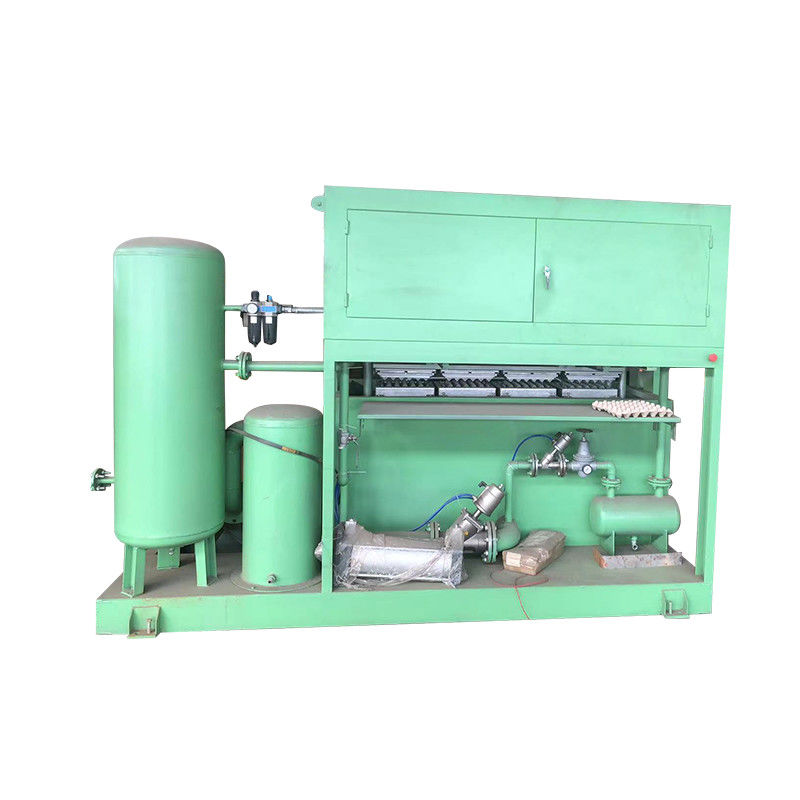

Forming system



Including

4 moulds forming machine -1set

Vacuum pump-1set

Compressor -2sets

Washer –1set

Vacuum tank-1pcs

Air tank—1pcs

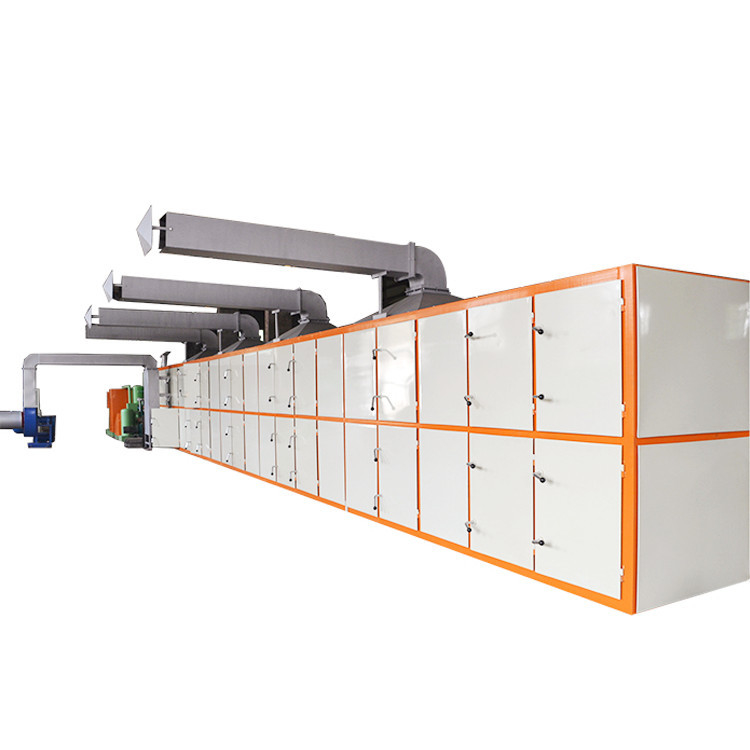

Drying system



Including

Drying oven –1set

(L 15M*W2M*H2.2M)

Chain and try –1sets

Hot air pipe –1sets

Chain wheel with shaft—1sets

Delivery belt –1set

Drive motor –1set

Boiler



Including

Boiler –1set

Natural gas burner(Riello)-1set

Fan with motor -1set

Electric control -1set

Customization:

Customized Apple Tray Making Machine

Brand Name: WANYOU
Model Number: WY-1
Place of Origin: Jinan, Shandong
Minimum Order Quantity: 1 set
Price: 6500usd
Packaging Details: plastic films
Delivery Time: depends
Payment Terms: TT
Supply Ability: 1set/month
Warranty: 1 Year
Type: Automatic
Speed: 20-30pcs/min
Name: Apple Tray Making Machine
Control: PLC Control

Keywords: Apple Tray Making Machine, Egg Tray Making machine, Automatic Egg Tray Machine, PLC Control


Support and Services:

Apple Tray Making Machine Technical Support and Services

Our Apple Tray Making Machine is backed by a strong technical support and services team that can help you maintain optimum performance. Our specialized personnel are available to assist with installation, maintenance, programming, and troubleshooting.
We offer:

  • 24/7 online technical support
  • On-site service and repair
  • Telephone support
  • Remote diagnostics
  • Software updates
  • Training and education

For more information about our technical support and services, please visit our website or contact us directly.



Packing and Shipping:

Packaging and Shipping for Apple Tray Making Machine
The Apple Tray Making Machine is packaged in a cardboard box and secured with styrofoam cushioning. The box is then sealed with packing tape. All machines are shipped with a tracking number and insurance.
The machines are shipped via air freight or cargo ship, depending on the destination. Delivery services such as DHL, FedEx, and UPS are also available.



FAQ:

Q: What is the brand name of Apple Tray Making Machine?
A: The brand name of the Apple Tray Making Machine is WANYOU.
Q: What is the model number of Apple Tray Making Machine?
A: The model number of Apple Tray Making Machine is WY-1.
Q: Where is the place of origin of Apple Tray Making Machine?
A: The place of origin of Apple Tray Making Machine is Jinan, Shandong.
Q: What is the minimum order quantity of Apple Tray Making Machine?
A: The minimum order quantity of Apple Tray Making Machine is 1 set.
Q: How much is Apple Tray Making Machine?
A: The price of Apple Tray Making Machine is 6500usd.
