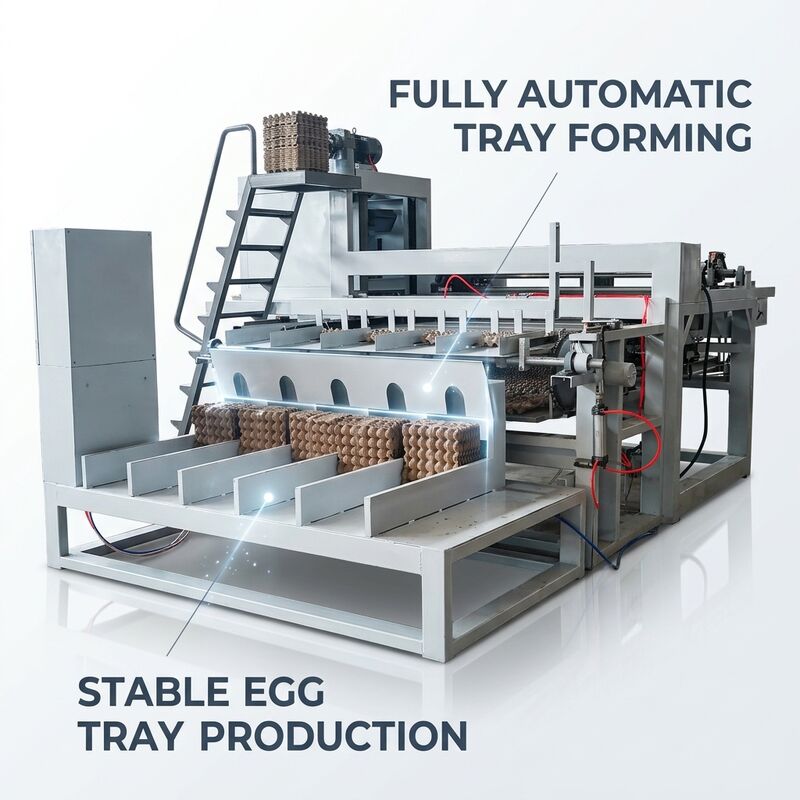

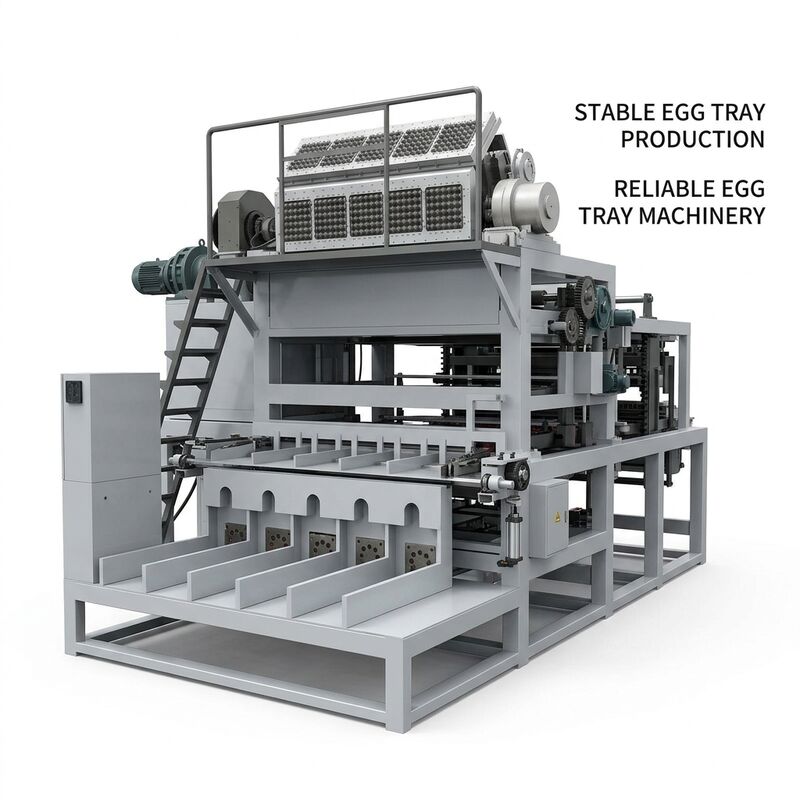

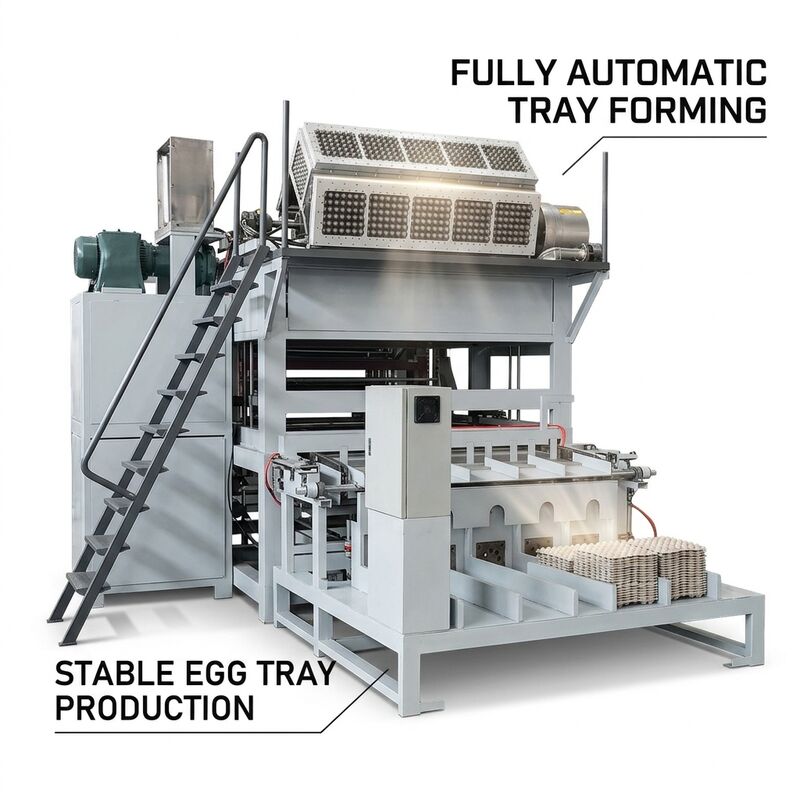

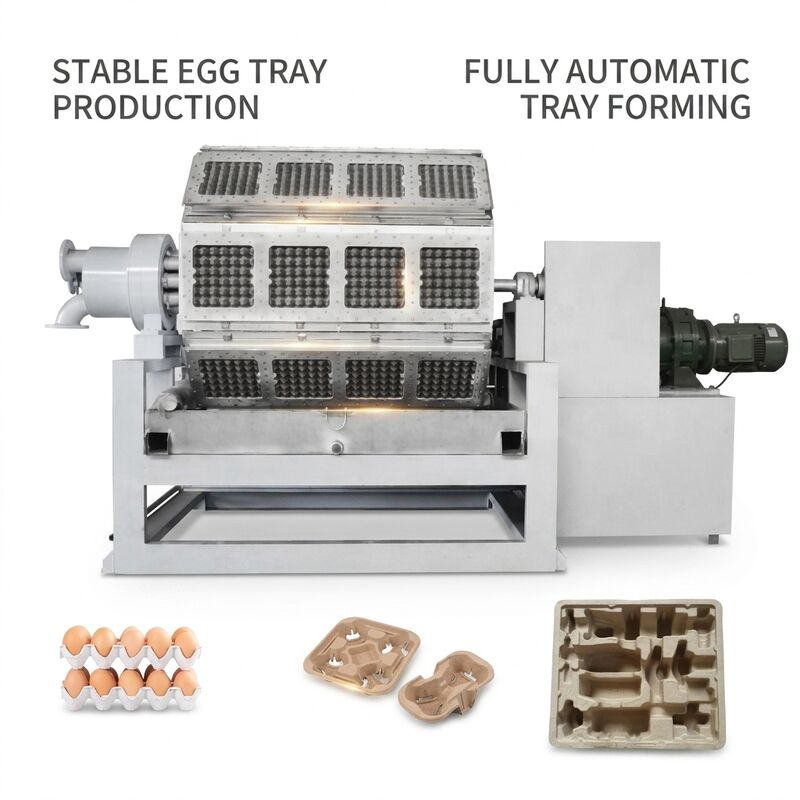

Egg Tray Making Machine with 10,000pcs/h Output, Automatic Stacking System and Recycled Paper Input for Efficient Paper Pulp Tray Production

Egg Tray Making Machine with 10,000pcs/h Output, Automatic Stacking System and Recycled Paper Input for Efficient Paper Pulp Tray Production

Place of Origin:

Jinan, Shandong, China

Brand Name:

Wanyou

Model Number:

WY-1

Contact Us
Request A Quote
Egg Tray Making Machine with 10,000pcs/h Output, Automatic Stacking System and Recycled Paper Input for Efficient Paper Pulp Tray Production
Egg Tray Making Machine with 10,000pcs/h Output, Automatic Stacking System and Recycled Paper Input for Efficient Paper Pulp Tray Production Egg Tray Making Machine with 10,000pcs/h Output, Automatic Stacking System and Recycled Paper Input for Efficient Paper Pulp Tray Production Egg Tray Making Machine with 10,000pcs/h Output, Automatic Stacking System and Recycled Paper Input for Efficient Paper Pulp Tray Production Egg Tray Making Machine with 10,000pcs/h Output, Automatic Stacking System and Recycled Paper Input for Efficient Paper Pulp Tray Production Egg Tray Making Machine with 10,000pcs/h Output, Automatic Stacking System and Recycled Paper Input for Efficient Paper Pulp Tray Production Egg Tray Making Machine with 10,000pcs/h Output, Automatic Stacking System and Recycled Paper Input for Efficient Paper Pulp Tray Production
Product Details
Voltage:
380V/50hz
Warranty:
1 Year
Raw Material Input:
Any Kind Waste Paper, Newspapers, Books, Cardboards, Etc.
Automation Level:
Semi-automatic / Fully Automatic Options Available
Spare Parts:
One Year Replaced
Power Consumption:
260 KW Per Hour Actual Usage
Collection:
Automatic Stacking Machine
Water Consumption:
2250 Kg / H
Frame:
45# Steel
Fuel Type:
Natural Gas, Diesel Oil, Coal
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
in container
Delivery Time
100 working days
Payment Terms
Western Union,MoneyGram,T/T
Supply Ability
1 set per month
RELATED PRODUCTS
Good price WANYOU Recycled Paper Pulp Molding 6*8 molds 5000-6000pcs / Hour Automatic Egg Tray Making Machine Pulp Molding Production Line PLC Controlled online Video

WANYOU Recycled Paper Pulp Molding 6*8 molds 5000-6000pcs / Hour Automatic Egg Tray Making Machine Pulp Molding Production Line PLC Controlled

Get Best Price
Good price 1500pcs/h Small Business Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable Aluminum Molds PLC Controlled online Video

1500pcs/h Small Business Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable Aluminum Molds PLC Controlled

Get Best Price
Good price 1000pcs/h Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable PLC Controlled online Video

1000pcs/h Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable PLC Controlled

Get Best Price
Good price Semi Automatic Egg Tray Machine / Apple Tray Making Machine For Paper Pulp Trays With Aluminum Molds And Manual Drying After Forming Process online Video

Semi Automatic Egg Tray Machine / Apple Tray Making Machine For Paper Pulp Trays With Aluminum Molds And Manual Drying After Forming Process

Get Best Price
Contact Us
+8615665703348
jnrunliang@hotmail.com
Contact Now
Product Description
Apple Tray Making Machine With Complete Pulping Forming Drying And Automatic Stacking Systems

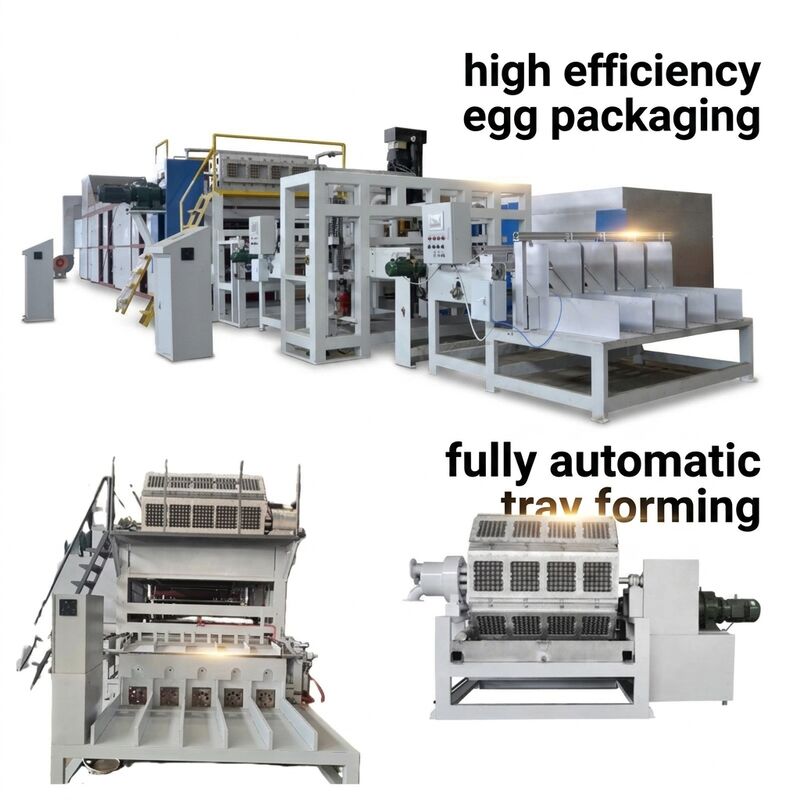

Complete production line for manufacturing recycled paper trays including apple trays and egg trays. The system integrates pulping, forming, drying, and automatic stacking processes for efficient paper tray production.
Production Line Sections
1. Pulping System
  • Converts waste paper into pulp using hydrapulper, pump, disk mill (refiner), and mixer
2. Forming System
  • Transforms pulp into wet trays using molding machine, molds, vacuum pumps, air compressor, and electrical controller
Egg Tray Making Machine with 10,000pcs/h Output, Automatic Stacking System and Recycled Paper Input for Efficient Paper Pulp Tray Production 0 Egg Tray Making Machine with 10,000pcs/h Output, Automatic Stacking System and Recycled Paper Input for Efficient Paper Pulp Tray Production 1
3. Drying System
  • Dries wet trays for immediate use with oven, chains, trays, heating pipes, fans, and boiler
Egg Tray Making Machine with 10,000pcs/h Output, Automatic Stacking System and Recycled Paper Input for Efficient Paper Pulp Tray Production 2 Egg Tray Making Machine with 10,000pcs/h Output, Automatic Stacking System and Recycled Paper Input for Efficient Paper Pulp Tray Production 3
4. Automatic Stacker
  • Features automatic counting and stacking with preset quantity capability (100pcs or 200pcs per pile)
  • Includes alarm system and simultaneous product stacking for direct packaging
Egg Tray Making Machine with 10,000pcs/h Output, Automatic Stacking System and Recycled Paper Input for Efficient Paper Pulp Tray Production 4
Technical Parameters
Item Parameter
Design output 10,000pcs/h
Waste paper consumption 750kg/h
Water consumption 2250kg/h
Coal consumption Around 250-300kg/h
Egg tray model 30 hole
Egg tray size 295*295mm
Egg tray weight 70-75g
Workshop requirement Larger than 60mL × 10mW × 5mH
Workers 7-8 persons with dryer
Machine size Around 50mL × 4mW × 3mH
Installed Power 370.9kw
Motor efficiency 70% × 370.9kw = 259.63kw
Payment and Delivery
Trade terms EXW Jinan
Delivery time About 100 working days after receiving deposit
Payment term T/T 40% Deposit + 60% Balance
Time of payment Production begins after deposit payment; balance paid before delivery
Warranty time 1 year after machine receipt
Terms of delivery EXW Jinan, China
Package 7 × 40ft container
Welcome for more information.
WhatsApp & WeChat: +86 15665703348
