Place of Origin:
Jinan, Shandong, China
Brand Name:
WANYOU
Certification:
CE
Model Number:
WY-1
Video
Video
Video

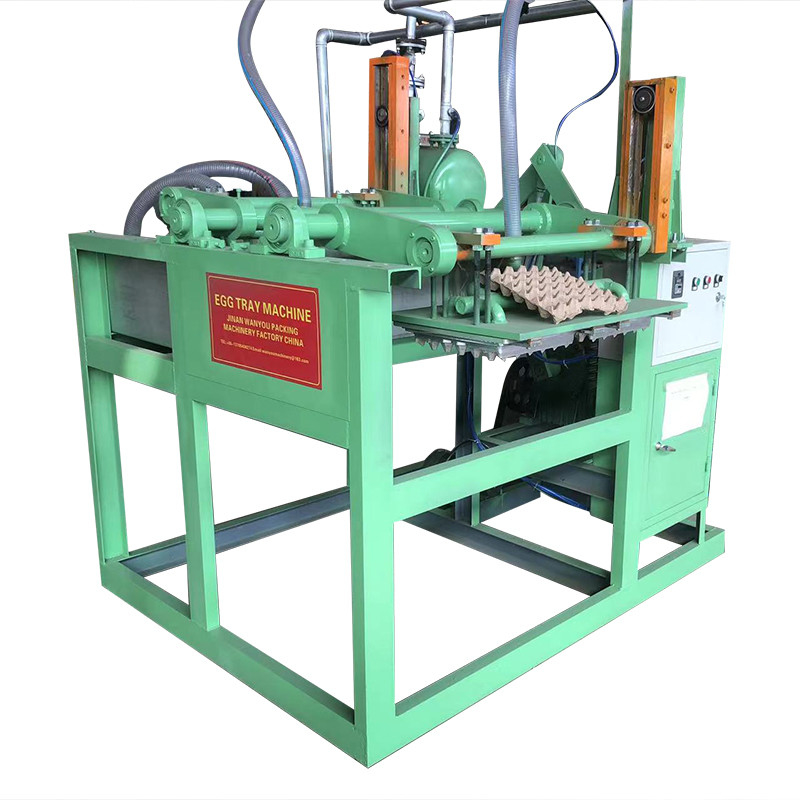

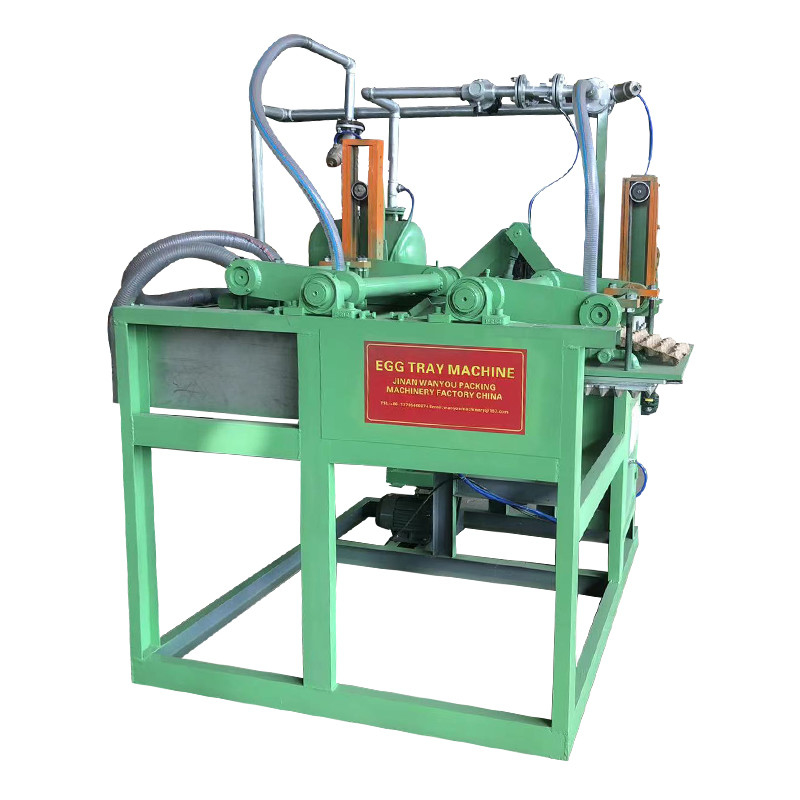

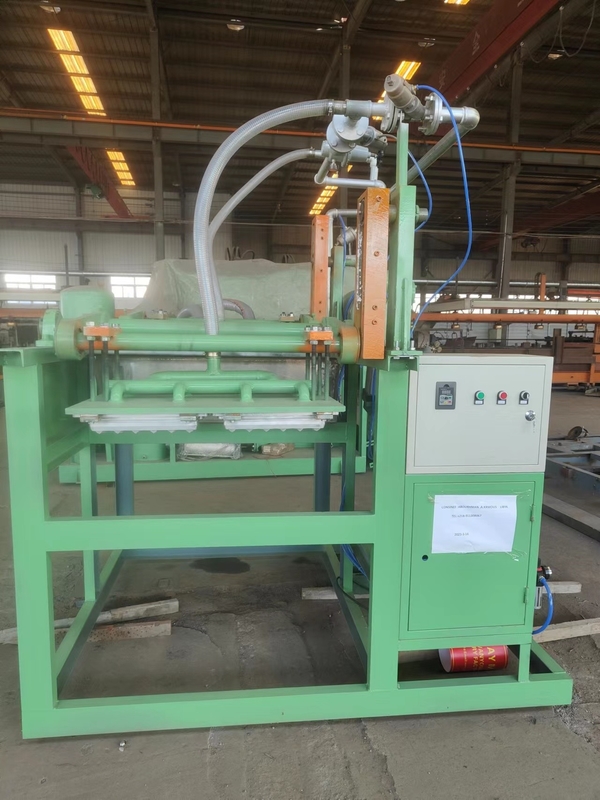

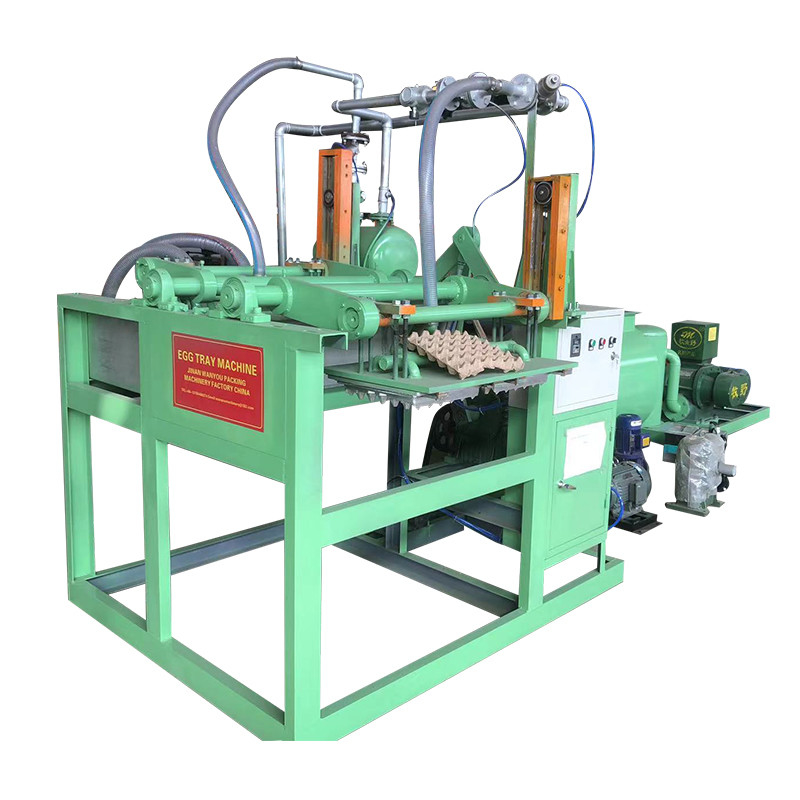

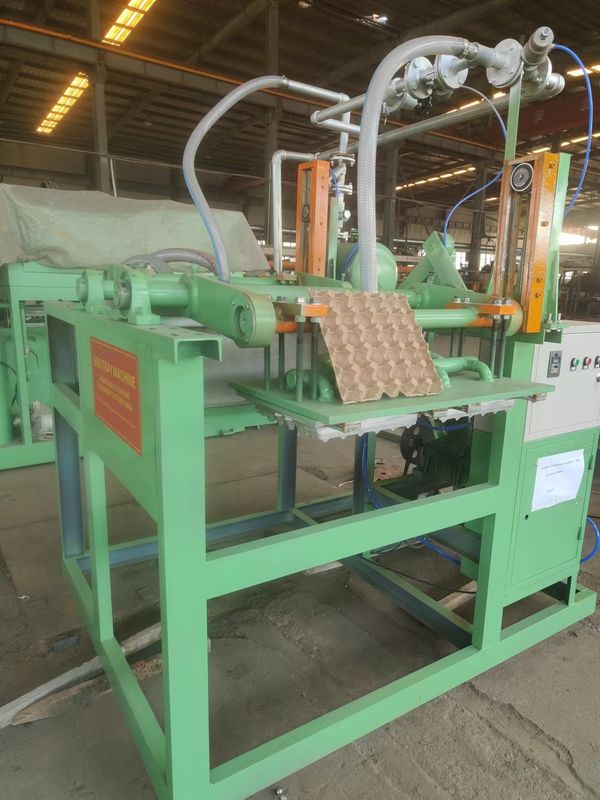

Simple Structure Small Paper Egg Tray Forming Machine 700pcs/H 2 Forming Molds Egg Tray Making Machine
Pulping System
1. Put the raw material and water into the hydraulic pulper, you will get the paper pulp after mixed 10-20 minutes.
2. Pulp pump will transfer the finished paper pulp into the slurry pool.
3. The pulp pond beater will mix the pulp concentration.
4. The pulp pump will transfer the pulp into forming machine.
Molding System
1. The molding machine is to adsorb the pulp to the molding mold, adsorb the pulp to the molding mold through the suction of the vacuum system to absorb the excess water into the gas-water separation tank, and then pump the water to the tank for storage.
2. The molding mold adsorbs the pulp and then forms it. and then the transfer mold takes out the finished product and sends it to the they drying tray.
Egg Tray Machine Introduction:
1. Automatic and semiautomatic egg tray pulp molding machine and production line
2. It is used for making large quantity easy shape products, like paper egg tray, fruit tray, coffee cup carrier tray, bottle tray, wine tray, egg carton with lid, disposable medical products and industrial packaging products etc.
3. Paper Egg Tray Machine Capacity: 350pcs/h, 700pcs/h, 1000pcs/h, 1300pcs/h, 1800pcs/h, 2000pcs/h, 2500pcs/h, 3000pcs/h, 4000pcs/h, 4500pcs/h, 5000pcs/h, 6000pcs/h.
4. Product Type: Egg Tray Machine
5. Process Type: Paper Pulp Molding Production
6. Raw material: waste paper, waste cardboard, newspapers etc. Any type waste paper without plastic.
7. Boiler fuel heating type: diesel, coal, natural gas, or LPG
Main Specifications of Carton Box Making Machine
| Egg Tray Mold Quantity | 1pcs | 2pcs | 3pcs | 4pcs | |
| Raw material | Waste paper | Waste paper | Waste paper | Waste paper | |
| Egg tray Capacity | 350pcs/hour | 700pcs/hour | 1000pcs/hour | 1300pcs/hour | |
| Net weight per piece (gram) | 70g-75g | 70g-75g | 70g-75g | 70g-75g | |
| Waste paper consumption | 0.025ton / hour | 0.06ton / hour | 0.1ton / hour | 0.13ton / hour | |
| Water Consumption | 0.05ton / hour | 0.1ton/hour | 0.15ton / hour | 0.2ton / hour | |
| Natural Gas Consumption of Dryer | 12cbm/h | 25cbm/h | 35cbm/h | 50cbm/h | |
| Worker requirement | 2-3workers | 3-4workers | 4-6workers | 4-6workers | |
| Power Requirement | Without dryer | 20KW | 30KW | 40KW | 45KW |
| With dryer | 30KW | 45KW | 60KW | 65KW | |
| Area of workshop | Without dryer | More than100M² | More than 100 M² | More than 120 M² | More than 150 M² |
| With dryer | More than200 M² | More than 240 M² | More than300M² | More than 320 M² | |
| Container Requirement | Without dryer | 20ft*1 | 20ft*1 | 40ft*1 | 40ft*1 |
| With dryer | 40ft*1+20ft*1 | 40ft*2+20ft*1 | 40ft*2+20ft*1 | 40ft*3 | |
| Remarks: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client's plant. 3.The above specification is for reference only, due to continuous technology development, data will be updated from time to time. 4.Paper Pulp Molding Machine are non-standard equipment, we are able to provide customized solution according to specific requirements from customer. 5.Welcome to contact us anytime, our professional team will provide more effective help and supports for you. |
|||||
FAQ
Our production line has Fully Automatic and Semi Automatic two types , both have computer control system .
1. What is Semi Automatic type ?
If only order The 1st and 2nd compulsory parts , that's Semi Automatic because you'll have to do the work of drying up egg tray manually;
2. What is Fully Automat type ?
Meaning: the production line includes the Drying system and the whole procedure can be done Automatically .
Of course, the price and the required work space would have big difference from the semi-automatic type.
3. Quality
--- Our machines use UK Technical and part of the components are Germany-made (ex: Ball valve) .
-- Our machine is made by Tooling NOT by Welding , insuring a minimum of 10 years’ lifespan .
-- The Egg tray moulds material is Aluminium which can keep the fixed shape much better than that made of rubber material.
--- 99.9% of Success rate: Even if there is a failed egg tray , just throw it back to Pulping area and it can be re-used avoiding waste ;
--- Our machine has been sold to worldwide for over 10 years with continued re-order by some customers with their business grow .
4 .What capacity per hour do you offer ?
Our machines’ capacity is from 350pcs/hr to 6000pcs/hr.
5.Do your products come with a warranty ?
Yes , we have 1 year warranty according the international practice.
6.Can I customize this kind of machine from your factory?
Yes ,we offer custom-made service to our customers, you need to provide us some samples,such as photos,dimensions etc.
