Place of Origin:
Jinan, Shandong, China
Brand Name:
Wanyou
Certification:
CE
Model Number:
ZSJ series
Video
Video
Video
Durable small paper pulp molding machine molded pulp machine
China Recyclable Paper Egg Tray Making Machine / Pulp Molding Machine / Germany Valves uses waste paper as raw material to produce the egg trays for chicken farm factory or other customer who needs the trays. It has 2 types forming method: one is Reciprocating Type, the other is Rotary Type Egg Tray Making Machine. It can make many simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc..using waste paper as raw material.
Paper molding machine working flow as the following:
1. Pulping system
Pulper, 1.0M3,15kw;
vibration screen, 0.9M2,3kw;
mixer; pulp pump;water pump,control cabinet for pulping system,etc
2. Forming system

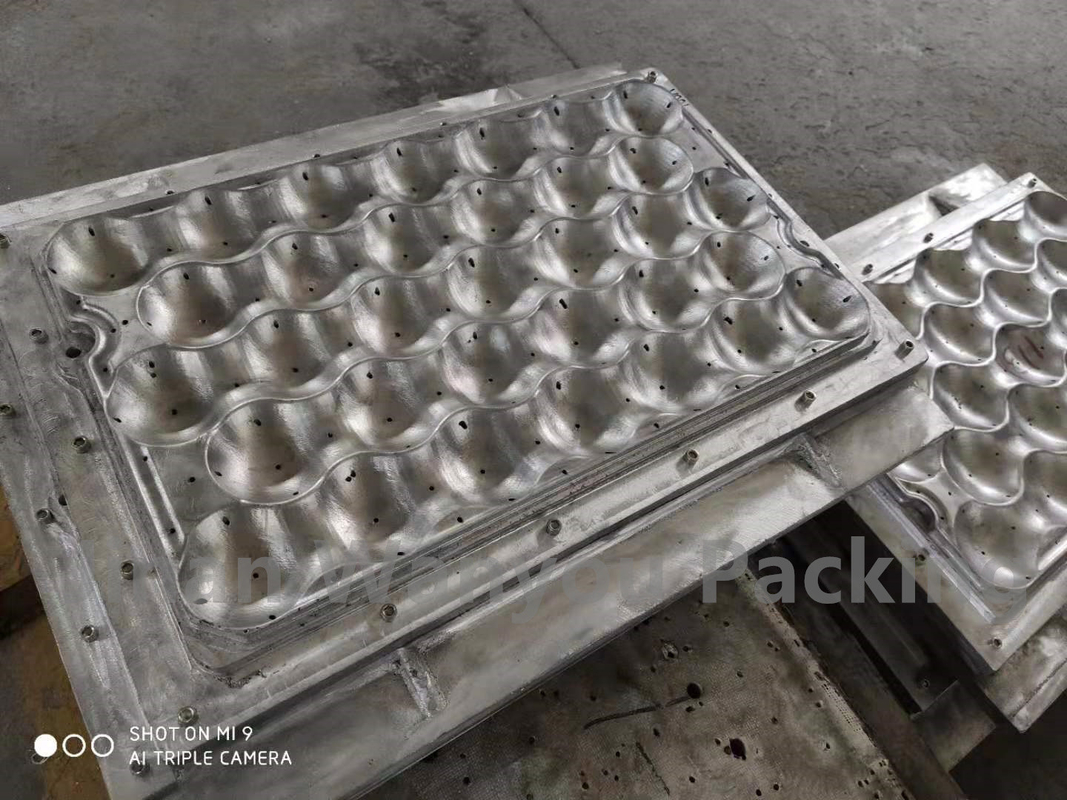

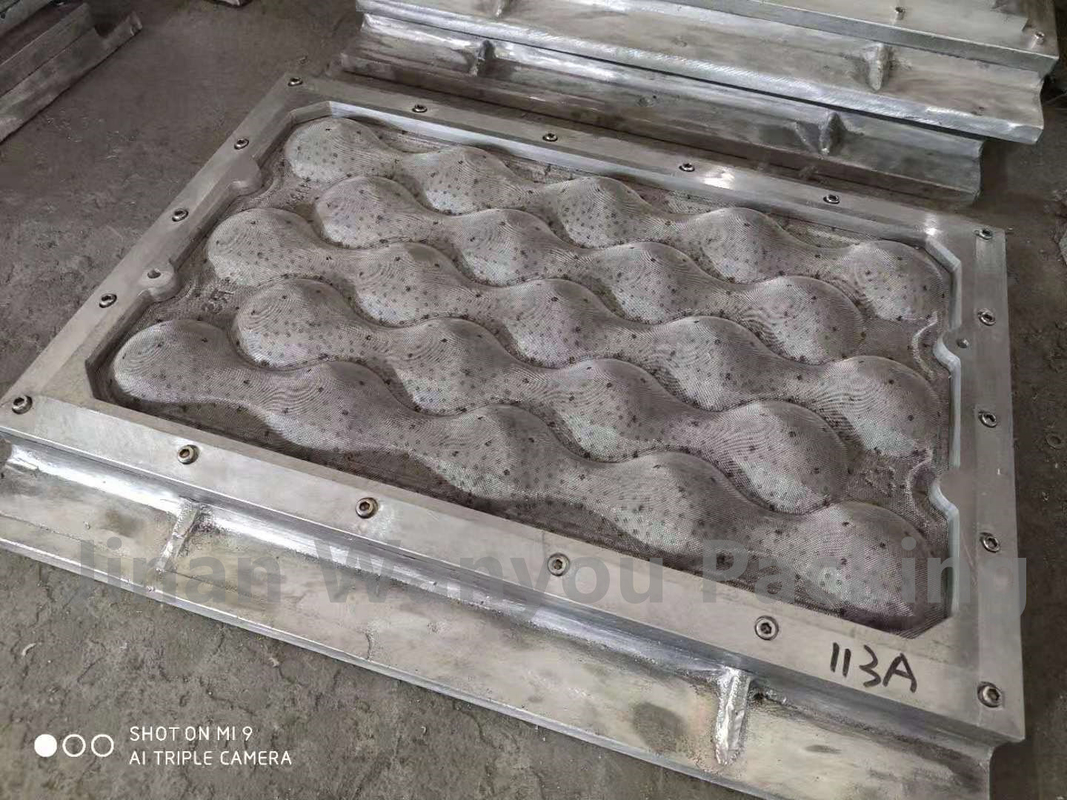

Includes: 1pc forming machine, Molding plate(depends on different capacity),
Forming efficiency:5-6cycles/min;
Equiped with vacuum auto draining system;auto cleaning system for the forming mold and auto control cabinet.

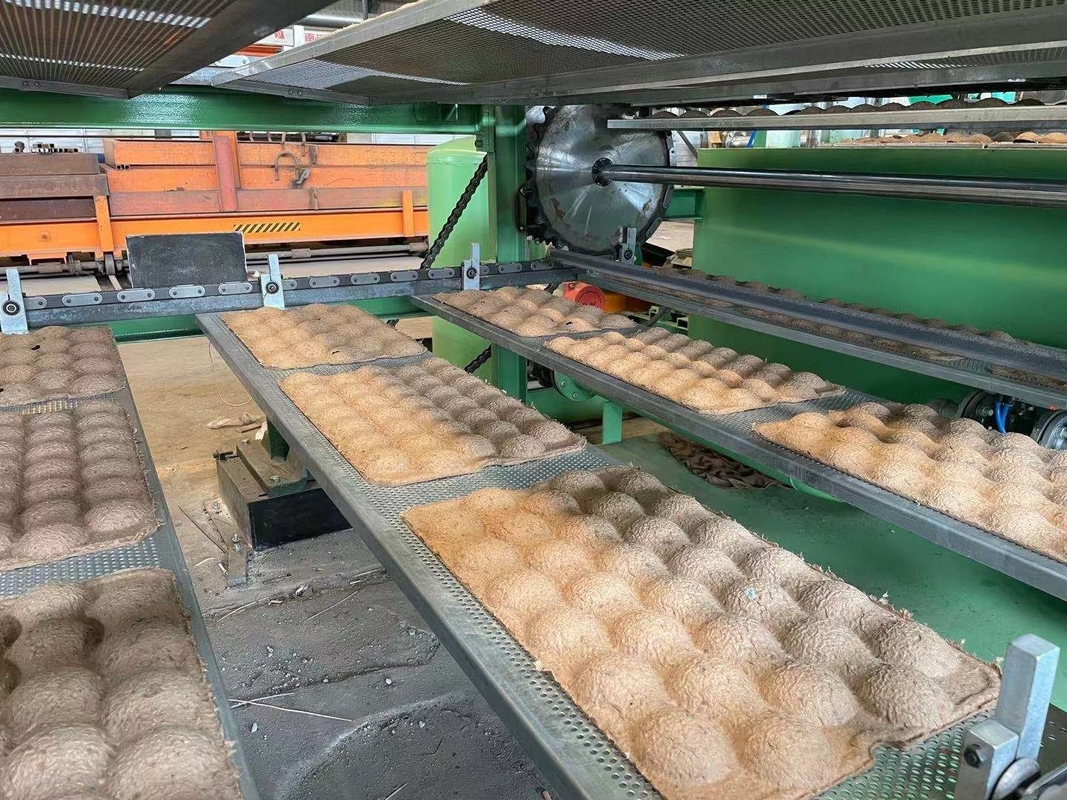

3. Drying system
Outline dimension:20080x2650x3600mm;
Single layer conveying chain;heated by section;multi burners;
Six layers drying line, energy saving and saving place
The temperature of each section can be adjusted independently;burners with French or Italian brand;
The energy for option: LPG,GAS,diesel oil,Equiped with auto control cabinet.
All the machine is in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.
Our machine can turn your waste paper and books into Money!
Condition: New
Product Type: paper molding machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Brand Name: RUNLIANG
Voltage: 220-440V
Power(W): Different Machine Model
Dimension(L*W*H): 7m*2.2m*2.2m
Weight: 8 tons-15tons
Certification: CE & ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 350pcs/h-5000pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray
Workshop required: 150-600㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation: Automatic and fully automatic
Keyword: Egg tray machine
This production line is suitable for the following products:

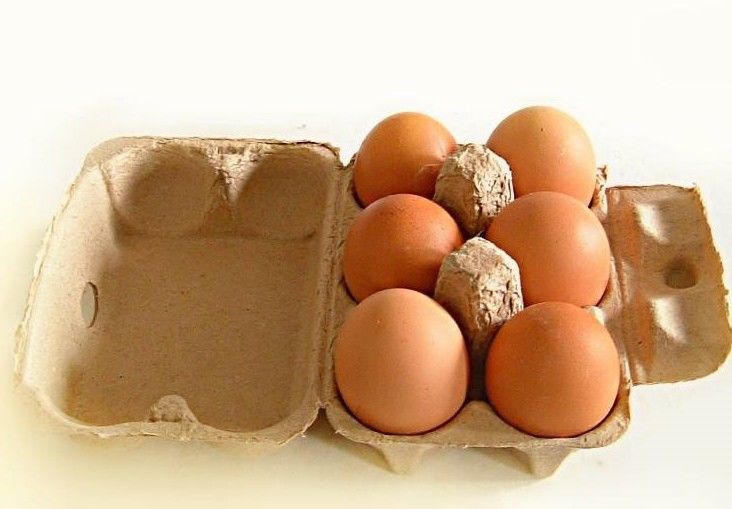

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)

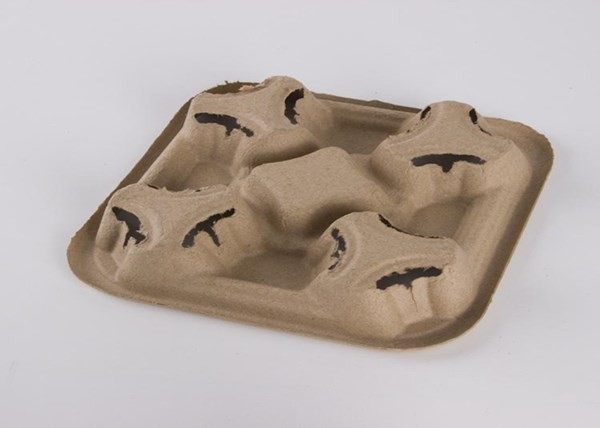

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.
Technical data (1000pcs/h for example)
| Egg Tray Mold Quantity | 1pcs | 2pcs | 3pcs | 4pcs | 12pcs(3pcs*4) | 32pcs(4*8) | |
| Raw material | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | |
| Egg tray Capacity | 350pcs/hour | 700pcs/hour | 1000pcs/hour | 1300pcs/hour | 1800pcs/hour | 3000pcs/hour | |
| Net weight per piece (gram) | 70g-75g | 70g-75g | 70g-75g | 70g-75g | 70g-75g | 70g-75g | |
| Waste paper consumption | 0.025ton / hour | 0.06ton / hour | 0.1ton / hour | 0.13ton / hour | 135kg/ hour | 225kg / hour | |
| Water Consumption | 0.05ton / hour | 0.1ton/hour | 0.15ton / hour | 0.2ton / hour | 0.5ton / hour | 0.6ton / hour | |
| Natural Gas Consumption of Dryer | 12cbm/h | 25cbm/h | 35cbm/h | 50cbm/h | 60cbm/h | 80cbm/h | |
| Worker requirement | 2-3workers | 3-4workers | 4-6workers | 4-6workers | 5-7workers | 8-10workers | |
| Power Requirement | Without dryer | 20KW | 30KW | 40KW | 45KW | 70KW | 100KW |
| With dryer | 30KW | 45KW | 60KW | 65KW | 80KW | 150KW | |
| Area of workshop | Without dryer | More than100M² | More than 100 M² | More than 120 M² | More than 150 M² | More than 200 M² | More than 250 M² |
| With dryer | More than200 M² | More than 240 M² | More than300M² | More than 320 M² | More than 400M² | More than 520M² | |
| Container Requirement | Without dryer | 20ft*1 | 20ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 |
| With dryer | 40ft*1+20ft*1 | 40ft*2+20ft*1 | 40ft*2+20ft*1 | 40ft*3 | 40ft*3+20ft*1 | 40ft*5 | |
| Remarks: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant. | |||||||
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory | ||||
| Delivery time | About 35 working days after receiving the deposit. | ||||
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC | ||||
| Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||||
| Warranty time | Two years after the Egg tray machine received. | ||||
| TERMS OF DELIVERY | FOB Qingdao Port, China | ||||
| Package | In container | ||||
| Certification | CE | ||||
Jinan Wanyou Packing Machinery Factory is a famous packing machinery company which has a good mix of science, industry and trade.
It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.
These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.
Don’t miss the chance of promoting the production efficiency of your company.
FAQ
(1). What kind of material we can use as the raw material?
Any kind of waste paper like old newspaper,magazines,books,A4 paper, corrugated cartons, paperboard etc.
(2). What kind of Fuel can be used for the whole production line?
Coal, natural gas, and dieseal oil.
(3). What kind of products can be made by this machine?
All paperpackage such as paper egg tray, egg carton,egg box, fruit tray, bottle tray, cup tray, consumer product package, medical disposable container etc.
(4). Are you a manufacturer or a trading company?
Yes, our company has been fabricating pulp molding machine since 2000. We are one of the
most important pulp molding machine maufacturers in the world, and we are famous pulp
molding machine manufacturer in China, providing high quality and production capacity pulp molding
machinery at reasonable prices to the world.
(5). What capacity egg tray machine can you supply?
At the moment, we can supply 350 pcs/h, 700, 1000, 1300, 1800, 2000, 2400, 3000pcs/h capcaity egg tray
machine.
Layout
