Place of Origin:
Jinan, Shandong, China
Brand Name:
Wanyou
Certification:
CE
Model Number:
ZSJ series
China Recyclable fully disposable paper dish making machine/Pulp Molding Machine / Germany Valves uses waste paper as raw material to produce the egg trays for chicken farm factory or other customer who needs the trays. It has 2 types forming method: one is Reciprocating Type, the other is Rotary Type Egg Tray Making Machine. It can make many simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc..using waste paper as raw material.
| 1, | Egg tray mould quantity | 1pcs | 2pcs |
| 2, | Raw material | Waste paper | Waste paper |
| 3, | Output for egg tray | 350pcs/hour | 700pcs/hour |
| 4, | Net weight per piece (gram) | 70g-75g | 70g-75g |
| 5, | The volume of waste paper consumed | 0.025ton / hour | 0.06ton / hour |
| 6, | The volume of water consumed | 0.05ton / hour | |
| 7, | Operators number | 2-3workers | 3-4workers |
| 8, | Area of workshop | More than 200M² | More than 240M² |
| 9, | Capacity of power | 25KW | 40KW |

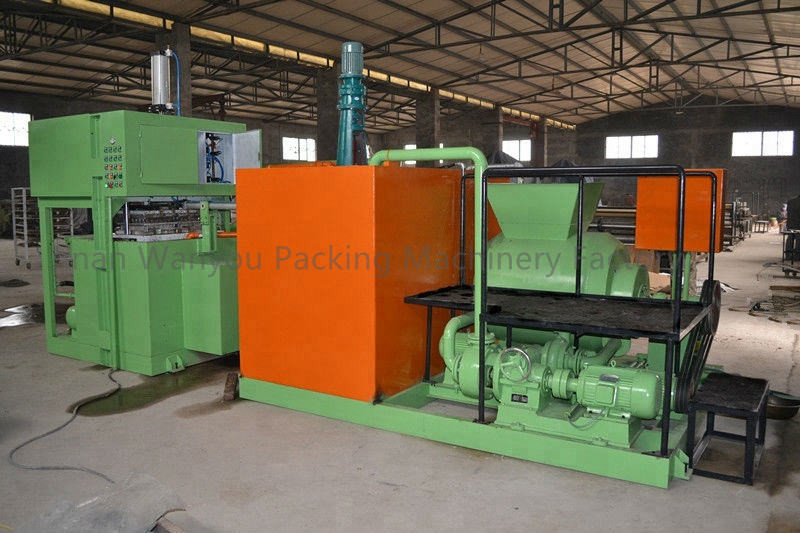

Main section of small egg tray making machine:
1. pulping system:including the hydrapulper,pump,disk mill,water tank,pulp tank,mixer,etc..to make the waste paper into pulp.

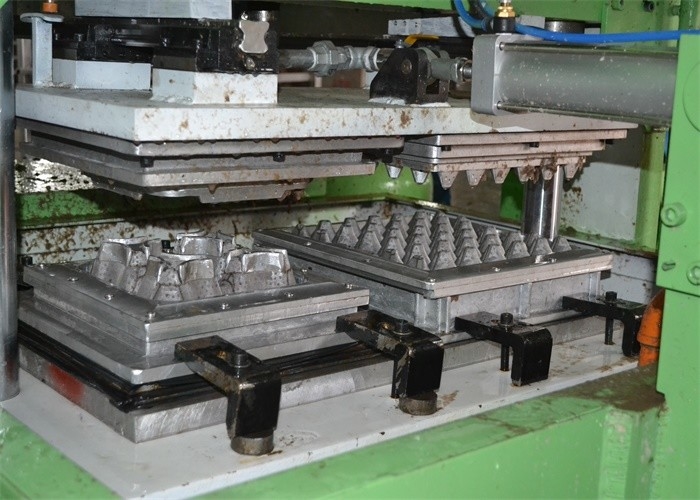

2. forming system: including the molding machine,molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.
3. drying system: including the oven,chains,trays,heating pipes,fans,boiler,etc..to dry the wet trays so they can be used directly.
Raw Materials For Making Paper Egg Tray:
♦waste cartons
♦waste books
♦waste newspapers
♦waste paper boxes
♦book scraps
♦other waste paper materials

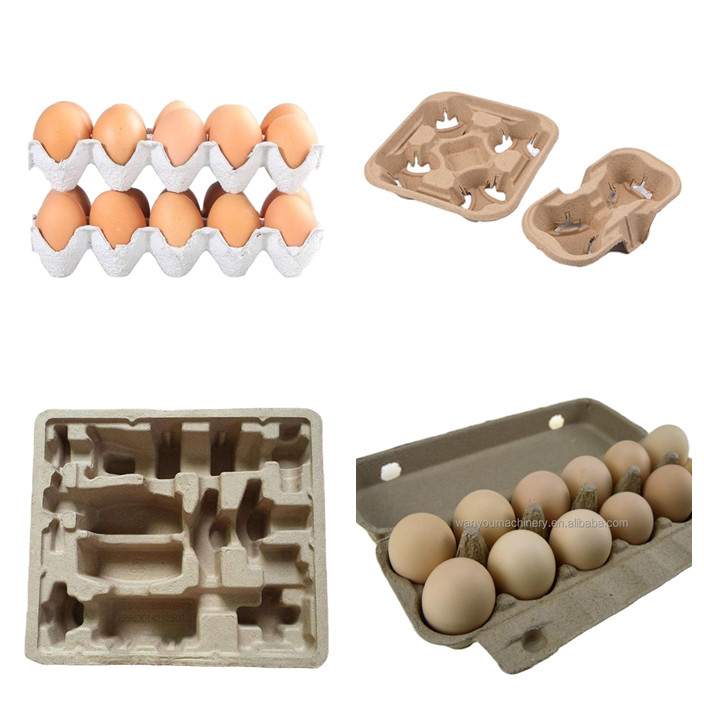

Different products by machines making egg tray:
♦Egg tray(30-egg)
♦Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)
♦Fruit tray (for apple,tomato, pear and etc)
♦Cup carrier(4 pack and 2 pack)
♦Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn’t change frequently) pulp molding products with large quantity.
|
Ø Installation and Training 1. We shall send two technicians to the site to provide guidance on installation and debugging and the training of operators. 2.The technicians’ round-trip air tickets, visa application fees, and personal insurance are paid by the customer. Besides, the customer should provide free accommodation, food for the technicians while they are abroad. 3.Customer should pay 100 USD per day per person as subsidy. 4.For installation, customer should prepare items as: 3-5 workers to install Pools or tank to storage water and pulp. Install tools and welding machine Drying line required: red bricks about 40000 pieces, refractory bricks 1000 pieces, cement boards 200 pieces. |
Samples by small egg tray making machine:
