Place of Origin:
Jinan, Shandong, China
Brand Name:
Wanyou
Certification:
CE
Model Number:
ZSJ series
Factory supplier wholesale with aluminum Molds egg tray equipment egg packaging machine
China Recyclable fully tableware Pulp Molding Machine /roller egg tray making machine Germany Valves uses waste paper as raw material to produce the egg trays for chicken farm factory or other customer who needs the trays. It has 2 types forming method: one is Reciprocating Type, the other is Rotary Type Egg Tray Making Machine. It can make many simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc..using waste paper as raw material.
Technical data
| 1, | Egg tray mould quantity | 1pcs | 2pcs |
| 2, | Raw material | Waste paper | Waste paper |
| 3, | Output for egg tray | 350pcs/hour | 700pcs/hour |
| 4, | Net weight per piece (gram) | 70g-75g | 70g-75g |
| 5, | The volume of waste paper consumed | 0.025ton / hour | 0.06ton / hour |
| 6, | The volume of water consumed | 0.05ton / hour | |
| 7, | Operators number | 2-3workers | 3-4workers |
| 8, | Area of workshop | More than 200M² | More than 240M² |
| 9, | Capacity of power | 25KW | 40KW |
Main section of egg tray making machine:

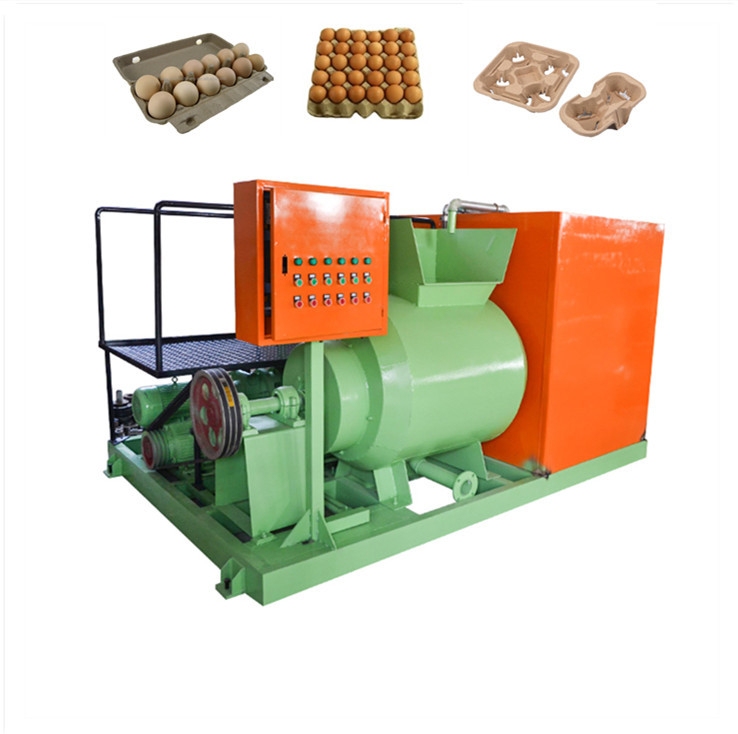

1. pulping system:including the hydrapulper,pump,disk mill,water tank,pulp tank,mixer,etc..to make the waste paper into pulp.

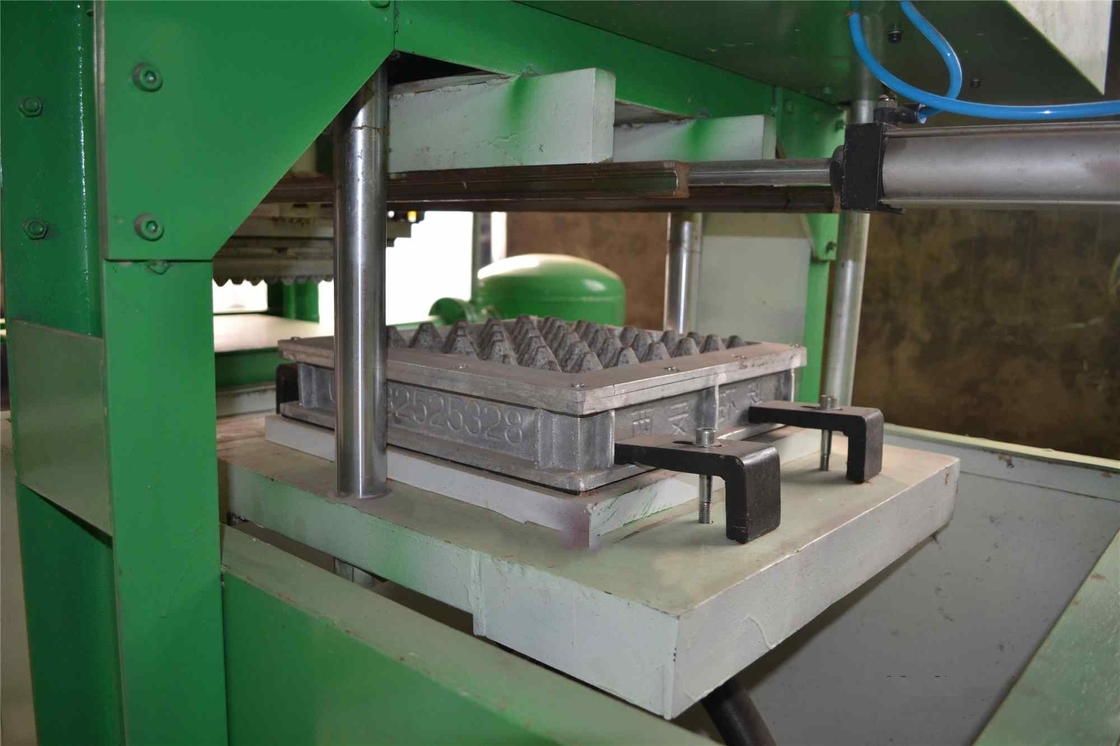

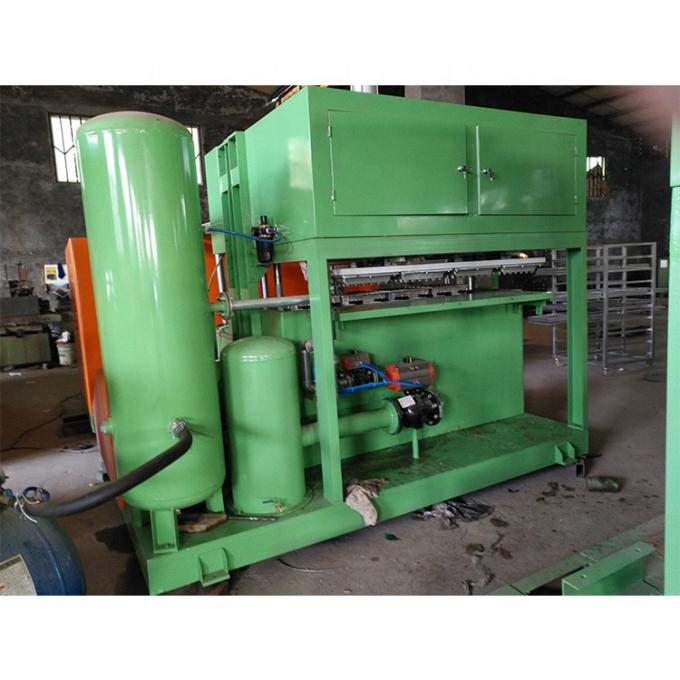

2. forming system: including the molding machine,molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.

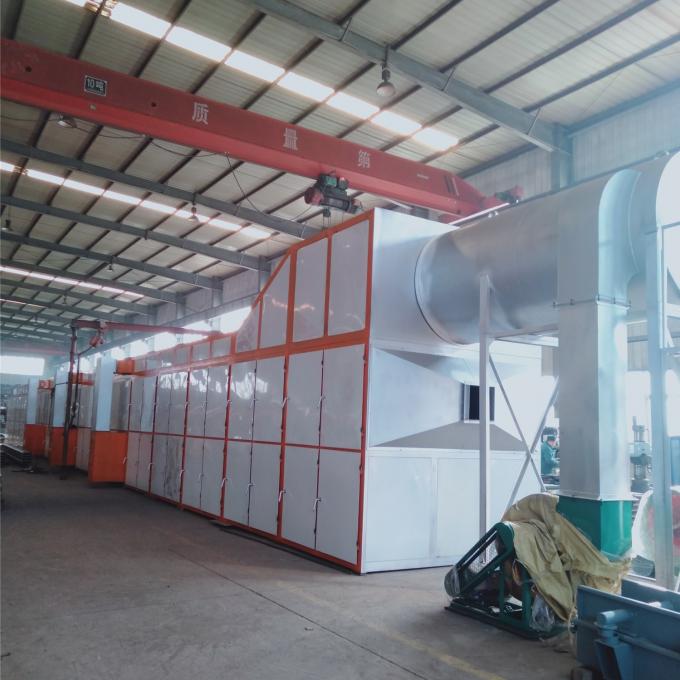

3. drying system: including the oven,chains,trays,heating pipes,fans,boiler,etc..to dry the wet trays so they can be used directly.
Raw Materials For egg tray making machine:
♦waste cartons
♦waste books
♦waste newspapers
♦waste paper boxes
♦other waste paper materials
Different products by egg tray making machine:
♦Egg tray(30-egg)
♦Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)
♦Fruit tray (for apple,tomato, pear and etc)
♦Cup carrier(4 pack and 2 pack)
♦Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn’t change frequently) pulp molding products with large quantity.
