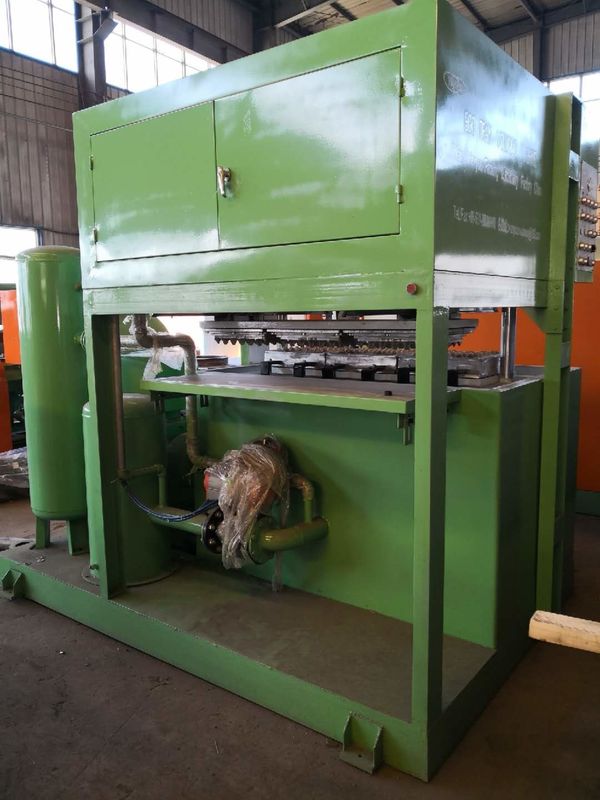

Environment Friendly Paper Egg Tray Making Machine , Egg Carton Machine

Environment Friendly Paper Egg Tray Making Machine , Egg Carton Machine

egg box making machine

fruit tray making machine

Place of Origin:

Jinan, Shandong, China

Brand Name:

Wanyou

Certification:

CE

Model Number:

ZSJ-700

Contact Us
Request A Quote
Product Details
Raw Material:
Waste Paper, Waste Cardboard, Carton
Power(w):
30kw-100kw
Dimension(l*w*h):
Depends
Capacity:
350pcs/h - 3000pcs/h
Voltage:
220V/380V, 380V, 220v, 50hz, 380v / 450v
Product Type:
Egg Tray Machine, Paper Plate Machine, Egg Box Machine
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
in container
Delivery Time
20 -80 working days after get deposit payment
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
1 sets per month
Product Description

                              Environment Friendly Paper Egg Tray Forming Machine Egg Carton Machine With Germany Valve



Quick detail of egg tray machine:

Condition: New

Place of Origin: Shandong, China (Mainland)

Brand Name: Wanyou

Model Number: ZSJ-1000A

Voltage: 380V-440V

Weight: as the case may

Certification: CE

Name: egg tray / shoe tree making machine

Other name: top level topone time shoe tree making machine

Application: Egg tray,Egg carton, Shoe tree, Bottle tray, Seedling tray, Fruit tray

Frequency: 0.8-1%

Production speed: 350-3000 pcs/hr

Forming Type: reciprocating and rotary and overturning

Pulp concentration for molding machine: 0.8-1%

Container: Depends

Pressure of compressed air: 0.5-0.7Mpa

Consumption per hour: water: 225-270kg waste paper: 105-126kg

electricity: 87-93kw

Warranty: 2 years for free

After-sales Service Provided: Engineers available to service machinery overseas



This is our new made shape machine with popular model for the egg carton and egg trays.

Working theroy of our machine is as follows:

The Egg Tray Molding System consists of various equipment and dies.

The wet forming section consists of a series of wire screen covered wet forming dies mounted on a molding drum, and a matching set of transfer dies mounted on a transfer mechanism.

The egg tray forming die is made up of rigid corrosive resistant metal or ABS engineering plastic and consists of many component parts that are drilled with small drainage holes and covered by prior to formed stainless steel screens.

The forming die, mounted on the molding drum is rotated at a uniform speed, immersing it in a taper flow vat containing the pulp slurry of about 1% consistency of fibers in recycled water. A vacuum system attracts the fibers to deposit on the forming die screens as the suspending recycle water is drawn through the screen and drainage holes.



4 Mainly Parts of the machine:

1. pulping system: including the hydrapulper, pump, disk mill, water tank, pulp tank, mixer, etc..to make the waste paper into pulp.

2. forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.

3. Drying system (can use LPG, gas,diesel,coal for Boiler burner)

There are burners and blowers and boiler for the drying line. Burner creates the hot air and the blower increases it. There will be hot air mouth in the drying line also blow the hot air. The drying line is protected by the insulation board. The temperature inside the oven can reach 200 degree.

4. Automatic counting

Our egg tray machine is better quality than that of other egg tray production line supplier. We have been in the egg tray making machine filed for over 20 years. We have advanced technology and good quality spare parts for the machine production.



All the machine is in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.

Our Paper Egg Tray Machine saves production cost, and saves space. it is quitely used by small medium enterprises.

Our machine can turn your waste paper and books into Money!



This production line is suitable for the following products:

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.

Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.



Tech data of egg tray machine





Egg Tray Mold Quantity 1pcs 2pcs 3pcs 4pcs 12pcs(3pcs*4) 18pcs(3*6) 24pcs(3*8) 32pcs(4*8)
Raw material Waste paper Waste paper Waste paper Waste paper Waste paper Waste paper Waste paper Waste paper
Egg tray Capacity 350pcs/hour 700pcs/hour 1000pcs/hour 1300pcs/hour 1800pcs/hour 2000pcs/h 2500pcs/h 3000pcs/hour
Net weight per piece (gram) 70g-75g 70g-75g 70g-75g 70g-75g 70g-75g 70g-75g 70g-75g 70g-75g
Waste paper consumption 0.025ton / hour 0.06ton / hour 0.1ton / hour 0.13ton / hour 135kg/ hour 150kg/h 188kg/h 225kg / hour
Water Consumption 0.05ton / hour 0.1ton/hour 0.15ton / hour 0.2ton / hour 0.5ton / hour 0.55ton/h 0.6ton/h 0.65ton / h
Natural Gas Consumption of Dryer 12cbm/h 25cbm/h 35cbm/h 50cbm/h 60cbm/h 60cbm/h 80cbm/h 80cbm/h
Worker requirement 2-3workers 3-4workers 4-6workers 4-6workers 5-7workers 5-7workers 8-10workers 8-10workers
Power Requirement Without dryer 20KW 30KW 40KW 45KW 70KW 70KW 100KW 100KW
With dryer 30KW 45KW 60KW 65KW 80KW 80KW 130KW 150KW
Area of workshop Without dryer More than100M² More than 100 M² More than 120 M² More than 150 M² More than 200 M² More than 200 M² More than 250 M² More than 250 M²
With dryer

More than200 M²

Dryer-12M

More than 240 M²,dryer-18M

More than300M²

Dryer-18M

More than 320 M²,dryer-24M More than 400M²,dryer30M More than 400M²;dryer30M More than 520M² dryer36M More than 520M²,dryer40M
Container Requirement Without dryer 20ft*1 20ft*1 40ft*1 40ft*1 40ft*1 40ft*1 40ft*1 40ft*1
With dryer 40ft*2 40ft*2+20ft*1 40ft*3 40ft*3 40ft*4 40ft*4 40ft*5 40ft*5
Remarks: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.



Payment and delivery



Trade terms  FOB Qingdao or EXW Factory
Delivery time  About 35 working days after receiving the deposit.
Payment term  BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE

Environment Friendly Paper Egg Tray Making Machine , Egg Carton Machine 0



FAQ



(1). What kind of material we can use as the raw material?



Any kind of waste paper like old newspaper,magazines,books,A4 paper, corrugated cartons, paperboard etc.



(2). What kind of Fuel can be used for the whole production line?



Coal, natural gas, and dieseal oil.



(3). What kind of products can be made by this machine?



All paperpackage such as paper egg tray, egg carton,egg box, fruit tray, bottle tray, cup tray, consumer product package, medical disposable container etc.



(4). Are you a manufacturer or a trading company?



Yes, our company has been fabricating pulp molding machine since 2000. We are one of the



most important pulp molding machine maufacturers in the world, and we are famous pulp



molding machine manufacturer in China, providing high quality and production capacity pulp molding

machinery at reasonable prices to the world.

(5). What capacity egg tray machine can you supply?

At the moment, we can supply 350 pcs/h, 700, 1000, 1300, 1800, 2000, 2400, 3000pcs/h capcaity egg tray

machine.

Environment Friendly Paper Egg Tray Making Machine , Egg Carton Machine 1
