RL - ZJM Paper Egg Tray Machine With 2 Years Warranty , Energy Saving

RL - ZJM Paper Egg Tray Machine With 2 Years Warranty , Energy Saving

fruit tray making machine

paper pulp making machine

Place of Origin:

Jinan, Shandong, China

Brand Name:

Wanyou

Certification:

CE

Model Number:

RL- ZJM

Contact Us
Request A Quote
Product Details
Raw Material:
Waste Paper, Waste Cardboard, Carton
Processing Type:
Pulp Molding Machine
Product Name:
Egg Tray Machine
Warranty:
2 Years
Product Type:
Pulp Molding Machine
Power(w):
30kw-100kw
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
in container
Delivery Time
20 working days after get deposit payment
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
1 sets per month
Product Description



RL - ZJM Paper Egg Tray Machine With 2 Years Warranty , Energy Saving







The Egg Tray Molding System consists of various equipment and dies.

The wet forming section consists of a series of wire screen covered wet forming dies mounted on a molding drum, and a matching set of transfer dies mounted on a transfer mechanism.

The egg tray forming die is made up of rigid corrosive resistant metal or ABS engineering plastic and consists of many component parts that are drilled with small drainage holes and covered by prior to formed stainless steel screens.

The forming die, mounted on the molding drum is rotated at a uniform speed, immersing it in a taper flow vat containing the pulp slurry of about 1% consistency of fibers in recycled water. A vacuum system attracts the fibers to deposit on the forming die screens as the suspending recycle water is drawn through the screen and drainage holes.



4 Mainly Parts of the machine:

1. pulping system: including the hydrapulper, pump, disk mill, water tank, pulp tank, mixer, etc..to make the waste paper into pulp.

2. forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.

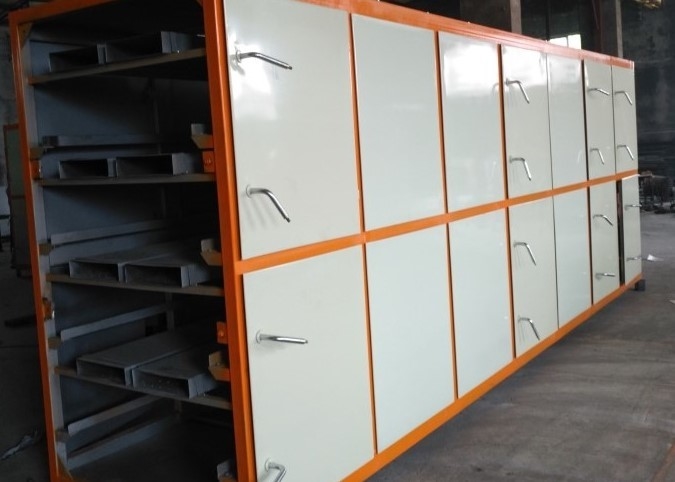

3. Drying system (can use LPG, gas,diesel,coal for Boiler burner)

There are burners and blowers and boiler for the drying line. Burner creates the hot air and the blower increases it. There will be hot air mouth in the drying line also blow the hot air. The drying line is protected by the insulation board. The temperature inside the oven can reach 200 degree.

4. Automatic counting

Our egg tray machine is better quality than that of other egg tray production line supplier. We have been in the egg tray making machine filed for over 20 years. We have advanced technology and good quality spare parts for the machine production.



All the machine is in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.

Our Paper Egg Tray Machine saves production cost, and saves space. it is quitely used by small medium enterprises.

Our machine can turn your waste paper and books into Money!



Quick Detail



Condition:  New

Product Type: Egg Tray Machine

Processing Type: Pulp Molding Machine

Place of Origin: Shandong, China (Mainland)

Brand Name: RUNLIANG

Voltage: 220-440V

Power(W): Different Machine Model

Dimension(L*W*H): 7m*2.2m*2.2m

Weight: 8 tons-15tons

Certification: CE & ISO

Warranty: 2 years

After-sales Service Provided:  Engineers available to service machinery overseas

Capacity: 350pcs/h-5000pcs/h

Color: As  customer needs

Frequency:  50Hz-60Hz

Application:   egg tray,fruit tray,bottle tray

Workshop required:  150-600㎡

Worker required:  5-6 persons

Fuel:  Coal, Natural Gas, Disel, LPG and so on

Automation: Automatic and fully automatic

Keyword: Egg tray machine



This production line is suitable for the following products:

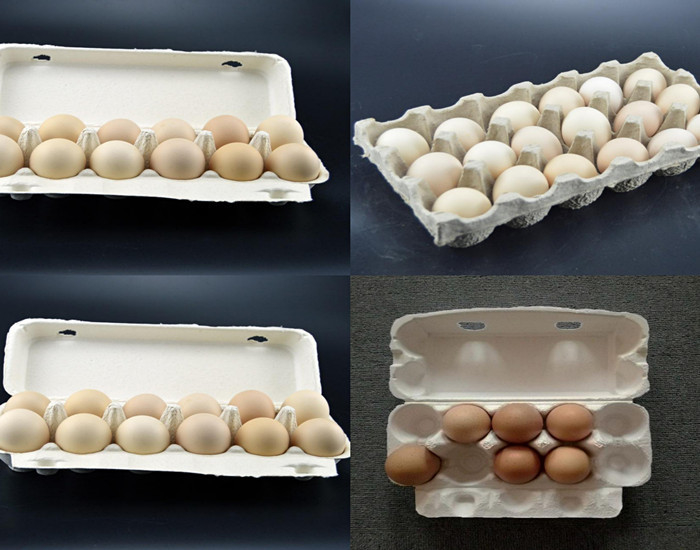

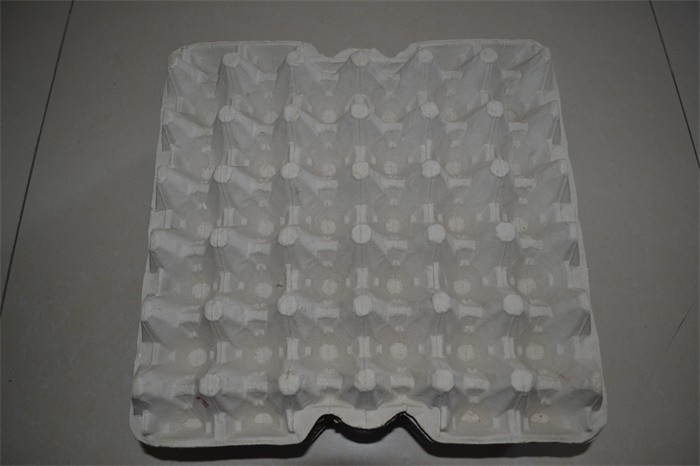

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.

Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.



Payment and delivery



Trade terms  FOB Qingdao or EXW Factory
Delivery time  About 35 working days after receiving the deposit.
Payment term  BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE





FAQ



(1). What kind of material we can use as the raw material?



Any kind of waste paper like old newspaper,magazines,books,A4 paper, corrugated cartons, paperboard etc.



(2). What kind of Fuel can be used for the whole production line?



Coal, natural gas, and dieseal oil.



(3). What kind of products can be made by this machine?



All paperpackage such as paper egg tray, egg carton,egg box, fruit tray, bottle tray, cup tray, consumer product package, medical disposable container etc.



(4). Are you a manufacturer or a trading company?



Yes, our company has been fabricating pulp molding machine since 2000. We are one of the



most important pulp molding machine maufacturers in the world, and we are famous pulp



molding machine manufacturer in China, providing high quality and production capacity pulp molding

machinery at reasonable prices to the world.

(5). What capacity egg tray machine can you supply?

At the moment, we can supply 350 pcs/h, 700, 1000, 1300, 1800, 2000, 2400, 3000pcs/h capcaity egg tray

machine.
