Place of Origin:
Jinan, Shandong, China
Brand Name:
Wanyou
Certification:
CE
Model Number:
ZSJ-700
Paper Egg Tray Making Machine Computer Control Germany Valve
Paper Egg Tray Making Machine Computer Control Germany Valve
Paper Egg Tray Making Machine Computer Control Germany Valve includes: Pulping system which Use waste paper and water as raw material and pulp up; Forming system: where the pulped material being delivered to Product Tray molds, and forming to the Product Tray plate shape; Drying system: in which the formed Product Tray plate being delivered to Dryer, and come up to Completed Strong Product Tray plate
Egg Tray Machine drying system is with one boiler. The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production.
Our production line has Fully Automatic and Semi Automatic two types , both have computer control system.
If you don’t want this drying system, it is also OK. Then you will have to do the work of drying up the product trays manually.
Our machine can be designed to make different products at same time by one Working Table (with 2 Molds or even 3 molds)
Egg Tray Machin Features:
1. controlled by computer, no needs any construction.
2. We could make all kinds of moulds for you, and it's very easy to change any moulds to the machine.
3. England technology, and spare parts is very famous brand from Germany, Taiwan...
4. with 2years warranty.
5. The installation of the whole line is easy.
Our machine can be designed to make different products at same time by one Working Table (with 2 Molds or even 3 molds)
All the machine is in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.
Our machine can turn your waste paper and books into Money!
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Brand Name: Wanyou
Voltage: 220-440V
Power(W): Different Machine Model
Dimension(L*W*H): 7m*2.2m*2.2m
Weight: 8 tons-15tons
Certification: CE & ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 350pcs/h -2500pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray
Workshop required: 150-300㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation: Automatic and fully automatic
Keyword: Egg tray machine

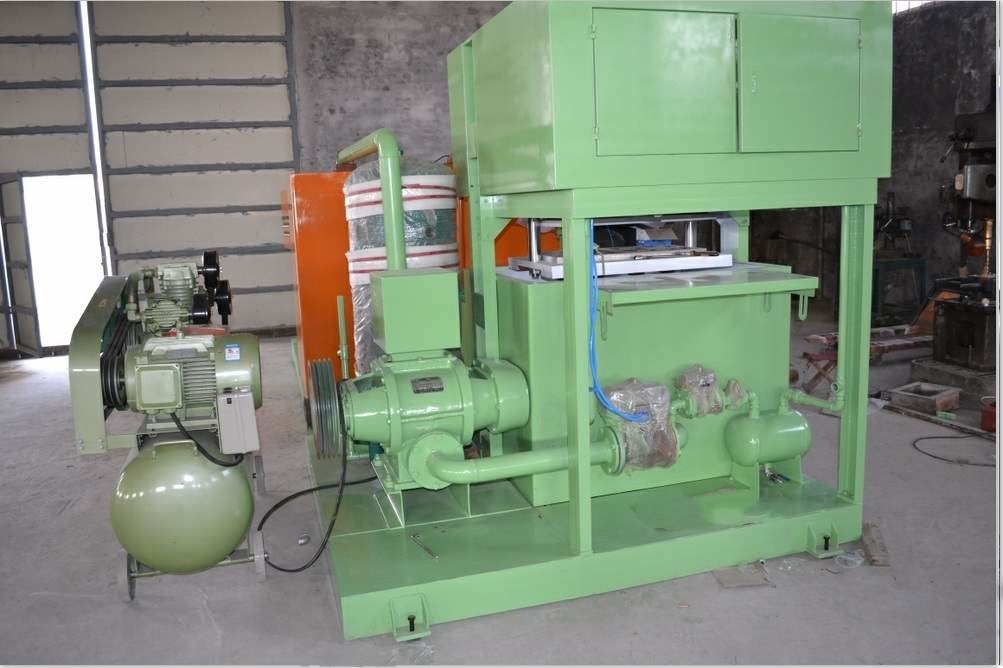

Egg Tray Machine Composition
| Main Parts | Description | Quantity | Motor power |
|
Pulping system
|
Pulping machine | 1set | 7.5kw |
| Pulp Pump | 1set | 4kw | |
| Pulp pump | 1set | 1.5kw | |
| Mill pulp pump | 1set | 7.5kw | |
| Water pump | 2sets | 0.75kw*2=1.5kw | |
| Mixer | 1set | 1.5kw | |
| Pulp pool and Water pool | 1set | ||
|

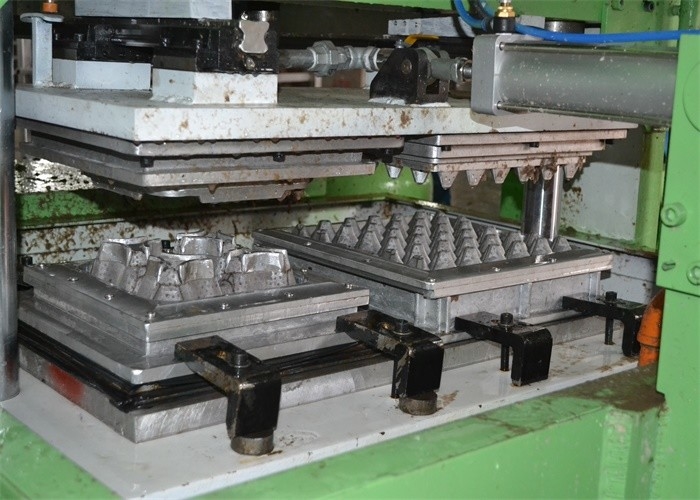

Forming system
|
Moulding machine
|
1set | 1pcs Aluminum Forming Molds |
| Vacuum pump | 1set | 7.5kw | |
| Mold Washer | 1set | 1.1kw | |
| Pulp pump | 1set | 1.5kw | |
| Air Compressor | 1set | 11kw | |
| Vacuum tank | 1set | ||
| Air tank | 1set |
Technical data
| Egg Tray mould quantity | 18pcs (3*6) | Container Required |
| Raw material | Waste paper | About 40ft*4 |
| Output for egg tray | 2000pcs/hour | |
| Net weight per piece (gram) | 70g-75g | |
| The volume of waste paper consumed | 150kg/h | |
| The volume of water consumed | 0.45t/h | |
|
Diesel Oil consumption Natural gas consumption |
50Kg/h 60cbm/h |
|
| Workshop dimension | Around 320m2 | |
| Electricity Power | 80kw | |
| Machine Weight | 35tons around | |
| Egg tray Size | 295mm*295mm 30eggs |
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory | ||||
| Delivery time | Depends on different egg tray machine model | ||||
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC | ||||
| Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||||
| Warranty time | Two years after the Egg tray machine received. | ||||
| TERMS OF DELIVERY | FOB Qingdao Port, China | ||||
| Package | In container | ||||
| Certification | CE | ||||
| Installation | |||||
| 1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day ) | |||||
Jinan Wanyou Packing Machinery Factory is a famous packing machinery company which has a good mix of science, industry and trade.
It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.
These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.
Don’t miss the chance of promoting the production efficiency of your company.
Welcome to contact us.
FAQ :
1. What is Semi Automatic type ?
If only order the pulping system and the forming system, that's Semi Automatic type.
And you'll have to do the work of drying up the trays manually;
2. What is Fully Automatic type ?
The Fully Automatic production line includes the Drying system and the whole procedure can be done Automatically .
Of course, the price and the required work space would have big difference from the semi-automatic type.
3. Quality
--- Our machines use UK Technics and part of the components are Germany-made (ex: Ball valve) .
-- Our machine is made by Tooling NOT by Welding , insuring a minimum of 10 years’ lifespan .
-- The Egg tray molds material is Aluminum which can keep the fixed shape much better than that made of rubber material.
--- 99.9% of Success rate: Even if there is a failed egg tray , just throw it back to Pulping area and it can be re-used avoiding waste ;
--- Our machine has been sold to worldwide for over 10 years with continued re-order by some customers with their business grow .
---Some spare parts are made by famous company in Germany
