Place of Origin:
Jinan, Shandong, China
Brand Name:
Wanyou
Certification:
CE
Model Number:
ZSJ-1300

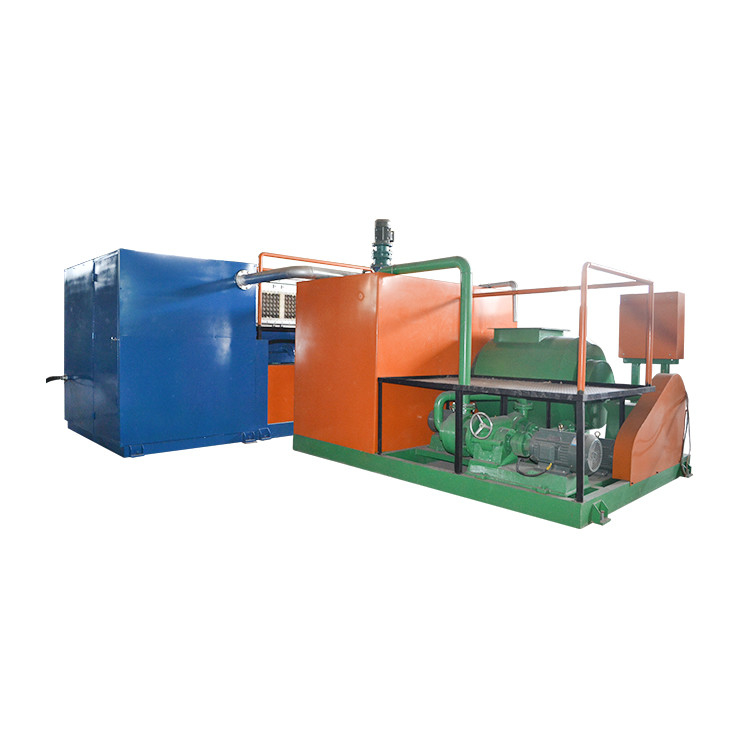

Recycling Waste Paper Egg Tray Making Machine / Pulp Molding Machine / With Aluminum Molds
The Egg Tray production line is mainly combined by THREE PARTS: 1. Pulping system: Use waste paper and water as raw material and pulp up; 2. Forming system: The pulped material being delivered to Product Tray molds, and forming to the Product Tray plate shape; 3. Drying system: The formed Product Tray plate being delivered to Dryer, and come up to Completed Strong Product Tray plate The drying system is with one boiler. The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production. Our production line has Fully Automatic and Semi Automatic two types , both have computer control system. If you don’t want this drying system, it is also OK. Then you will have to do the work of drying up the product trays manually. Our machine can be designed to make different products at same time by one Working Table (with 2 Molds or even 3 molds)
The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production.
Our machine can be designed to make different products at same time by one Working Table (with 2 Molds or even 3 molds)
All the machine is in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.
Our machine can turn your waste paper and books into Money!
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Brand Name: Wanyou
Voltage: 220-440V
Power(W): Different Machine Model
Dimension(L*W*H): 7m*2.2m*2.2m
Weight: 8 tons-15tons
Certification: CE & ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 350pcs/h -2500pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray
Workshop required: 150-300㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation: Automatic and fully automatic
Keyword: Egg tray machine
This production line is suitable for the following products:
Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)
Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.
Technical data (1300pcs/h for example)
| Egg Tray mould quantity | 4pcs | |
| Raw material | Waste paper | |
| Output for egg tray | 1300pcs/hour-1500pcs/h | |
| Net weight per piece (gram) | 70g-75g | |
| The volume of waste paper consumed | 0.13ton / hour | |
| The volume of water consumed | 0.2ton / hour | |
| The natural gas consumption of the dryer(about) | 50cbm/h | |
| Machine Weight | 20-25tons | |
| Operate Workers | 4-5 | |
| Egg tray Size | 295mm*295mm 30eggs | |
| Product Name | Model | Qty(set) | Trade Terms |
| Egg Tray Machine | ZSJ-1300 | 1 | FOB Qingdao |
| Area of workshop | Without dryer | More than 150㎡ | |
| With dryer | More than 320㎡ | ||
| Capacity of power | Without dryer | 45KW | |
| With dryer | 65kw | ||
| Machine size | Without dryer | 10m*2.5m*2.2m | |
| With dryer | 35m*2.5m*2.2m | ||
| Size of container | Without dryer | 40ft*1 | |
| With dryer | 40ft*3 | ||
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory | ||||
| Delivery time | About 45 working days after receiving the deposit. | ||||
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC | ||||
| Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||||
| Warranty time | Two years after the Egg tray machine received. | ||||
| TERMS OF DELIVERY | FOB Qingdao Port, China | ||||
| Package | In container | ||||
| Certification | CE | ||||
| Installation | |||||
| 1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day ) | |||||
Jinan Runliang Packing Machinery Co.,Ltd is a famous packing machinery company which has a good mix of science, industry and trade.
It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.
These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.
Don’t miss the chance of promoting the production efficiency of your company.
Welcome to contact us.

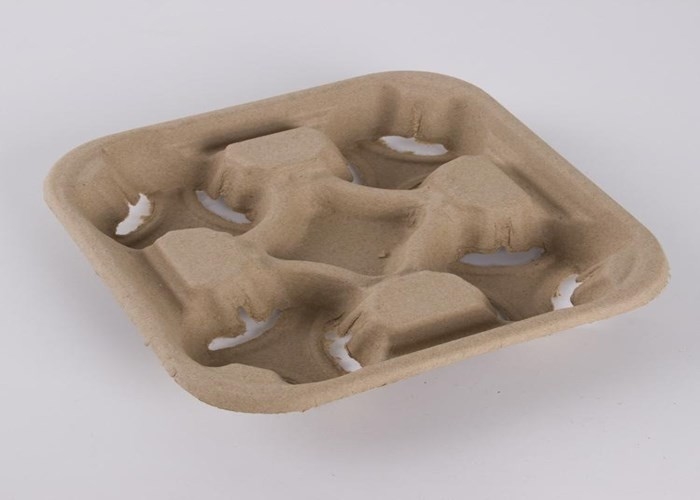

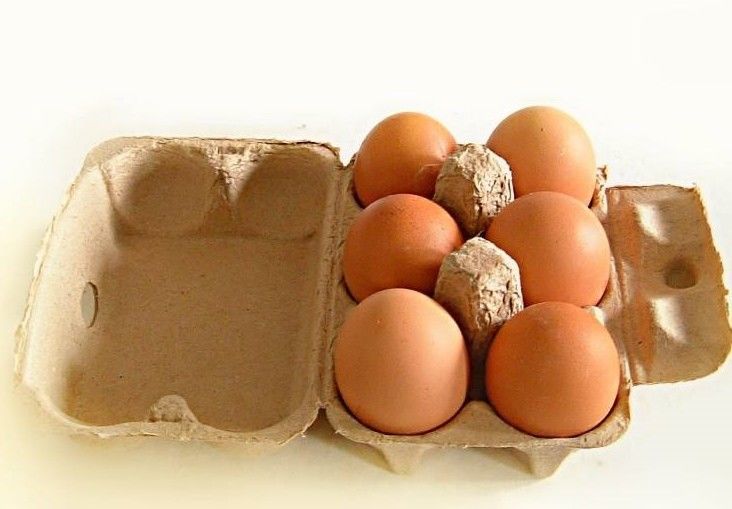

Finished product made by our machine
Welcome to contact us!
