Place of Origin:
Jinan, Shandong, China
Brand Name:
Wanyou
Certification:
CE
Model Number:
ZSJ-2000
China Supplier Of Waste Paper Egg Tray Making Machine / Competitive Egg Tray Machine Machine
China Supplier Of Waste Paper Egg Tray Making Machine / Competitive Egg Tray Machine Machine
Machine Introduction:
1. Pulping System:
Pulper, 1.0M3,15kw;
vibration screen, 0.9M2,3kw;
mixer; pulp pump;water pump,control cabinet for pulping system,etc

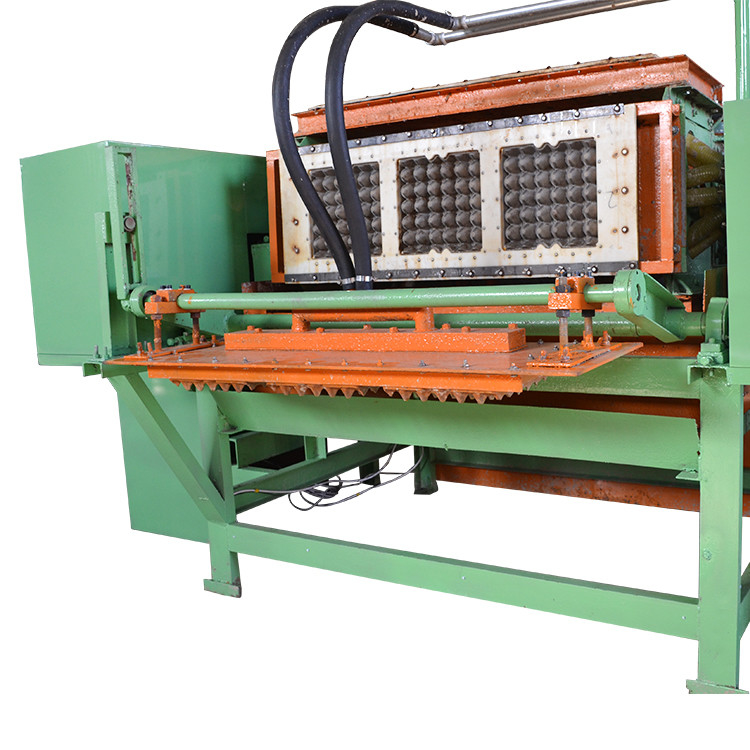

2. Forming System : Consist of 1pc of forming platen and 1 pc of transfering platen. Equipped with vacuum auto draining system;auto cleaning system for the forming mold and auto control cabinet.
3. Drying system (can use gas,dissel,coal for Boiler burner)
Single layer conveying chain;heated by section;multi burners;
Six layers drying line, energy saving and saving place
The temperature of each section can be adjusted independently;burners with French or Italian brand;
The energy for option: LPG,GAS,diesel oil,Equiped with auto control cabinet.
4. Automatic counting:
Stacker one set, one automatic counting device on the stacker
Our machine features:
1. controlled by computer, no needs any construction.
2. We could make all kinds of moulds for you, and it's very easy to change any moulds to the machine.
3. England technology, and spare parts is very famous brand from Germany, Taiwan...
4. with 2years warranty.
5. The installation of the whole line is easy.
With this machine production line, investors can turn their waste paper into Money!
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Brand Name: RUNLIANG
Voltage: 220-440V
Power(W): Different Machine Model
Weight: Depends
Certification: CE & ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 350- 3000pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray
Workshop required: 400㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation: Automatic and fully automatic
Keyword: Egg tray machine
This production line is suitable for the following products:
Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)
Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.
Technical parameters
| Model | Mechanization | Working mode | Capacity(Pcs/h) |
| ZJM-1800 | Semi-auto or Automatic | Rotary | 1800 |
| ZJM-2000 | Semi- auto or Automatic | Rotary | 2000 |
| ZJM-3000 | Automatic | Rotary | 3000 |
| ZJM-4000 | Automatic | Rotary | 4000-4500 |
| ZJM-5000 | Automatic | Rotary | 5000-5500 |
| ZJM-6000 | Automatic | Rotary | 6000 |
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory | ||||
| Delivery time | About 45 working days after receiving the deposit. | ||||
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC | ||||
| Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||||
| Warranty time | Two years after the Egg tray machine received. | ||||
| TERMS OF DELIVERY | FOB Qingdao Port, China | ||||
| Package | In container | ||||
| Certification | CE | ||||
Advantage of recycled paper pulp molding egg tray machine:
1,High efficient ,low energy consume , have a long life .
2,Easy to operate ,low labor force cost,large output .
3,Stable final product quality (same weight ,dimension,good look)
4,Professional technical support ,superior after-sales service .
5,Medium investment ,high profit.
Jinan Runliang Packing Machinery Co.,Ltd is a famous packing machinery company which has a good mix of science, industry and trade.
It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.
These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.
Don’t miss the chance of promoting the production efficiency of your company.
Welcome to contact us.
