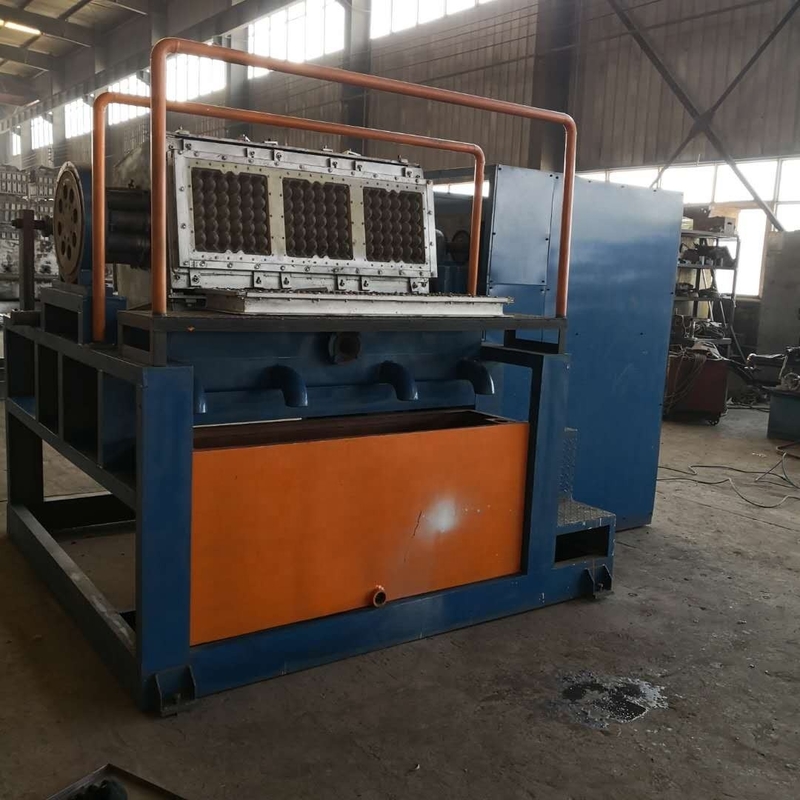

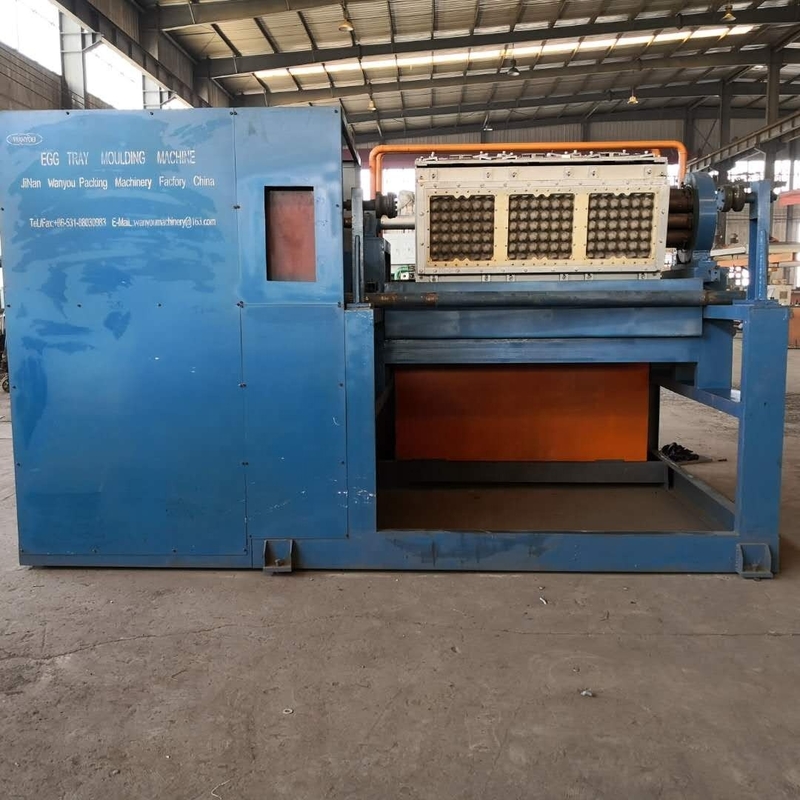

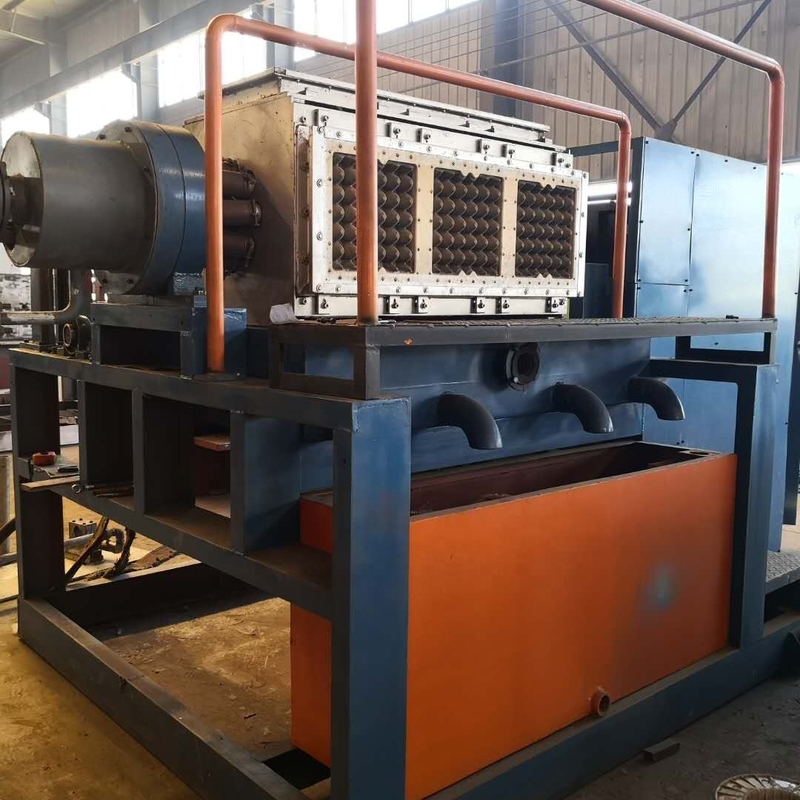

Rotary Egg Tray Machine 150kg/H Waste Paper Consumption 2 Colors Paper Pulp Molding Tray Making Machine
Pulping System
1. Put the raw material and water into the hydraulic pulper, you will get the paper pulp after mixed 10-20 minutes.
2. Pulp pump will transfer the finished paper pulp into the slurry pool.
3. The pulp pond beater will mix the pulp concentration.
4. The pulp pump will transfer the pulp into forming machine.
Molding System

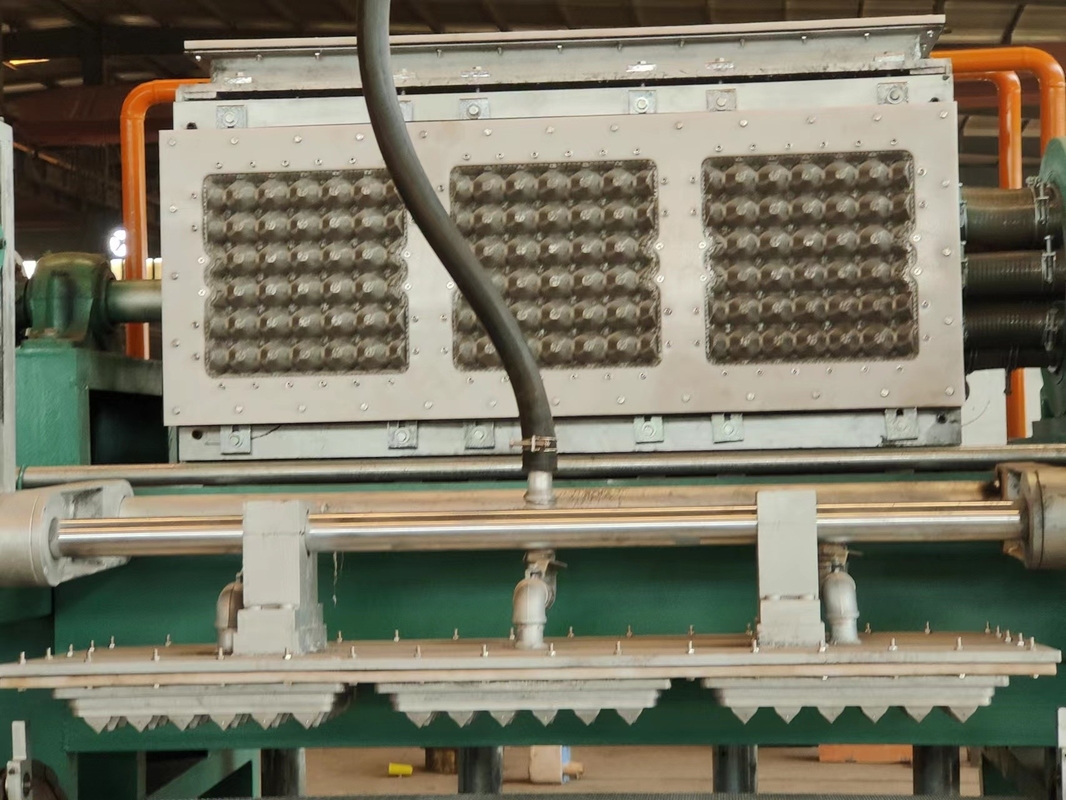

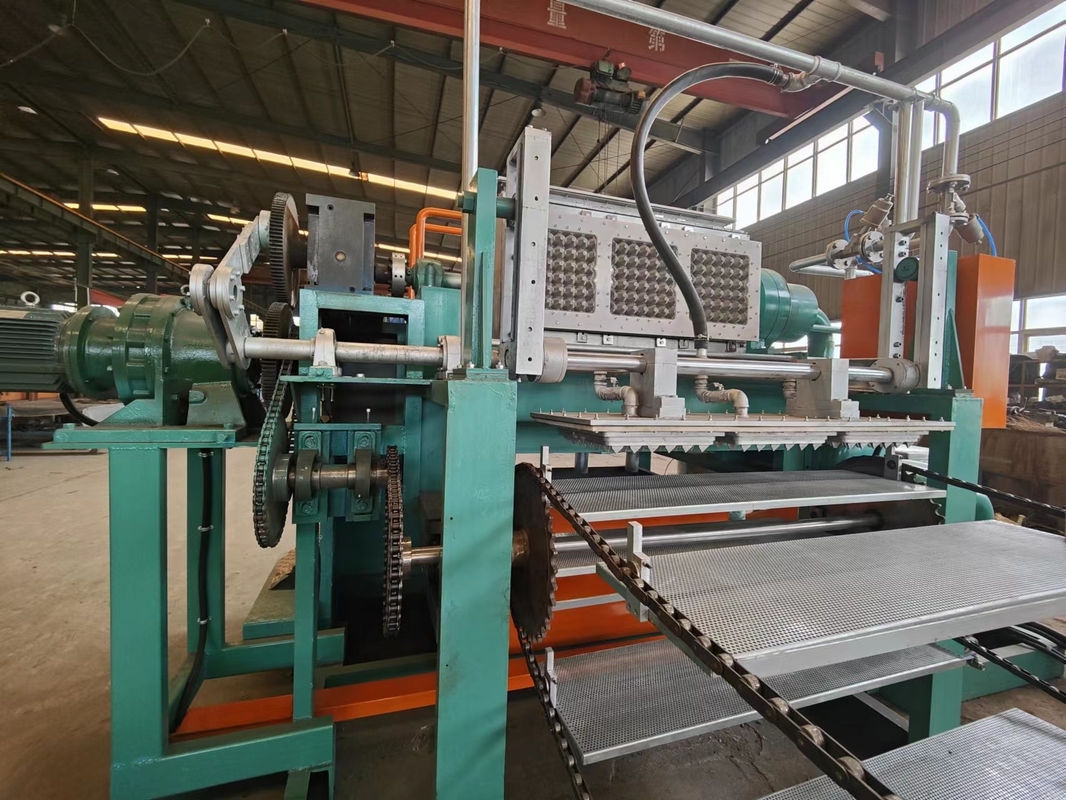

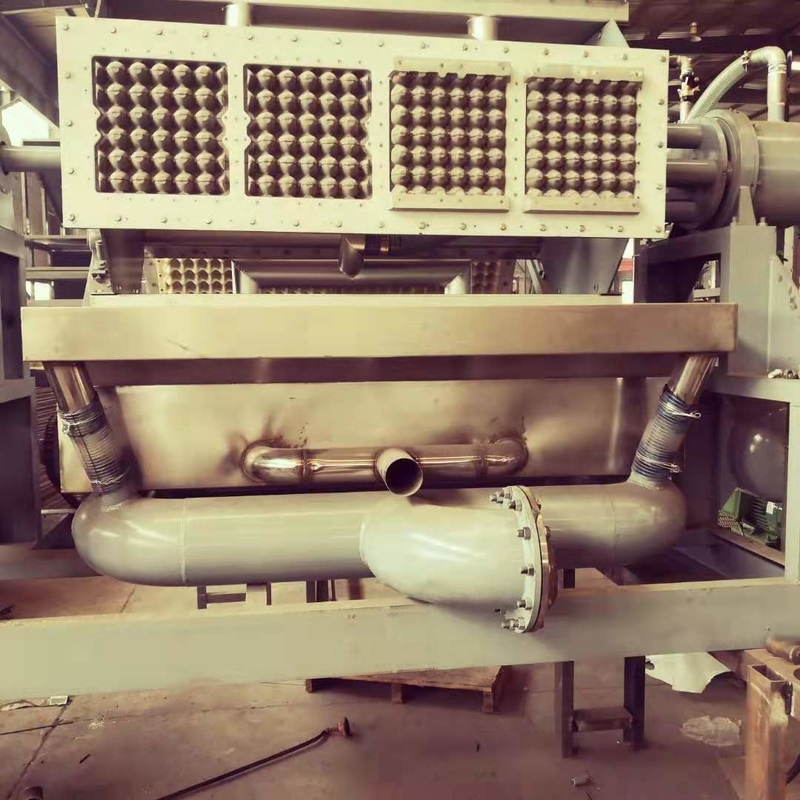

1. The molding machine is to absorb the pulp to the molding mold through the suction of the vacuum system to absorb the excess water into the gas-water separation tank, and then pump the water to the tank for storage.

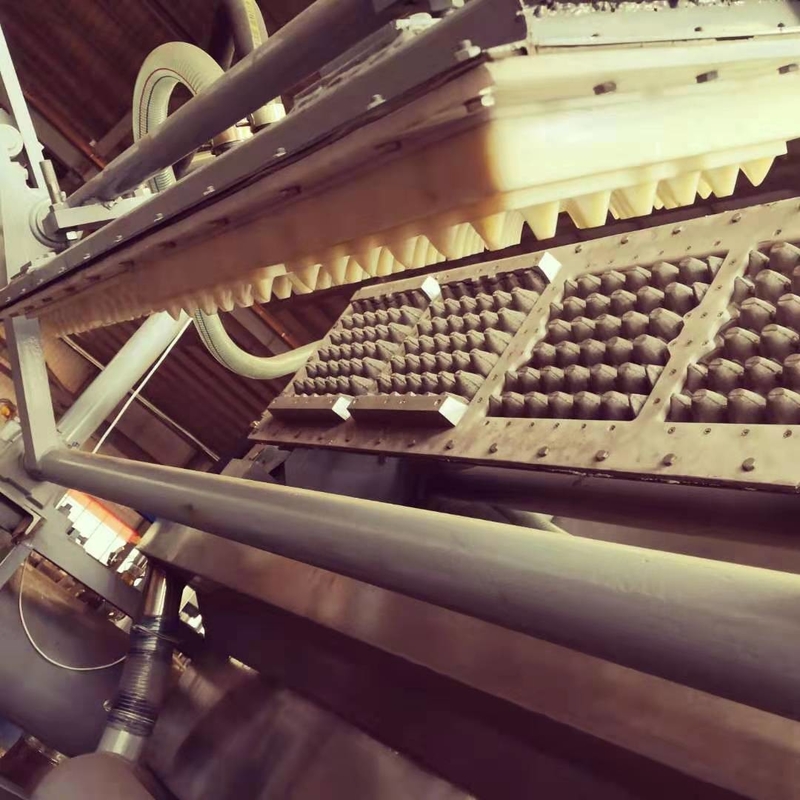

2. The molding machine absorbs the pulp and then forms it. and then the transfer mold takes out the finished product and sends it to the drying oven to dry it.
Drying System
Heat source: natural gas, diesel, liquefied petroleum gas and other combustion liquids and gases.The transmission mode adopts industrial transmission chain to drive the net plate transmission, which runs in the drying line.
Packing
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
Terms of delivery
Latest date of shipment rime:15-20 working days after reciept prepayment.
Payment terms:
30% advance payment by TT, 70% before delivery the goods.
| Egg Tray Mold Quantity | 12pcs(3pcs*4) | 16pcs(4pcs*4) | 24pcs(3pcs*8) | 32pcs(4pcs*8) | 40(5pcs*8) | 48(6pcs*8) | |
| Raw material | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | |
| Egg tray Capacity(pcs/hour) | 2000 | 2500 | 3000 | 4000 | 5000 | 6000 | |
| Net weight per piece (gram) | 70-75 | 70-75 | 70-75 | 70-75 | 70-75 | 70-75 | |
| Waste paper consumption | 150kg/ h | 150kg/h | 188kg/h | 225kg / hour | 375kg/h | 450kg/h | |
| Water Consumption | 0.45ton / h | 0.6ton/h | 0.68ton/h | 0.9ton / h | 1.1t/h | 1.35ton/h | |
| Natural Gas Consumption of Dryer | 75cbm/h | 90cbm/h | 110cbm/h | 120cbm/h | 150cbm/h | 180cbm/h | |
| Boiler model (natural gas fuel Kcal) | 800*103 | 1000*103 | 1200*103 | 1500*103 | 1800*103 | 2000*103 | |
| Worker requirement | 5-7workers | 5-7workers | 8-10workers | 8-10workers | 10-12 | 10-12 | |
| Power Requirement | Without dryer | 70KW | 80KW | 100KW | 100KW | ||
| With dryer | 100KW | 120KW | 130KW | 150KW | 180kw | 200kw | |
| Area of workshop | Without dryer | More than 200 M² |
More than 200 M² | More than 250 M² | More than 250 M² | ||
| With dryer | More than 400M² Dryer18M |
More than 400M² Dryer20M |
More than 520M² dryer30M | More than 520M² Dryer32M |
600m2 Dryer 36m |
750m2 Dryer 40m |
|
| Container Requirement | Without dryer | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | ||
| With dryer | 40ft*4 | 40ft*4 | 40ft*5 | 40ft*5 | 40ft*6+20ft*1 | 40ft*7 | |
| Remarks: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client's plant. 3. The above specification is for reference only, due to continuous technology development, data will be updated from time to time. 4. Pulp Molding Equipment are non-standard equipment, we are able to provide customized solution according to specific requirements from customer. 5. Welcome to contact us anytime, our professional team will provide more effective help and supports for you. |
|||||||
