Product Details:
|
| Material: | Cast Iron, Steel | Design Speed: | Customized |
|---|---|---|---|
| Appication: | Beverage, Commodity, Carton Box | Condition: | New |
| Voltage: | 380V, 220V | Warranty: | 1 Year |
| Power(w): | 120KW | Dimension(l*w*h): | Final Production Line |
| Production Capacity: | 1000-5000pcs Per Hour | Finished Products: | Fruit Tray,egg Tray,wine Tray,egg Carton,bottle Tray |
| High Light: | 2 Colors Rotary Egg Tray Machine,4 Colors Rotary Egg Tray Machine,3 Colors Rotary Egg Tray Machine |
||
Customized 2 / 3 / 4 Colors Rotary Egg Tray Machine Paper Egg Tray Making Machine 30 Holes Egg Tray Making
Egg Tray Machine Introduction:
1. Automatic and semiautomatic egg tray pulp molding machine and production line
2. It is used for making large quantity easy shape products, like paper egg tray, fruit tray, coffee cup carrier tray, bottle tray, wine tray, egg carton with lid, disposable medical products and industrial packaging products etc.
3. Paper Egg Tray Machine Capacity: 350pcs/h, 700pcs/h, 1000pcs/h, 1300pcs/h, 1800pcs/h, 2000pcs/h, 2500pcs/h, 3000pcs/h, 4000pcs/h, 4500pcs/h, 5000pcs/h, 6000pcs/h.
4. Product Type: Egg Tray Machine
5. Process Type: Paper Pulp Molding Production
6. Raw material: waste paper, waste cardboard, newspapers etc. Any type waste paper without plastic.
7. Boiler fuel heating type: diesel, coal, natural gas, or LPG
8. Power Requirement: 20KW-220KW
9. Voltage needed: 220V-440V
10. Workshop requirement: 100--850m2
11. Machine Model: WY350--WY6000
12. Workers Requirement: depends on different capacity machine
13. Brand Name: Wanyou
14. Origin Place: Shandong, China
15. After-sales service system: Engineers are available for dispatching abroad to install the machine

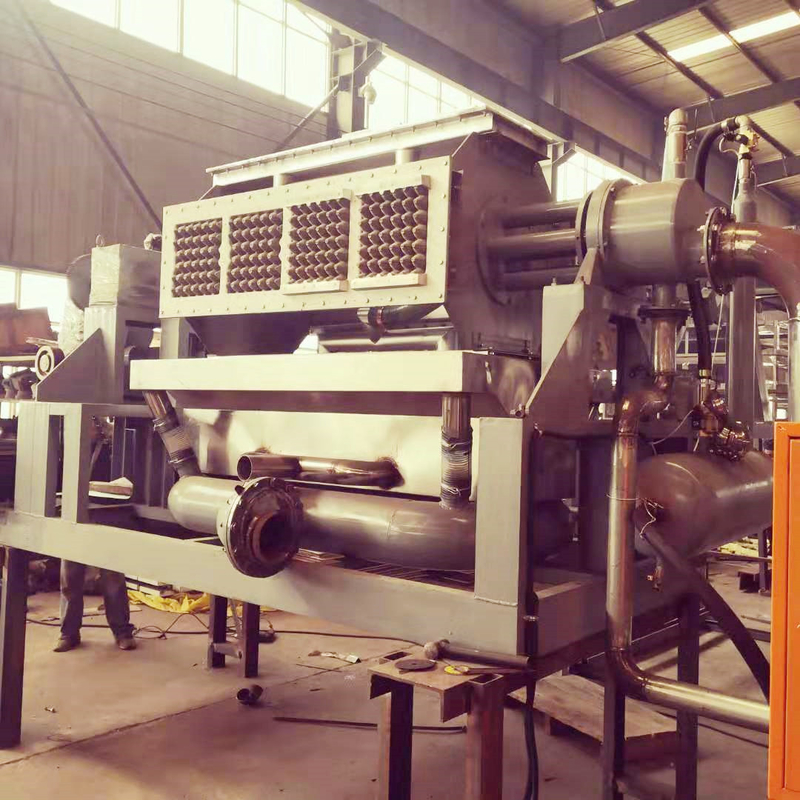

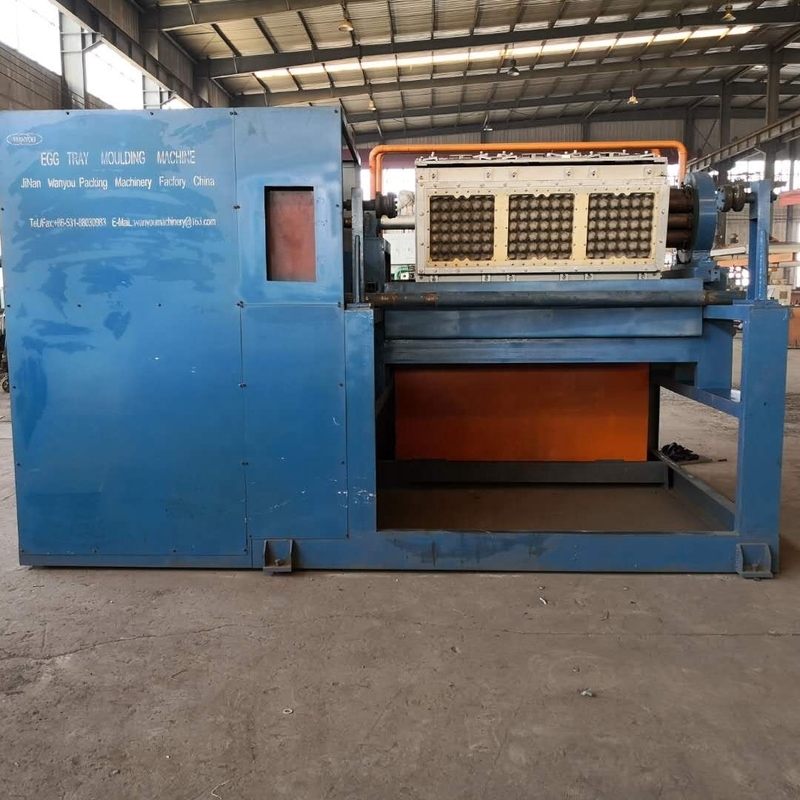

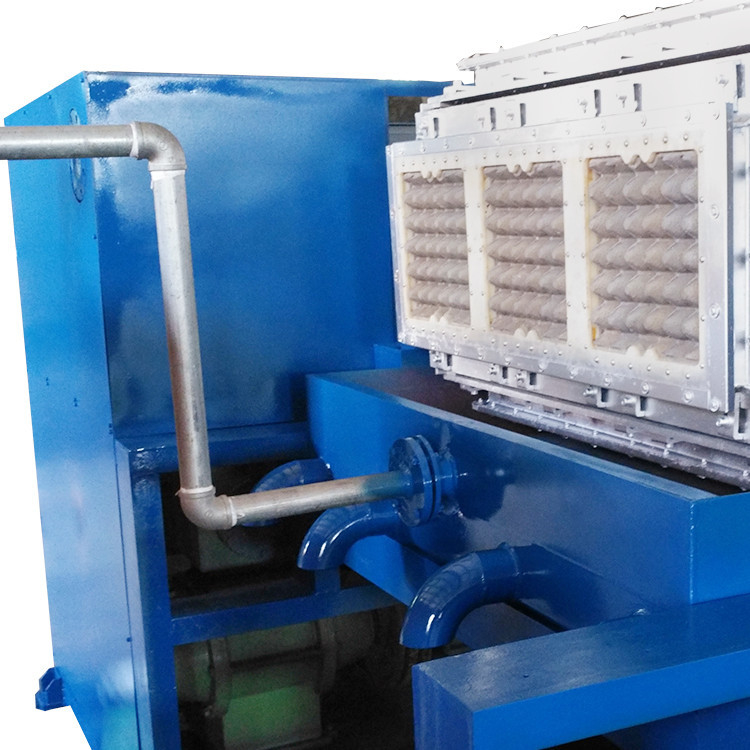

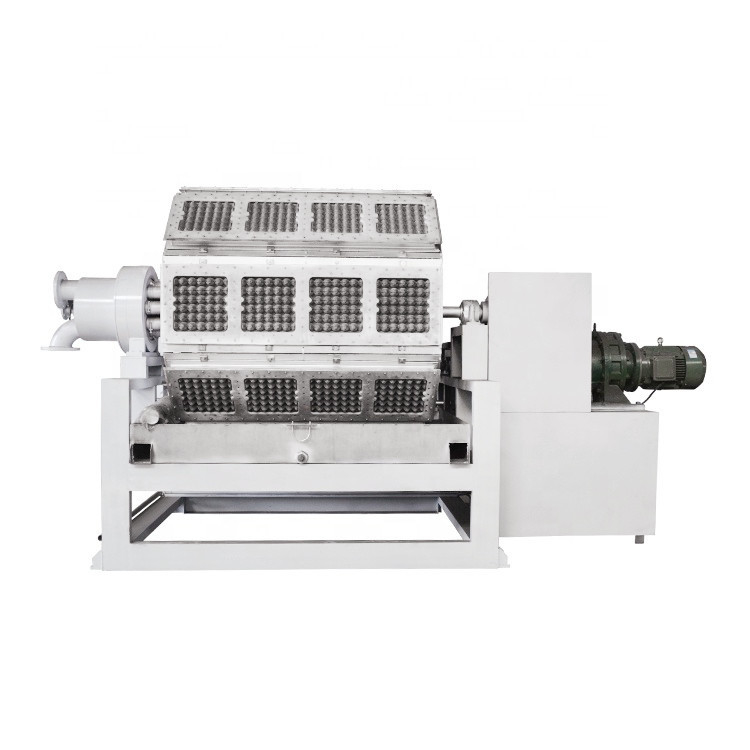

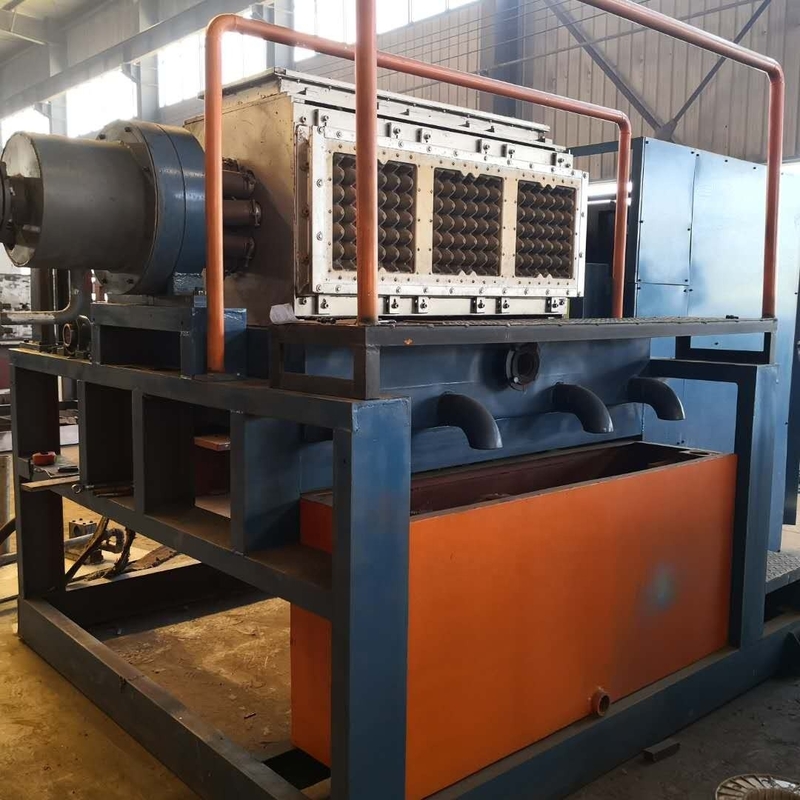

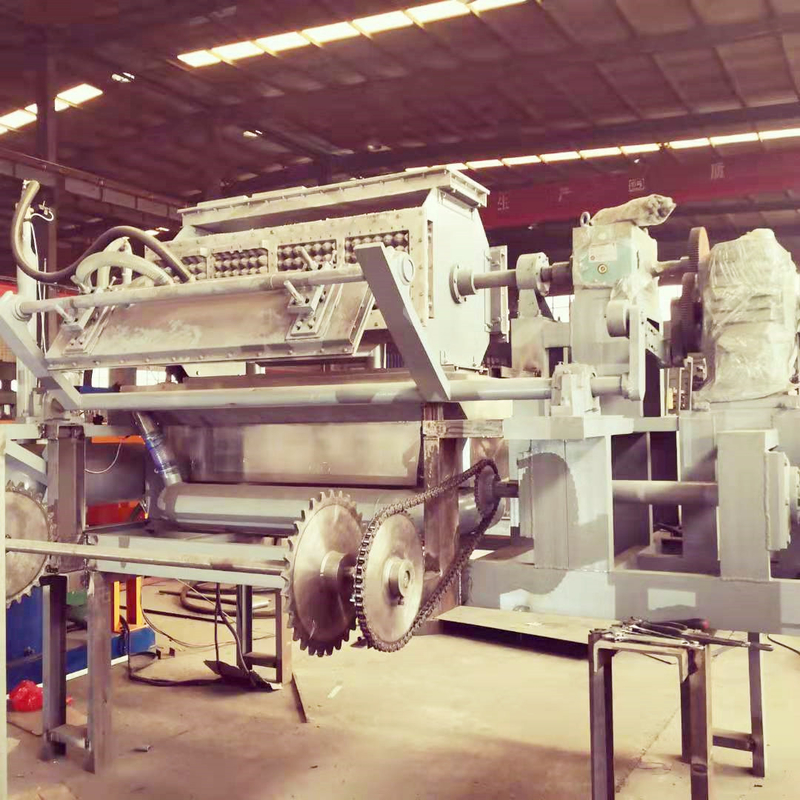

Egg tray forming machine
| Egg Tray Mold Quantity | 12pcs(3pcs*4) | 16pcs(4pcs*4) | 24pcs(3pcs*8) | 32pcs(4pcs*8) | 40(5pcs*8) | 48(6pcs*8) | |
| Raw material | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | |
| Egg tray Capacity(pcs/hour) | 2000 | 2500 | 3000 | 4000 | 5000 | 6000 | |
| Net weight per piece (gram) | 70-75 | 70-75 | 70-75 | 70-75 | 70-75 | 70-75 | |
| Waste paper consumption | 150kg/ h | 150kg/h | 188kg/h | 225kg / hour | 375kg/h | 450kg/h | |
| Water Consumption | 0.45ton / h | 0.6ton/h | 0.68ton/h | 0.9ton / h | 1.1t/h | 1.35ton/h | |
| Natural Gas Consumption of Dryer | 75cbm/h | 90cbm/h | 110cbm/h | 120cbm/h | 150cbm/h | 180cbm/h | |
| Boiler model (natural gas fuel Kcal) | 800*103 | 1000*103 | 1200*103 | 1500*103 | 1800*103 | 2000*103 | |
| Worker requirement | 5-7workers | 5-7workers | 8-10workers | 8-10workers | 10-12 | 10-12 | |
| Power Requirement | Without dryer | 70KW | 80KW | 100KW | 100KW | ||
| With dryer | 100KW | 120KW | 130KW | 150KW | 180kw | 200kw | |
| Area of workshop | Without dryer | More than 200 M² |
More than 200 M² | More than 250 M² | More than 250 M² | ||
| With dryer | More than 400M² Dryer18M |
More than 400M² Dryer20M |
More than 520M² dryer30M | More than 520M² Dryer32M |
600m2 Dryer 36m |
750m2 Dryer 40m |
|
| Container Requirement | Without dryer | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | ||
| With dryer | 40ft*4 | 40ft*4 | 40ft*5 | 40ft*5 | 40ft*6+20ft*1 | 40ft*7 | |
| Remarks: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client's plant. 3. The above specification is for reference only, due to continuous technology development, data will be updated from time to time. 4. Pulp Molding Equipment are non-standard equipment, we are able to provide customized solution according to specific requirements from customer. 5. Welcome to contact us anytime, our professional team will provide more effective help and supports for you. |
|||||||
FAQ
Our production line has Fully Automatic and Semi Automatic two types , both have computer control system .
1. What is Semi Automatic type ?
If only order The 1st and 2nd compulsory parts , that's Semi Automatic because you'll have to do the work of drying up egg tray manually;
2. What is Fully Automat type ?
Meaning: the production line includes the Drying system and the whole procedure can be done Automatically .
Of course, the price and the required work space would have big difference from the semi-automatic type.
3. Quality
--- Our machines use UK Technical and part of the components are Germany-made (ex: Ball valve) .
-- Our machine is made by Tooling NOT by Welding , insuring a minimum of 10 years’ lifespan .
-- The Egg tray moulds material is Aluminium which can keep the fixed shape much better than that made of rubber material.
--- 99.9% of Success rate: Even if there is a failed egg tray , just throw it back to Pulping area and it can be re-used avoiding waste ;
--- Our machine has been sold to worldwide for over 10 years with continued re-order by some customers with their business grow .
4 .What capacity per hour do you offer ?
Our machines’ capacity is from 350pcs/hr to 6000pcs/hr.
5.Do your products come with a warranty ?
Yes , we have 2 years warranty according the international practice.
6.Can I customize this kind of machine from your factory?
Yes ,we offer custom-made service to our customers, you need to provide us some samples,such as photos,dimensions etc.
