Place of Origin:
Jinan, Shandong, China
Brand Name:
Wanyou
Certification:
CE
Model Number:
ZSJ-1000
Egg Tray / Carton Machine / Fruit Tray Making Machine / Pulp Molding Machine For Egg Tray Making
Machine Features:
1. controlled by computer, no needs any construction.
2. We could make all kinds of moulds for you, and it's very easy to change any moulds to the machine.
3. England technology, and spare parts is very famous brand from Germany, Taiwan...
4. with 2years warranty.
5. The installation of the whole line is easy.
Quick Detail
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Voltage: 220-440V
Power(W): Different Machine Model
Dimension(L*W*H): 7m*2.2m*2.2m
Weight: 8 tons-15tons
Certification: CE & ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 350pcs/h -2500pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray
Workshop required: 150-300㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation: Automatic and fully automatic
Keyword: Egg tray machine
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory | ||||
| Delivery time | About 60 working days after receiving the deposit. | ||||
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC | ||||
| Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||||
| Warranty time | Two years after the Egg tray machine received. | ||||
| TERMS OF DELIVERY | FOB Qingdao Port, China | ||||
| Package | In container | ||||
| Certification | CE | ||||

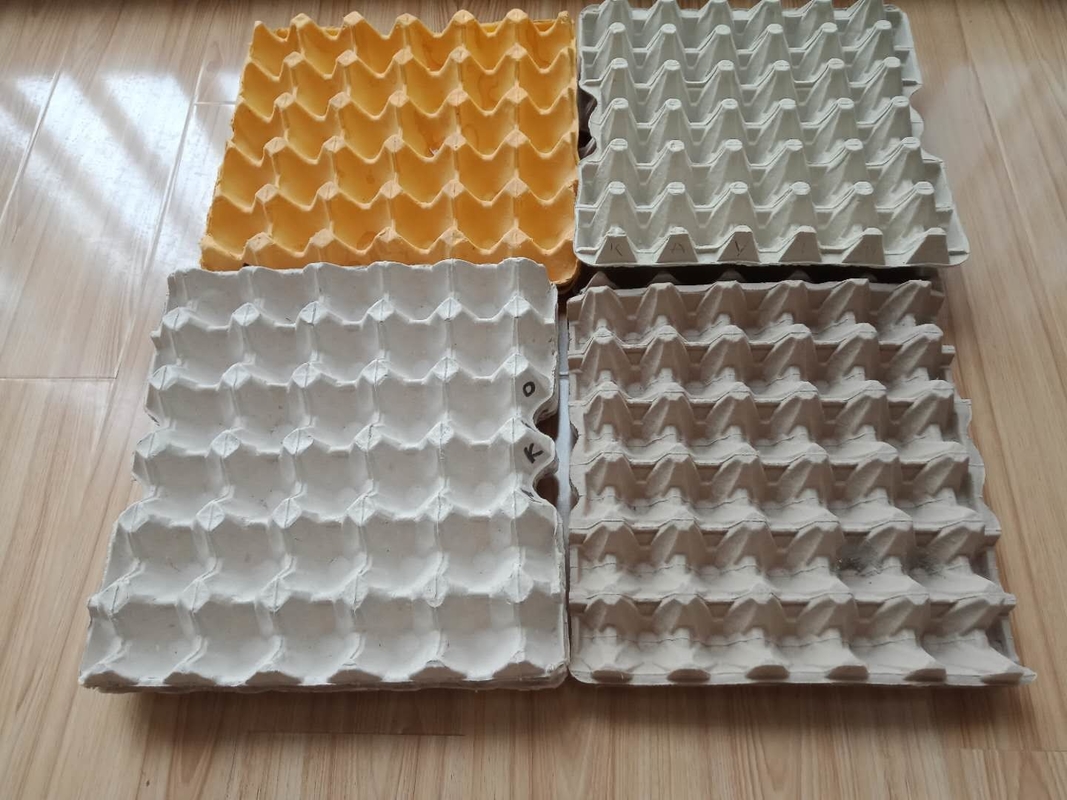

All paperpackage such as paper egg tray, egg carton,egg box, fruit tray, bottle tray, cup tray, consumer product package, medical disposable container etc.
| Technical Parameters of the Egg Tray Machine | |||
| pulp system | Hydra Pulper | 30KW |
Effective Power:25KW,material of tank and disc:carbonized steel ,material of screen plate:stainless steel , pulping consistency:3-4%.
|
| Mixer/Crusher | 1.5KW/h |
Stainless steel shaft and impeller,Mixing diameter:1200mm,match with pulp chest of 2 meters deepth,match with pulp chest of 2 meters deepth.not included support bracket.
|
|
| Vibration Screen |
3kw/h customized Some type machine donnot need this equipment |
Screen area:0.9m2 including protective casing.
|
|

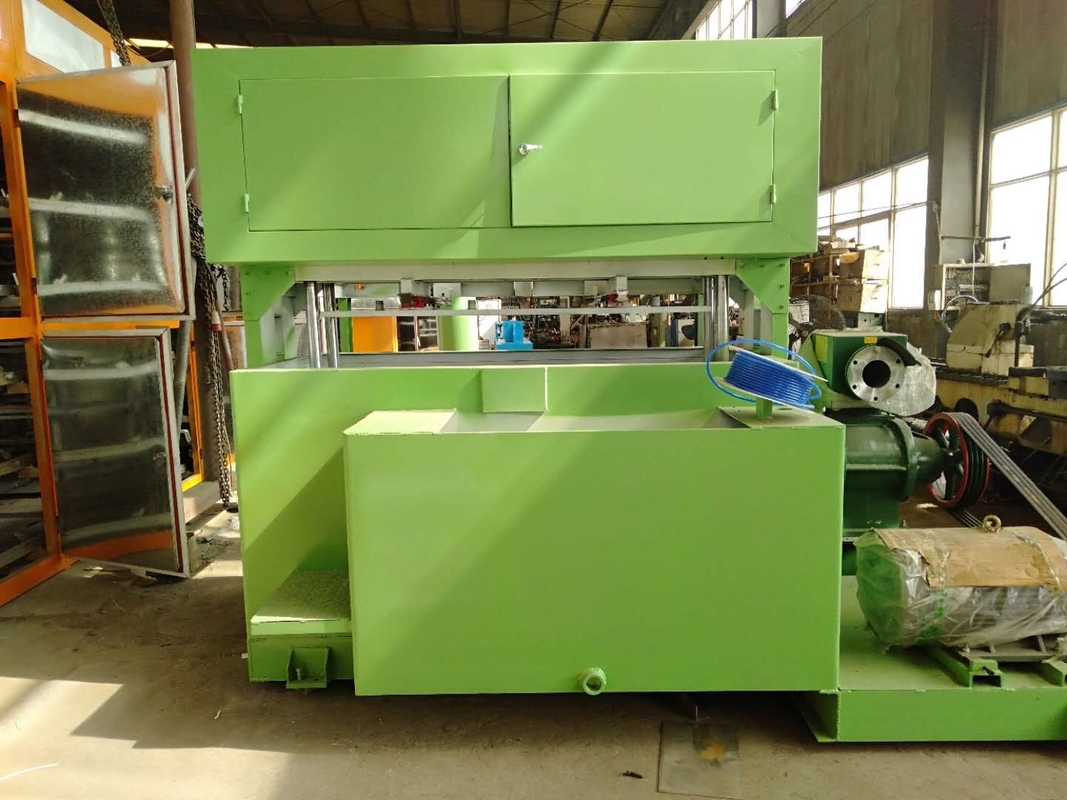

| forming system | 8 faces Rotary forming machine |
40pcs forming molds and 5 pcs transfer molds and 5 pcs press molds
|
PLC control,stainless steel pulp tank,the surface of platens covered with stainless steel,the products should be transferred to a plate manually.The main electrical elements is Siemens brand. |
| Auto Drain System | Match with Forming System include Air-water Separation Tank,Auto Drain Tank,Support,Check Valve, Electromagnetic Valve, Inductor,etc | ||
|

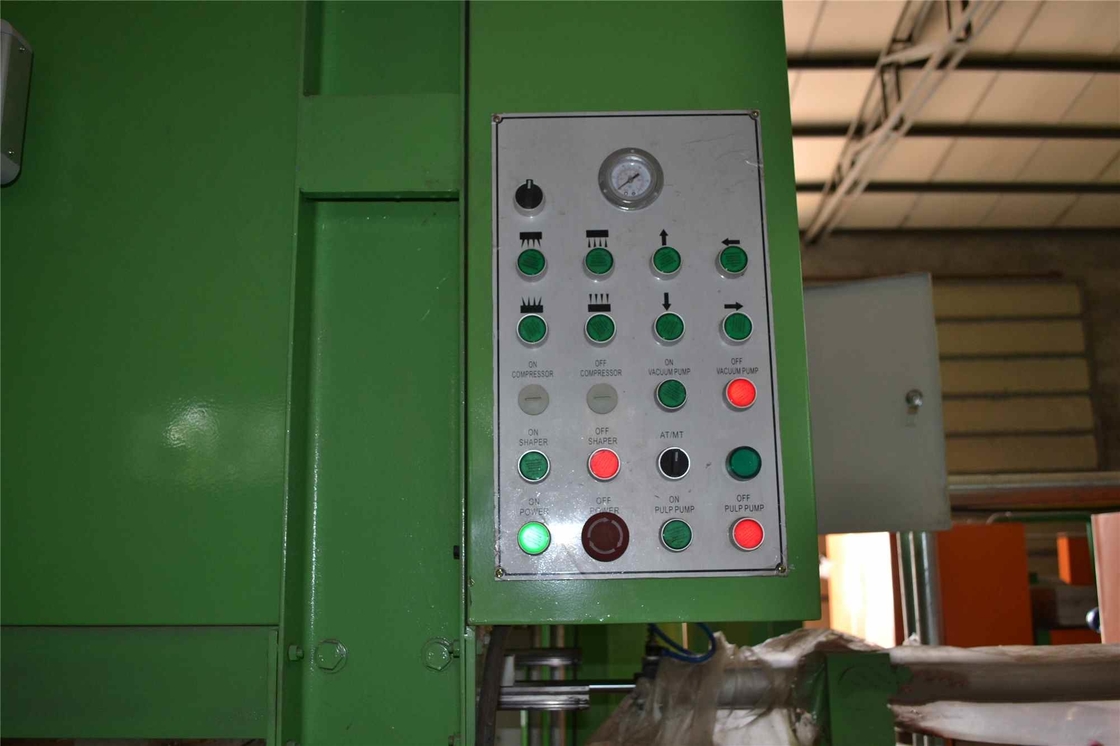

Control Cabinet for Forming System
|
/ | Control the forming machine.The main electrical elements is Germany brand. | |

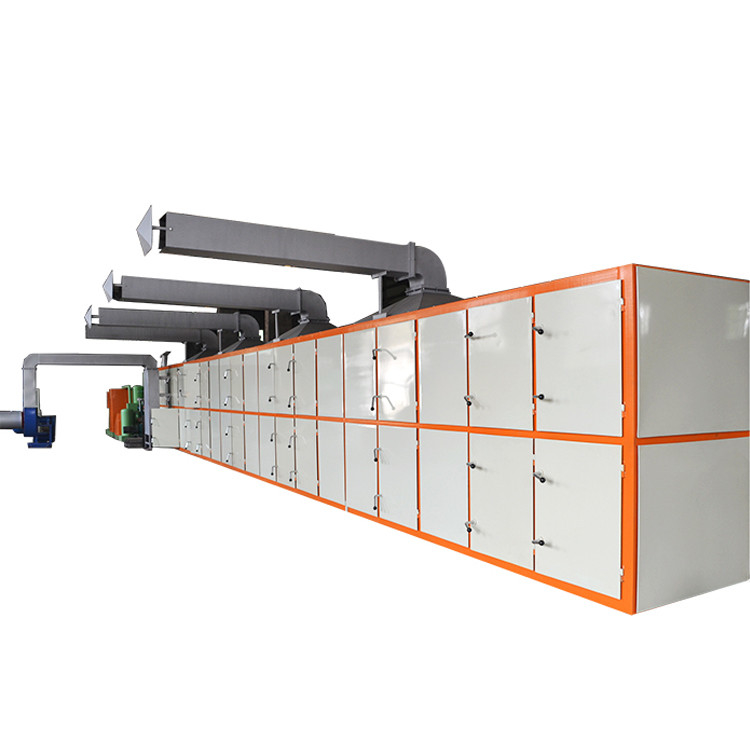

| drying system | 6-layer Drying Line | 16kw/h |
Effective length 100m, transfer speed adjustable. Fuel : Diesel oil/Nature gas/LPG
|
|
Control Cabinet for Drying System
|
380v/50hz 440v/60hz |
Control the drying system.The main electrical elements is Taiwan brand.
|
|
| Burner | Riello Brand | ||
| Boiler | China Famous Brand | ||
Jinan Wanyou Packing Machinery Factory is a famous packing machinery company which has a good mix of science, industry and trade.
It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.
These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.
Don’t miss the chance of promoting the production efficiency of your company.
FAQ:
(1). What kind of material we can use as the raw material?
Any kind of waste paper like old newspaper,magazines,books,A4 paper etc, and easy to get
(2). What kind of Fuel can be used for the whole production line?
Coal, natural gas, and dieseal oil.
(3). What kind of products can be made by this machine?
Send your inquiry directly to us
