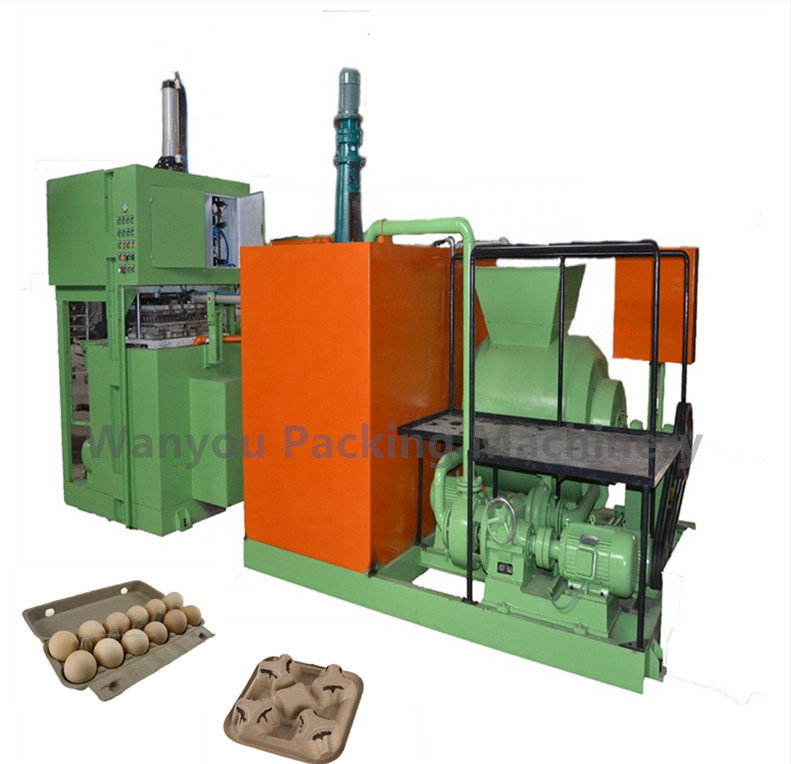

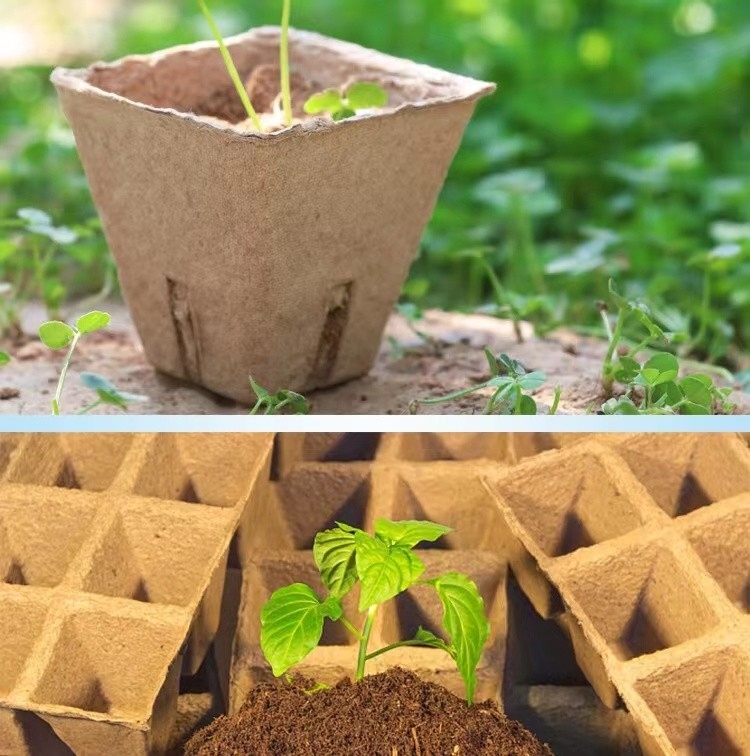

Manufacturer Waste Paper Pulp Molding Nursery Pot Bottle Tray Egg Tray Machine

Manufacturer Waste Paper Pulp Molding Nursery Pot Bottle Tray Egg Tray Machine

700pcs/hour egg tray machine

waste paper egg tray machine

700pcs/h egg tray making machine

Place of Origin:

Jinan, Shandong, China

Brand Name:

Jinan Wanyou



Model Number:

ZSJ series

Contact Us
Request A Quote
Product Details
Paper Tray Products
1 Year
Waste Paper:
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
in container
Delivery Time
35 working days
Payment Terms
Western Union, MoneyGram, T/T, L/C
Supply Ability
1 set per month
Product Description
Description of egg tray making machine:


This type egg tray machine uses waste paper as raw material to produce the egg trays for chicken farm factory or other customer who needs the trays. It can make many simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc..using waste paper as raw material.

Technical Parameters
Egg Tray mould quantity 2pcs Container Required
Raw material Waste paper

About 20ft*1

(without dryer)

Output for egg tray 700pcs/hour
Net weight per piece (gram) 70g-75g
The volume of waste paper consumed 53kg / hour
The volume of water consumed 0.15ton / hour

The natural gas consumped of the dryer(about)




Diesel Consumption 20kg/h
Machine Weight 5-20tons
Egg tray Size 295mm*295mm 30eggs


Process flow

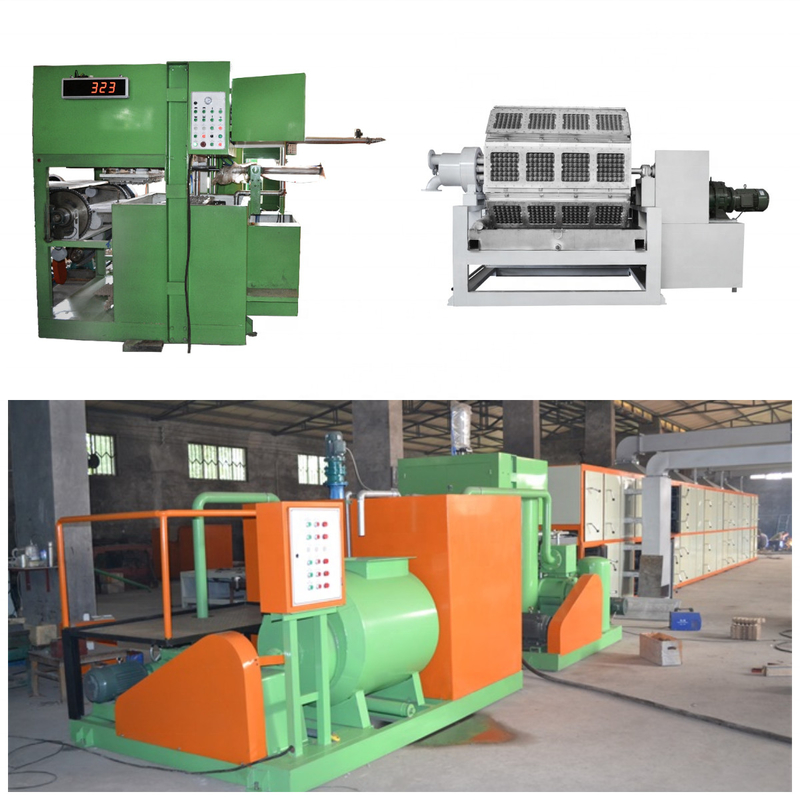

The Egg Tray production line is mainly combined by THREE PARTS:

1. Pulping system: Use waste paper and water as raw material and pulp up;

Manufacturer waste paper pulp molding egg tray machine

2. Forming system: The pulped material being delivered to Product Tray molds, and forming to the Product Tray plate shape;

Manufacturer waste paper pulp molding egg tray machine

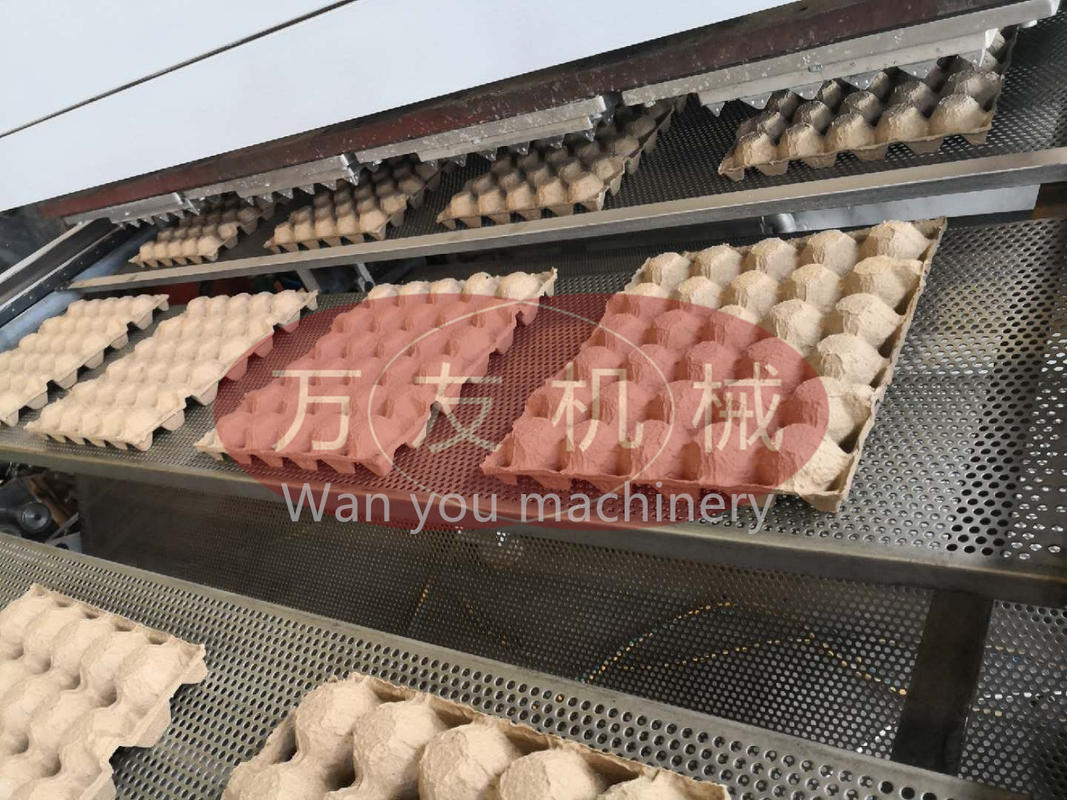

3. Drying system: The formed Product Tray plate being delivered to Dryer, and come up to Completed Strong Product Tray plate

Manufacturer waste paper pulp molding egg tray machine

The drying system is with one boiler. The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production.

Our production line has Fully Automatic and Semi Automatic two types , both have computer control system.

If you don’t want this drying system, it is also OK. Then you will have to do the work of drying up the product trays manually.

Our machine can be designed to make different products at same time by one Working Table (with 2 Molds or even 3 molds)

Some world famous brands of our egg tray machine:

1. the cylinder’s brand—FESTO

2. the electromagnetic valve’s brand—SHAKO

3. the pneumatic ball valve’s brand—SUPU

4. all the pump and motor are using famous brand of China.

5. the electric appliance’s brand—CHINT

6. the computer controller(PLC)–DELTA

7. the burner– BALTUR/RIELL
