Waste Paper Egg Tray / Carton Making Machine / Pulp Molding Machine / Customized Color
Waste Paper Egg Tray / Carton Making Machine / Pulp Molding Machine / Customized Color
Machine Introduction:
1. Pulping System:

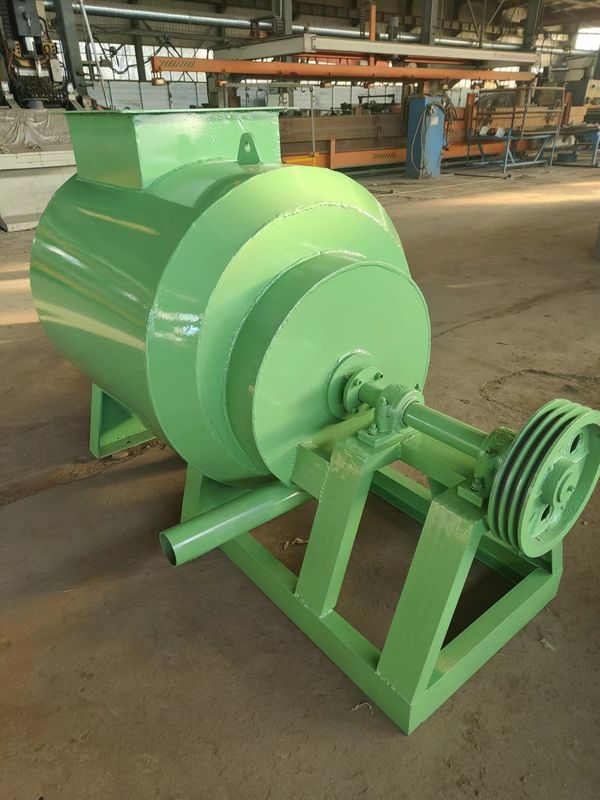

Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .

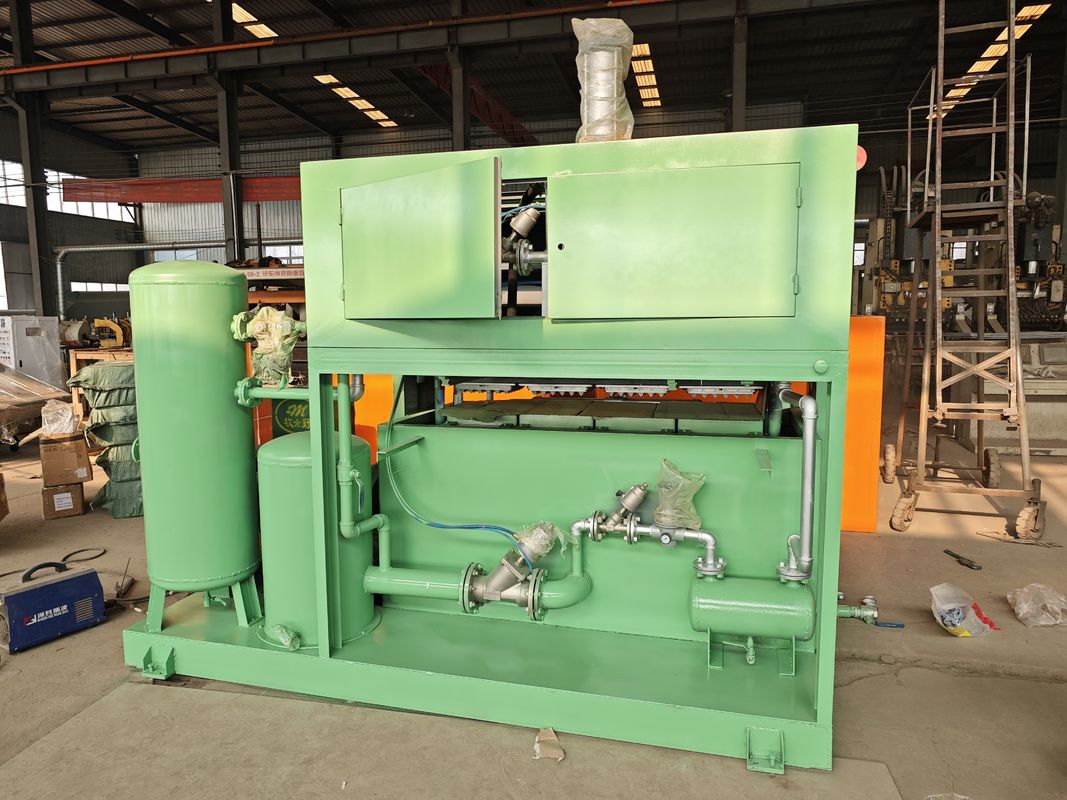

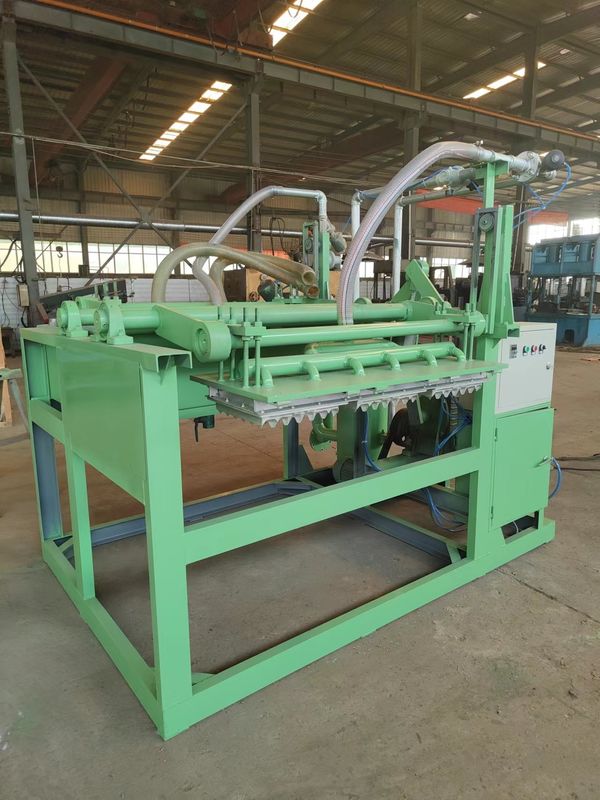

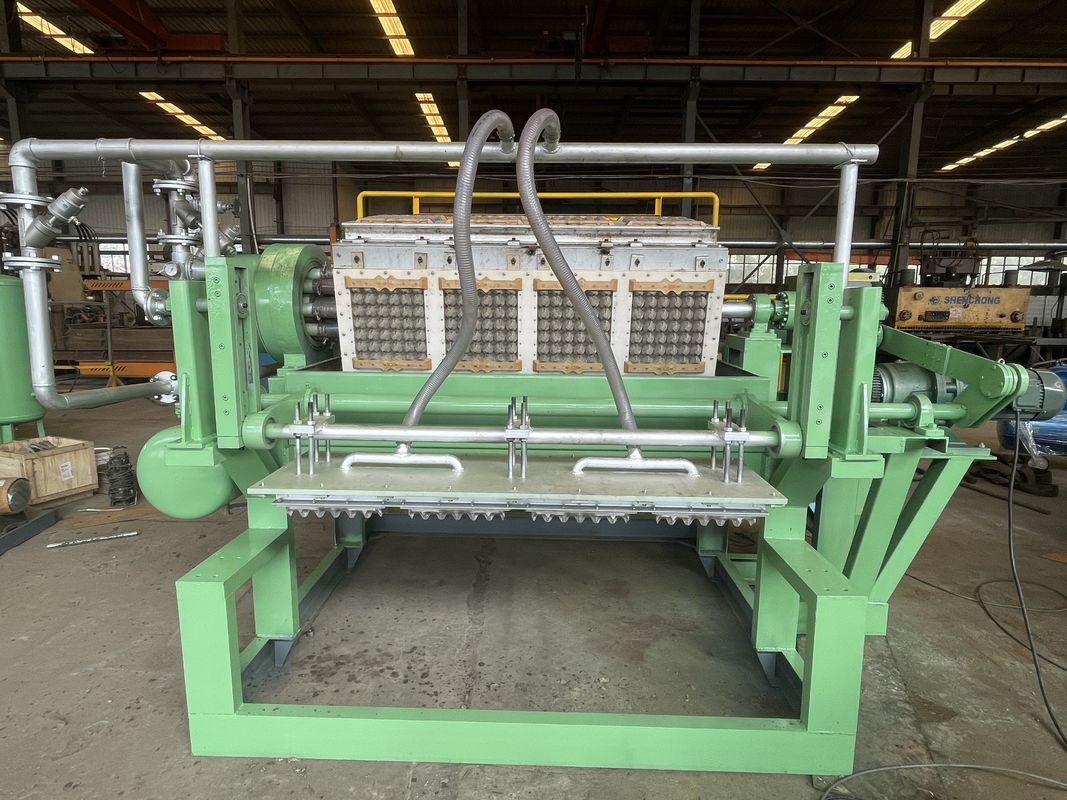

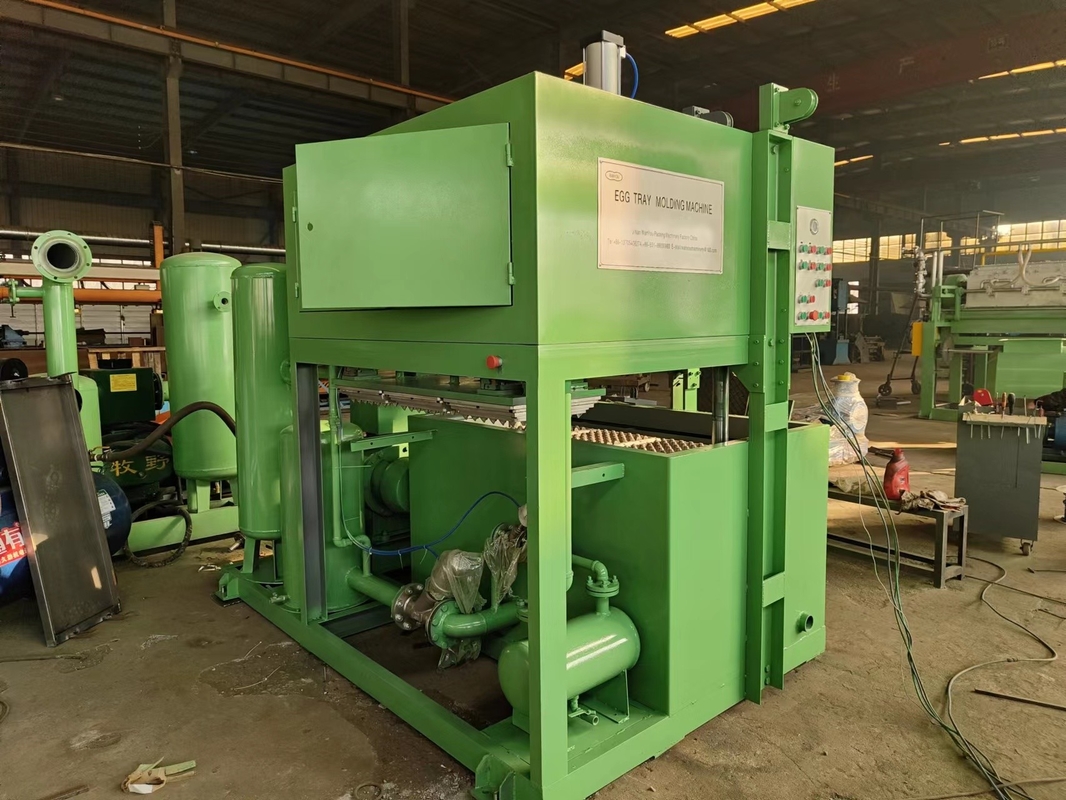

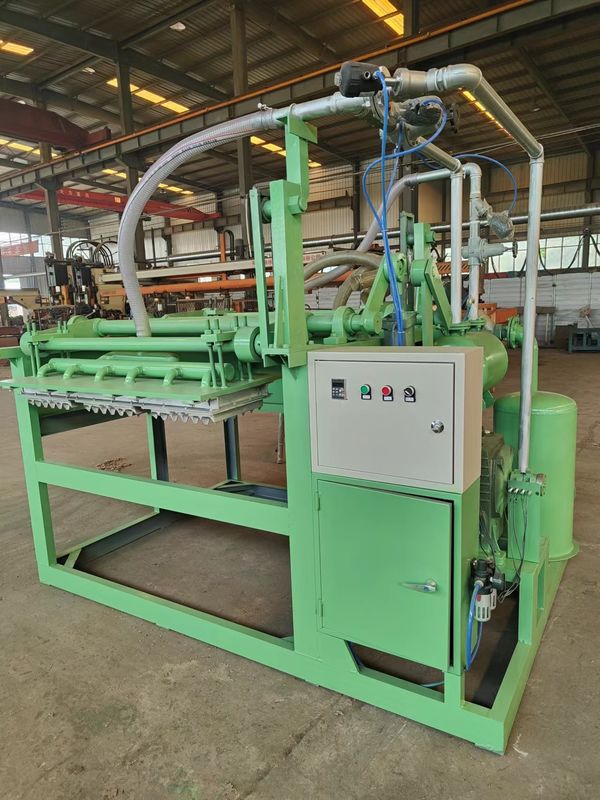

2. Forming System :
The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.
3. Drying system (can use gas,dissel,coal for Boiler burner)
There are burners and blowers on the two sides of the drying line. Burner creates the hot air and the blower increases it. There will be hot air mouth in the drying line also blow the hot air. The drying line is protected by the insulation board. The temperature inside the oven can reach 200 degree.
4. Automatic counting:
After drying line ,the egg trays go to the automatic counting and stacking system. You can preset the quantity of one pile ,such as 100pcs or 200pcs, when the quantity no is done, the counting device will be alarmed. And the products stacked at the same time. You can packaged them directly .
Machine Features:
1. controlled by computer, no needs any construction.
2. We could make all kinds of moulds for you, and it's very easy to change any moulds to the machine.
3. England technology, and spare parts is very famous brand from Germany, Taiwan...
4. with 2years warranty.
5. The installation of the whole line is easy.
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Brand Name: RUNLIANG
Voltage: 220-440V
Power(W): Different Machine Model
Dimension(L*W*H): 7m*2.2m*2.2m
Weight: 8 tons-15tons
Certification: CE & ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 350pcs/h -2500pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray
Workshop required: 150-300㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation: Automatic and fully automatic
Keyword: Egg tray machine
Many capacity egg tray machines we offered:
| Egg Tray Mold Quantity | 1pcs | 2pcs | 3pcs | 4pcs | 12pcs(3pcs*4) | 32pcs(4*8) | |
| Raw material | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | |
| Egg tray Capacity | 350pcs/hour | 700pcs/hour | 1000pcs/hour | 1300pcs/hour | 1800pcs/hour | 3000pcs/hour | |
| Net weight per piece (gram) | 70g-75g | 70g-75g | 70g-75g | 70g-75g | 70g-75g | 70g-75g | |
| Waste paper consumption | 0.025ton / hour | 0.06ton / hour | 0.1ton / hour | 0.13ton / hour | 135kg/ hour | 225kg / hour | |
| Water Consumption | 0.05ton / hour | 0.1ton/hour | 0.15ton / hour | 0.2ton / hour | 0.5ton / hour | 0.6ton / hour | |
| Natural Gas Consumption of Dryer | 12cbm/h | 25cbm/h | 35cbm/h | 50cbm/h | 60cbm/h | 80cbm/h | |
| Worker requirement | 2-3workers | 3-4workers | 4-6workers | 4-6workers | 5-7workers | 8-10workers | |
| Power Requirement | Without dryer | 20KW | 30KW | 40KW | 45KW | 70KW | 100KW |
| With dryer | 30KW | 45KW | 60KW | 65KW | 80KW | 150KW | |
| Area of workshop | Without dryer | More than100M² | More than 100 M² | More than 120 M² | More than 150 M² | More than 200 M² | More than 250 M² |
| With dryer | More than200 M² | More than 240 M² | More than300M² | More than 320 M² | More than 400M² | More than 520M² | |
| Container Requirement | Without dryer | 20ft*1 | 20ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 |
| With dryer | 40ft*1+20ft*1 | 40ft*2+20ft*1 | 40ft*2+20ft*1 | 40ft*3 | 40ft*3+20ft*1 | 40ft*5 | |
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory | ||||
| Delivery time | About 30 working days after receiving the deposit. | ||||
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC | ||||
| Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||||
| Warranty time | Two years after the Egg tray machine received. | ||||
| TERMS OF DELIVERY | FOB Qingdao Port, China | ||||
| Package | In container | ||||
| Certification | CE | ||||
Jinan Runliang Packing Machinery Co.,Ltd is a famous packing machinery company which has a good mix of science, industry and trade.
It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.
These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.
Don’t miss the chance of promoting the production efficiency of your company.
Welcome to contact us.
