Rotary Type Fruit Tray Egg Carton Making Machine Large Capacity Long Life

Rotary Type Fruit Tray Egg Carton Making Machine Large Capacity Long Life

  • Rotary Type Fruit Tray Egg Carton Making Machine Large Capacity Long Life
  • Rotary Type Fruit Tray Egg Carton Making Machine Large Capacity Long Life
  • Rotary Type Fruit Tray Egg Carton Making Machine Large Capacity Long Life
  • Rotary Type Fruit Tray Egg Carton Making Machine Large Capacity Long Life
  • Rotary Type Fruit Tray Egg Carton Making Machine Large Capacity Long Life
Rotary Type Fruit Tray Egg Carton Making Machine Large Capacity Long Life
Product Details:
Place of Origin: Jinan, Shandong, China
Brand Name: Wanyou
Certification: CE
Model Number: ZSJ-2500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: in container
Delivery Time: 40 working days after get deposit payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1 sets per month
Contact Now
Detailed Product Description
Raw Material: Waste Paper, Waste Cardboard, Carton Guarantee: 2years
Egg Tray Forming Type: Rotary Processing Type: Pulp Molding Machine
Condition: New
High Light:

egg tray machine

,

paper egg tray making machine



Rotary Type Large Quantity Paper Egg Tray / Carton Making Machine / Pulp Molding Machine



Rotary Type Large Quantity Paper Egg Tray / Carton Making Machine / Pulp Molding Machine



Machine Introduction:

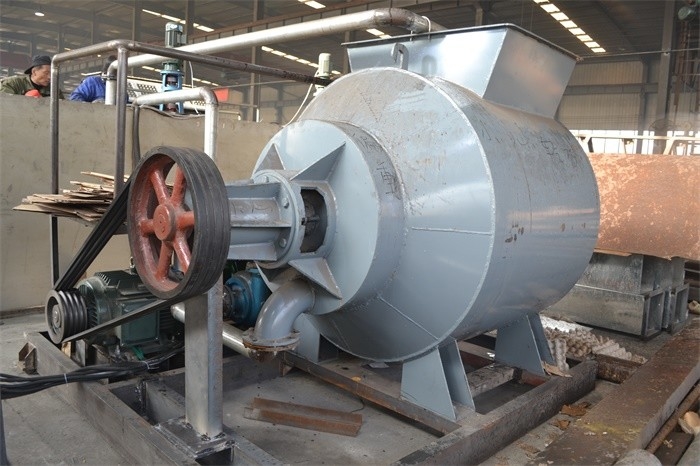

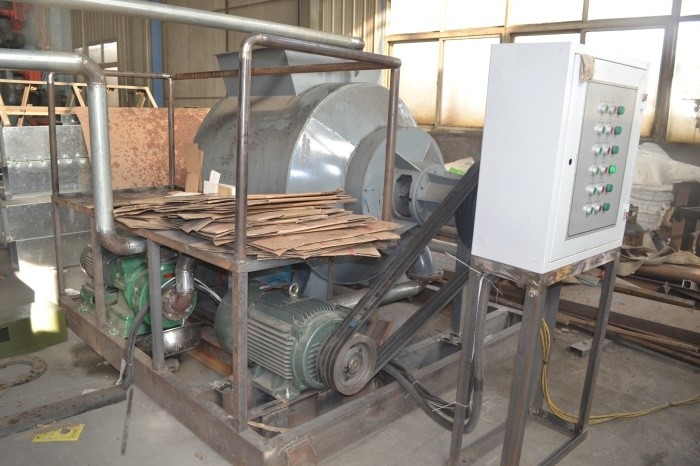

1. Pulping System:

Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .

Rotary Type Fruit Tray Egg Carton Making Machine Large Capacity Long Life 0

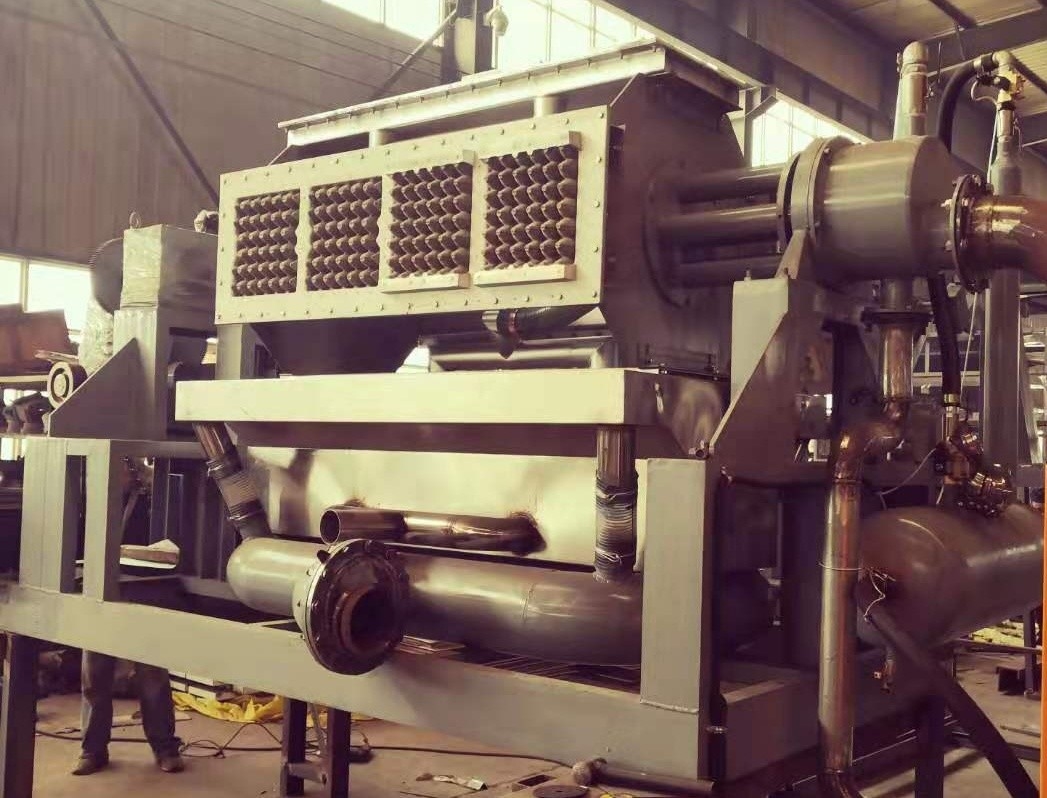

2. Forming System :



The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.



Rotary Type Fruit Tray Egg Carton Making Machine Large Capacity Long Life 1



3. Drying system (can use gas,dissel,coal for Boiler burner)

There are burners and blowers on the two sides of the drying line. Burner creates the hot air and the blower increases it. There will be hot air mouth in the drying line also blow the hot air. The drying line is protected by the insulation board. The temperature inside the oven can reach 200 degree.

Rotary Type Fruit Tray Egg Carton Making Machine Large Capacity Long Life 2

4. Automatic counting:

After drying line ,the egg trays go to the automatic counting and stacking system. You can preset the quantity of one pile ,such as 100pcs or 200pcs, when the quantity no is done, the counting device will be alarmed. And the products stacked at the same time. You can packaged them directly .



Our machine can be designed to make different products at same time by one Working Table (with 2 Molds or even 3 molds)

All the machine is in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.

Our Paper Egg Tray Machine saves production cost, and saves space. it is quitely used by small medium enterprises.

Our machine can turn your waste paper and books into Money!

Quick Detail







This production line is suitable for the following products:

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.

Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.



Many capacity egg tray machines we offered:



Molds quantity 40pcs+5pcs(5*8) 60pcs+5pcs(5*12) 32pcs+4pcs(4*8) 18pcs+3pcs(3*6) 12pcs+3pcs(3*4)
Raw material Waste paper Waste paper Waste paper Waste paper Waste paper
capacity 4000-4500pcs/h 5000pcs/h 3000pcs/h 2400pcs/h 1800pcs/h
Weight of tray 70g-75g 70g-75g 70g-75g 70g-75g 70g-75g
Waste paper consumption 500kg/h water can be 650kg/h 225kg/h 180kg/h 135kg/h
Water consumption 1-1.5t/h 1.5-2 t / hour water c 0.6T/h 0.5T/h 036T/h
natural gas consumption 60 m³/h 75-80 m³/h 30m³ 25m³ 20m³
Workshop dimension Without dryer More than200M²

More than300M²



120M² 100M² 100M²
With dryer 500M²(10*50 M)

750M²(15*50 M

)

55*12M 8*35M 8*35M
Installed power Without dryer 190KW

240KW

















60KW 55KW 45KW
With dryer 220KW 290KW 100KW 90KW 80KW
Machine dimension

Without dryer 13*4m 19*10m 4*10M 4*10M 4*10M
With dryer 40*4m 50*10m 4*35 4*32M 4*30
Container Without dryer 40ft*2 40ft*3 40ft*2 40ft*2 40ft*2
With dryer 40ft*3 40ft*4 40ft*5 40ft*4 40ft*4



Payment and delivery



Trade terms  FOB Qingdao or EXW Factory
Delivery time  About 30 working days after receiving the deposit.
Payment term  BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE



Installation
1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day )

Some world famous brands of the fittings:

1. the cylinder’s brand—FESTO

2. the electromagnetic valve’s brand—SHAKO

3. the pneumatic ball valve’s brand—SUPU

4. all the pump and motor are using famous brand of China.

5. the electric appliance’s brand—CHINT

6. the computer controller(PLC)--DELTA

7. the burner-- BALTUR/RIELL



Factory Introduction


Jinan Runliang Packing Machinery Co.,Ltd is a famous packing machinery company which has a good mix of science, industry and trade.

It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.

It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.

These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.



Don’t miss the chance of promoting the production efficiency of your company.



Welcome to contact us.
