Place of Origin:
Jinan, Shandong, China
Brand Name:
Wanyou
Certification:
CE
Model Number:
ZSJ-1000
3 Molds Up and Down Forming Type Paper Egg Tray Making Machine Egg Tray Equipment For Different Trays Making
3 Molds Up and Down Forming Type Paper Egg Tray Making Machine Egg Tray Equipment For Different Trays Making is a Reciprocating Type Egg Tray Making Machine. It can make many simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc..using waste paper as raw material.
Pulp molding products are one kind of new packing material. This is a new buzz in recent years. Pulp molding machinery is a type of environmentally friendly equipment that mixes waste paper and water as raw material. The pulp moulding machine cost is low and you don’t need to spend too much money. The pulp molding machines have great develop prospect on the market.
Paper egg tray is considered as a sustainable packaging material. It is produced from recycled materials, and can be recycled again after its useful life-cycle. With the wide application of paper egg trays, the paper egg tray making machine is becoming the hot sales machine on the markets.
The egg tray machine has Semi automatic and automatic and fully automatic production process. The unique characteristic of the automatic machine is that it has automatic egg tray dryer. With this kind of machine, you can dry the semi-finished wet egg trays automatically.
The main process of the production is

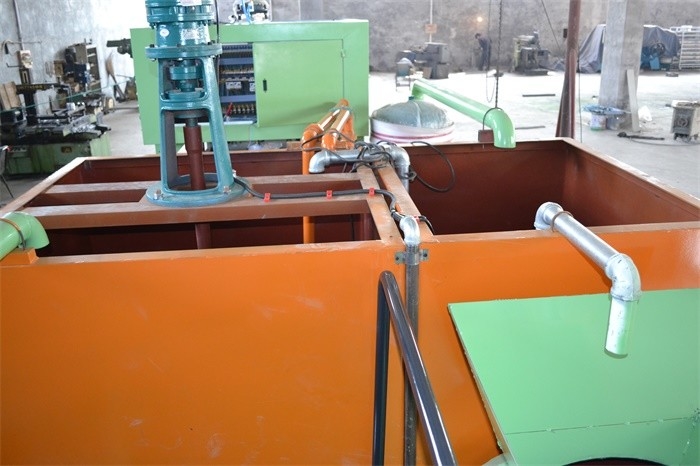

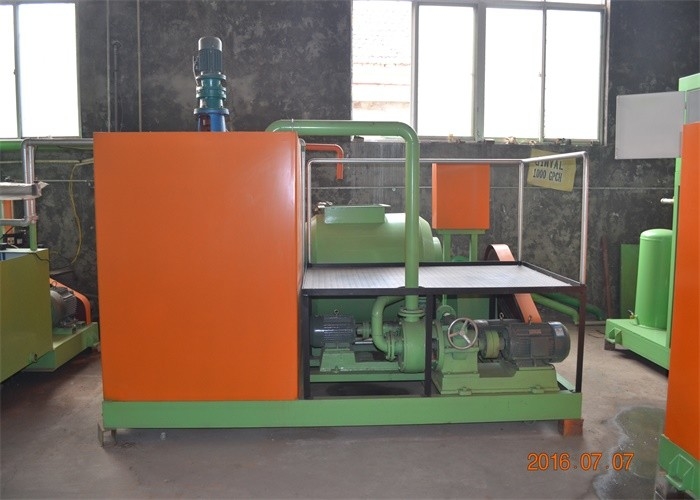

1. Pulping of the waste paper

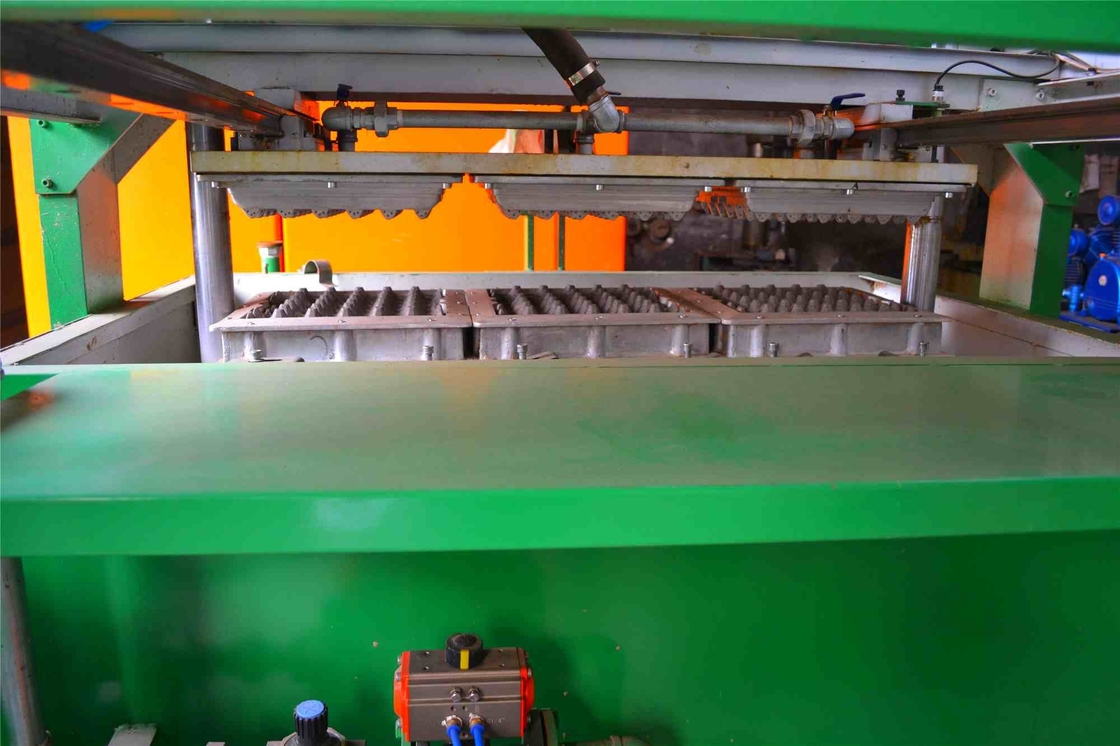

2. Forming the wet egg trays or other shape trays
3. Drying of the trays
The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production.
For pulp molded 30-cell egg trays : first the worker will weight the raw material and put them into the conveyor. Then the pulping ,forming, drying and stacking will be finished automatically. After drying, the finished products will be packed by workers.
A hot pressing section should be added in the production of pulp molded egg box/carton(6-cell,10-cell,12-cell,6+6-cell,15-cell),fruit tray and cup carrier after drying because of shrinking.
The egg box/carton can be labelled or printed after hot pressing. These processes could be finsihed manually or automatically.
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Voltage: 220-440V
Power(W): Different Machine Model
Dimension(L*W*H): 7m*2.2m*2.2m
Weight: 8 tons-15tons
Certification: CE & ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 350pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray
Workshop required: 150-300㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation: Automatic and fully automatic
Keyword: Egg tray machine
This production line is suitable for the following products:
Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)
Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.
Technical data
| Egg Tray mould quantity | 3pcs | |
| Raw material | Waste paper | |
| Output for egg tray | 1000pcs/hour | |
| Net weight per piece (gram) | 70g-75g | |
| The volume of waste paper consumed | 0.2ton / hour | |
| The volume of water consumed | 0.4ton / hour | |
| Natural Gas consumption of the Bolier(about) | 65cbm/h | |
| Machine Length | 25-30meters | |
| Egg tray Size | 295mm*295mm 30eggs | |
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory | ||||
| Delivery time | About 45 working days after receiving the deposit. | ||||
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC | ||||
| Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||||
| Warranty time | Two years after the Egg tray machine received. | ||||
| TERMS OF DELIVERY | FOB Qingdao Port, China | ||||
| Package | In container | ||||
| Certification | CE | ||||
Jinan Wanyou Packing Machinery Factory is a famous packing machinery company which has a good mix of science, industry and trade.
It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.
These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.
Don’t miss the chance of promoting the production efficiency of your company.
Welcome to contact us.
Material used by our machine

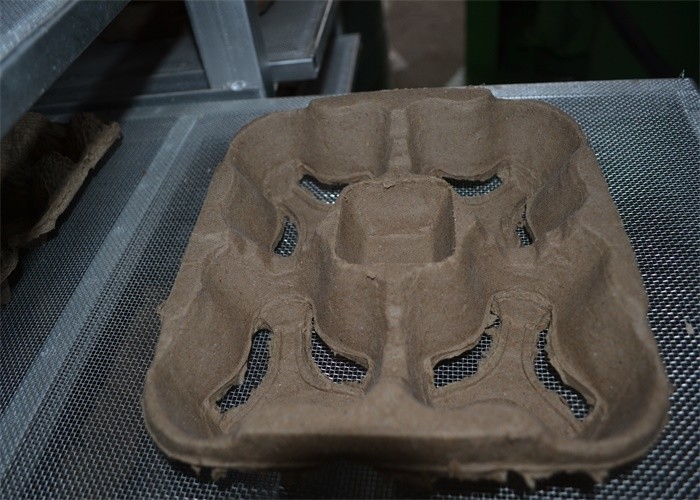

End products of our machine:
Our machine make your waste paper and books into Money!
