Place of Origin:
Jinan, Shandong, China
Brand Name:
RUNLIANG
Certification:
CE
Model Number:
RL-WLJ
Factory Price Manufacturing Machines for Small Business for Egg Tray Making Machine

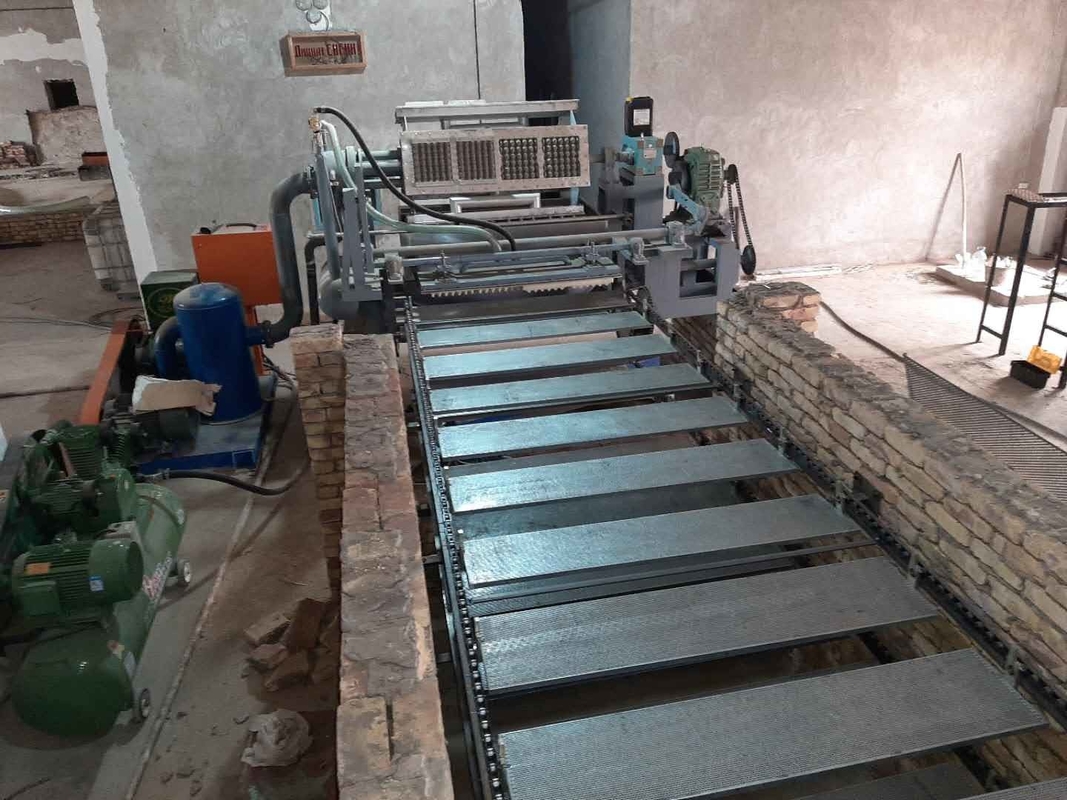

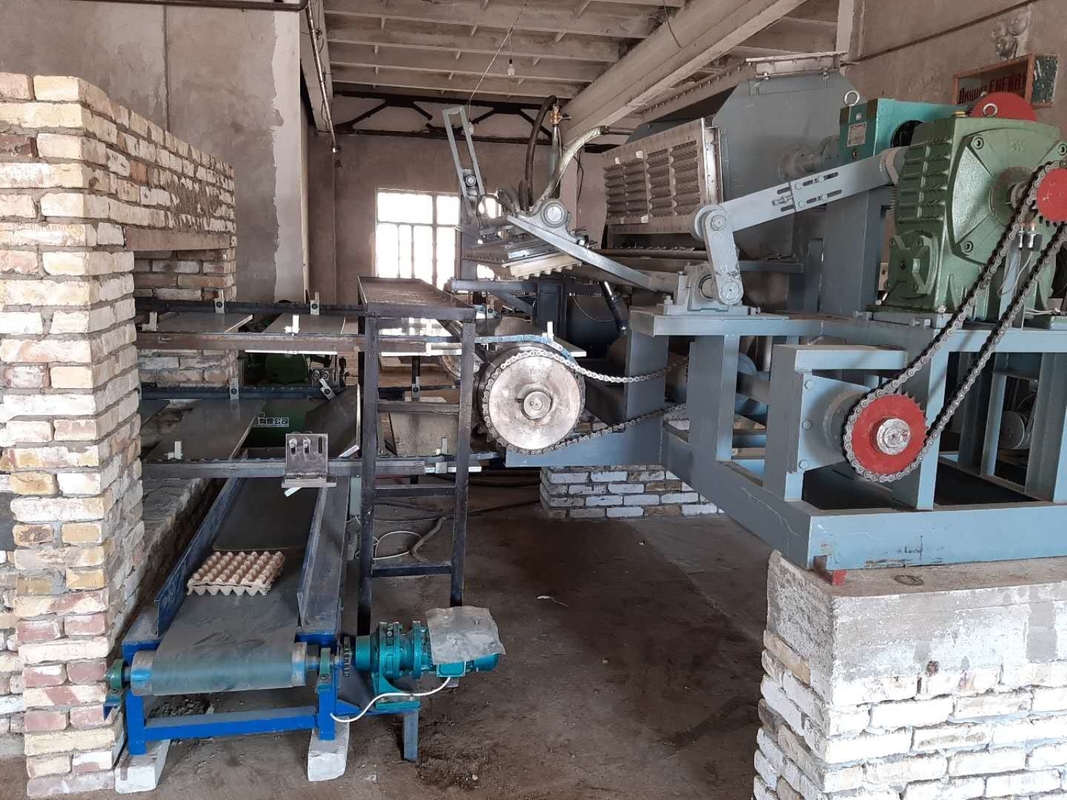

The main sections of the production line:
1.Pulping system:
Including the hydrapulper,pump,disk mill (refiner),mixer,etc..to make the wastepaper into pulp.

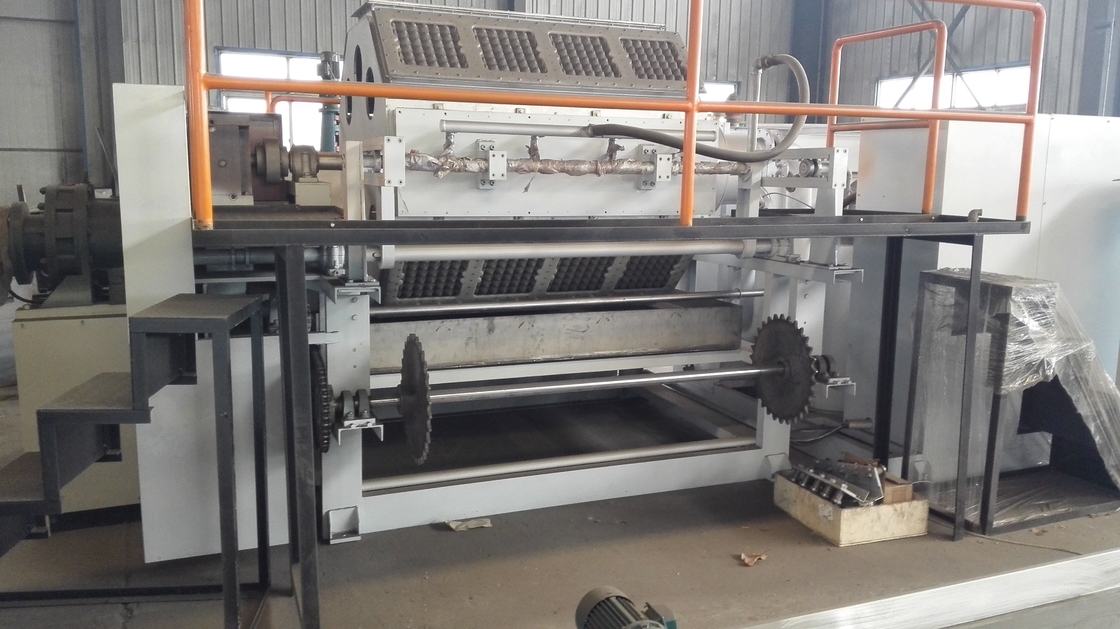

2. Forming system:
Including the molding machine,molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.
3.Drying system:
Including the oven,chains,trays,heating pipes,fans,boiler,etc..to dry the wet trays so they can be used directly.
After drying line, the egg trays go to the automatic counting and stacking system, you can preset the quantity of one pile, such as 100pcs or 200pcs. When the quantity okay, it will be alarm. The products stacked at the same time. You can packaged them directly.
Technical Parameters:
Item | Consumption/requirement | Remark |
Electricity Power | 200kw | The burning source for the dryer boiler is selectable. Clients only need to choose one suitable for local site. |
Waste paper | 450kg/h | |
Water | 1.35t/h | |
Natural gas/Diesel oils | 180m3/h/140kg/h around | |
Firewood | 500kg/h around | |
Workshop | 750m2(10mWidth*75mlength) | |
Machine size | 65m*10m | |
Workers Requirement | 10-12 persons |
The dryer of egg tray machine has automatic metallic dryer and brick kiln can be choose.
Metallic dryer:
Brick kiln dryer:
Payment and delivery:
Trade terms | EXW Jinan |
Delivery time | About 90 working days after receiving the deposit. |
Payment term | BY T/T40%DEPOSIT+60%BALANCE |
Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. |
Warranty time | 2 years after the Egg tray machine received. |
TERMS OF DELIVERY | EXW Jinan,China |
Package | 7*40ft In container |
Certification | CE |
Welcome for more information.
