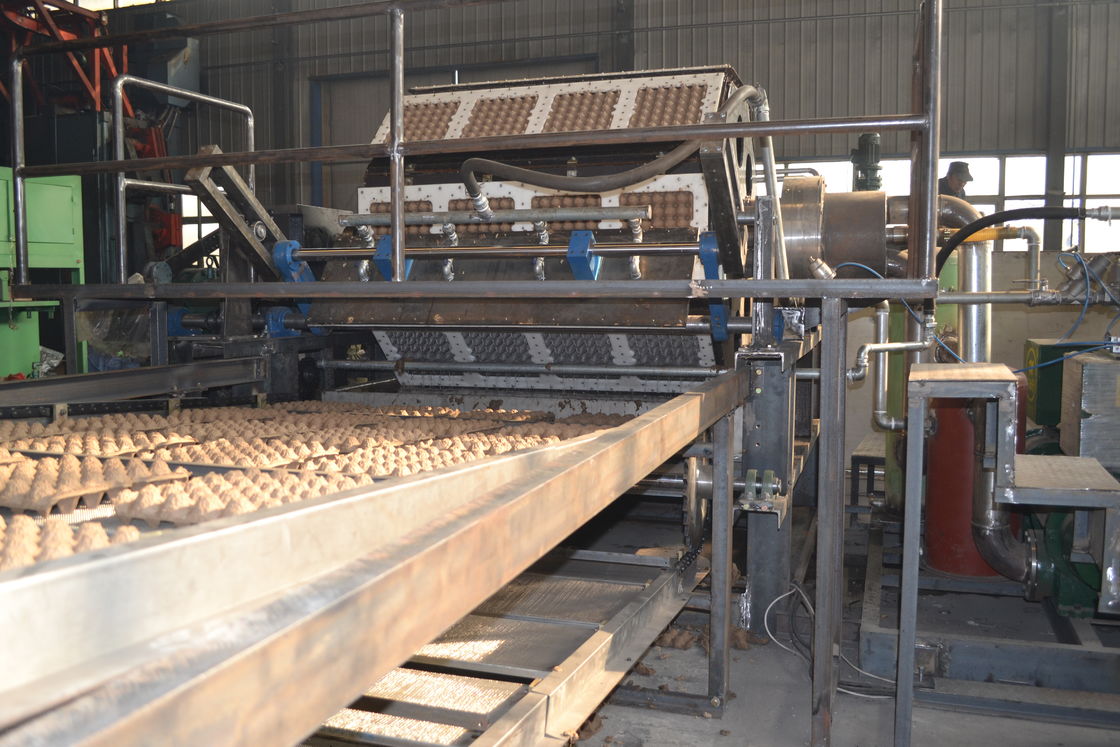

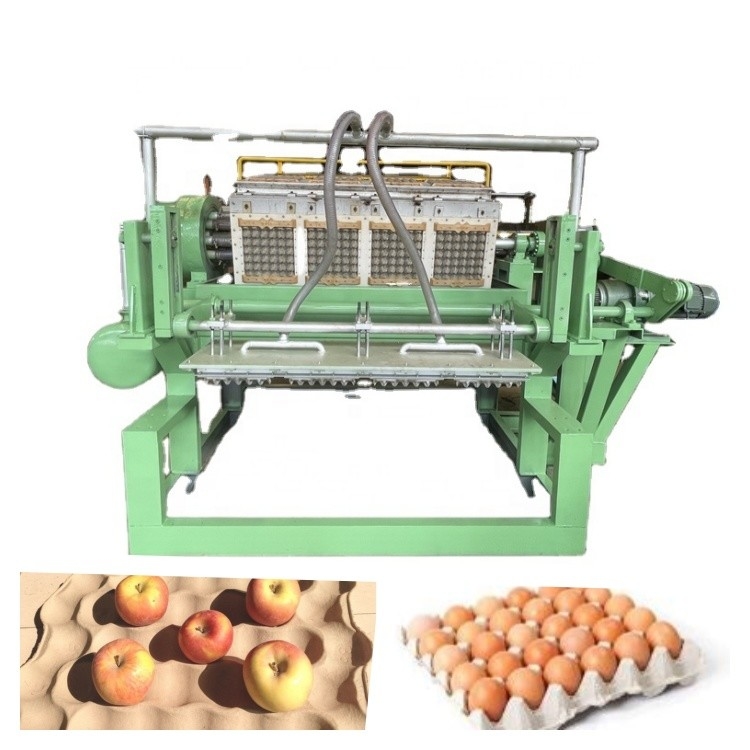

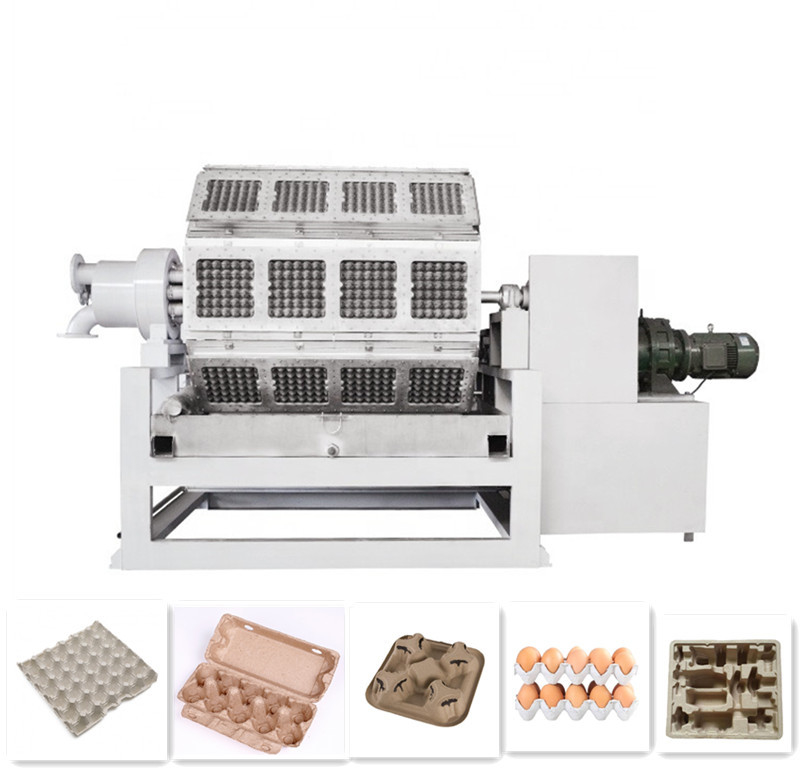

High Capacity Egg Tray Manufacturing Unit , Egg Tray Forming Machine Rotary Type
High Capacity Paper Pulp Molding Machine Rotary Type Egg Tray Production Line For Making Egg Carton / Tray is a rotary type egg tray forming machine. It is for customers who need large capacity request for the egg trays, egg cartons, egg boxes, apple trays, bottle trays, coffee cup carrier tray or shoes tray etc.
It is composed of 3 parts: pulping system, forming system and drying system.
1. Pulping system: Use waste paper and water as raw material and pulp up;
2. Forming system: The pulped material being delivered to Product Tray molds, and forming to the Product Tray plate shape;
3. Drying system: The formed Product Tray plate being delivered to Dryer, and come up to Completed Strong Product Tray plate
The drying system is with one boiler. The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production.
To meet the environmental friendly goal, many enterprises have began to use paper egg carton. So egg tray machine complies with the trend of times. The egg tray making machine uses the raw material of waste paper and water to produce paper egg trays.
The egg tray manufacturing process is raw materials pulping – ingredients (as per customer needs)– mold forming – drying –packing. The additive is Food-Grade pigment which you can use to produce all colors of egg cartons. Another kind of additive is glue which has the anti-water function. When you use the additives, you should add the appropriate amount. The type machine can not only produce egg tray / carton but also produce apple tray, shoe trays, bottle trays, strawberry carton, etc.
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Brand Name: RUNLIANG
Voltage: 220-440V
Power(W): Different Machine Model
Dimension(L*W*H): 2300mm*1950mm*1600mm
Weight: 8 tons-50tons
Certification: CE & ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 1800pcs/h-5000pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray
Workshop required: 150-560㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation: Automatic and fully automatic
Keyword: Egg tray machine
This production line is suitable for the following products:
Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)
Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.
Technical data (5000pcs/h for example)
| Section | Name | Quantity | Rated Power |
|
Pulping system
|

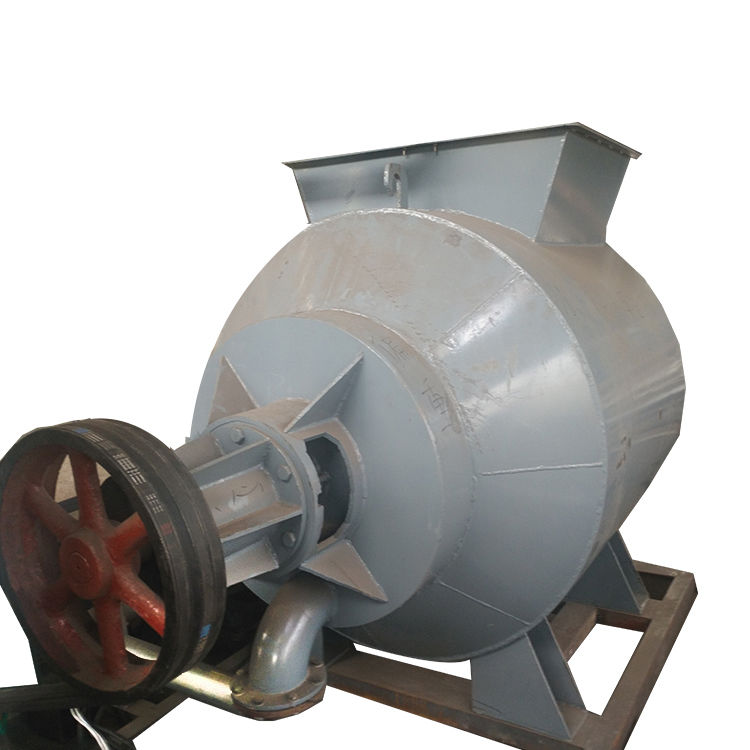

Pulping system Including : water pool—1pcs mix pool-1pcs mill pulp pump -1set water pump-2sets pulp pump -2sets pulping machine –1sets |
1sets |
200KW |
|
Forming system
|
Including 60 moulds (5*12)forming machine -1set Vaccum pump-1set Compressor -2sets Washer –1set Vaccum tank-1pcs Air tank—1pcs |
1sets | |
|
Drying system
|
Including Drying oven –1set (L 50M*W2M*H2.2M) Chain and tray –1sets Hot air pipe –1sets Chain wheel with shaft—1sets Delivery belt –1set Drive motor –1set |
1sets | |
|
Boiler
|
Including Boiler –1set Natural gas burner(Riello)-1set Fan with motor -1set Electric control -1set |
||
| Packing system |
Including Counting and stacking machine-1 set Packing machine-1 set |
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory | ||||
| Delivery time | About 60-90 working days after receiving the deposit. | ||||
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC | ||||
| Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||||
| Warranty time | Two years after the Egg tray machine received. | ||||
| TERMS OF DELIVERY | FOB Qingdao Port, China | ||||
| Package | In container | ||||
| Certification | CE | ||||
