4 Molds Recycled Paper Pulp Molding Machine , Egg Crate Making Machine

4 Molds Recycled Paper Pulp Molding Machine , Egg Crate Making Machine

egg tray manufacturing machine

paper tray making machine

Place of Origin:

Jinan, Shandong, China

Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
Process Type:
Pulp Molding Machine
30KW - 100 KW
10 Tons - 30 Tons
Semiautomatic , Automatic Type
After Sales Service:
Engineers Available To Service Machinery Overseas
Finished Products:
Egg Trays/Apple Trays, Shoe Trays Etc.
Drying Fuel:
Natural Gas, LPG, Coal Or Electricity
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
in container
Delivery Time
35 working days after get deposit payment
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
5 sets per quater
Product Description

4 Molds Recycled Paper Egg Tray Machine 1300 pcs/h Egg Trays Capacity


4 Molds Recycled Paper Egg Tray Machine 1300 Pcs per hour Egg Trays Capacity includes 3 parts:


1. pulping system: Use waste paper and water as raw material and pulp up

2. Forming sytem: The pulped material being delivered to Product Tray molds, and forming to the Product Tray plate shape;

3. Drying system: including the oven, chains, trays, heating pipes, fans, boiler, dry the wet trays so they can be used directly. This part is selectable. If buyer donnot need dryer , then it is no need.

The raw material of our egg tray machine is any wastepaper(without plastic) and water.


Quick Details


Condition: New

Product Type: Egg Tray Machine

Processing Type: Pulp Molding Machine

Place of Origin: Shandong, China (Mainland)

Brand Name: Runliang

Model Number: RL-1300

Voltage: 220-440V

Certification: CE, SGS

Warranty: 2 Years

After-sales Service Provided:Engineers available to service machinery overseas

Dryer: 4 layers

Forming Type: Reciprocating

Power Requirement:20KW-100KW

Workshop requirement: 100㎡--550㎡

Product: Egg Tray, Egg carton, Fruit Tray, Cup Carrier,Medical Care Product



Technical data


Egg Tray mould quantity 4pcs
Raw material Waste paper
Output for egg tray 1300pcs/hour
Net weight per piece (gram) 70g-75g
Waste Paper Consumption 0.13ton / hour
Water consumption 0.2ton / hour
The natural gas consumption of the dryer(about) 50cbm/h
Machine Weight 10-30tons
Egg tray Size 295mm*295mm 30eggs


Area of workshop needed (Around) Without dryer More than 150㎡
With dryer More than 320㎡
Capacity of Power Requirement Without dryer 45KW
With dryer 65kw
Machine size Without dryer 9m*2m*2.2m
With dryer 30*2m*2.2m
Size of container Without dryer 40ft*1
With dryer 40ft*3


Payment and delivery


Trade terms  FOB Qingdao or as customer needs
Delivery time  About 35 working days after receiving the deposit.
Payment term  BY T/T 30%DEPOSIT+70%BALANCE.
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE

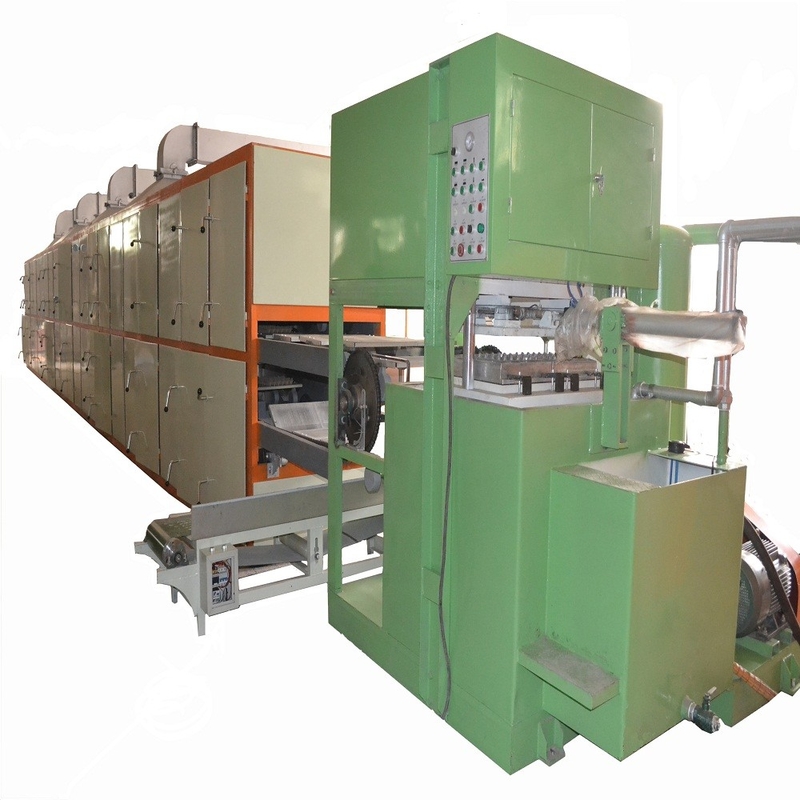

4 Molds Recycled Paper Pulp Molding Machine , Egg Crate Making Machine 0

Why choose us?


Rich experience in manufacturing


1. More than 20 years experience in designing and manufacturing machine.

2. Over 20 years experience in manufacturing the pulp molding equipment.

3. Famous factory in the Egg tray machine field in China.


The most complete product line


1. More than 20 kinds of pulp molding equipment specifications, for Egg tray, Egg carton, Fruit Tray, Cup Carrier,Medical Care Product, Industrial package.

2. Fully-automatic production line and semi-automatic production line.

3. Different capacity can meet all the customers’ needs.


Advance processing technology


The most reliable choice for superb performance in the long run.


Factory and producing tool


1. More than 1000 M2 areas.

2. 50 advanced processing equipment.

3. Over 50 sets supplied per year.


High quality


1. Every process strictly controlled.

2. International brand and Germany brand for control parts.

3. Delivery after machine trail production.

4. England technology
