Place of Origin:
China
Brand Name:
Wanyou
Certification:
CE
Model Number:
ZSJ-350
Video
Video
Video

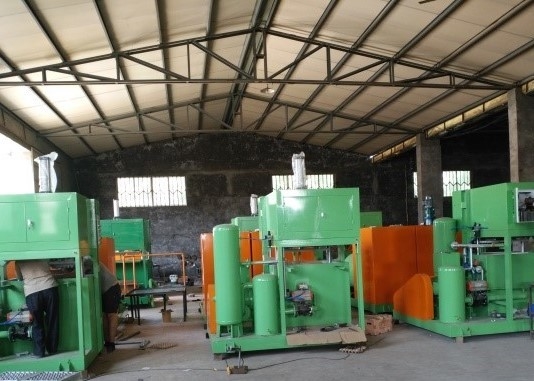

Automatic Egg Tray Production Line With 700pcs/h Output Pulp Molding Machine For Egg Tray Packing
The machine production line includes 3 sections:
1. pulping system: including the hydraulic pulper, pump, disk mill, water tank, pulp tank, mixer, etc..to make the wastepaper into pulp.

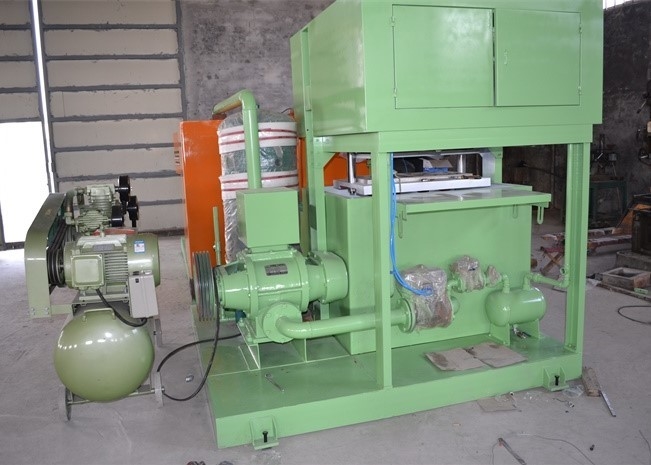

2. forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.
3. drying system: including the oven, chains, trays, heating pipes, fans, boiler, etc..to dry the wet trays so they can be used directly.(customerized/Selectable)

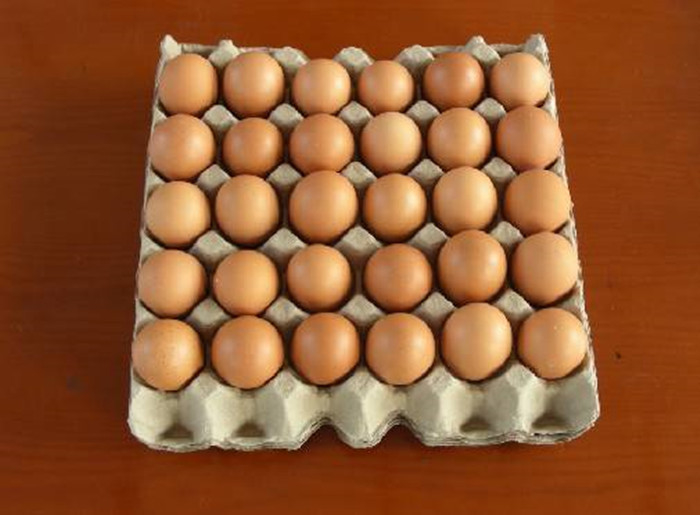

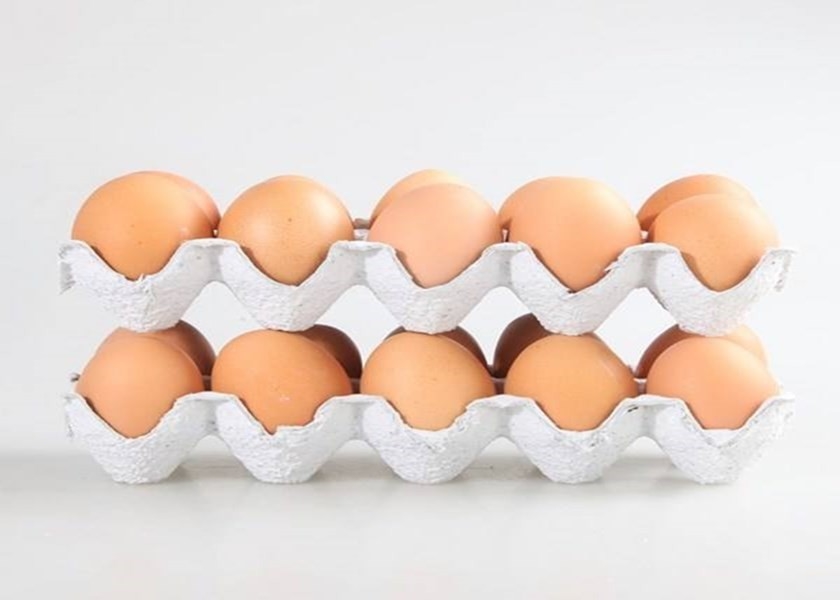

Except egg trays, this machine can also produce fruit trays, apple trays, paper cup trays, paper shoe trays and industrial packages trays,etc.
With lower cost investment, you can achieve big profit by our machine.
Technical Parameters of our machine different models
| 1, | Egg tray mould quantity | 1pcs | 2pcs | 3pcs | 4pcs | 6pcs | 8pcs | |
| 2, | Raw material | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | |
| 3, | Output for egg tray | 350pcs/hour | 700pcs/hour | 1000pcs/hour | 1300pcs/hour | 2000pcs/hour | 2500pcs/hour | |
| 4, | Net weight per piece (gram) | 70g-75g | 70g-75g | 70g-75g | 70g-75g | 70g-75g | 70g-75g | |
| 5, | The volume of waste paper consumed | 0.025ton / hour | 0.06ton / hour | 0.1ton / hour | 0.13ton / hour | 0.2ton / hour | 0.2ton / hour | |
| 6, | The volume of water consumed | 0.05ton / hour | 0.1ton/hour | 0.15ton / hour | 0.2ton / hour | 0.4ton / hour | 0.4ton / hour | |
| 7, | Operators number | 2-3workers | 3-4workers | 4-6workers | 4-6workers | 5-7workers | 8-10workers | |
| 8, | Area of workshop | Without dryer | More than100 M² | More than 100 M² | More than 120 M² | More than 150 M² | More than 200 M² | More than 250 M² |
| With dryer |
More than200 M² (8*25M) |
More than 240 M² (8*30M) |
More than 300M² (10*30M) |
More than 320 M² (10*32M) |
More than 450M² (15*30M) |
More than 520M² (15*35M) |
||
| 9, | Capacity of power | Without dryer | 20KW | 30KW | 40KW | 45KW | 65KW | 70KW |
| With dryer | 30KW | 45kw | 60kw | 65kw | 90kw | 100kw | ||
| 10, | Machine length | Without dryer | 7meters | 8meters | 9meters | 10meters | 10meters | 12meters |
| With dryer | 18-22meters | 24-28meters | 25-30meters | 25-30meters | 25-30meters | 28-35meters | ||
| 11, | Size of container | Without dryer | 20ft*1 | 20ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 |
| With dryer | 40ft*1+20ft*1 | 40ft*2 | 40ft*2 | 40ft*3 | 40ft*3+20ft*1 | 40ft*4 | ||
FAQ:
Q: Why you choose our company?
A:1,Our company have mademachine forabout 20 years with strong experience and advanced technology.
2,we are factory direct sale ,provide you Best Quality and Service with Reasonable price.
Q: What's the trade term and payement term?
A: 30% or 50% T/T before production; Paid in full before shipment.
Q: Will you send the equipment to us directly after completion
A: After the completion of the equipment,you must first come to the acceptance,confirm that there is no problem before delivery.
