Place of Origin:
Jinan, Shandong
Brand Name:
WANYOU
Model Number:
WY-1
Video
Video
Video
Paper Pulp Molding Machine is a perfect solution for packaging needs. It is an automatic machine that works with the help of PLC (Programmable Logic Controller) control system to produce paper egg tray, apple tray, fruit tray, coffee cup holder tray, shoe stretcher, etc. This machine is used for paper pulp molding and provides an ideal solution for the packaging needs of various industries. The end products produced by this machine are of superior quality and have excellent features like durability, strength, and cost-effectiveness. This machine is designed to reduce manual labor and increase efficiency by providing fast and accurate results. It is easy to operate and maintain and requires minimal supervision. The paper pulp tray moulding machine, paper pulp tray shaping machine, and automatic paper pulp tray moulding machine are all highly efficient and reliable machines.
Technical data of machines offered
| Egg Tray Mold Quantity | 2pcs | 3pcs | 4pcs | 12pcs(3pcs*4) | 16pcs(4pcs*4) | 32pcs(4pcs*8) | |
| Raw material | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | |
| Egg tray Capacity(pcs/hour) | 700 | 1000 | 1300-1500 | 2000-2500 | 2500-3000 | 3500-4000 | |
| Net weight per piece (gram) | 70-75 | 70-75 | 70-75 | 70-75 | 70-75 | 70-75 | |
| Waste paper consumption | 0.06ton / h | 0.1ton / h | 0.13ton / h | 150kg/ h | 150kg/h | 225kg / hour | |
| Water Consumption | 0.15ton/h | 0.22ton / h | 0.3ton / h | 0.45ton / h | 0.6ton/h | 0.9ton / h | |
| Natural Gas Consumption of Dryer | 25cbm/h | 45cbm/h | 60cbm/h | 75cbm/h | 90cbm/h | 120cbm/h | |
| Boiler model (natural gas fuel Kcal) | 300*103 | 450* | 600*103 | 800*103 | 1000*103 | 1500*103 | |
| Worker requirement | 3-4workers | 4-6workers | 4-6workers | 5-7workers | 5-7workers | 8-10workers | |
| Power Requirement | Without dryer | 30KW | 40KW | 45KW | 70KW | 80KW | 100KW |
| With dryer | 45KW | 60KW | 65KW | 100KW | 120KW | 150KW | |
| Area of workshop | Without dryer | More than 100 M² | More than 120 M² | More than 150 M² | More than 200 M² |
More than 200 M² | More than 250 M² |
| With dryer | More than 240M² dryer-16M |
More than300M² Dryer-16M |
More than 320 M² dryer-18M |
More than 400M² Dryer18M |
More than 400M² Dryer20M |
More than 520M² Dryer32M |
|
| Container Requirement | Without dryer | 20ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 |
| With dryer | 40ft*2+20ft*1 | 40ft*3 | 40ft*3 | 40ft*4 | 40ft*4 | 40ft*5 | |
| Remarks: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client's plant. 3. The above specification is for reference only, due to continuous technology development, data will be updated from time to time. 4. Pulp Molding Equipment are non-standard equipment, we are able to provide customized solution according to specific requirements from customer. 5. Welcome to contact us anytime, our professional team will provide more effective help and supports for you. |
|||||||
WANYOU Paper Pulp Molding Machine (Model WY-1) is a specialized equipment for producing paper pulp trays with high efficiency and low cost. It is an ideal choice for producing paper pulp trays of various sizes and shapes. Its capacity ranges from 700pcs-6000pcs/h, making it a perfect choice for large scale production. With its low investment cost and easy operation, it is widely used in paper pulp tray manufacturing, packaging, food processing, and other industries.
This Paper Pulp Molding Machine is made of premium quality material, thus making it resistant to corrosion and rust. It is designed to provide easy operation with low noise. The machine is equipped with a full-automatic control cabinet, which allows for precise and efficient operation. Its high quality components provide outstanding performance and long service life. Furthermore, it has a weight customizing feature, making it suitable for different production demands.
In addition, this Paper Pulp Molding Machine is backed by WANYOU's professional after-sale service. It offers online technical support, allowing for quick problem solving and providing peace of mind for the customer. The machine is sold with a minimum order quantity of one set, at a competitive price ranging from 6500usd-18000usd. It is packed in plastic films and can be delivered within a short time.
In conclusion, WANYOU Paper Pulp Molding Machine (Model WY-1) is a high-performance and cost-effective equipment for producing paper pulp trays of various shapes and sizes. It has a high capacity range and a weight customization feature, making it an ideal choice for large scale production. It is backed by WANYOU's professional after-sale service, making it a reliable and worry-free choice.
Machines exported abroad before

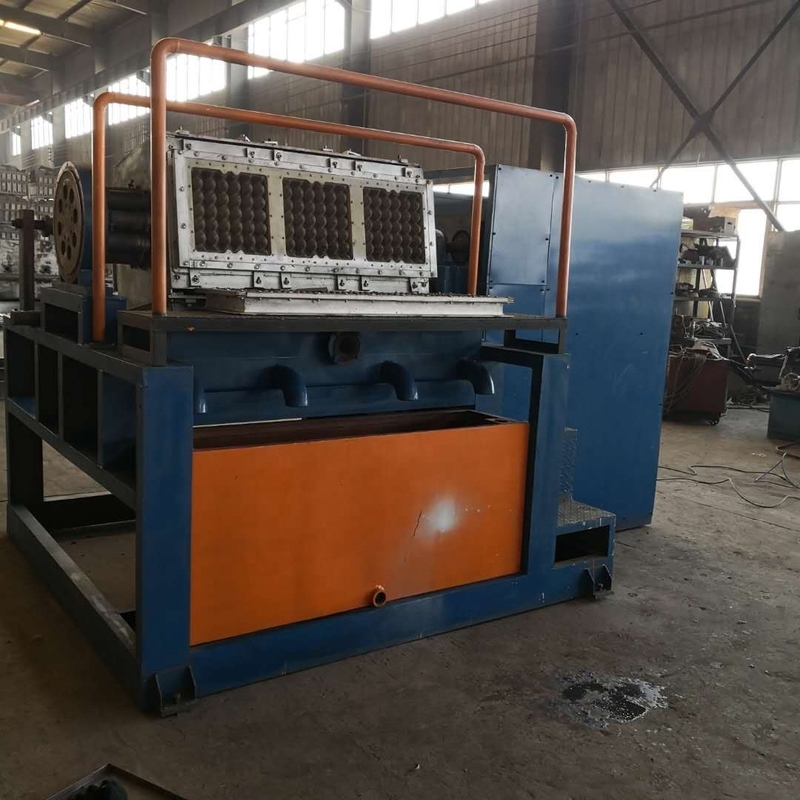

700pcs/h egg tray machine without dryer
2000pcs/h capacity egg tray machine without dryer
We provide customized service of Paper Pulp Molding Machine, also known as Paper Pulp tray Fabricating Machine, Paper Pulp tray Casting Machine, and Paper Pulp tray Molding Equipment. Our machine adopts customized size and weight, with the capacity of 700pcs-6000pcs/h and machine speed of 6s/cycle. The voltage of the machine is 220V/380V.
We are committed to providing the best technical support and service for our Paper Pulp Molding Machines. Our team of experienced professionals can help you troubleshoot any issues you may encounter with your machine, as well as provide advice on maintenance and optimization.
If you need assistance, please contact us at [email address], and our team will be more than happy to help. We will also provide you with access to our online tutorials and resources, so you can learn more about using your machine.
We understand that our Paper Pulp Molding Machines are an investment, and we want to make sure you get the most out of them. Thank you for choosing our product, and we look forward to helping you in any way we can.
The paper pulp molding machine is packaged and shipped using a variety of methods, depending on the size and weight of the machine. Smaller machines may be shipped in a single box, while larger machines may require multiple boxes. All parts of the machine will be securely packaged for transport.
If the machine is being shipped by air, it will be packaged in a designated air-safe box, and all parts will be securely fastened to prevent any damage during transit. The box will then be placed in an appropriate sized shipping container which will be properly sealed to prevent any tampering or leakage during transit.
If the machine is being shipped by sea, it will be placed in an appropriate sized shipping container which will be properly sealed to prevent any tampering or leakage during transit. The container will then be loaded onto a cargo ship and transported to the designated destination.
No matter the method of transportation, all parts of the machine will be packed securely to prevent any damage or tampering during transit. The customer will be provided with tracking information so they can track the progress of the shipment.
