Place of Origin:
Jinan, Shandong
Brand Name:
WANYOU
Model Number:
WY-1
Process flow

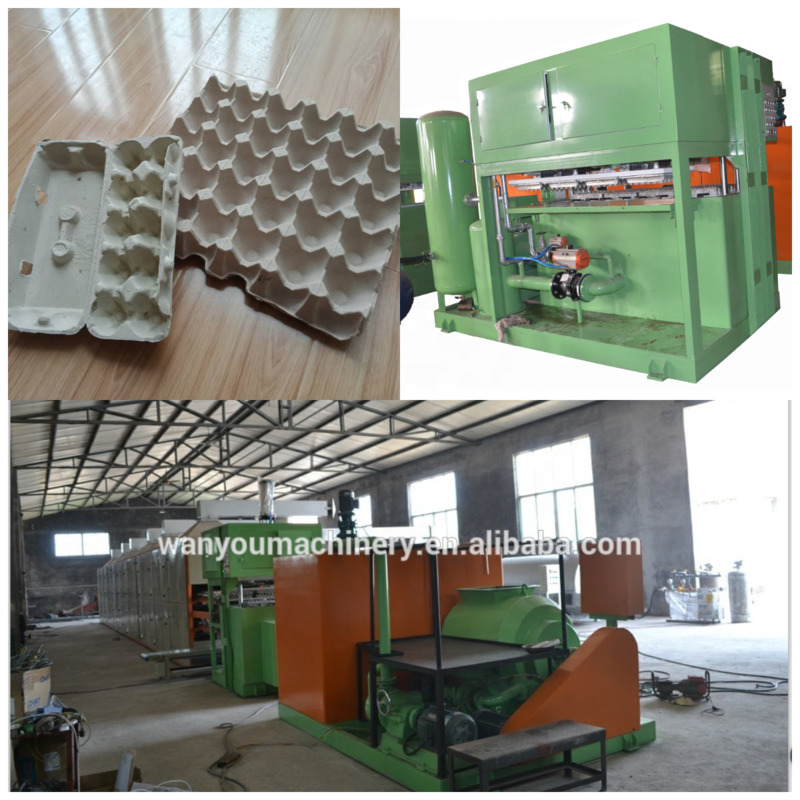

The Egg Tray production line is mainly combined by THREE PARTS:
1. Pulping system: Use waste paper and water as raw material and pulp up;
2. Forming system: The pulped material being delivered to Product Tray molds, and forming to the Product Tray plate shape;
3. Drying system: The formed Product Tray plate being delivered to Dryer, and come up to Completed Strong Product Tray plate
The drying system is with one boiler. The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production.
Our production line has Fully Automatic and Semi Automatic two types , both have computer control system.
If you don’t want this drying system, it is also OK. Then you will have to do the work of drying up the product trays manually.
Our machine can be designed to make different products at same time by one Working Table (with 2 Molds or even 3 molds)

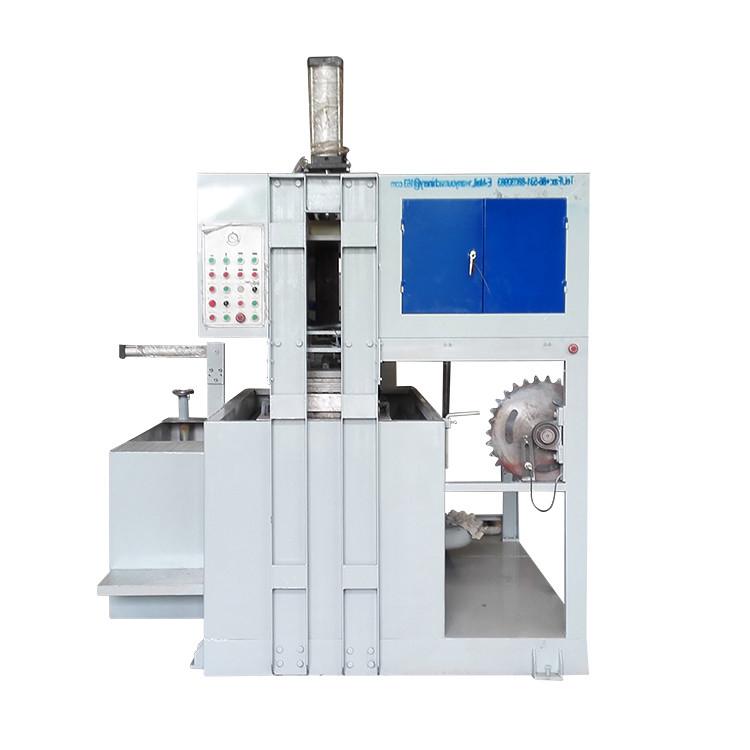

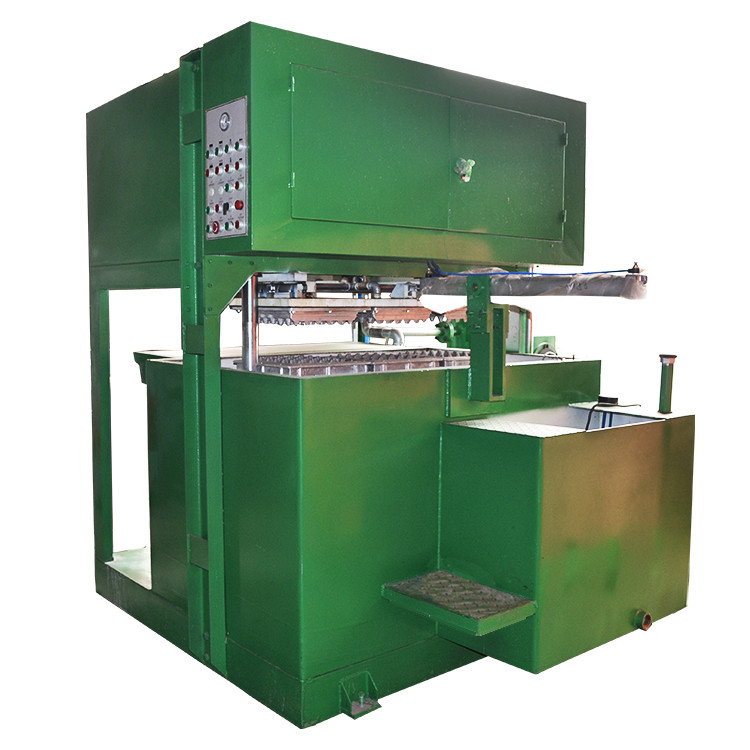

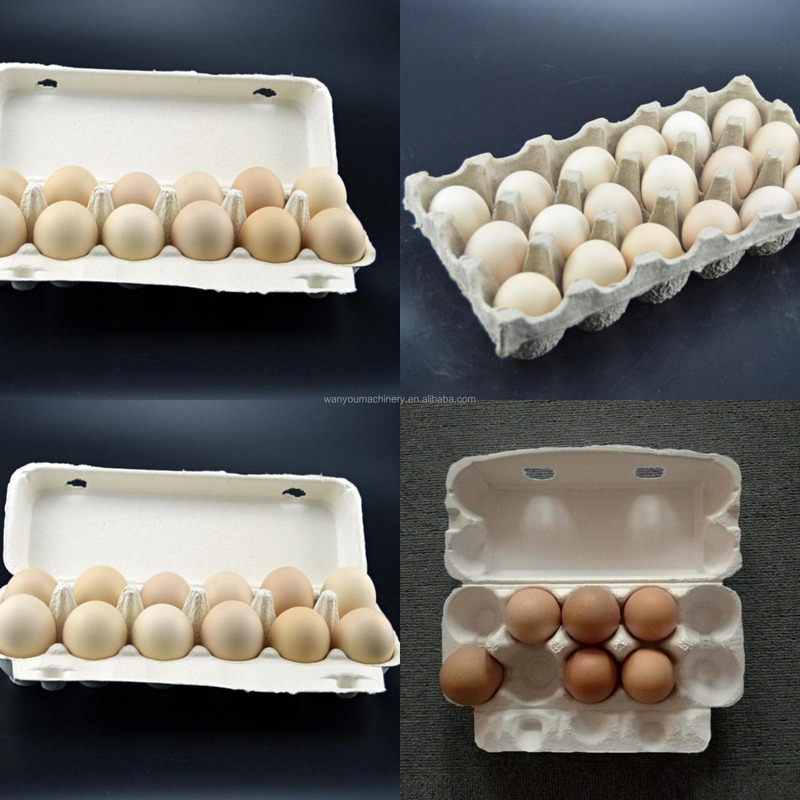

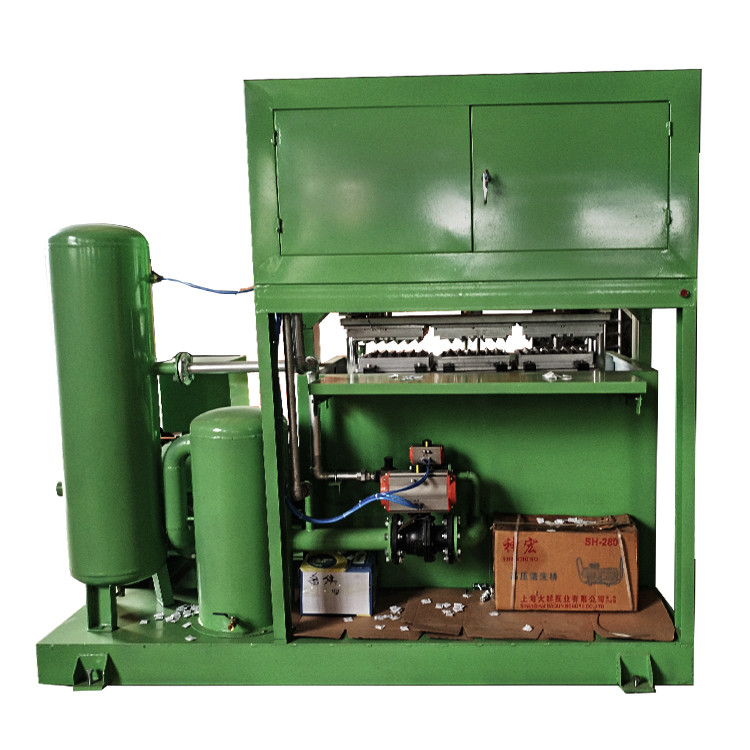

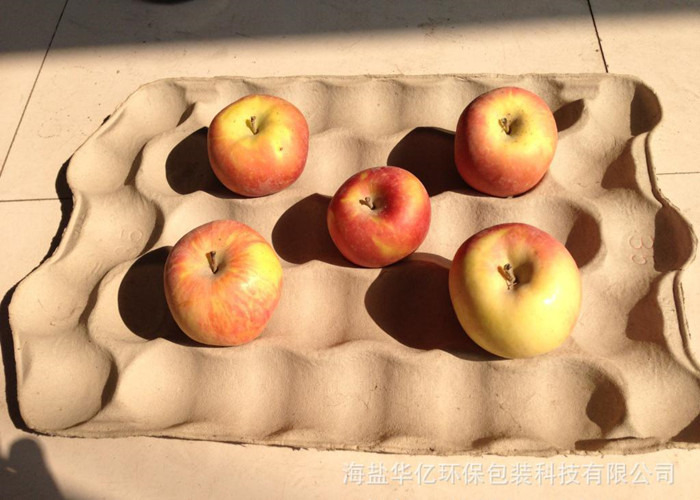

Small Egg Tray Making Machine is an efficient and high-quality egg tray production equipment designed for the production of small egg trays. It has a wide range of applications and can be used to produce a variety of products, such as egg cartons, apple trays, and other products. This machine has a dimension of 7.5m*2.5m*2.2m, a weight of 7 tons, and a capacity of 700-1500pcs/h. It is equipped with a 7.5KW vacuum pump and an advanced PLC control system that is user-friendly and highly efficient. With its highly automated production process, it can produce high-quality small egg trays with minimum labor, cost, and energy consumption. It is an ideal choice for small egg tray producers and constructors.
Small Egg Tray Making Machine, produced by WANYOU with model number WY-1, is an ideal choice for small paper egg tray business owners. Originated from Jinan, Shandong, this machine requires a minimum order quantity of 1 set and is priced between 6500USD and 18000USD. Packaging details include plastic films, while delivery time and payment terms depend on the order. It has a supply ability of 1 set per month. This Small Egg Tray Maker is equipped with a 7.5KW driving motor and has a total power of 45KW. Its machine dimension is 7.5m*2.5m*2.2m and its machine weight is 7T. The power supply is 380V/50Hz.
We provide customized service for Small Egg Tray Making Machine. Our Small Egg Tray Moulding Machine has following features:
If you are looking for a Small Egg Tray Machine with competitive price and excellent performance, WANYOU's Small Egg Tray Moulding Machine is the best choice for you. You can get more Small Egg Tray Moulding Machine Price information from us.
Egg Tray Mold Quantity | 1pcs | 2pcs | 3pcs | 4pcs | |
Raw material | Waste paper | Waste paper | Waste paper | Waste paper | |
Egg tray Capacity | 350pcs/hour | 700pcs/hour | 1000pcs/hour | 1300pcs/hour | |
Net weight per piece (gram) | 70g-75g | 70g-75g | 70g-75g | 70g-75g | |
Waste paper consumption | 0.025ton / hour | 0.06ton / hour | 0.1ton / hour | 0.13ton / hour | |
Water Consumption | 0.05ton / hour | 0.1ton/hour | 0.15ton / hour | 0.2ton / hour | |
Natural Gas Consumption of Dryer | 12cbm/h | 25cbm/h | 35cbm/h | 50cbm/h | |
Worker requirement | 2-3workers | 3-4workers | 4-6workers | 4-6workers | |
Power Requirement | Without dryer | 20KW | 30KW | 40KW | 45KW |
With dryer | 30KW | 45KW | 60KW | 65KW | |
Area of workshop | Without dryer | More than100M² | More than 100 M² | More than 120 M² | More than 150 M² |
With dryer | More than200 M² | More than 240 M² | More than300M² | More than 320 M² | |
Container Requirement | Without dryer | 20ft*1 | 20ft*1 | 40ft*1 | 40ft*1 |
With dryer | 40ft*1+20ft*1 | 40ft*2+20ft*1 | 40ft*2+20ft*1 | 40ft*3 | |
Remarks: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client's plant. 3.The above specification is for reference only, due to continuous technology development, data will be updated from time to time. 4.Paper Pulp Molding Machine are non-standard equipment, we are able to provide customized solution according to specific requirements from customer. 5.Welcome to contact us anytime, our professional team will provide more effective help and supports for you. |
|||||
Small Egg Tray Making Machine provides a full range of technical support and services including:
Packaging and Shipping for Small Egg Tray Making Machine
The Small Egg Tray Making Machine is packaged in a wooden box, which is designed to protect the machine from damage during transportation. The wooden box is further wrapped in plastic film and then secured with metal straps. The Small Egg Tray Making Machine is then loaded onto a truck or container for shipping.
