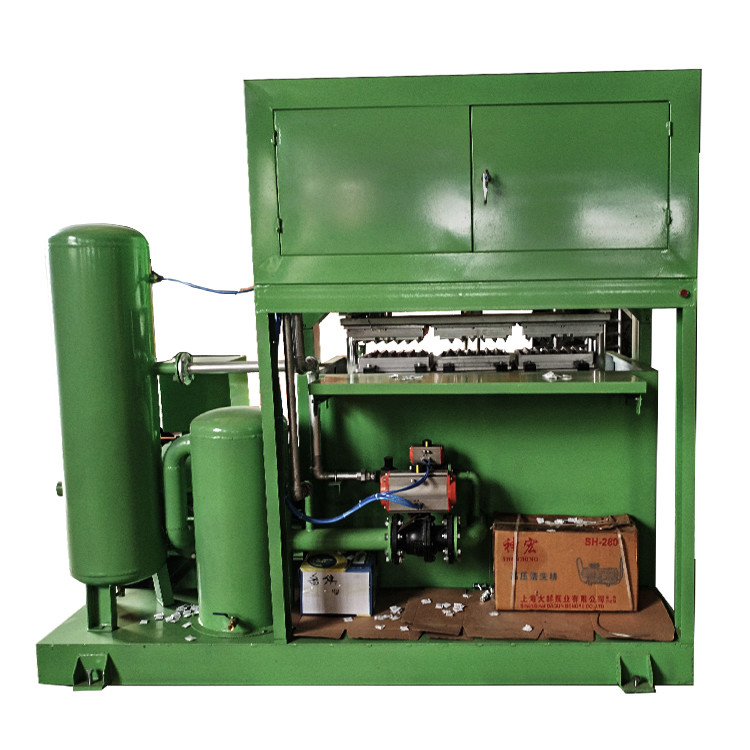

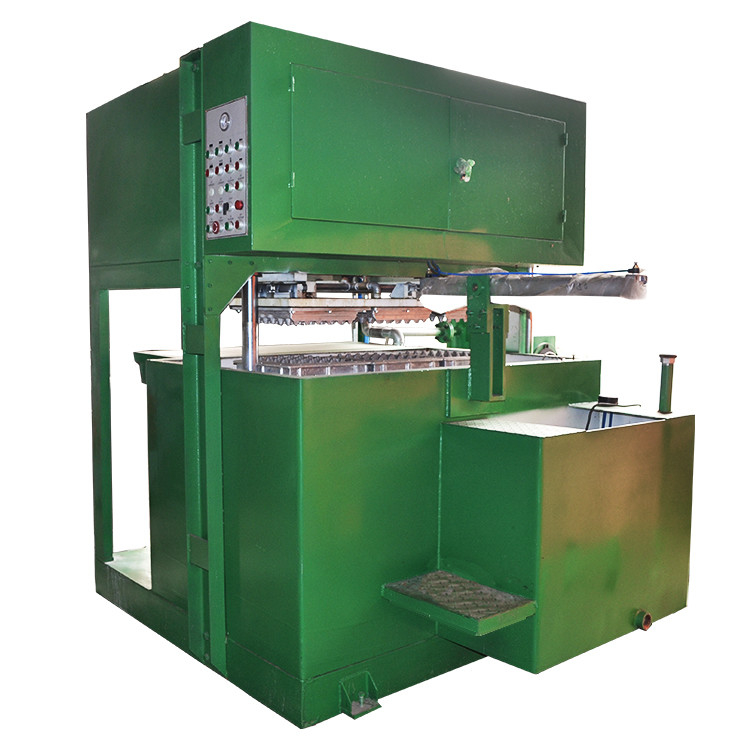

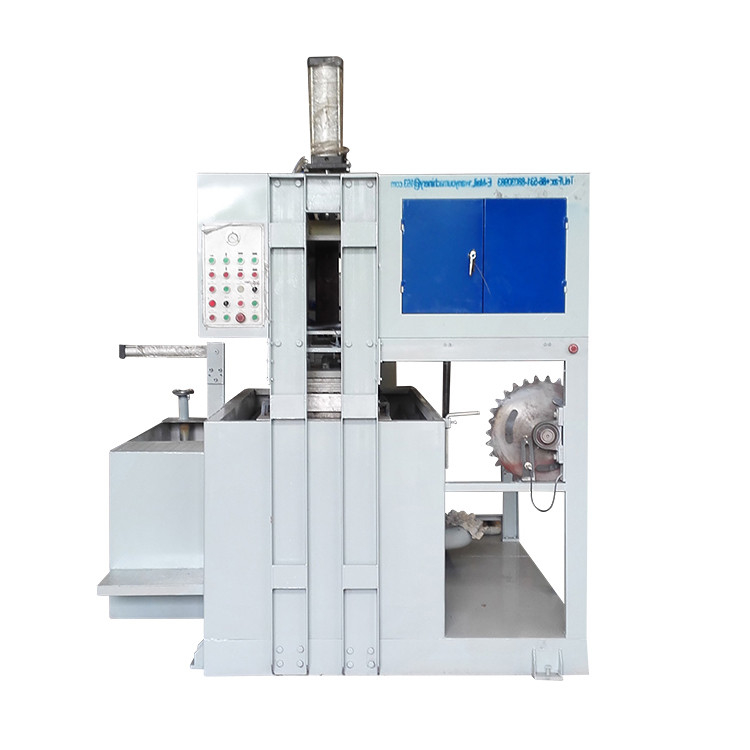

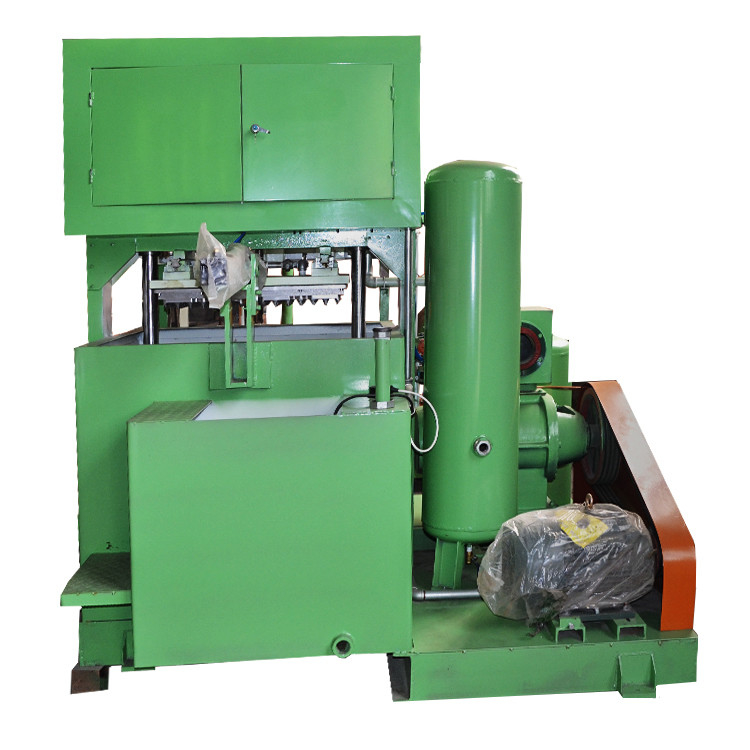

Customized Automatic Small Egg Tray Making Machine 7.5KW Vacuum Pump Low Failure

Product Description:

Small Egg Tray Maker is a fabrication machine designed to produce egg trays with 700-1500pcs/h capacity. This small egg tray machine has a size of 7.5m*2.5m*2.2m and a total power of 45KW with a driving motor of 7.5KW. It provides three different types of egg tray drying methods, including sun drying, metal dryer and brick kiln dryer.



Process flow

The Egg Tray production line is mainly combined by THREE PARTS:

1. Pulping system: Use waste paper and water as raw material and pulp up;

2. Forming system: The pulped material being delivered to Product Tray molds, and forming to the Product Tray plate shape;

3. Drying system: The formed Product Tray plate being delivered to Dryer, and come up to Completed Strong Product Tray plate

The drying system is with one boiler. The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production.

Our production line has Fully Automatic and Semi Automatic two types , both have computer control system.

If you don’t want this drying system, it is also OK. Then you will have to do the work of drying up the product trays manually.

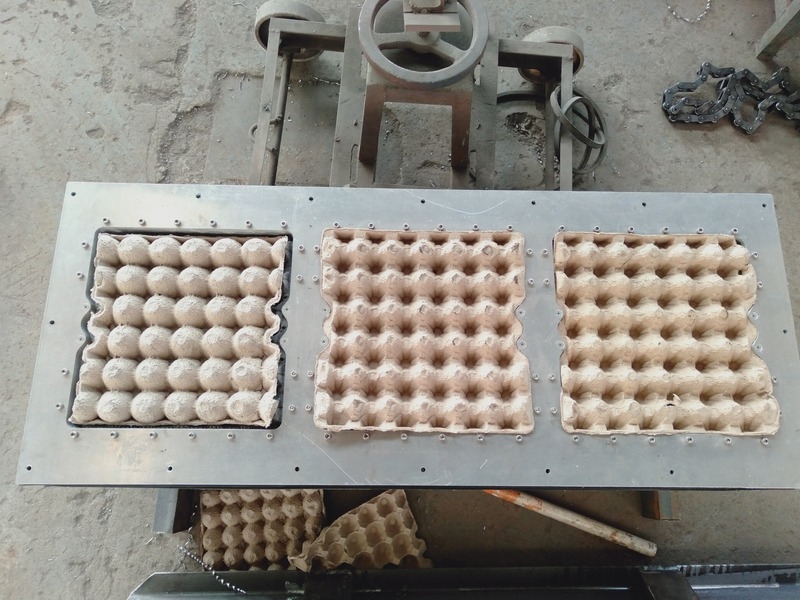

Our machine can be designed to make different products at same time by one Working Table (with 2 Molds or even 3 molds)

Applications:

For small-scale egg tray production, the WANYOU WY-1 Small Egg Tray Making Machine is an ideal choice. This reliable machine is manufactured in Jinan, Shandong, and is available to order with a minimum of one set. The price range for the WY-1 Small Egg Tray Making Machine is from 6500USD to 18000USD, and the packaging is plastic films. Delivery time is dependent on the order quantity. Payment can be made with TT. The WY-1 Small Egg Tray Making Machine has a production capacity of 1set/month, and its forming type is reciprocating and rotary forming. It requires 2-3 operators to run the machine. The egg trays can be dried using sun drying, metal dryer, or brick kiln dryer. The capacity of the machine is 700-1500pcs/h, and it has 12-30 cavities.

Egg Tray Mold Quantity		1pcs	2pcs	3pcs	4pcs
Raw material		Waste paper	Waste paper	Waste paper	Waste paper
Egg tray Capacity		350pcs/hour	700pcs/hour	1000pcs/hour	1300pcs/hour
Net weight per piece (gram)		70g-75g	70g-75g	70g-75g	70g-75g
Waste paper consumption		0.025ton / hour	0.06ton / hour	0.1ton / hour	0.13ton / hour
Water Consumption		0.05ton / hour	0.1ton/hour	0.15ton / hour	0.2ton / hour
Natural Gas Consumption of Dryer		12cbm/h	25cbm/h	35cbm/h	50cbm/h
Worker requirement		2-3workers	3-4workers	4-6workers	4-6workers
Power Requirement	Without dryer	20KW	30KW	40KW	45KW
	With dryer	30KW	45KW	60KW	65KW
Area of workshop	Without dryer	More than100M²	More than 100 M²	More than 120 M²	More than 150 M²
	With dryer	More than200 M²	More than 240 M²	More than300M²	More than 320 M²
Container Requirement	Without dryer	20ft*1	20ft*1	40ft*1	40ft*1
	With dryer	40ft*1+20ft*1	40ft*2+20ft*1	40ft*2+20ft*1	40ft*3
Remarks: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client's plant. 3.The above specification is for reference only, due to continuous technology development, data will be updated from time to time. 4.Paper Pulp Molding Machine are non-standard equipment, we are able to provide customized solution according to specific requirements from customer. 5.Welcome to contact us anytime, our professional team will provide more effective help and supports for you.

Customization:

Small Egg Tray Making Machine
Brand Name: WANYOU
Model Number: WY-1
Place of Origin: Jinan, Shandong
Minimum Order Quantity: 1 set
Price: 6500usd-18000usd
Packaging Details: plastic films
Delivery Time: depends
Payment Terms: TT
Supply Ability: 1set/month
Driving Motor: 7.5KW
Product Name: Small Egg Tray Making Machine
Forming type: Reciprocating And Rotary Forming
Machine Weight: 7T
Power Supply: 380V/50Hz
WANYOU's Small Egg Tray Maker offers an easy-to-use solution for producing small egg trays. Featuring a 7.5KW driving motor, this Small Egg Tray Fabricator is capable of making trays with a reciprocating and rotary forming process. With a weight of 7T, it requires a 380V/50Hz power supply to operate. In addition to this, the machine is designed to be highly reliable and efficient, with the ability to produce 1 set per month. Customized packaging and delivery is also available. Get the best quality and value for your money with WANYOU's Small Egg Tray Producer.

Support and Services:

Technical Support and Service for Small Egg Tray Making Machine

We provide comprehensive technical support and service for our Small Egg Tray Making Machines. Our support staff is available to answer questions and provide assistance with maintenance, troubleshooting, installation, and more.

We provide a variety of services, including:

• Free online tutorials
• Phone support
• On-site maintenance and repair
• Frequent software updates
• Replacement parts

We also offer extended warranties and custom service contracts to meet the needs of our customers. Our team is dedicated to providing the highest quality service and support for our products.



Packing and Shipping:

Small egg tray making machine is packaged in a standard wooden crate with foam and waterproof film inside for protection. The crate is designed to ensure the safe arrival of the machine.

The shipping for this product is mainly by sea. The delivery time varies depending on the destination port.



FAQ:

Q1: What is the brand name of the small egg tray making machine?

A1: The brand name of the small egg tray making machine is WANYOU.

Q2: What is the minimum order quantity for the small egg tray making machine?

A2: The minimum order quantity for the small egg tray making machine is 1 set.

Q3: Where is the place of origin of the small egg tray making machine?

A3: The place of origin of the small egg tray making machine is Jinan, Shandong.

Q4: What is the price range of the small egg tray making machine?

A4: The price range of the small egg tray making machine is 6500usd-18000usd.

Q5: What is the packaging details of the small egg tray making machine?

A5: The packaging details of the small egg tray making machine is plastic films.
