Place of Origin:
Jinan, Shandong, China
Brand Name:
Wanyou
Certification:
CE
Model Number:
ZSJ-1000
Video
Waste Paper Egg Tray / Carton Machine With Germany Valve And Good For Small - Medium Company
Egg Tray Machine Introduction:
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Brand Name: Wanyou
Voltage: 220-440V
Power(W): Different Machine Model
Dimension(L*W*H): Different Machine Model
Weight: 2 tons-6tons
Certification: CE & ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 350pcs/h -2500pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray, Egg Box, Industrial Packaging Tray, Electronic products Tray
Workshop required: 150-300㎡
Worker required: 5-6 persons
Keyword: Semi automatic Egg tray machine
The process of the production:
1. pulping system: including the hydrapulper, pump, disk mill, water tank, pulp tank, mixer, etc..to make the waste paper into pulp.
2. forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.
The raw material is any wastepaper(without plastic) and water.
Egg tray machine Working Theroy:
1. Egg Tray Pulping System:
Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .
2. Egg Tray Molding Forming System :
The Egg Tray Molding Forming System consists of various equipment and dies.

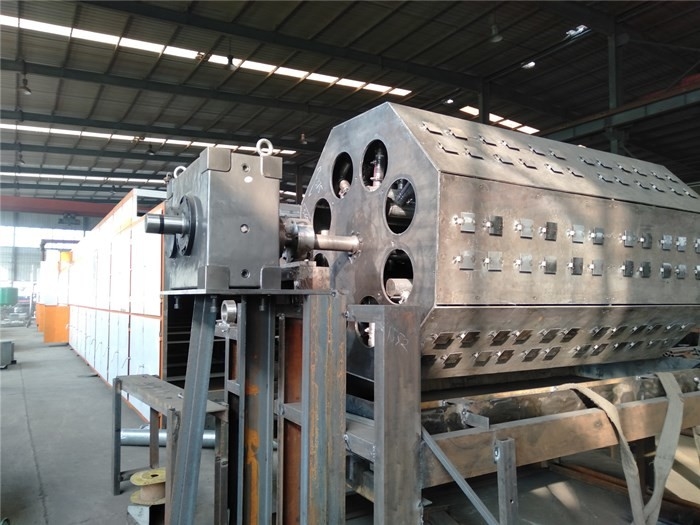

The wet forming section consists of a series of wire screen covered wet forming dies mounted on a molding drum, and a matching set of transfer dies mounted on a transfer mechanism.
The egg tray forming die is made up of rigid corrosive resistant metal or ABS engineering plastic and consists of many component parts that are drilled with small drainage holes and covered by prior to formed stainless steel screens.
The forming die, mounted on the molding drum is rotated at a uniform speed, immersing it in a taper flow vat containing the pulp slurry of about 1% consistency of fibers in recycled water. A vacuum system attracts the fibers to deposit on the forming die screens as the suspending recycle water is drawn through the screen and drainage holes.

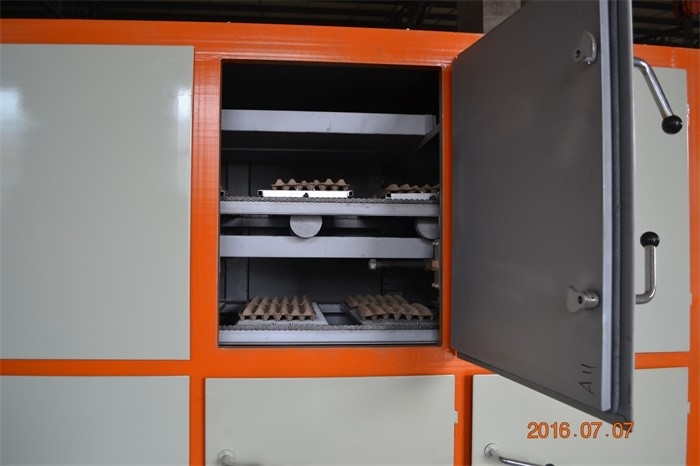

The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould.
Frequently used capacity egg tray machines we offered(1300Pcs/h):
| Description | Quantity | Motor power | |
|
Pulping system
|
Pulping machine | 1set | 7.5kw |
| Pulp Pump | 1set | 4kw | |
| Pulp pump | 1set | 1.5kw | |
| Mill pulp pump | 1set | 7.5kw | |
| Water pump | 2sets | 0.75kw*2=1.5kw | |
| Mixer | 1set | 1.5kw | |
| Pulp pool and Water pool | 1set | ||
|
Forming system
|
Moulding machine
|
1set | With 4 pcs forming molds(Aluminum Molds) |
| Vacuum pump | 1set | 7.5kw | |
| Mold Washer | 1set | 1.1kw | |
| Pulp pump | 1set | 1.5kw | |
| Air Compressor | 1set | 11kw | |
| Vacuum tank | 1set | ||
| Air tank | 1set |
| Payment Terms | |||
| Trade terms | EXW or Fob | ||
| Quotation Validity time | Within 30days | ||
| Delivery time | about 65 working days after receiving the deposit. | ||
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE. | ||
| Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||
| Warranty time | Two years after the Egg tray machine received. | ||
| Delivery Port | FOB Qingdao Port, China | ||
| Package | In container | ||
| Certification | CE | ||
| Technical Parameters | |||
| Egg Tray mould quantity | 4pcs | Container Required | |
| Raw material | Waste paper |
About 40ft*1(without dryer)
|
|
| Output for egg tray | 1300pcs/hour | ||
| Net weight per piece (gram) | 70g-75g | ||
| The volume of waste paper consumed | 97.5kg / hour | ||
| The volume of water consumed | 0.2ton / hour | ||
| Machine Weight | 8 tons around | ||

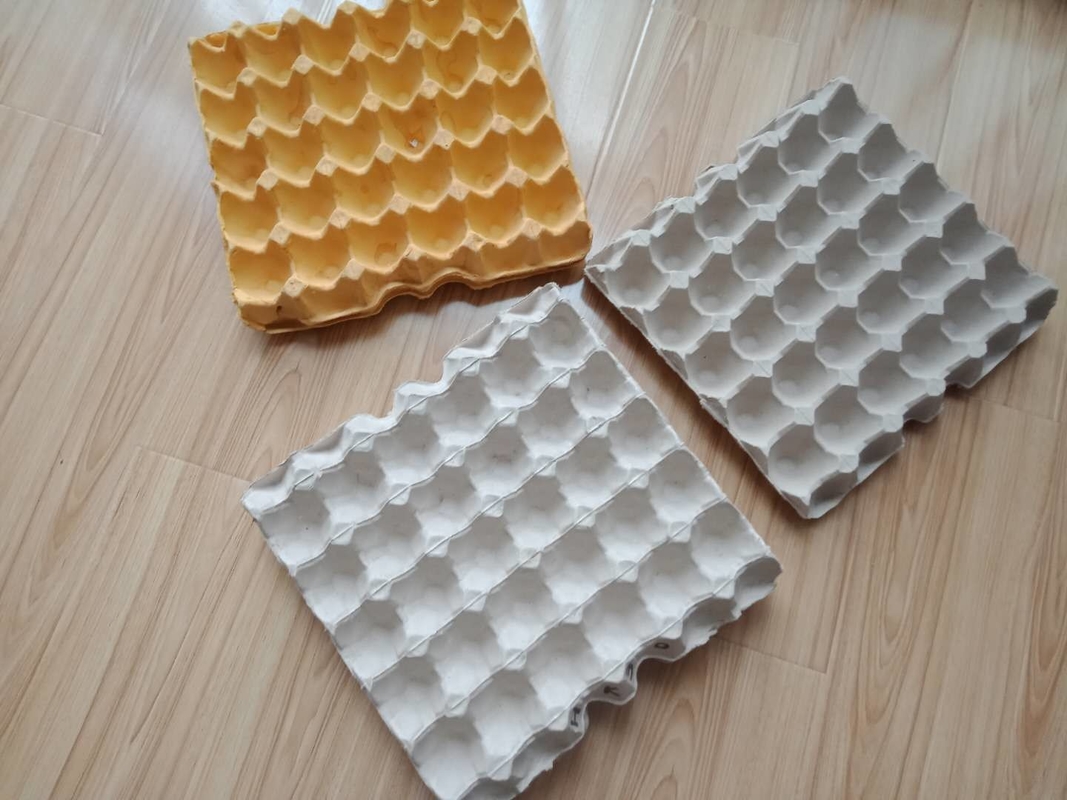

| Egg tray Size | 295mm*295mm 30eggs | ||
| Installation | |||||
| 1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day ) | |||||
Some world famous brands of the fittings:
1. the cylinder’s brand—FESTO
2. the electromagnetic valve’s brand—SHAKO
3. the pneumatic ball valve’s brand—SUPU
4. all the pump and motor are using famous brand of China.
5. the electric appliance’s brand—CHINT
6. the computer controller(PLC)--DELTA

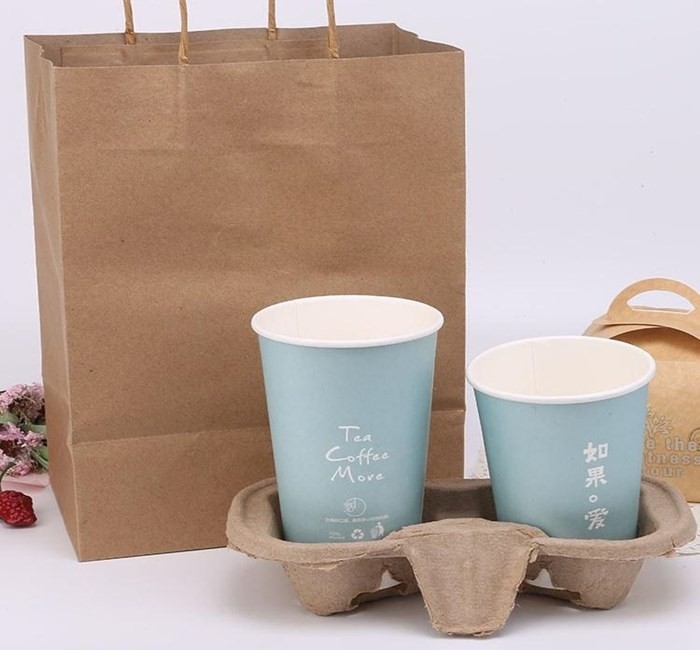

This egg tray machine type will be used often for making following products: The trays for the cup of coffee, the trays for the bottle, Egg tray / Egg tray box, Electronic products tray, Fruit tray, Air fresher tray, Mechanical and electrical products tray, Industrial Packaging Trays.
