Environment Friendly Semi Automatic Egg Tray Machine Egg Tray Making Machine

Environment Friendly Semi Automatic Egg Tray Machine Egg Tray Making Machine

automatic egg tray making machine

small egg tray making machine

Place of Origin:

Jinan, Shandong, China

Brand Name:

Wanyou

Certification:

CE

Model Number:

ZSJ-1000

Contact Us
Request A Quote
Product Details
Power:
Final Machine Production Line
Raw Material:
Waste Paper, Waste Cardboard, Carton
Guarantee:
2years
Processing Type:
Pulp Molding Machine
Voltage:
220V/380V,380V,220v,50hz,380v / 450v
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation,commissioning And Training,Online Support
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
in container
Delivery Time
40 working days after get deposit payment
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
1 sets per month
Product Description

      Environment Friendly Waste Paper Egg Tray / Carton Machine Good For Small - Medium Company



Quick Detail



Condition: New

Product Type: Egg Tray Machine

Processing Type: Pulp Molding Machine

Place of Origin: Shandong, China (Mainland)

Brand Name: Wanyou

Voltage: 220-440V

Power(W): Different Machine Model

Dimension(L*W*H): Different Machine Model

Weight: 8 tons-15tons

Certification: CE & ISO

Warranty: 2 years

After-sales Service Provided: Engineers available to service machinery overseas

Capacity: 350pcs/h -2500pcs/h

Color: As customer needs

Frequency: 50Hz-60Hz

Application: egg tray,fruit tray,bottle tray, Egg Box, Industrial Packaging Tray, Electronic products Tray

Workshop required: 150-300㎡

Worker required: 5-6 persons

Keyword:  Semi automatic Egg tray machine



The process of the production:

1. pulping system: including the hydrapulper, pump, disk mill, water tank, pulp tank, mixer, etc..to make the waste paper into pulp.

2. forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.

The raw material is any wastepaper(without plastic) and water.

Egg tray machine Working Theroy:



1. Egg Tray Pulping System:

Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .

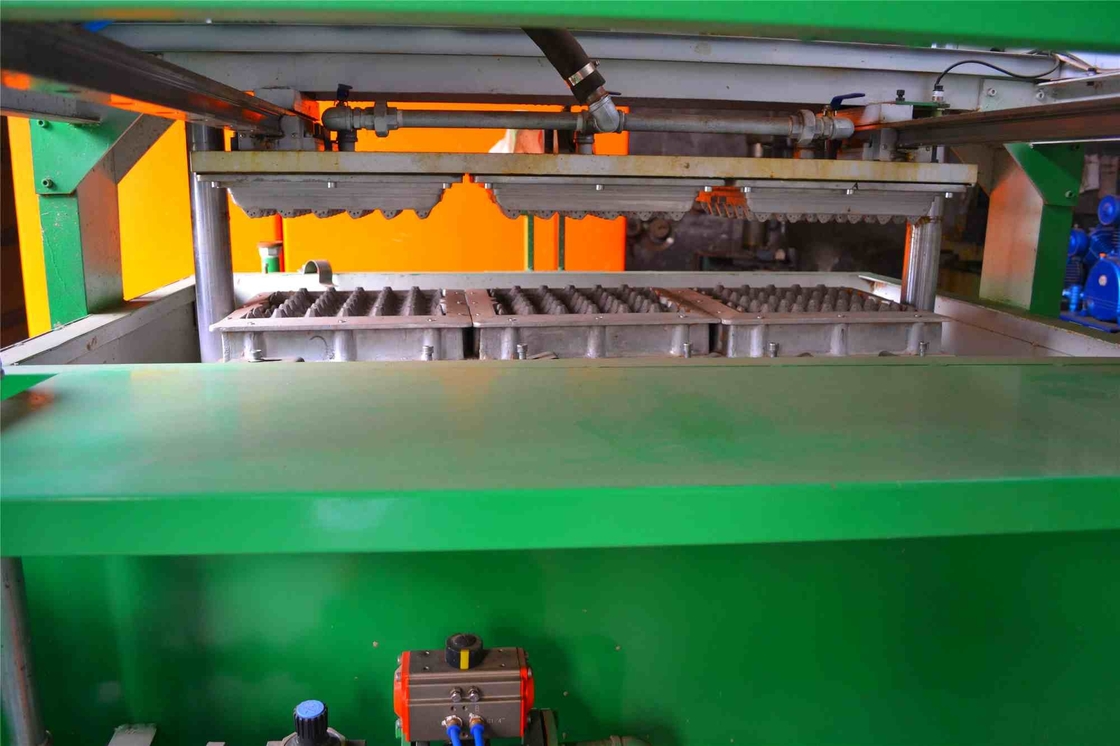

2. Egg Tray Molding Forming System :

The Egg Tray Molding Forming System consists of various equipment and dies.

The wet forming section consists of a series of wire screen covered wet forming dies mounted on a molding drum, and a matching set of transfer dies mounted on a transfer mechanism.

The egg tray forming die is made up of rigid corrosive resistant metal or ABS engineering plastic and consists of many component parts that are drilled with small drainage holes and covered by prior to formed stainless steel screens.

The forming die, mounted on the molding drum is rotated at a uniform speed, immersing it in a taper flow vat containing the pulp slurry of about 1% consistency of fibers in recycled water. A vacuum system attracts the fibers to deposit on the forming die screens as the suspending recycle water is drawn through the screen and drainage holes.

The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould.



Frequently used capacity egg tray machines we offered(350Pcs/h):

Egg Tray mould quantity 1pcs Container Required
Raw material Waste paper

About 20ft*1(without dryer)



Output for egg tray 350pcs/hour
Net weight per piece (gram) 70g-75g
The volume of waste paper consumed 30kg / hour
The volume of water consumed 0.05ton / hour
Machine Weight 5tons around
Egg tray Size

295mm*295mm 30eggs



Power requirement 20KW without dryer



  Description

Pulping system



Pulping system

Including :

water pool1pcs

mix pool-1pcs

mill pulp pump -1set

water pump-2sets

pulp pump -2sets

1M³pulping machine 1sets

Forming system



Including

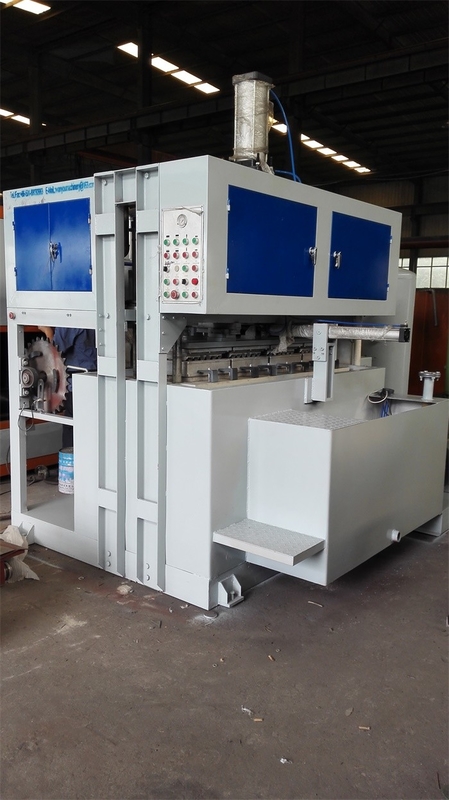

1 moulds forming machine -1set

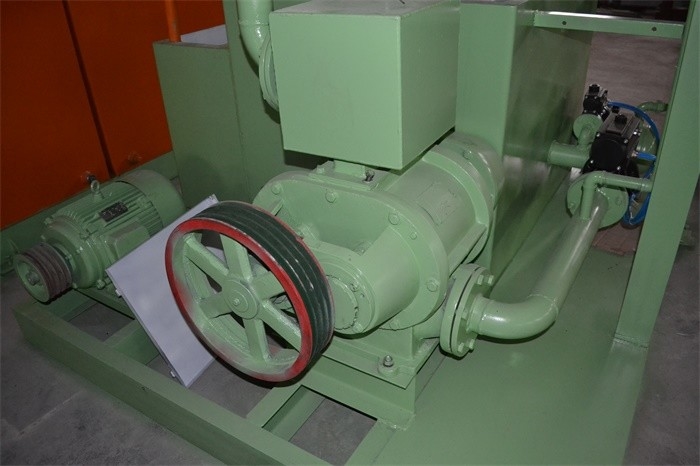

Vacuum pump-1set

Compressor -1set

Washer 1set

Vacuum tank-1pcs

Air tank1pcs



Payment and delivery



Trade terms  FOB Qingdao or EXW Factory
Delivery time  About 30 working days after receiving the deposit.
Payment term  BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE



Installation
1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day )

Our Machine Advantages:

1. Controlled by automatic computer soft ware
2. No need for installation, machine can start running only after connecting some pipes, power and water, and preparing the material
3. Some parts are Germany brand or other famous brand
4. Our egg tray machine can make different trays at same time by using different moulds
5. Besides egg tray, fruit trays, our machine also can produce industrial package
6. All installation and debugging work will be done before shipment.
7. 20 years' experience on egg tray machine
8. 2 years warranty time



Some world famous brands of the fittings:



1. the cylinder’s brand—FESTO

2. the electromagnetic valve’s brand—SHAKO

3. the pneumatic ball valve’s brand—SUPU

4. all the pump and motor are using famous brand of China.

5. the electric appliance’s brand—CHINT

6. the computer controller(PLC)--DELTA



Environment Friendly Semi Automatic Egg Tray Machine Egg Tray Making Machine 0

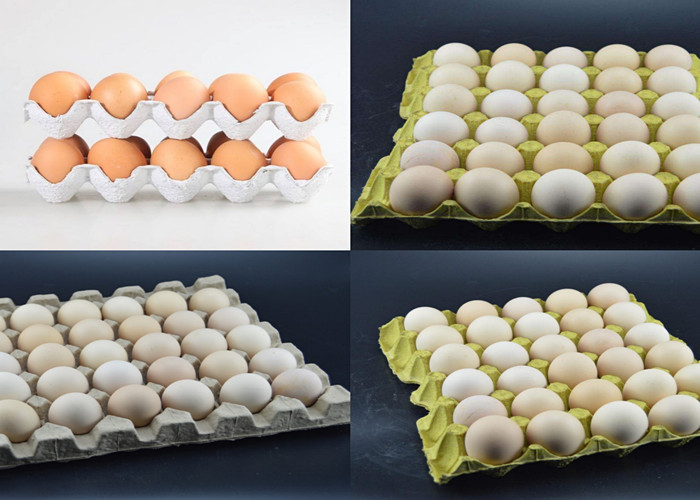

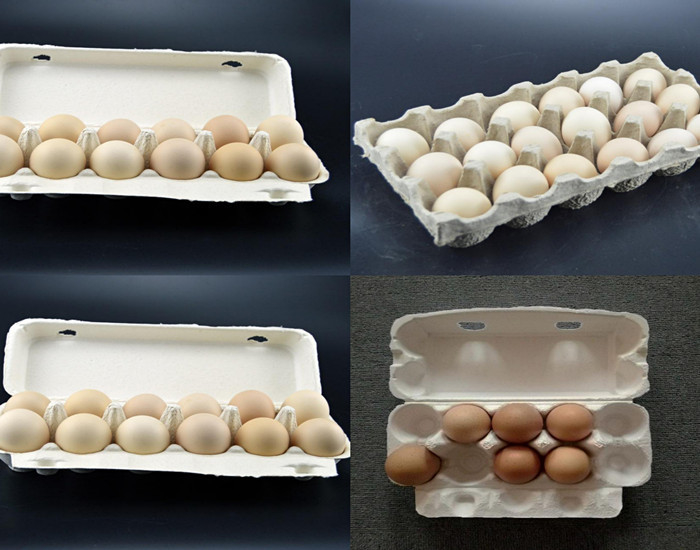

This egg tray machine type will be used often for making following products:

The trays for the cup of coffee, the trays for the bottle, Egg tray / Egg tray box, Electronic products tray, Fruit tray, Air fresher tray, Mechanical and electrical products tray, Industrial Packaging Trays.



Environment Friendly Semi Automatic Egg Tray Machine Egg Tray Making Machine 1



Environment Friendly Semi Automatic Egg Tray Machine Egg Tray Making Machine 2
