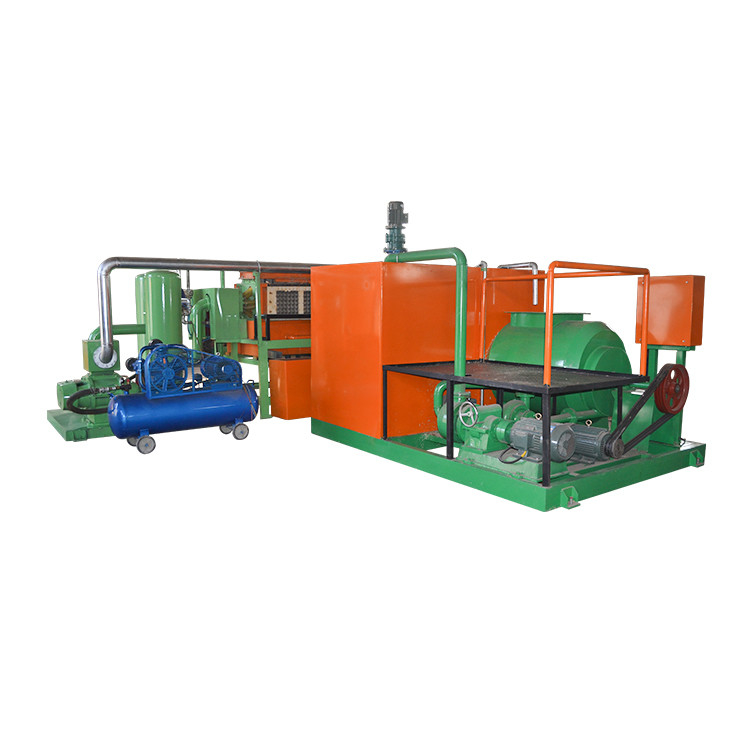

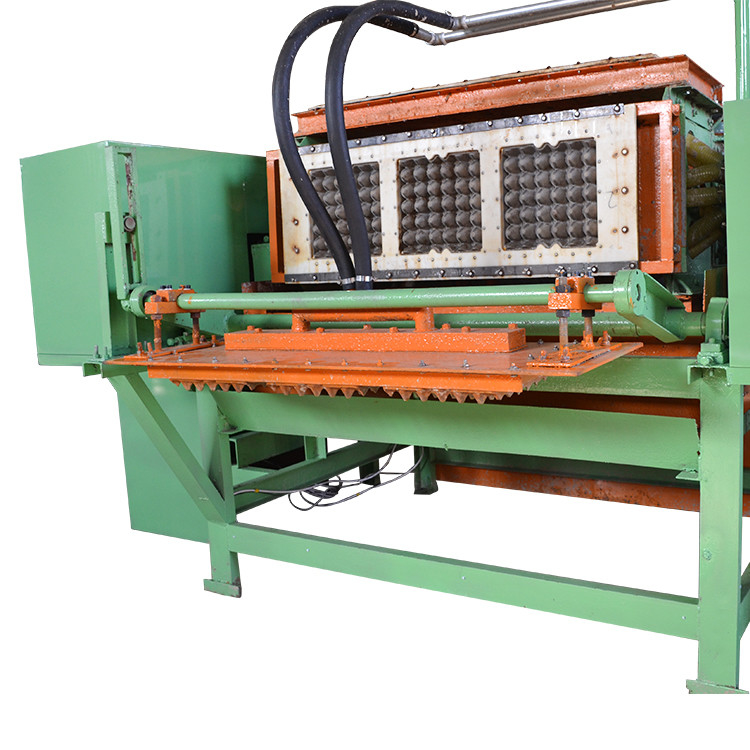

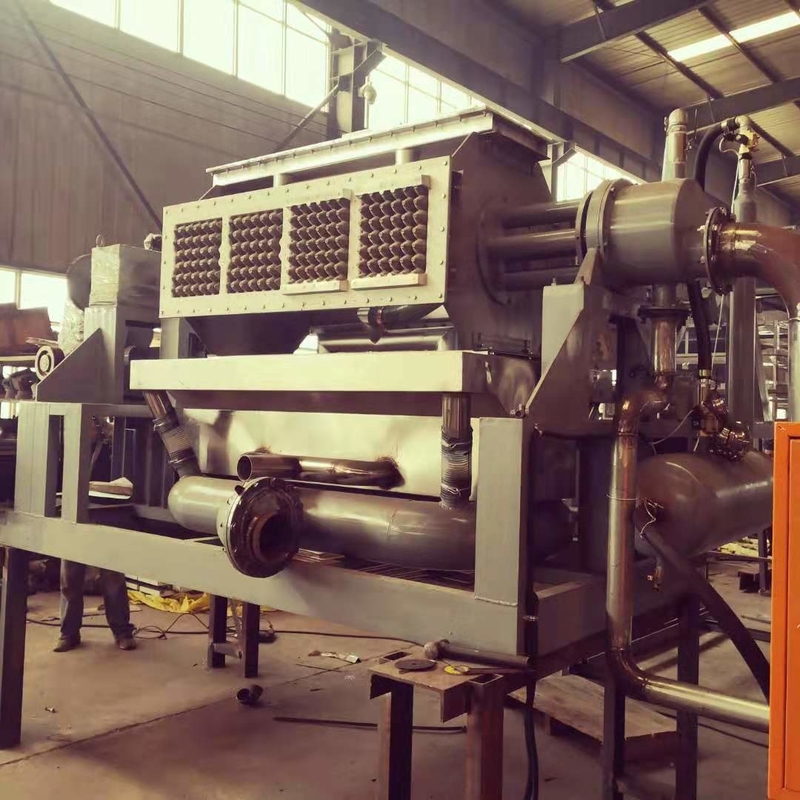

Paper Pulp Egg Tray Making Machine , Egg Packing Trays Pulp Molding Machine

Paper Pulp Egg Tray Making Machine , Egg Packing Trays Pulp Molding Machine

Paper Pulp Egg Tray Making Machine , Egg Packing Trays Pulp Molding Machine
video
Paper Pulp Egg Tray Making Machine , Egg Packing Trays Pulp Molding Machine
Product Details:
Place of Origin: Jinan, Shandong, China
Brand Name: Wanyou
Certification: CE
Model Number: ZSJ-2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: in container
Delivery Time: 30 working days after get deposit payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1 sets per month
Contact Now
Detailed Product Description
Power: 20KW-150KW Raw Material: Waste Paper, Waste Cardboard, Carton, Books Etc.
Guarantee: 2years Capacity Of Egg Trays: 350 -3000pcs/h
Processing Type: Pulp Molding Machine Forming Molds: As Customer Needs
High Light:

fruit tray making machine

,

paper pulp making machine



China Supplier Of Waste Paper Egg Tray Making Machine / Competitive Egg Tray Machine Machine



China Supplier Of Waste Paper Egg Tray Making Machine / Competitive Egg Tray Machine Machine

Machine Introduction:



1. Pulping System:

Pulper, 1.0M3,15kw;



vibration screen, 0.9M2,3kw;



mixer; pulp pump;water pump,control cabinet for pulping system,etc

2. Forming System : Consist of 1pc of forming platen and 1 pc of transfering platen. Equipped with vacuum auto draining system;auto cleaning system for the forming mold and auto control cabinet.



3. Drying system (can use gas,dissel,coal for Boiler burner)

Single layer conveying chain;heated by section;multi burners;



Six layers drying line, energy saving and saving place



The temperature of each section can be adjusted independently;burners with French or Italian brand;



The energy for option: LPG,GAS,diesel oil,Equiped with auto control cabinet.

4. Automatic counting:

Stacker one set, one automatic counting device on the stacker

Our machine features:

1. controlled by computer, no needs any construction.

​ 2. We could make all kinds of moulds for you, and it's very easy to change any moulds to the machine.

​ 3. England technology, and​ spare parts is very famous brand from Germany, Taiwan...

​ 4. with 2years warranty.

​ 5. The installation of the whole line is easy.



With this machine production line, investors can turn their waste paper into Money!



Quick Detail



Condition:  New

Product Type: Egg Tray Machine

Processing Type: Pulp Molding Machine

Place of Origin: Shandong, China (Mainland)

Brand Name: RUNLIANG

Voltage: 220-440V

Power(W): Different Machine Model



Weight: Depends

Certification: CE & ISO

Warranty: 2 years

After-sales Service Provided:  Engineers available to service machinery overseas

Capacity: 350- 3000pcs/h

Color: As  customer needs

Frequency:  50Hz-60Hz

Application:   egg tray,fruit tray,bottle tray

Workshop required:  400㎡

Worker required:  5-6 persons

Fuel:  Coal, Natural Gas, Disel, LPG and so on

Automation: Automatic and fully automatic

Keyword: Egg tray machine



This production line is suitable for the following products:

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.

Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.



Technical parameters



Model Mechanization Working mode Capacity(Pcs/h)
ZJM-1800 Semi-auto or Automatic Rotary 1800
ZJM-2000 Semi- auto or Automatic Rotary 2000
ZJM-3000 Automatic Rotary 3000
ZJM-4000 Automatic Rotary 4000-4500
ZJM-5000 Automatic Rotary 5000-5500
ZJM-6000 Automatic Rotary 6000



Payment and delivery



Trade terms  FOB Qingdao or EXW Factory
Delivery time  About 45 working days after receiving the deposit.
Payment term  BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE



Advantage of recycled paper pulp molding egg tray machine:

1,High efficient ,low energy consume , have a long life .

2,Easy to operate ,low labor force cost,large output .

3,Stable final product quality (same weight ,dimension,good look)

4,Professional technical support ,superior after-sales service .

5,Medium investment ,high profit.



Factory Introduction


Jinan Runliang Packing Machinery Co.,Ltd is a famous packing machinery company which has a good mix of science, industry and trade.

It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.

It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.

These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.



Don’t miss the chance of promoting the production efficiency of your company.



Welcome to contact us.
