Eco Friendly Waste Paper Pulp Egg Tray Machine Low Energy Consumption

Eco-friendly Waste Paper Egg Carton Tray Making Machine / Pulp Molding Machine / Egg Pack Tray Machine​

Eco-friendly Waste Paper Egg Carton Tray Making Machine / Pulp Molding Machine / Egg Pack Tray Machine uses any kind of waste paper as raw material to produce the egg trays for chicken farm factory or other customer who needs the trays. It is a Reciprocating Type Egg Tray Making Machine. It can make many simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc..using waste paper as raw material.

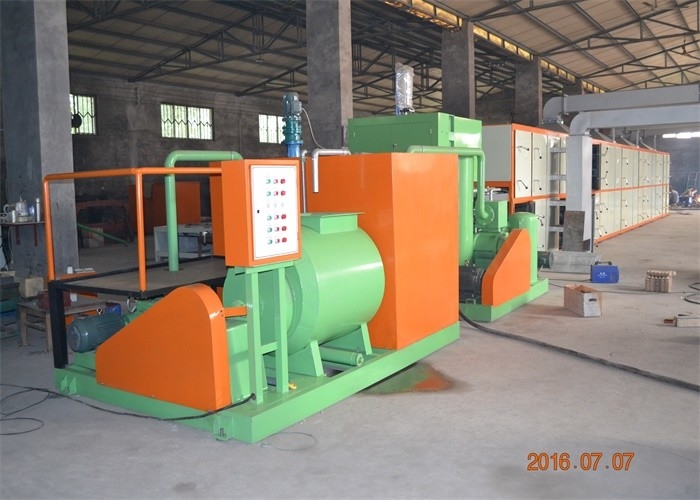

The Egg Tray production line is mainly combined by THREE PARTS:

1. Pulping system: Use waste paper and water as raw material and pulp up;

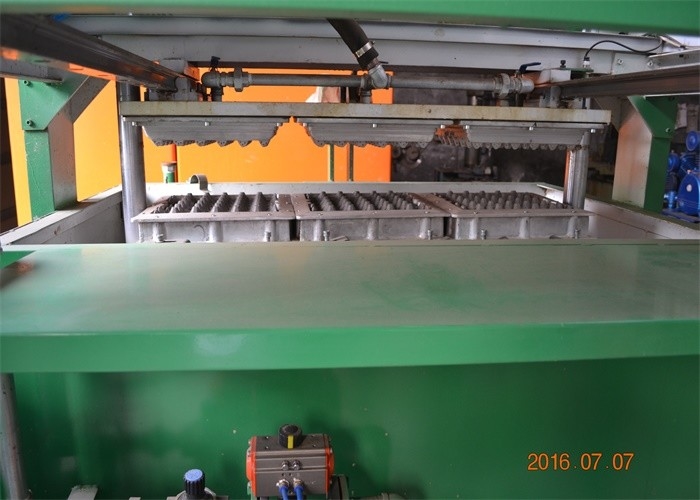

2. Forming system: The pulped material being delivered to Product Tray molds, and forming to the Product Tray plate shape;

3. Drying system: The formed Product Tray plate being delivered to Dryer, and come up to Completed Strong Product Tray plate
The drying system is with one boiler. The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production.
Our production line has Fully Automatic and Semi Automatic two types , both have computer control system.

If you don’t want this drying system, it is also OK. Then you will have to do the work of drying up the product trays manually.
Our machine can be designed to make different products at same time by one Working Table (with 2 Molds or even 3 molds)

The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production.

All the machine is in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.

Condition:  New

Product Type: Egg Tray Machine

Processing Type: Pulp Molding Machine

Place of Origin: Shandong, China (Mainland)

Brand Name: RUNLIANG

Voltage: 220-440V

Power(W): Different Machine Model

Dimension(L*W*H): 7m*2.2m*2.2m

Weight: 8 tons-15tons

Certification: CE & ISO

Warranty: 2 years

After-sales Service Provided:  Engineers available to service machinery overseas

Capacity: 350pcs/h

Color: As  customer needs

Frequency:  50Hz-60Hz

Application:   egg tray,fruit tray,bottle tray

Workshop required:  150-300㎡

Worker required:  5-6 persons

Fuel:  Coal, Natural Gas, Disel, LPG and so on

Automation: Automatic and fully automatic

Keyword: Egg tray machine

This production line is suitable for the following products:

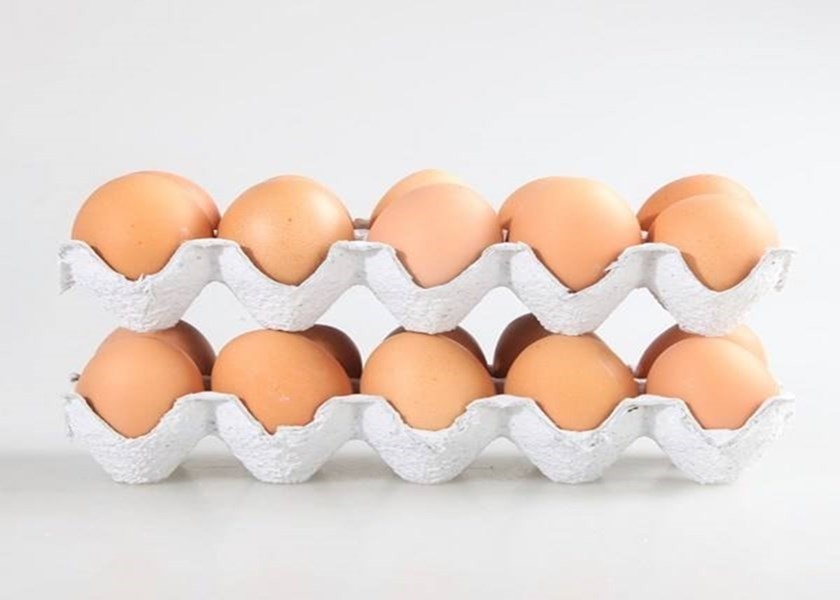

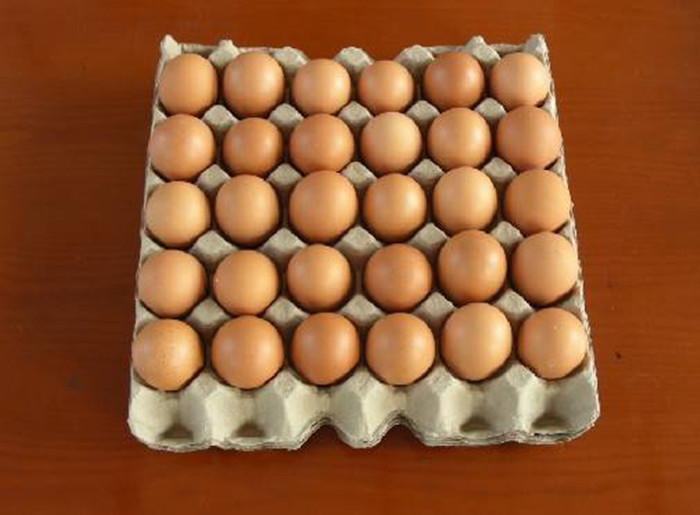

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.

Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.

Technical data

Payment and delivery

It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.

These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.

Don’t miss the chance of promoting the production efficiency of your company.

Welcome to contact us.

FAQ

(1). What kind of material we can use as the raw material?

Any kind of waste paper like old newspaper,magazines,books,A4 paper, corrugated cartons, paperboard etc.

(2). What kind of Fuel can be used for the whole production line?

Coal, natural gas, and dieseal oil.
