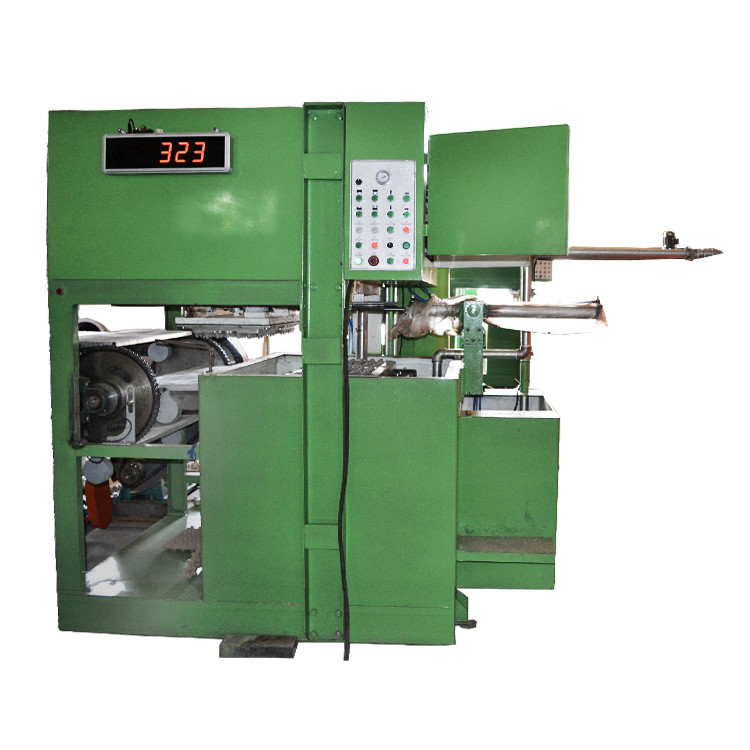

Cheap reciprocating type waste paper pulp egg carton dish making machine

Cheap reciprocating type waste paper pulp egg carton dish making machine

  • Cheap reciprocating type waste paper pulp egg carton dish making machine
  • Cheap reciprocating type waste paper pulp egg carton dish making machine
Cheap reciprocating type waste paper pulp egg carton dish making machine
Product Details:
Place of Origin: Jinan, Shandong, China
Brand Name: Wanuyou
Certification: CE
Model Number: ZSJ series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 12000-35000 per set
Packaging Details: in container
Delivery Time: 20 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1 set per month
Contact Now
Detailed Product Description
Type: Semi-Automatic Machine Speed: 0-60 Sheet /min
Machine Width: 1300-2400mm Color: Customized
Feed Type: Chain Warranty: 1 Year
High Light:

printer slotter die cutter

,

carton box printing machine

                Cheap reciprocating forming egg carton dish making machine

Technical parameters of egg dish machine:

China Recyclable fully tableware Pulp Molding Machine /roller egg tray making machine Germany Valves uses waste paper as raw material to produce the egg trays for chicken farm factory or other customer who needs the trays. It has 2 types forming method: one is Reciprocating Type, the other is Rotary Type Egg Tray Making Machine. It can make many simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc..using waste paper as raw material.

1, Egg tray mould quantity 1pcs 2pcs 3pcs 4pcs
2, Raw material Waste paper Waste paper Waste paper Waste paper
3, Output for egg tray 350pcs/hour 700pcs/hour 1000pcs/hour 1300pcs/hour
4, Net weight per piece (gram) 70g-75g 70g-75g 70g-75g 70g-75g
5, The volume of waste paper consumed 0.025ton / hour 0.06ton / hour 0.1ton / hour 0.13ton / hour
6, The volume of water consumed 0.05ton / hour   0.15ton / hour 0.2ton / hour
7, Operators number 2-3workers 3-4workers 4-6workers 4-6workers
8, Area of workshop More than 200M² More than 240M² More than 240M² More than 240M²
9, Capacity of power 25KW 40KW 50KW 60KW


Cheap reciprocating forming egg carton dish making machineCheap reciprocating forming egg carton dish making machine

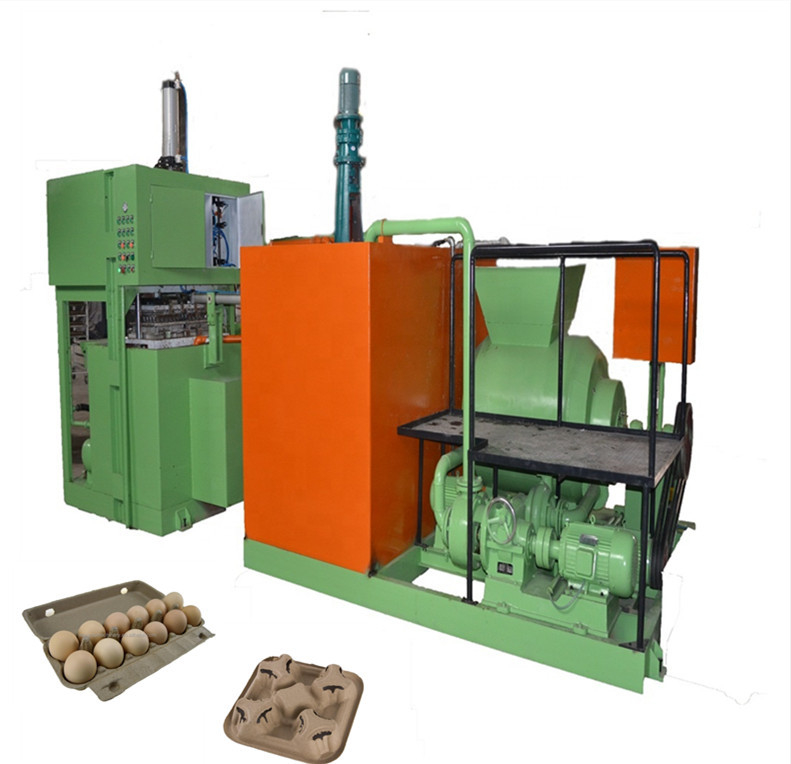

Production Line Introduction
Pulping System
1. Put the raw material and water into the hydraulic pulper. you will get the paper pulp after mixed 10-20 minutes.
2. Pulp pump will transfer the finished paper pulp into the slurry pool.
3. The pulp pond beater will mix the pulp concentration.
4. The pulp pump will transfer the pulp into forming machine.
Molding System
1. The molding machine is to adsorb the pulp to the molding mold, adsorb the pulp to the molding mold through the suction of the vacuum system to absorb the excess water into the gas-water separation tank, and then pump the water to the tank for storage.
2. The molding mold adsorbs the pulp and then forms it. and then the transfer mold takes out the finished product and sends it to the they drying tray.
Drying System

1.Heat source: natural gas, diesel, liquefied petroleum gas and other combustion liquids and gases.The transmission mode adopts industrial transmission chain to drive the net plate transmission, which runs in the drying line.

Cheap reciprocating type waste paper pulp egg carton dish making machine 2
