We are professional paper egg tray machine supplier.
Quality First, Customer First
With Jinan Wanyou, Turn Your Waste Into Money
|Place of Origin:||Jinan, Shandong, China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||in container|
|Delivery Time:||65 working days after get deposit payment|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||1 sets per month|
|Raw Material:||Waste Paper, Waste Cardboard, Carton||Guarantee:||2years|
|Egg Tray Forming Type:||Rotary Egg Tray Machine||Processing Type:||Pulp Molding Machine|
|Color:||Customized Color||Voltage:||220V/380V,380v / 450v|
paper egg tray making machine,
fully automatic egg tray machine
Low Cost Paper Egg Carton / Tray Making Machine , Egg Carton Fruit Tray Making Machine
Egg Tray Machin Features:
1. controlled by computer, no needs any construction.
2. We could make all kinds of moulds for you, and it's very easy to change any moulds to the machine.
3. England technology, and spare parts is very famous brand from Germany, Taiwan...
4. with 2years warranty.
5. The installation of the whole line is easy.
Quick Detail of Egg Tray Machine:
|Product Type||Egg Tray Machine|
|Processing Type||Pulp Molding Machine|
|Place of Origin||Shandong, China (Mainland)|
|Power(W)||Different Machine Model|
|Certification||CE & ISO|
|After-sales Service Provided||Engineers available to service machinery overseas|
|Color||As customer needs|
|Application||egg tray,fruit tray,bottle tray|
|Worker required||5-6 persons|
|Fuel:||Coal, Natural Gas, Disel, LPG and so on|
|Automation||Automatic and fully automatic|
Egg tray machine
Our machine can be designed to make different products at same time by one Working Table (with 2 Molds or even 3 molds)
All the machine is in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.
Our machine can turn your waste paper and books into Money!

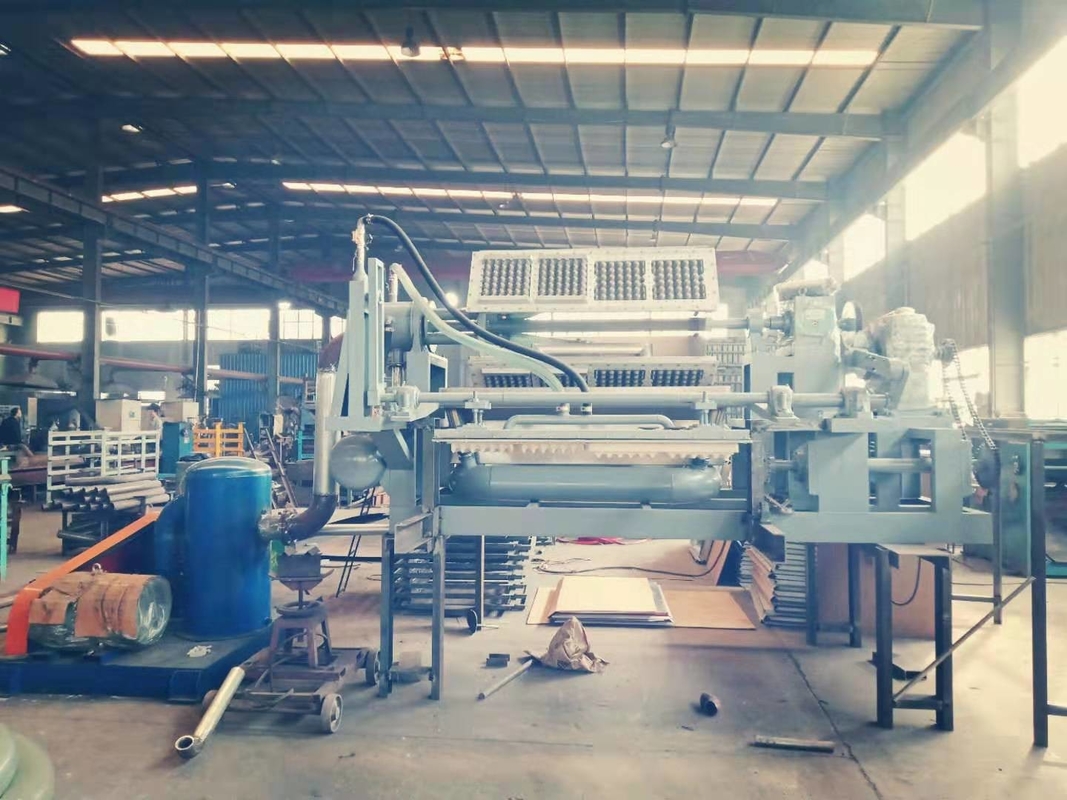

Egg Carton Molding Forming System:
The Egg carton Molding Forming System consists of various equipment and dies.

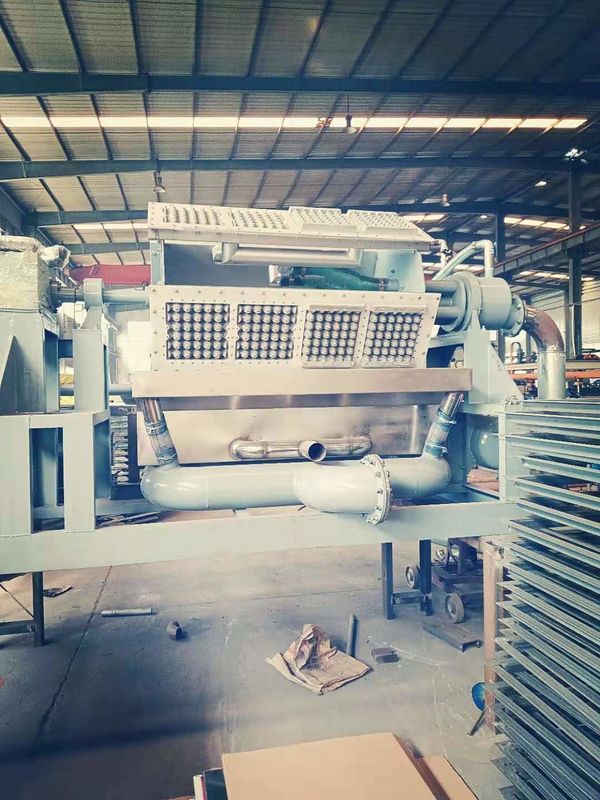

The wet forming section consists of a series of wire screen covered wet forming dies mounted on a molding drum, and a matching set of transfer dies mounted on a transfer mechanism.
The egg carton forming die is made up of rigid corrosive resistant metal or ABS engineering plastic and consists of many component parts that are drilled with small drainage holes and covered by prior to formed stainless steel screens.
The forming die, mounted on the molding drum is rotated at a uniform speed, immersing it in a taper flow vat containing the pulp slurry of about 1% consistency of fibers in recycled water. A vacuum system attracts the fibers to deposit on the forming die screens as the suspending recycle water is drawn through the screen and drainage holes.

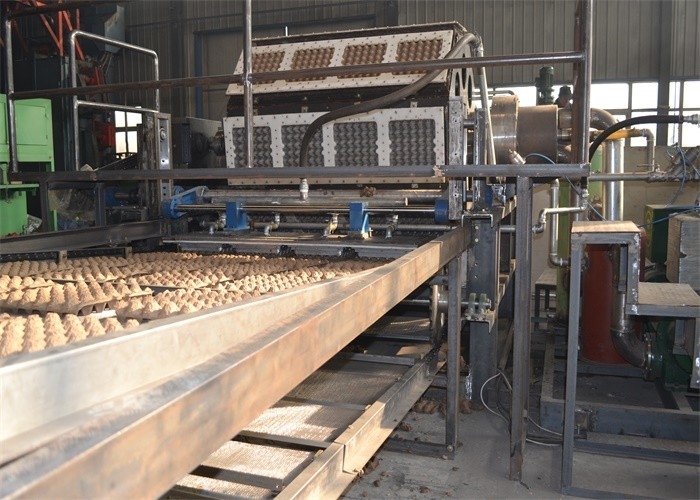

The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.
Egg Tray Drying system (fuel of boiler burner can use gas,dissel,coal ):
There are burners and blowers on the two sides of the drying line. Burner creates the hot air and the blower increases it. There will be hot air mouth in the drying line also blow the hot air. The drying line is protected by the insulation board. The temperature inside the oven can reach 200 degree.
Egg Tray Automatic counting:
After drying line ,the egg trays go to the automatic counting and stacking system. You can preset the quantity of one pile ,such as 100pcs or 200pcs, when the quantity no is done, the counting device will be alarmed. And the products stacked at the same time. You can packaged them directly .
Technical parameters of 4000pcs/h egg tray machine production line/Pulp molding machine
mill pulp pump -1set
pulp pump -2sets
pulping machine –1sets
24 moulds (3*8)forming machine -1set
Drying oven 4 layer –1set
Chain and tray –1sets
Hot air pipe –1sets
Chain wheel with shaft—1sets
Delivery belt –1set
Drive motor –1set
Natural gas burner(Riello)-1set
Fan with motor -1set
Electric control -1set
|Egg Tray mould quantity||32pcs (4*8)||Container Required|
|Raw material||Waste paper||About 40ft*5|
|Output for egg tray||4000pcs/hour|
|Net weight per piece (gram)||70g-75g|
|The volume of waste paper consumed||188kg/h|
|The volume of water consumed||0.6t/h|
Natural Gas consumption of the dryer
|Machine Weight||40tons around|
|Egg tray Size||295mm*295mm 30eggs|
Installation & Training
1. Usually, all installation and debugging work will be done before shipment. Means with no fee for installation.
2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and engineer charge USD100/day )
3.We will dispatch 1 engineer to direct the installation and debugging of the equipment if needed. And the engineer will train the workers on site.
Payment and delivery
|Trade terms||FOB Qingdao or EXW Factory|
|Delivery time||About 50 working days after receiving the deposit.|
|Payment term||BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC|
|Time of payment||When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.|
|Warranty time||Two years after the Egg tray machine received.|
|TERMS OF DELIVERY||FOB Qingdao Port, China|
|1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day )|
JinanWanyou Packing Machinery Co.,Ltd is a famous packing machinery company which has a good mix of science, industry and trade.
It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.
These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.
Welcome to contact us!
Contact Person: Mandy
