6000pcs/Hour Wood Pulp Paper Tray Forming Machine For 6 Worker

6000pcs/Hour Wood Pulp Paper Tray Forming Machine For 6 Worker

6000pcs/Hour Paper Tray Forming Machine

1.35ton/hour Paper Tray Forming Machine

Wood pulp Paper Tray Machine

Place of Origin:

Jinan, Shandong, China

Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
Product Type:
Egg Tray Forming Machine
Raw Material:
Waste Paper Wood Pulp
2 Year
About 10 Tons
Dry Materials:
Dry Fuel:
Diesel,coal ,gas
Worker Requirement:
5-6 Worker
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
in container
Delivery Time
95 working days
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
1 set per month
Product Description

                                                         Fully automatic egg tray forming machine


Fully automatic recycling waste paper egg tray forming machine


Egg Tray Machine (pulp molding machine) uses waste paper as raw material and produce different kinds of products according to your requirement,such as egg tray/dishes ,egg carto/box,fruit tray,industrial package tray,seeding tray ,win tray ,shoe support and small products packages ,etc. The different final products are decided by your market choice.


Details of egg tray forming machine:


Technical Parameters
Egg Tray mould quantity48 pcs Container Required
Raw material Waste paper

About 40ft*7

(without dryer)

Output for egg tray 6000pcs/hour
Net weight per piece (gram) 70g-75g
The volume of waste paper consumed 450kg / hour
The volume of water consumed 1.35ton / hour

The natural gas consumped of the dryer(about)




Diesel Consumption
Machine Weight 5-20tons
Egg tray Size 295mm*295mm 30eggs


6000pcs/Hour Wood Pulp Paper Tray Forming Machine For 6 Worker 0

Four parts of egg tray forming machine:


  Name Function

Pulping system


Pulping system

Including :

mill pulp pump -1set

water pump-2sets

pulp pump -2sets

pulping machine –1sets

material of tank and disc:carbonized steel ,material of screen plate:stainless steel , pulping consistency:3-4%.

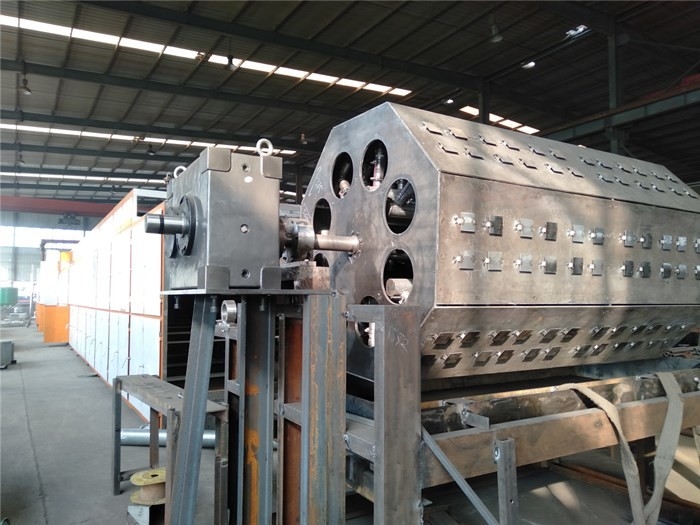

Forming system



48 moulds (6*8)forming machine -1set

Vacuum pump-1set

Compressor -2sets

Washer –1set

Vacuum tank-1pcs

Air tank—1pcs

Equipped with vacuum auto draining system;auto cleaning system for the forming mold and auto control cabinet.

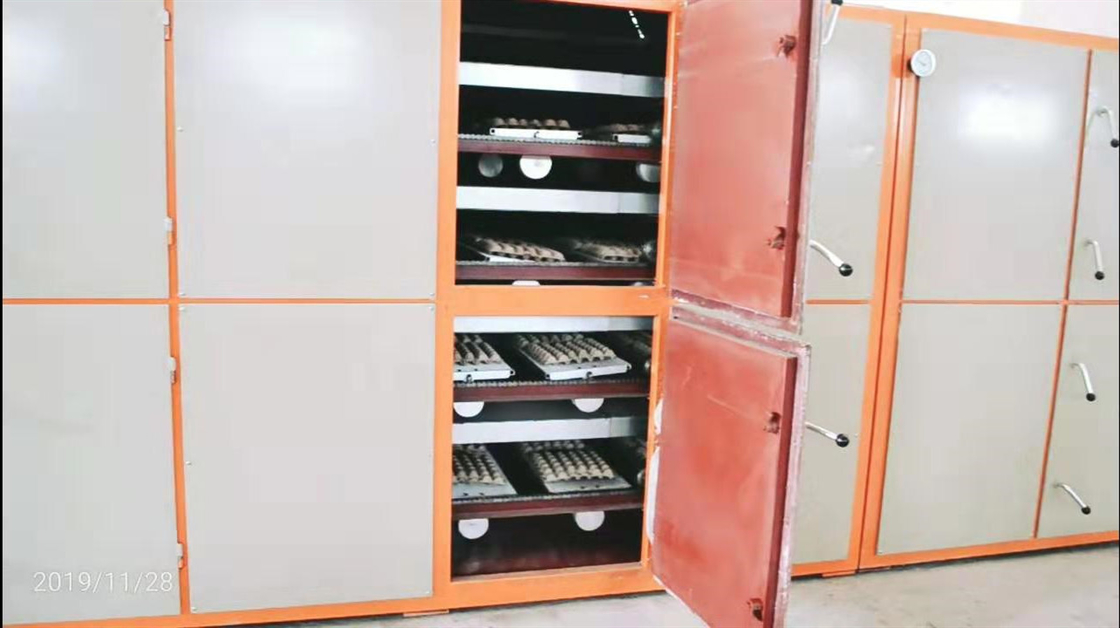

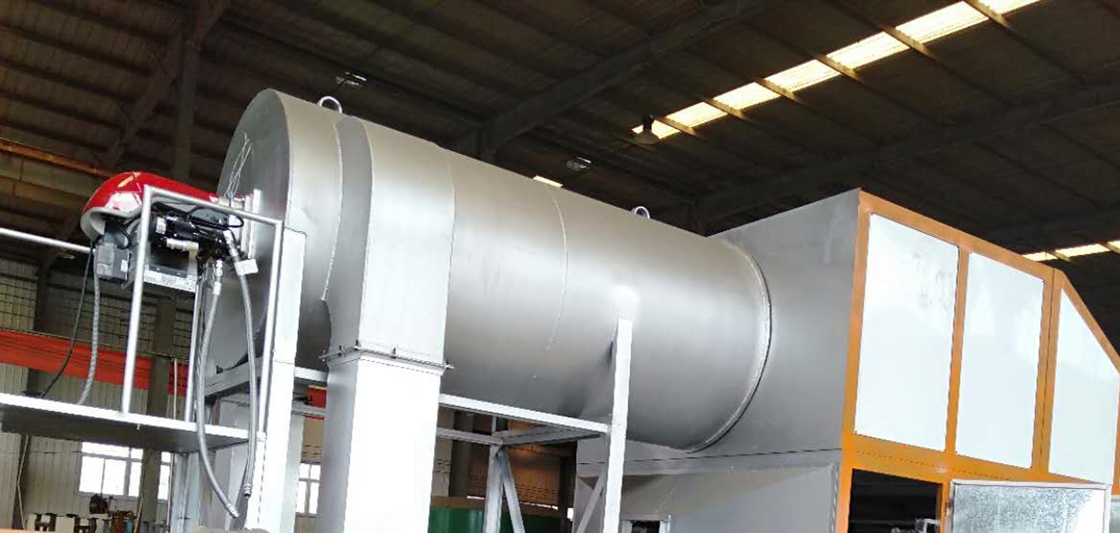

Drying system



Drying oven –1set

(L 40M*2.8M*H2.2M)

Chain and tray –1sets

Hot air pipe –1sets

Chain wheel with shaft—1sets

Drive motor –1set

The temperature of each section can be adjusted independently;burners with French or Italian brand;


The energy for option: LPG,GAS,diesel oil,Equipped with auto control cabinet.



    Stacking system




Height limit pressor-1set

Used to stack the after-drying products.


6000pcs/Hour Wood Pulp Paper Tray Forming Machine For 6 Worker 1

Machine Features of Paper Egg Tray Making Production Line :


1). Controlled by automatic computer soft ware

2). No need for installation, machine can start running only after connecting some pipes, power and water, and preparing the material

3). Some parts are Germany brand or other famous brand

4). Our egg tray machine can make different trays at same time by using different moulds

5). Besides egg tray, fruit trays, our machine also can produce industrial package

6). All installation and debugging work will be done before shipment.

7). 20 years' experience on egg tray machine

8). 2 years warranty time
