Place of Origin:
Jinan, Shandong, China
Brand Name:
RUNLIANG
Certification:
CE
Model Number:
RL- ZJM1000
Recycled paper pulp automatic egg tray making machine with egg tray dryer
Quick detail of automatic egg tray machine:
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: Wanyou
Model Number: ZSJ-1000A
Voltage: 380V-440V
Weight: as the case may
Certification: CE
Name: egg tray / shoe tree making machine
Other name: top level topone time shoe tree making machine
Application: Egg tray,Egg carton, Shoe tree, Bottle tray, Seedling tray, Fruit tray
Frequency: 0.8-1%
Production speed: 350-6000 pcs/hr
Forming Type: reciprocating and rotary and overturning
Pulp concentration for molding machine: 0.8-1%
Container: Depends
Pressure of compressed air: 0.5-0.7Mpa
Consumption per hour: water: 1.35t/h waste paper: 450kg/h
electricity: 200kw
Warranty: 2 years for free
After-sales Service Provided: Engineers available to service machinery overseas
Mainly Parts of the machine:
1. pulping system: including the hydrapulper, pump, disk mill, water tank, pulp tank, mixer, etc..to make the waste paper into pulp.

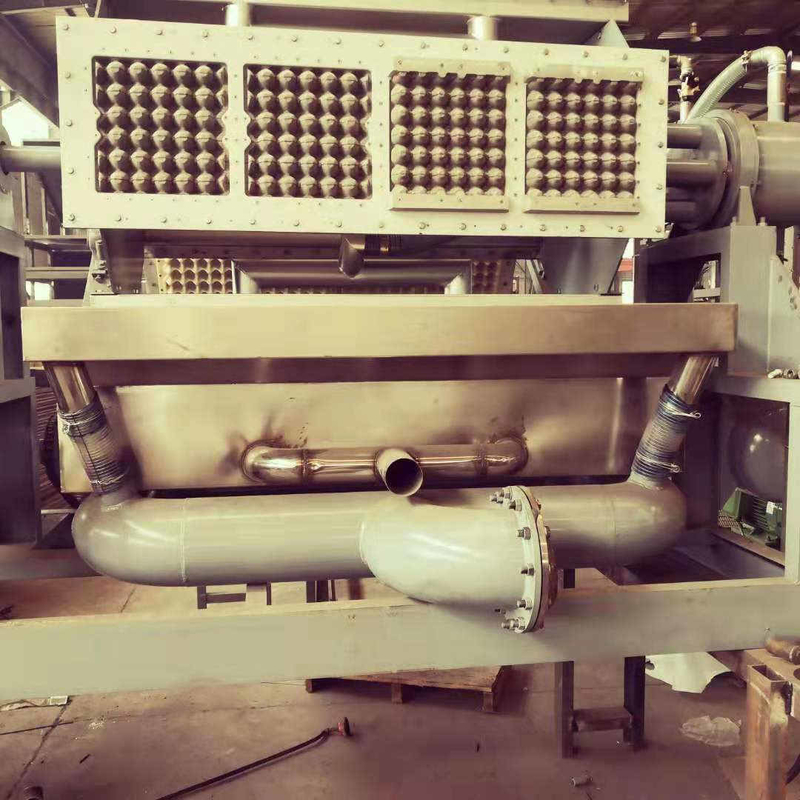

2. forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.
3. Drying system (can use LPG, gas,diesel,coal for Boiler burner)
(1) Natural drying method: The product is dried directly by weather and natural wind.

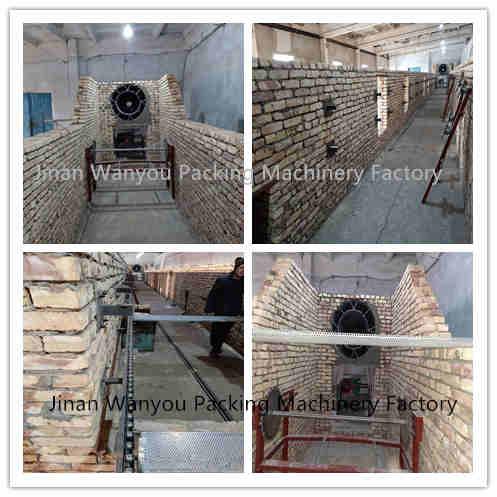

(2) Traditional drying: brick tunnel kiln, heat source can choose natural gas, diesel, coal, dry wood,A heat source such as liquefied petroleum gas..

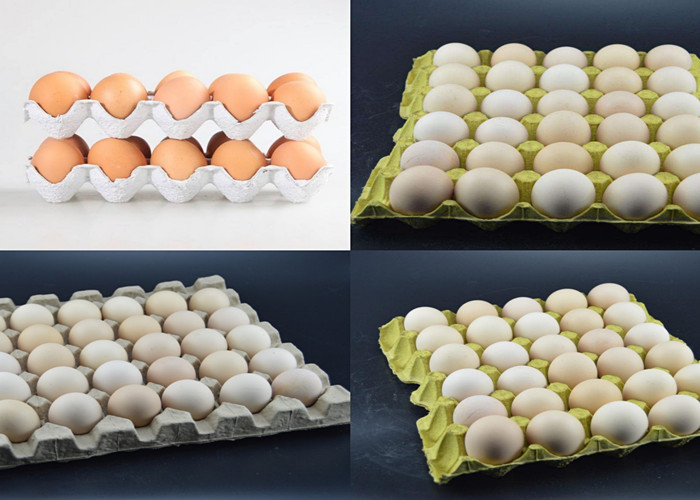

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)

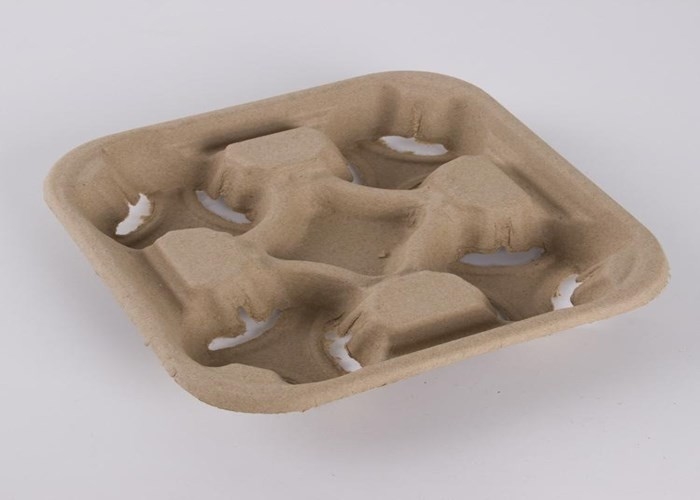

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.
Tech data of machine Egg Tray:
| Egg Tray Mold Quantity | 3pcs | |
| Raw material | Waste paper | |
| Egg tray Capacity | 1000pcs/hour | |
| Net weight per piece (gram) | 70g-75g | |
| Waste paper consumption | 0.075t / hour | |
| Water Consumption | 0.22ton / h | |
| Natural Gas Consumption of Dryer | 45cbm/h | |
| Worker requirement | 4-6workers | |
| Power Requirement | Without dryer | 40KW |
| With dryer | 60KW | |
| Area of workshop | Without dryer | More than 120 M² |
| With dryer | More than 300M²,dryer16m | |
| Container Requirement | Without dryer | 40ft*1 |
| With dryer | 40ft*3 | |
| Remarks: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant. | ||
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory | ||||
| Delivery time | About 35 working days after receiving the deposit. | ||||
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC | ||||
| Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||||
| Warranty time | Two years after the Egg tray machine received. | ||||
| TERMS OF DELIVERY | FOB Qingdao Port, China | ||||
| Package | In container | ||||
| Certification | CE | ||||
FAQ
(1). What kind of material we can use as the raw material?
Any kind of waste paper like old newspaper,magazines,books,A4 paper, corrugated cartons, paperboard etc.
(2). What kind of Fuel can be used for the whole production line?
Coal, natural gas, and dieseal oil.
(3). What kind of products can be made by this machine?
All paperpackage such as paper egg tray, egg carton,egg box, fruit tray, bottle tray, cup tray, consumer product package, medical disposable container etc.
(4). Are you a manufacturer or a trading company?
Yes, our company has been fabricating pulp molding machine since 2000. We are one of the
most important pulp molding machine maufacturers in the world, and we are famous pulp
molding machine manufacturer in China, providing high quality and production capacity pulp molding
machinery at reasonable prices to the world.
(5). What capacity egg tray machine can you supply?
At the moment, we can supply 350-6000 pcs/h capcaity egg tray machine.
Welcome to contact us!
