Place of Origin:
Jinan, Shandong, China
Brand Name:
Wanyou
Certification:
CE
Model Number:
ZSJ series
Mainly Parts of the machine:
1. pulping system: including the hydrapulper, pump, disk mill, water tank, pulp tank, mixer, etc..to make the waste paper into pulp.

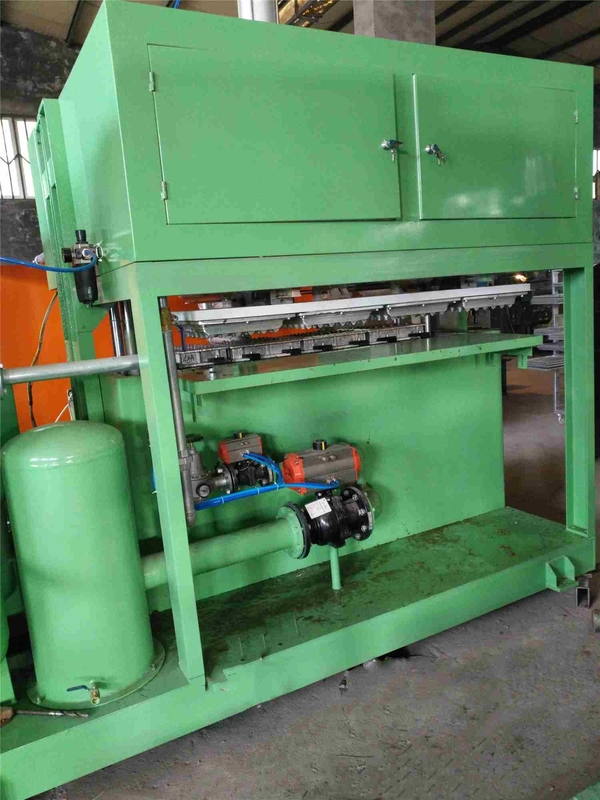

2. forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.
3. Drying system (can use LPG, gas,diesel,coal for Boiler burner)
There are burners and blowers and boiler for the drying line. Burner creates the hot air and the blower increases it. There will be hot air mouth in the drying line also blow the hot air. The drying line is protected by the insulation board. The temperature inside the oven can reach 200 degree.
Our egg tray machine is better quality than that of other egg tray production line supplier. We have been in the egg tray making machine filed for over 20 years. We have advanced technology and good quality spare parts for the machine production.
All the machine is in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.
Our machine can turn your waste paper and books into Money!
Working theroy of the paper egg tray machine is below:
The Egg Tray Molding System consists of various equipment and dies.
The wet forming section consists of a series of wire screen covered wet forming dies mounted on a molding drum, and a matching set of transfer dies mounted on a transfer mechanism.

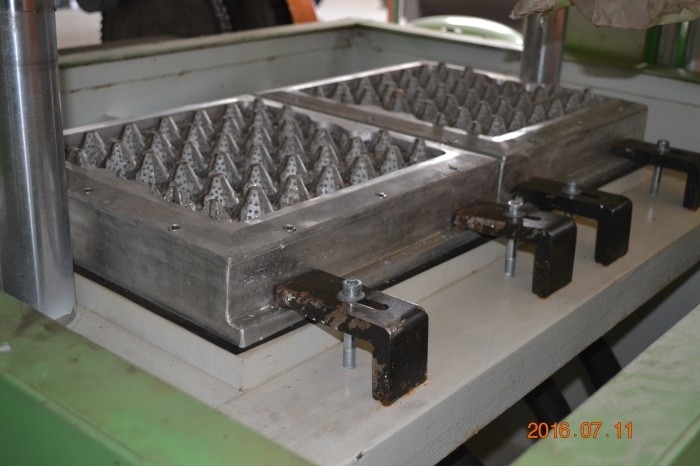

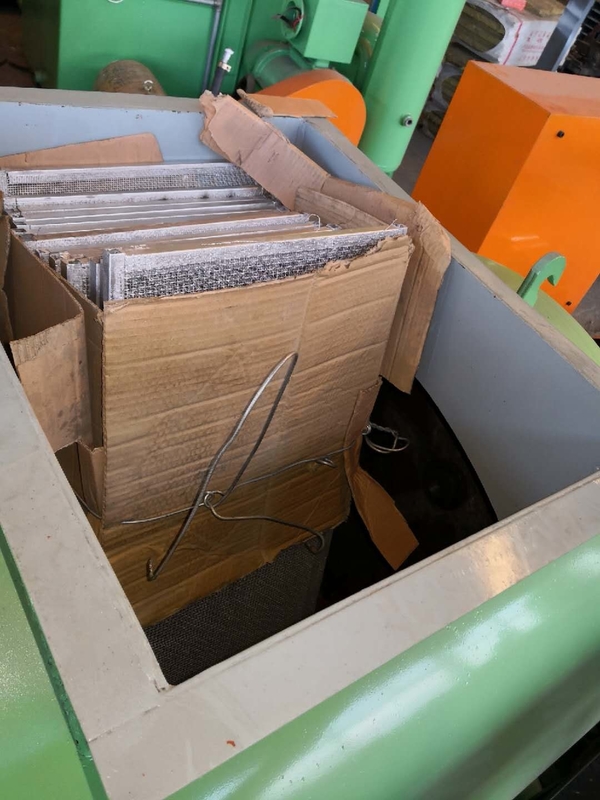

The egg tray forming die is made up of rigid corrosive resistant metal or ABS engineering plastic and consists of many component parts that are drilled with small drainage holes and covered by prior to formed stainless steel screens.
The forming die, mounted on the molding drum is rotated at a uniform speed, immersing it in a taper flow vat containing the pulp slurry of about 1% consistency of fibers in recycled water. A vacuum system attracts the fibers to deposit on the forming die screens as the suspending recycle water is drawn through the screen and drainage holes.
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Brand Name: Wanyou
Voltage: 220-440V
Power(W): Different Machine Model
Dimension(L*W*H): 7m*2.2m*2.2m
Weight: 8 tons-15tons
Certification: CE & ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 350pcs/h-5000pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray
Workshop required: 150-600㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation: Automatic and fully automatic
Keyword: Egg tray machine
This production line is suitable for the following products:

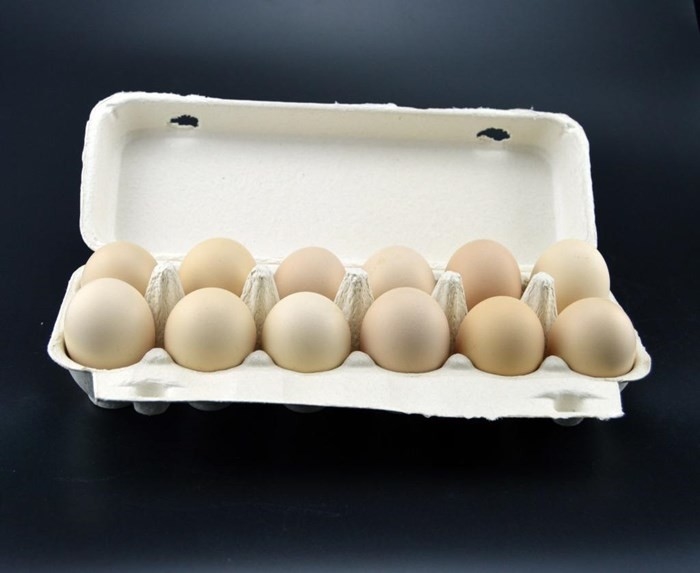

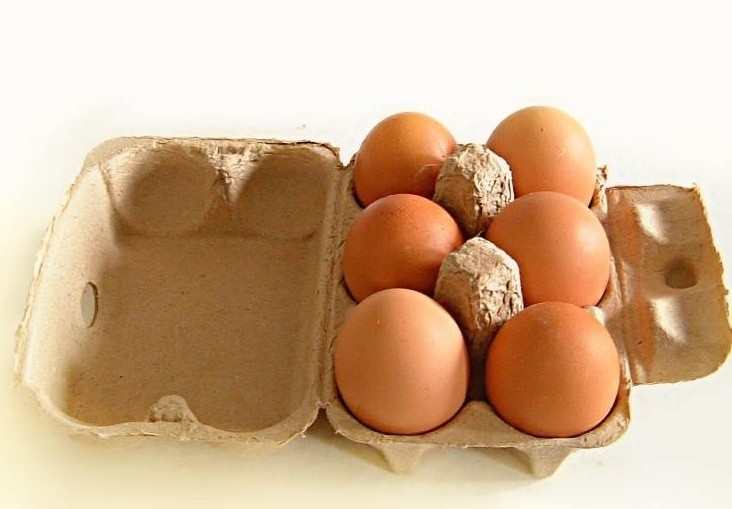

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)
Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.
Tech data of egg tray machine
|
|
Main parts |
Note |
|
Pulping system
|
Including : water pool—1pcs mix pool-1pcs mill pulp pump -1set water pump-2sets pulp pump -2sets 1M³pulping machine –1sets |
Pulping system: Use waste paper and water as raw material and pulp up; |
|
Forming system
|
Including moulds forming machine -1set Vacuum pump-1set Compressor -1set Washer –1set Vacuum tank-1pcs Air tank—1pcs |
The pulped material being delivered to Product Tray molds, and forming to the Product Tray plate shape; |
|
Drying system
|
Including Drying oven –1set Chain and tray –1sets Hot air pipe –1sets Chain wheel with shaft—1sets Delivery belt –1set Drive motor –1set |
Drying system: The formed Product Tray plate being delivered to Dryer, and come up to Completed Strong Product Tray plate The drying system is with one boiler. The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production.
|
|
Boiler
|
Including Boiler –1set Natural gas burner(Riello)-1set Fan with motor -1set Electric control -1set |
Burner is famous world brand. |
Payment and delivery
|
Trade terms |
FOB Qingdao or EXW Factory |
||||
|
Delivery time |
About 35 working days after receiving the deposit. |
||||
|
Payment term |
BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC |
||||
|
Time of payment |
When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. |
||||
|
Warranty time |
Two years after the Egg tray machine received. |
||||
|
TERMS OF DELIVERY |
FOB Qingdao Port, China |
||||
|
Package |
In container |
||||
|
Certification |
CE |
||||
FAQ
(1). What kind of material we can use as the raw material?
Any kind of waste paper like old newspaper,magazines,books,A4 paper, corrugated cartons, paperboard etc.
(2). What kind of Fuel can be used for the whole production line?
Coal, natural gas, and dieseal oil.
(3). What kind of products can be made by this machine?
All paperpackage such as paper egg tray, egg carton,egg box, fruit tray, bottle tray, cup tray, consumer product package, medical disposable container etc.
(4). Are you a manufacturer or a trading company?
Yes, our company has been fabricating pulp molding machine since 2000. We are one of the
most important pulp molding machine maufacturers in the world, and we are famous pulp
molding machine manufacturer in China, providing high quality and production capacity pulp molding
machinery at reasonable prices to the world.
(5). What capacity egg tray machine can you supply?
At the moment, we can supply 350 pcs/h, 700, 1000, 1300, 1800, 2000, 2400, 3000pcs/h capcaity egg tray
machine.
Why choose us?
Rich experience in manufacturing
1. More than 20 years experience in designing and manufacturing machine.
2. Over 20 years experience in manufacturing the pulp molding equipment.
3. Famous factory in the Egg tray machine field in China.
The most complete product line
1. More than 20 kinds of pulp molding equipment specifications, for Egg tray, Egg carton, Fruit Tray, Cup Carrier,Medical Care Product, Industrial package.
2. Fully-automatic production line and semi-automatic production line.
3. Different capacity can meet all the customers’ needs.
Advance processing technology
The most reliable choice for superb performance in the long run.
Factory and producing tool
1. More than 1000 M2 areas.
2. 50 advanced processing equipment.
3. Over 50 sets supplied per year.
High quality
1. Every process strictly controlled.
2. International brand and Germany brand for control parts.
3. Delivery after machine trail production.
4. England technology
Some world famous brands of the fittings:
1. the cylinder’s brand—FESTO
2. the electromagnetic valve’s brand—SHAKO
3. the pneumatic ball valve’s brand—SUPU
4. all the pump and motor are using famous brand of China.
5. the electric appliance’s brand—CHINT
6. the computer controller(PLC)--DELTA
7. the burner-- BALTUR/RIELLO
Advantages of our machine:
1). Controlled by automatic computer soft ware
2). No need for basic infrastructure, machine can start running only after connecting some pipes, power and water, and preparing the material
3). Some parts are Germany brand or other famous brand
4). Our egg tray machine can make different trays at same time by using different moulds
5). Besides egg tray, fruit trays, our machine also can produce industrial package
6). All installation and debugging work will be done before shipment.
7). 20 years' experience on egg tray machine
8). 2 years warranty time
