Place of Origin:
Jinan, Shandong, China
Brand Name:
Wanyou
Certification:
CE
Model Number:
RL- ZJM
Video
Video
Video

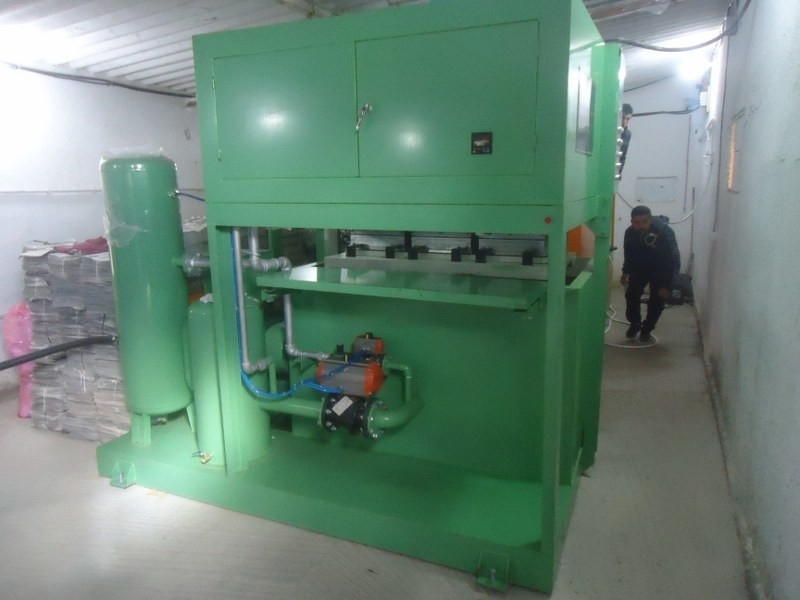

Paper Shoe Tray Making Pulp Molding Machine With Life Long Maintence
Paper Egg Tray Machine , Paper Apple Tray Making Machine With Germany Valves uses waste paper as raw material to produce the egg trays for chicken farm factory or other customer who needs the trays.
Paper Egg Tray Machine has 2 types forming method: one is Reciprocating Type, the other is Rotary Type Egg Tray Making Machine. It can make many simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc..using waste paper as raw material.
Our egg tray machine is better quality than that of other egg tray production line supplier. We have been in the egg tray making machine filed for over 20 years. We have advanced technology and good quality spare parts for the machine production.
Egg tray machine working flow as the following:
1. Pulping system
2. Forming system
3. Drying system
There are burners and blowers and boiler for the drying line. Burner creates the hot air and the blower increases it. There will be hot air mouth in the drying line also blow the hot air. The drying line is protected by the insulation board. The temperature inside the oven can reach 200 degree.
All the machine is in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.
Our machine can turn your waste paper and books into Money!
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Brand Name: RUNLIANG
Voltage: 220-440V
Power(W): Different Machine Model
Dimension(L*W*H): 7m*2.2m*2.2m
Weight: 8 tons-15tons
Certification: CE & ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 350pcs/h-5000pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray
Workshop required: 150-600㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation: Automatic and fully automatic
Keyword: Egg tray machine
This production line is suitable for the following products:

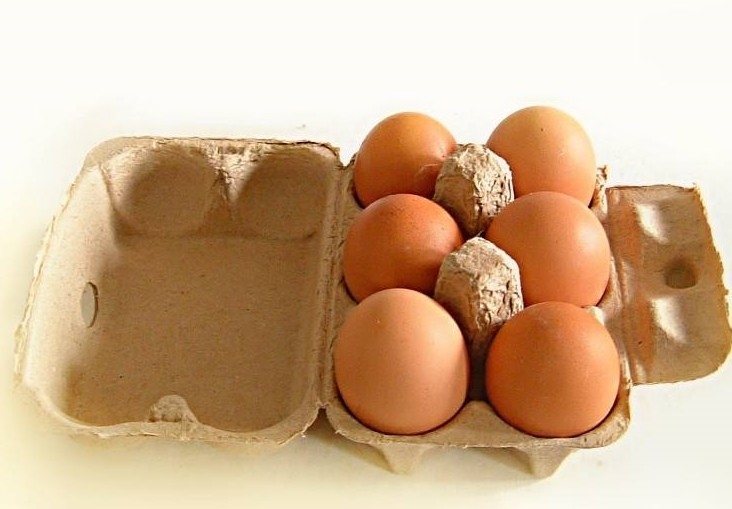

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)

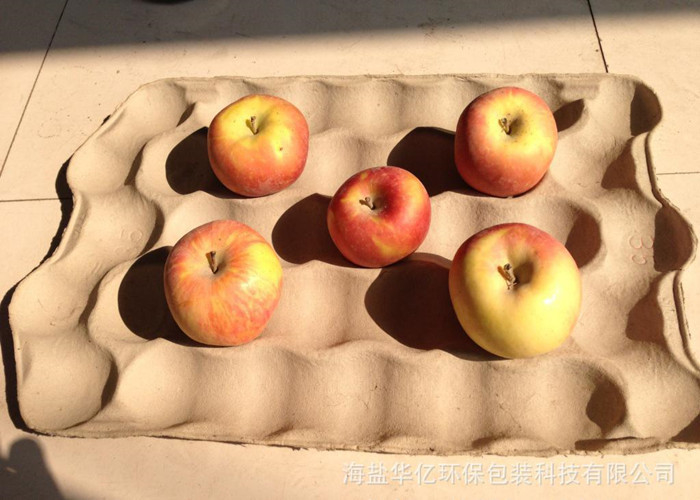

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.
Technical data
| Egg Tray Mold Quantity | 1pcs | 2pcs | 3pcs | 4pcs | 12pcs(3pcs*4) | 18pcs(3*6) | 24pcs(3*8) | 32pcs(4*8) | |
| Raw material | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | |
| Egg tray Capacity | 350pcs/hour | 700pcs/hour | 1000pcs/hour | 1300pcs/hour | 1800pcs/hour | 2000pcs/h | 2500pcs/h | 3000pcs/hour | |
| Net weight per piece (gram) | 70g-75g | 70g-75g | 70g-75g | 70g-75g | 70g-75g | 70g-75g | 70g-75g | 70g-75g | |
| Waste paper consumption | 0.025ton / hour | 0.06ton / hour | 0.1ton / hour | 0.13ton / hour | 135kg/ hour | 150kg/h | 188kg/h | 225kg / hour | |
| Water Consumption | 0.05ton / hour | 0.1ton/hour | 0.15ton / hour | 0.2ton / hour | 0.5ton / hour | 0.55ton/h | 0.6ton/h | 0.65ton / h | |
| Natural Gas Consumption of Dryer | 12cbm/h | 25cbm/h | 35cbm/h | 50cbm/h | 60cbm/h | 60cbm/h | 80cbm/h | 80cbm/h | |
| Worker requirement | 2-3workers | 3-4workers | 4-6workers | 4-6workers | 5-7workers | 5-7workers | 8-10workers | 8-10workers | |
| Power Requirement | Without dryer | 20KW | 30KW | 40KW | 45KW | 70KW | 70KW | 100KW | 100KW |
| With dryer | 30KW | 45KW | 60KW | 65KW | 80KW | 80KW | 130KW | 150KW | |
| Area of workshop | Without dryer | More than100M² | More than 100 M² | More than 120 M² | More than 150 M² | More than 200 M² | More than 200 M² | More than 250 M² | More than 250 M² |
| With dryer |
More than200 M² Dryer-12M |
More than 240 M²,dryer-18M |
More than300M² Dryer-18M |
More than 320 M²,dryer-24M | More than 400M²,dryer30M | More than 400M²;dryer30M | More than 520M² dryer36M | More than 520M²,dryer40M | |
| Container Requirement | Without dryer | 20ft*1 | 20ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 |
| With dryer | 40ft*2 | 40ft*2+20ft*1 | 40ft*3 | 40ft*3 | 40ft*4 | 40ft*4 | 40ft*5 | 40ft*5 | |
| Remarks: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant. | |||||||||
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory | ||||
| Delivery time | About 35 working days after receiving the deposit. | ||||
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC | ||||
| Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||||
| Warranty time | Two years after the Egg tray machine received. | ||||
| TERMS OF DELIVERY | FOB Qingdao Port, China | ||||
| Package | In container | ||||
| Certification | CE | ||||
FAQ
(1). What kind of material we can use as the raw material?
Any kind of waste paper like old newspaper,magazines,books,A4 paper, corrugated cartons, paperboard etc.
(2). What kind of Fuel can be used for the whole production line?
Coal, natural gas, and dieseal oil.
(3). What kind of products can be made by this machine?
All paperpackage such as paper egg tray, egg carton,egg box, fruit tray, bottle tray, cup tray, consumer product package, medical disposable container etc.
(4). Are you a manufacturer or a trading company?
Yes, our company has been fabricating pulp molding machine since 2000. We are one of the
most important pulp molding machine maufacturers in the world, and we are famous pulp
molding machine manufacturer in China, providing high quality and production capacity pulp molding
machinery at reasonable prices to the world.
(5). What capacity egg tray machine can you supply?
At the moment, we can supply 350 pcs/h, 700, 1000, 1300, 1800, 2000, 2400, 3000pcs/h capcaity egg tray
machine.
