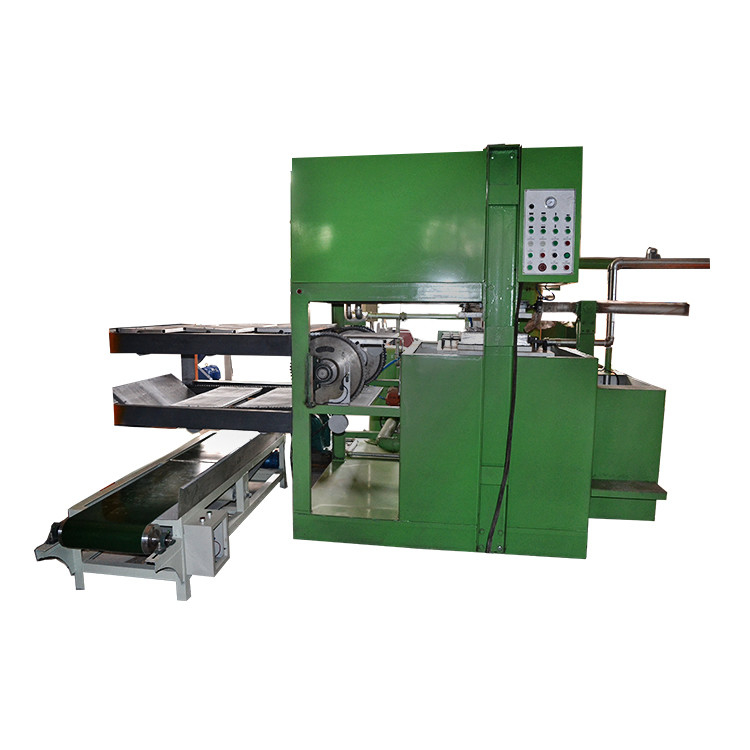

Apple Tray / Egg Carton Making Machine Low Noise With 2 Years Warranty

Apple Tray / Egg Carton Making Machine Low Noise With 2 Years Warranty

egg tray machine

fully automatic egg tray machine

Place of Origin:

Jinan, Shandong, China

Brand Name:

Wanyou

Certification:

CE

Model Number:

RL- ZJM

Contact Us
Request A Quote
Product Details
Power:
20-100KW
Raw Material:
Waste Paper, Waste Cardboard, Carton
Guarantee:
2years
Egg Tray Forming Type:
Reciprocating Forming Pulp Molding
Processing Type:
Pulp Molding Machine
Condition:
New
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
in container
Delivery Time
40 working days after get deposit payment
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
1 sets per month
Product Description

                                                                Waste Paper Egg Tray / Carton Making Machine / Pulp Molding Machine



Waste Paper Egg Tray / Carton Making Machine / Pulp Molding Machine



Machine Introduction:



1. Pulping System:

Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .

2. Forming System :

The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.

3. Drying system (can use gas,dissel,coal for Boiler burner)

There are burners and blowers on the two sides of the drying line. Burner creates the hot air and the blower increases it. There will be hot air mouth in the drying line also blow the hot air. The drying line is protected by the insulation board. The temperature inside the oven can reach 200 degree.

4. Automatic counting:

After drying line ,the egg trays go to the automatic counting and stacking system. You can preset the quantity of one pile ,such as 100pcs or 200pcs, when the quantity no is done, the counting device will be alarmed. And the products stacked at the same time. You can packaged them directly .



All the machine is in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.

Our Paper Egg Tray Machine saves production cost, and saves space. it is quitely used by small medium enterprises.
Quick Detail



Condition:  New

Product Type: Egg Tray Machine

Processing Type: Pulp Molding Machine

Place of Origin: Shandong, China (Mainland)

Brand Name: RUNLIANG

Voltage: 220-440V

Power(W): Different Machine Model

Dimension(L*W*H): 7m*2.2m*2.2m

Weight: 8 tons-15tons

Certification: CE & ISO

Warranty: 2 years

After-sales Service Provided:  Engineers available to service machinery overseas

Capacity: 350pcs/h -2500pcs/h

Color: As  customer needs

Frequency:  50Hz-60Hz

Application:   egg tray,fruit tray,bottle tray

Workshop required:  150-300㎡

Worker required:  5-6 persons

Fuel:  Coal, Natural Gas, Disel, LPG and so on

Automation: Automatic and fully automatic

Keyword: Egg tray machine



Many capacity egg tray machines we offered:



Molds quantity 40pcs+5pcs(5*8) 60pcs+5pcs(5*12) 32pcs+4pcs(4*8) 18pcs+3pcs(3*6) 12pcs+3pcs(3*4)
Raw material Waste paper Waste paper Waste paper Waste paper Waste paper
capacity 4000-4500pcs/h 5000pcs/h 3000pcs/h 2400pcs/h 1800pcs/h
Weight of tray 70g-75g 70g-75g 70g-75g 70g-75g 70g-75g
Waste paper consumption 500kg/h water can be 650kg/h 225kg/h 180kg/h 135kg/h
Water consumption 1-1.5t/h 1.5-2 t / hour water c 0.6T/h 0.5T/h 036T/h
natural gas consumption 60 m³/h 75-80 m³/h 30m³ 25m³ 20m³
Workshop dimension Without dryer More than200M²

More than300M²



120M² 100M² 100M²
With dryer 500M²(10*50 M)

750M²(15*50 M

)

55*12M 8*35M 8*35M
Installed power Without dryer 190KW

240KW

















60KW 55KW 45KW
With dryer 220KW 290KW 100KW 90KW 80KW
Machine dimension

Without dryer 13*4m 19*10m 4*10M 4*10M 4*10M
With dryer 40*4m 50*10m 4*35 4*32M 4*30
Container Without dryer 40ft*2 40ft*3 40ft*2 40ft*2 40ft*2
With dryer 40ft*3 40ft*4 40ft*5 40ft*4 40ft*4



Apple Tray / Egg Carton Making Machine Low Noise With 2 Years Warranty 0Apple Tray / Egg Carton Making Machine Low Noise With 2 Years Warranty 1



Payment and delivery



Trade terms  FOB Qingdao or EXW Factory
Delivery time  About 30 working days after receiving the deposit.
Payment term  BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE



Installation
1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day )

Our Machine Advantages:

1. Controlled by automatic computer soft ware
2. No need for installation, machine can start running only after connecting some pipes, power and water, and preparing the material
3. Some parts are Germany brand or other famous brand
4. Our egg tray machine can make different trays at same time by using different moulds
5. Besides egg tray, fruit trays, our machine also can produce industrial package
6. All installation and debugging work will be done before shipment.
7. 20 years' experience on egg tray machine
8. 2 years warranty time



Factory Introduction


Jinan Runliang Packing Machinery Co.,Ltd is a famous packing machinery company which has a good mix of science, industry and trade.

It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.

It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.

These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.



Don’t miss the chance of promoting the production efficiency of your company.



Welcome to contact us.
