Paper Egg Tray Machine Small Capacity Convenient Installation Egg Tray Production Line for Egg Carton Making
The machine production line includes 3 parts:

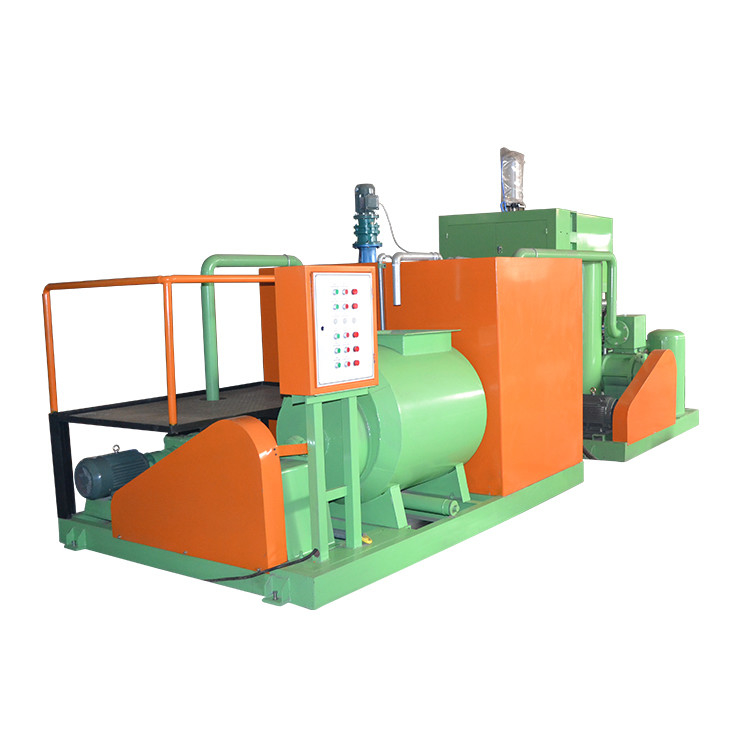

1. pulping system: including the hydraulic pulper, pump, disk mill, water tank, pulp tank, mixer, etc..to make the wastepaper into pulp.

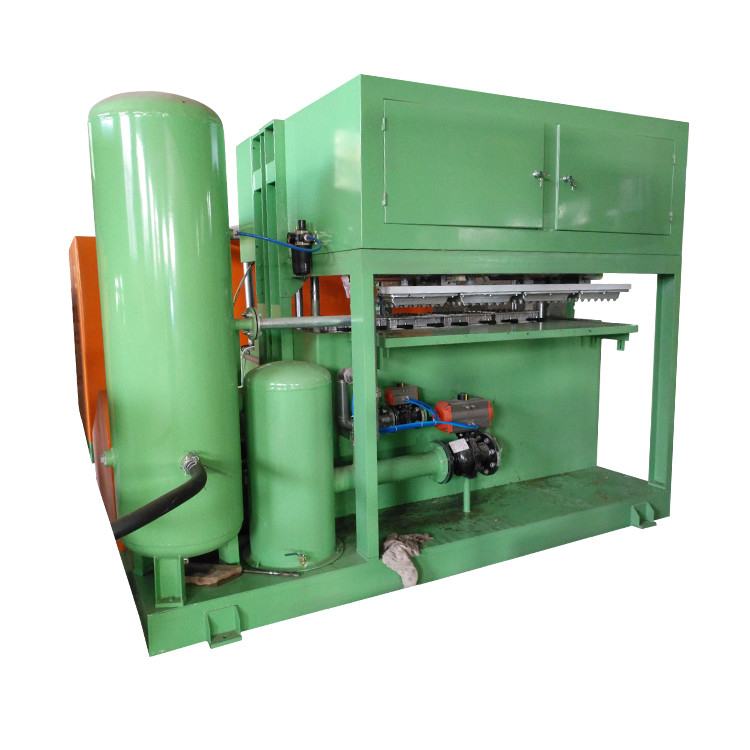

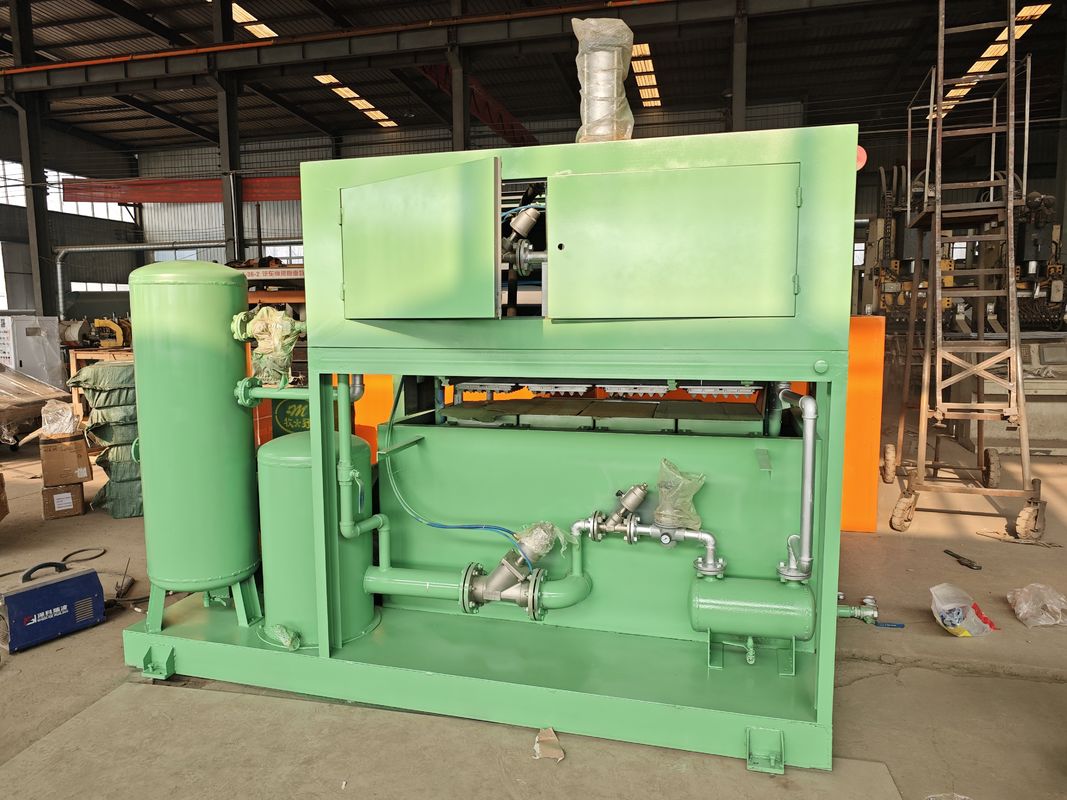

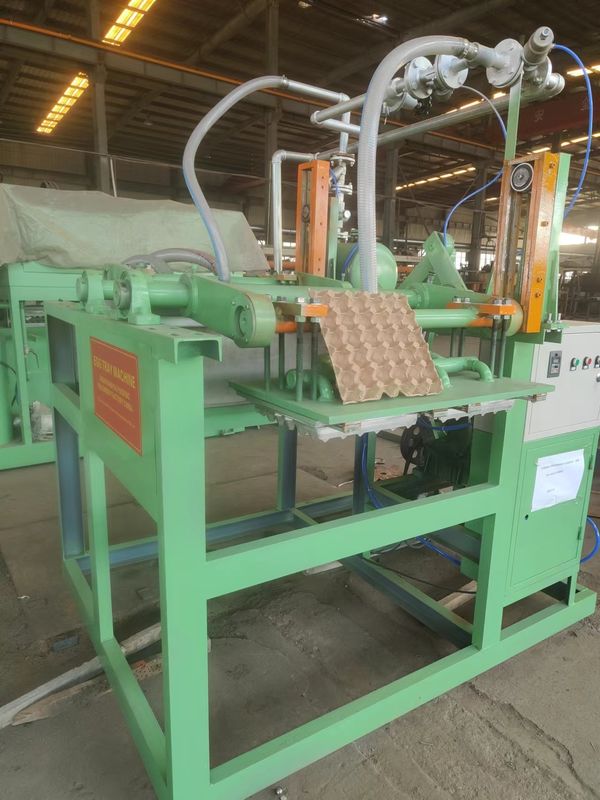

2. forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.
3. drying system: including the oven, chains, trays, heating pipes, fans, boiler, etc..to dry the wet trays so they can be used directly.(customerized/Selectable)
Our machine uses waste paper as raw material for producing the egg trays.
Except egg trays, this machine can also produce fruit trays, apple trays, paper cup trays, paper shoe trays and industrial packages trays,etc.
With lower cost investment, you can achieve big profit by our machine.
For pulp molded 30-cell egg trays : first the worker will weight the raw material and put them into the conveyor. Then the pulping ,forming, drying and stacking will be finished automatically. After drying, the finished products will be packed by workers.

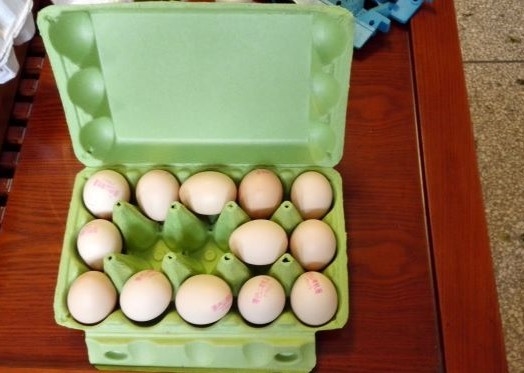

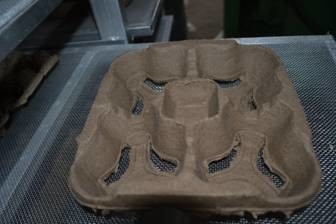

A hot pressing section should be added in the production of pulp molded egg box/carton(6-cell,10-cell,12-cell,6+6-cell,15-cell),fruit tray and cup carrier after drying because of shrinking.
The egg box/carton can be labelled or printed after hot pressing. These processes could be finsihed manually or automatically.
We have variety capacity egg tray machines from 350pcs/h to 2500pcs/h. We are OEM factory, we can manufacture the machine as per your requirement.
All the machine is in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.
Our Paper Egg Tray Machine saves production cost, and saves space. it is quitely used by small medium enterprises.
Technical Parameters (700pcs/h for example)
|
Egg Tray mould quantity
|
2pcs |
|
Raw material
|
Waste paper |
|
Output for egg tray
|
700pcs/hour |
|
Net weight per piece (gram)
|
70g-75g |
|
The volume of waste paper consumed
|
0.06ton / hour |
|
The volume of water consumed
|
0.1ton / hour |
|
The natural gas consumption of the dryer(about)
|
25cbm/h |
|
Machine Weight
|
10-20tons |
|
Egg tray Size
|
295mm*295mm 30eggs |
| Product Name |
Model |
Qty(set) |
Capacity |
| Egg Tray Machine |
ZSJ-700 |
1 |
700pcs/h |
| Area of workshop |
Without dryer |
More than 100㎡ |
| With dryer |
More than 240㎡ |
| Capacity of power |
Without dryer |
30KW |
| With dryer |
45kw |
| Machine size |
Without dryer |
7m*2m*2.2m |
| With dryer |
26m*2m*2.2m |
| Size of container |
Without dryer |
20ft*1 |
| With dryer |
40ft*2+20ft*1 |
Delivery of our machine
