Place of Origin:
Jinan, Shandong, China
Brand Name:
JUNLIANG
Certification:
CE
Model Number:
WY-D
Video
Video
Video
Automatic Paper Egg Tray Carton Production Making / Moulding Machine Price
Egg tray machine equipment mainly uses waste paper,waste carton as raw materials. By smash pulp, vibrating pulp, grinding pulp and forming pulp, the forming machine adsorbs the pulp by vacuum type with some necessary chemicals. The equipment also can produce the followings: package forglass and ceramics, crafts, small machinery, electric products, toys paper egg tray machine and so on.
Technical parameters:
| Item | Consumption/requirement | Remark |
| Electricity Power | 200kw | The burning source for the dryer boiler is selectable. Clients only need to choose one suitable for local site. |
| Waste paper | 450kg/h | |
| Water | 1.35t/h | |
| Natural gas/Diesel oils | 180m3/h/140kg/h around | |
| Firewood | 500kg/h around | |
| Workshop | 750m2(10mWidth*75mlength) | |
| Machine size | 65m*10m | |
| Workers Requirement | 10-12 persons |
| Picture | Function | |
|

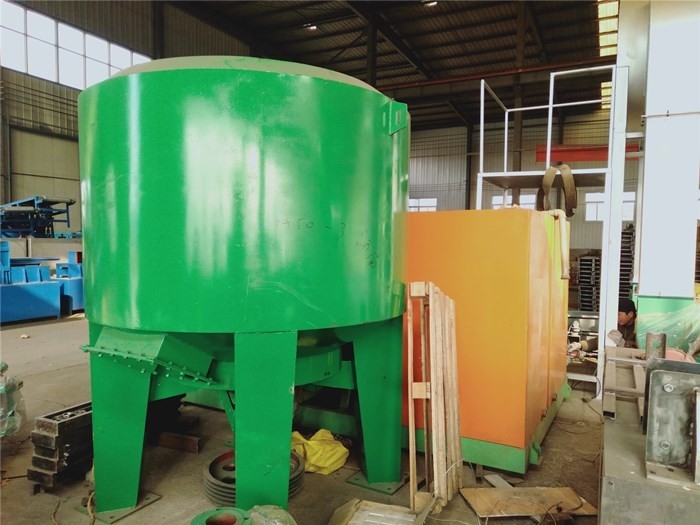

Pulping system
|
|
material of tank and disc:carbonized steel ,material of screen plate:stainless steel , pulping consistency:3-4%.
|
|

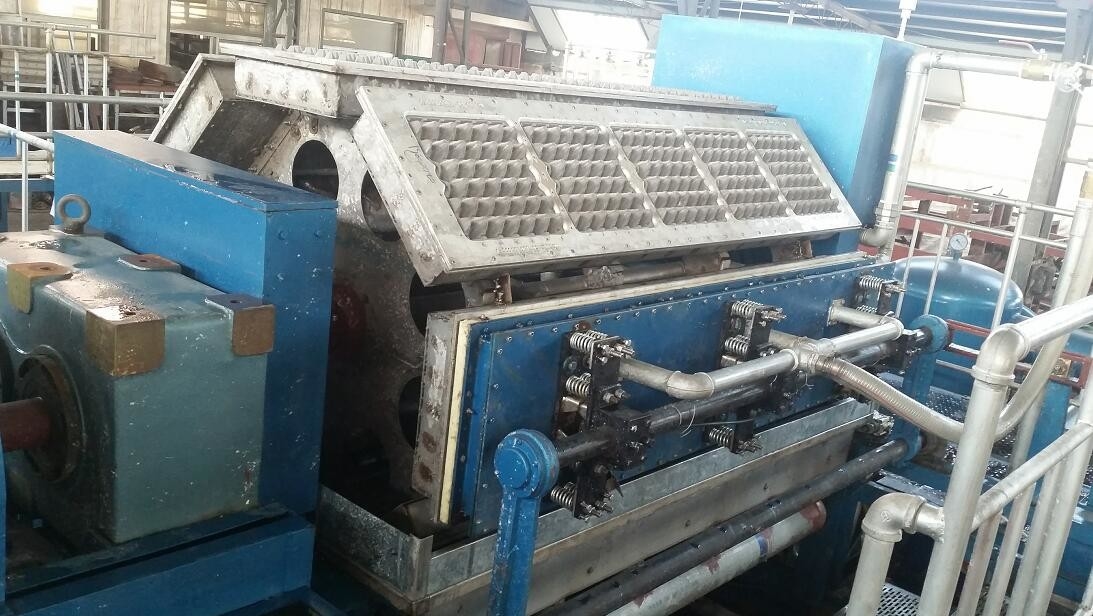

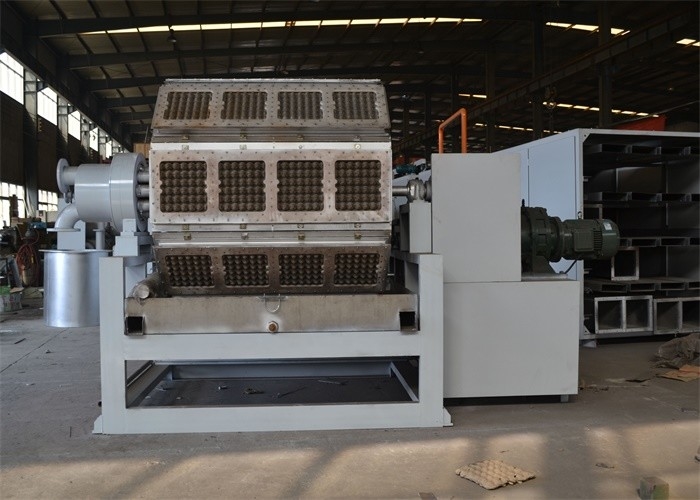

Forming system
|
|
Equipped with vacuum auto draining system;auto cleaning system for the forming mold and auto control cabinet.
|
|

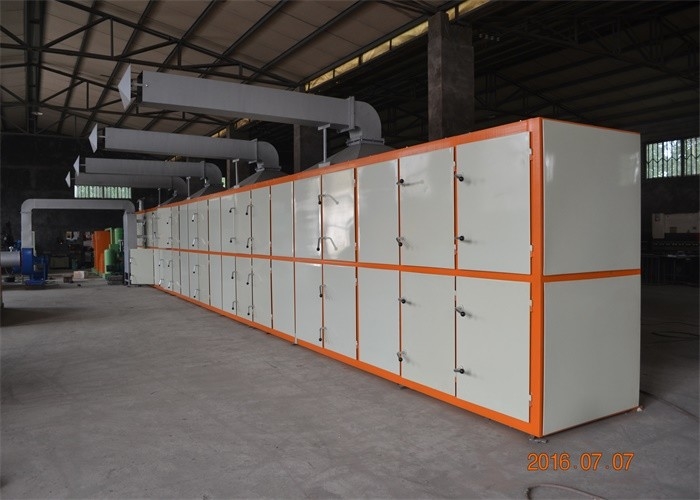

Drying system
|
|
The temperature of each section can be adjusted independently;burners with French or Italian brand;
The energy for option: LPG,GAS,diesel oil,Equipped with auto control cabinet.
|
|
Stacking system
|
|
Used to stack the after-drying products. |
Advantages of our machine:
1). Controlled by automatic computer soft ware
2). No need for infrastructure construction, machine can start running only after connecting some pipes, power and water, and preparing the material
3). Some parts are Germany brand or other famous brand
4). Our egg tray machine can make different trays at same time by using different moulds
5). Besides egg tray, fruit trays, our machine also can produce industrial package
6). All installation and debugging work will be done before shipment.
7). 20 years' experience on egg tray machine
8). 2 years warranty time
Weclome for more information.
