Place of Origin:
Jinan, Shandong, China
Brand Name:
Wanyou
Certification:
CE
Model Number:
WY-D
Video
Video
Video

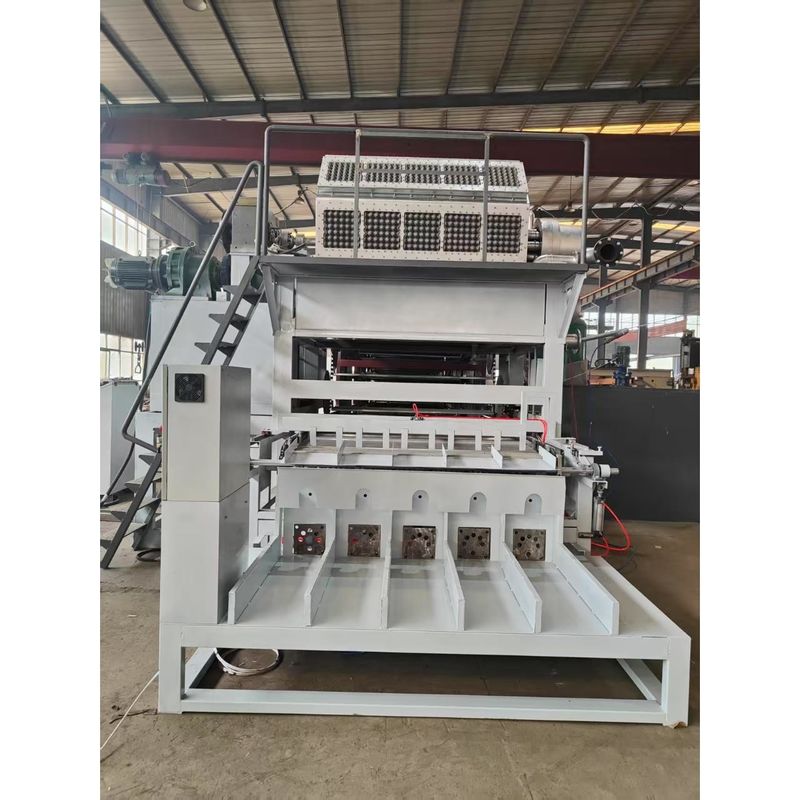

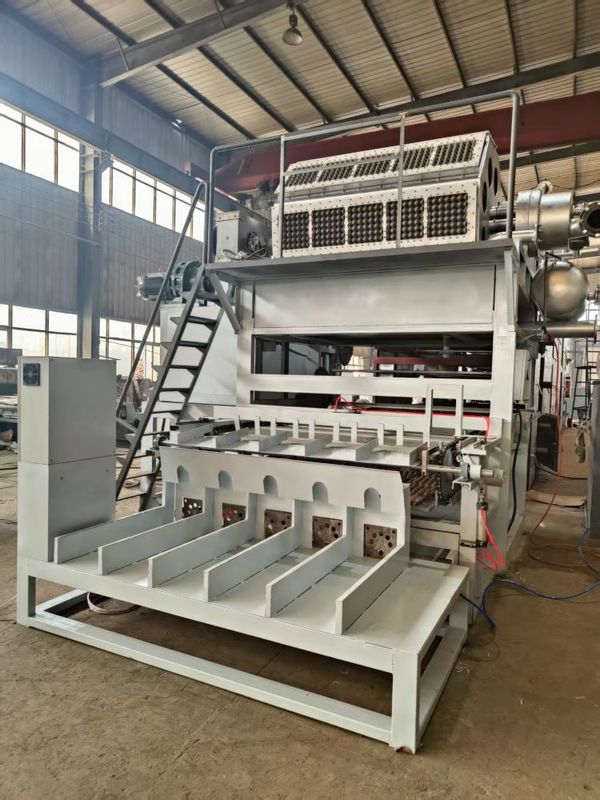

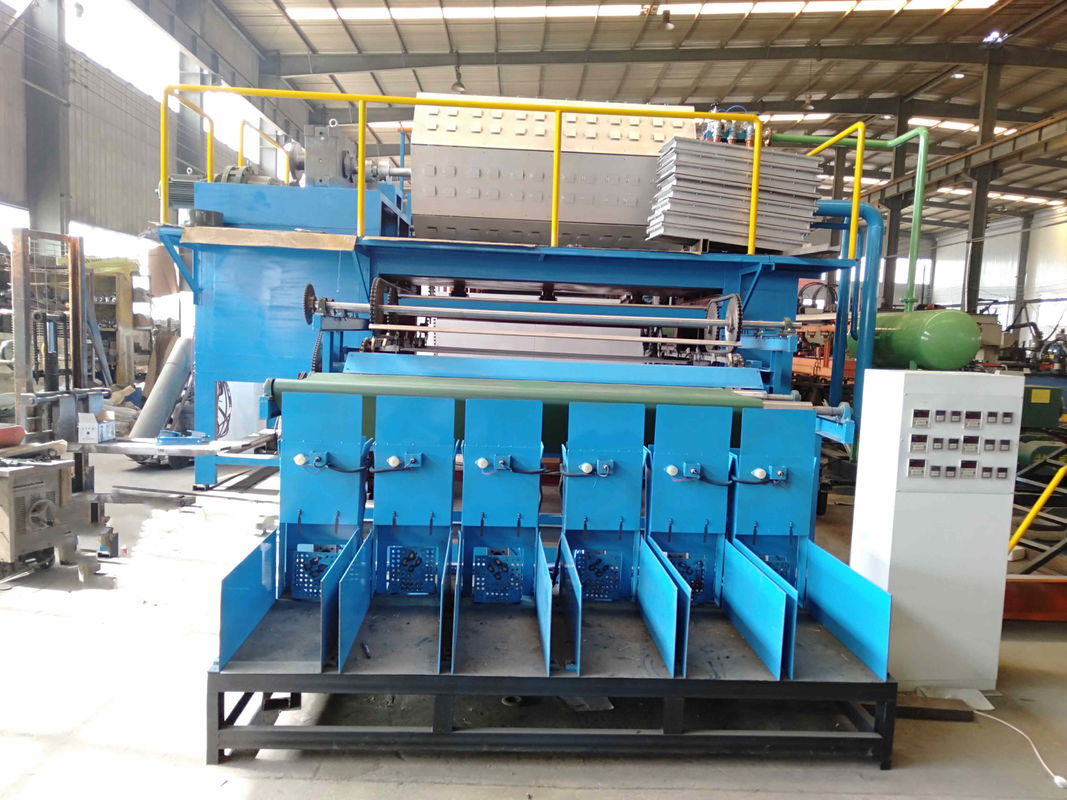

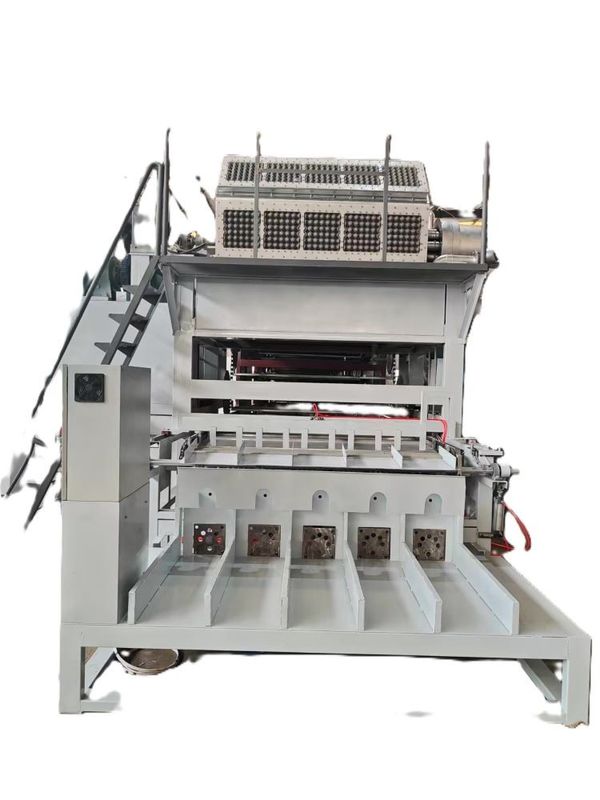

Professional paper pulp molding machine egg tray box making machinery
Technical Parameters:
| Item | Consumption/requirement | Remark |
| Electricity Power | 200kw | The burning source for the dryer boiler is selectable. Clients only need to choose one suitable for local site. |
| Waste paper | 450kg/h | |
| Water | 1.35t/h | |
| Natural gas/Diesel oils | 180m3/h/140kg/h around | |
| Firewood | 500kg/h around | |
| Workshop | 750m2(10mWidth*75mlength) | |
| Machine size | 65m*10m | |
| Workers Requirement | 10-12 persons |
Rotary type egg tray egg box making machine bring in advanced technology to develop and exploit our own Wanyou brand products. It gets good comments from customer and gain social acceptance in society as a result of its excellent performance characteristic. The main part of our machine use stainless steel material, other auxiliary parts adopt domestic famous brand. We already develop automatic counting stacking and packing system etc. ZSJ series pulp molding machine features of high efficiency, low maintenance and energy saving. The pulp molding system can use all kinds of waste paper to produce high quality molded fiber products. it can produce egg trays, egg boxes, vegetable trays, fruit trays, can trays, seedling tray, etc.
Put the waster paper in to the hydrapulper, the paper and water will mix in hydrapulper, then go to the refiner machine, refiner machine make the pulp more small and uniform, then the pulp pump absorb the pulp to the pulp pool. After the second mix in the pulp pool, the pulp will go to the form machine pulp tank.

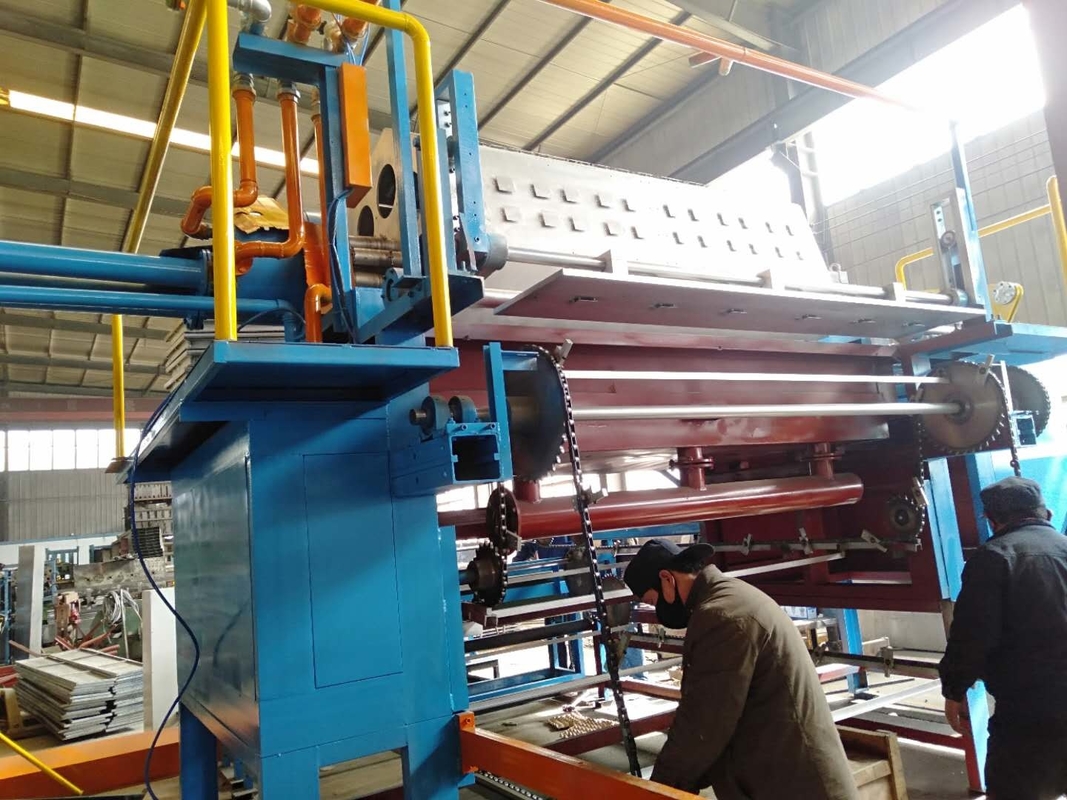

The vacuum pump will give the vacuum to make the forming mold absorb the pulp from the pulp tank. There is a PLC control the pulp absorb time, the finished product will be shaped on the forming mold, then the transfer mold transfer the products to the drying line, the air compressor will give the air to blow the products, then the products will be fall from the mold. The products delivery to the drying line automatic . The water will be go back to the water pool, will be recycle .

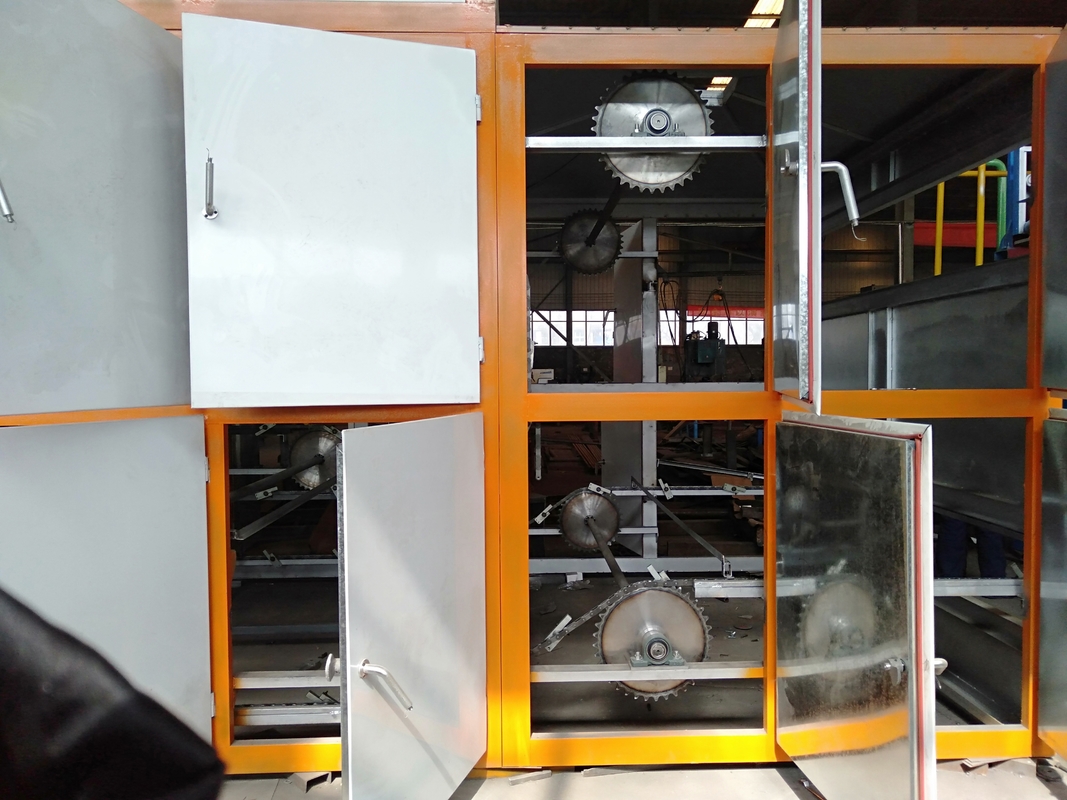

There are burners and blowers on the two sides of the drying line. Burner give the hot power and the blower increase it, there will be hot air mouth in the drying line also blow the hot air. The drying line is protect by the insulation board. The degree can reach 200 degree.
