Paper Egg Tray Fruit Tray 4000pcs Pulp Molding forming machine

Paper Egg Tray Fruit Tray 4000pcs Pulp Molding forming machine

2500pcs / H Paper Egg Tray Equipment

LPG Fruit Tray Equipment

Place of Origin:

Jinan, Shandong, China

Brand Name:

Wanyou

Certification:

CE

Model Number:

ZSJ-4000

Contact Us
Request A Quote
Product Details
Power:
Depends
Raw Material:
Waste Paper, Waste Cardboard, Carton
Guarantee:
2years
Egg Tray Forming Type:
Rotary Or Reciprocating
Processing Type:
Pulp Molding Machine
Condition:
New
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
in container
Delivery Time
40 working days after get deposit payment
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
1 sets per month
Product Description



Paper Egg Tray Machine / Fruit Tray Making Machine / Pulp Molding Machine With Aluminum Molds​



Paper Egg Tray Machine / Fruit Tray Making Machine / Pulp Molding Machine With Aluminum Molds

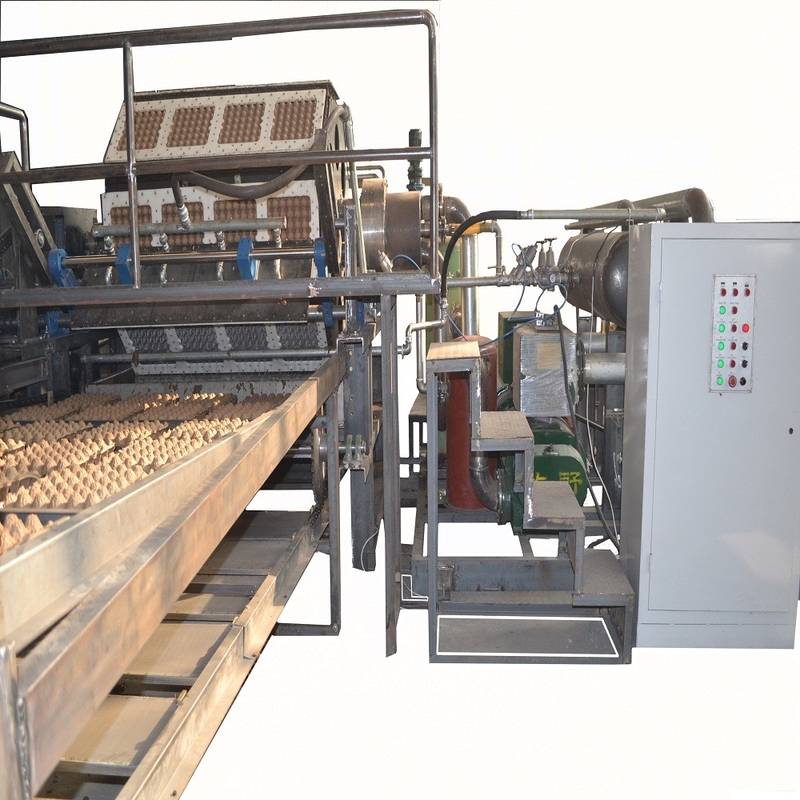

This type machine mainly compose of Pulping System, Forming System, Drying System and Stacking System.



1. Pulping System:



Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .

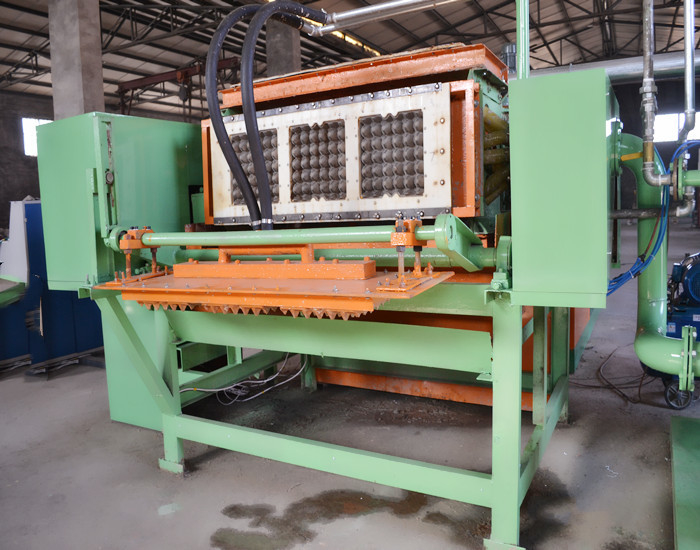

2. Forming System :



The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.



3. Drying system (can use gas,dissel,coal for Boiler burner)

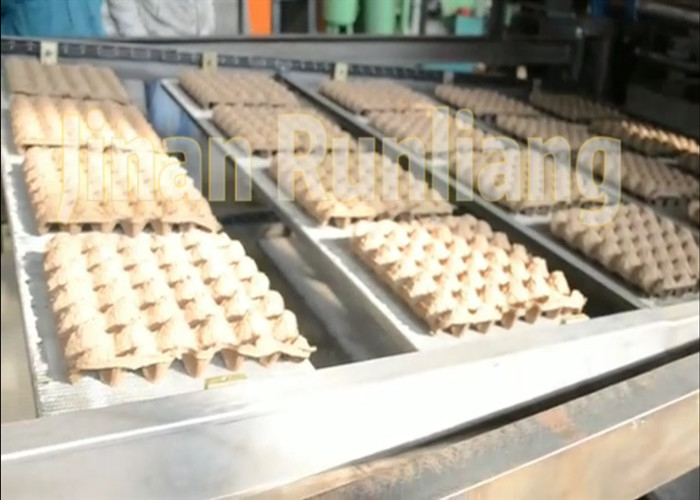

There are burners and blowers on the two sides of the drying line. Burner creates the hot air and the blower increases it. There will be hot air mouth in the drying line also blow the hot air. The drying line is protected by the insulation board. The temperature inside the oven can reach 200 degree.



4. Automatic counting:



After drying line ,the egg trays go to the automatic counting and stacking system. You can preset the quantity of one pile ,such as 100pcs or 200pcs, when the quantity no is done, the counting device will be alarmed. And the products stacked at the same time. You can packaged them directly .



Machine Features:



1. controlled by computer, no needs any construction.

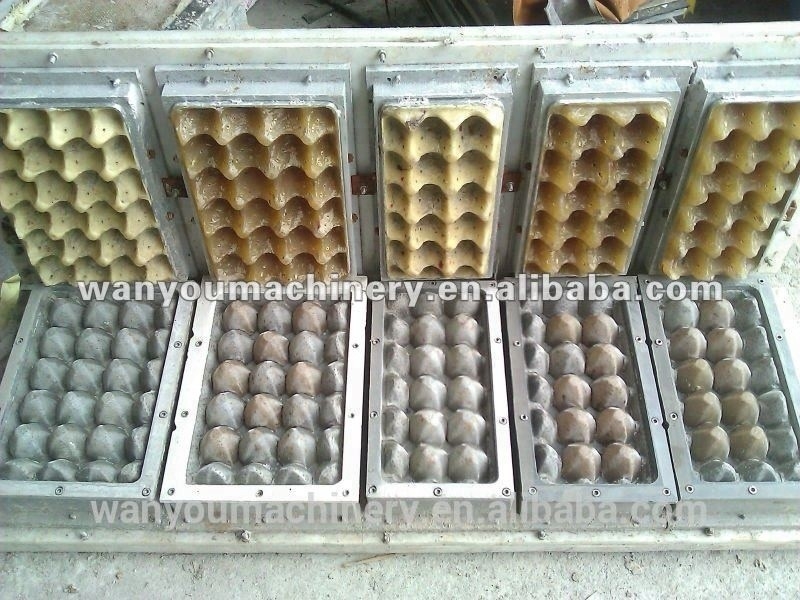

​ 2. We could make all kinds of moulds for you, and it's very easy to change any moulds to the machine.

​ 3. England technology, and​ spare parts is very famous brand from Germany, Taiwan...

​ 4. with 2years warranty.

​ 5. The installation of the whole line is easy.



Various Model:



Model Mechanization Working mode Capacity(Pcs/h)
ZSJ-350 Semi-auto or Automatic Reciprocating 350-400
ZSJ700 Semi- auto or Automatic Reciprocating 700-800
ZSJ-1000 Semi- auto or Automatic Reciprocating 1000
ZSJ-1300 Semi - auto or Automatic Reciprocating 1300-1500
ZSJ-2000 Automatic Reciprocating or Rotary 1800-2000
ZSJ-2500 Automatic Reciprocating Rotary

2000-2500




Payment and delivery



Trade terms  FOB Qingdao or EXW Factory
Delivery time  About 60 working days after receiving the deposit.
Payment term  BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE



Our Machine Advantages:

1. Controlled by automatic computer soft ware
2. No need for installation, machine can start running only after connecting some pipes, power and water, and preparing the material
3. Some parts are Germany brand or other famous brand
4. Our egg tray machine can make different trays at same time by using different moulds
5. Besides egg tray, fruit trays, our machine also can produce industrial package
6. All installation and debugging work will be done before shipment.
7. 20 years' experience on egg tray machine
8. 2 years warranty time



FAQ:



(1). What kind of material we can use as the raw material?



Any kind of waste paper like old newspaper,magazines,books,A4 paper etc, and easy to get



(2). What kind of Fuel can be used for the whole production line?



Coal, natural gas, and dieseal oil.



(3). What kind of products can be made by this machine?

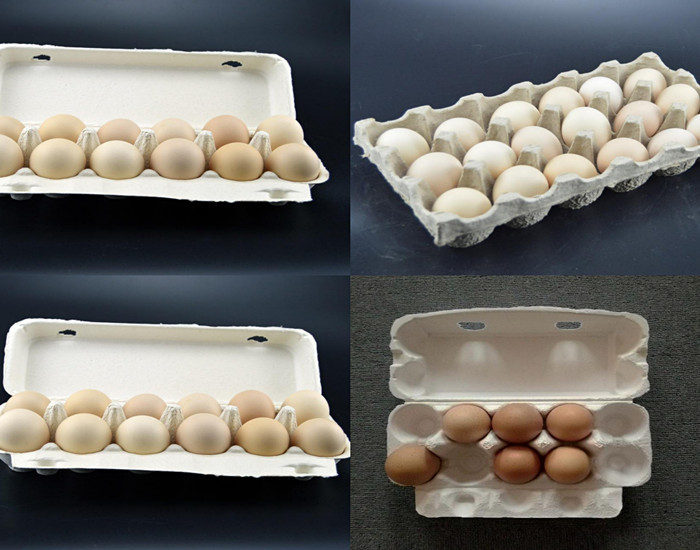

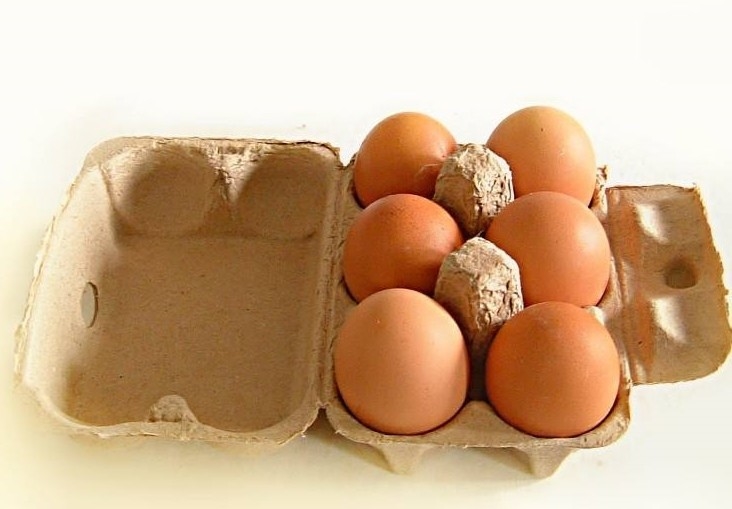

All paperpackage such as paper egg tray, egg carton,egg box, fruit tray, bottle tray, cup tray, consumer product package, medical disposable container etc.





Factory Introduction


Jinan Wanyou Packing Machinery Factory is a famous packing machinery company which has a good mix of science, industry and trade.

It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.

It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.

These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.
