Multi Functional Paper Egg Tray Making Machine Reciprocating Type Egg Tray Equipment
Multi Functional Paper Egg Tray Making Machine Reciprocating Type Egg Tray Equipment uses waste paper as raw material to produce simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc..
It mainly includes:
1. Pulping system
2. Forming system
3. Drying system
The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production.
For pulp molded 30-cell egg trays : first the worker will weight the raw material and put them into the conveyor. Then the pulping ,forming, drying and stacking will be finished automatically. After drying, the finished products will be packed by workers.
A hot pressing section should be added in the production of pulp molded egg box/carton(6-cell,10-cell,12-cell,6+6-cell,15-cell),fruit tray and cup carrier after drying because of shrinking.
The egg box/carton can be labelled or printed after hot pressing. These processes could be finsihed manually or automatically.
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Brand Name: RUNLIANG
Voltage: 220-440V
Power(W): Different Machine Model
Dimension(L*W*H): 2300mm*1950mm*1600mm
Weight: 8 tons-50tons
Certification: CE & ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 350pcs/h-2500pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray
Workshop required: 150-560㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation: Automatic and fully automatic
Keyword: Egg tray machine
This production line is suitable for the following products:
Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)
Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.
Technical data (2000pcs/h for example)
| Technical Parameters of the Egg Tray Machine | |||
| pulp system | Hydra Pulper | 30KW |
Effective Power:25KW,material of tank and disc:carbonized steel ,material of screen plate:stainless steel , pulping consistency:3-4%.
|
| Mixer/Crusher | 1.5KW/h |
Stainless steel shaft and impeller,Mixing diameter:1200mm,match with pulp chest of 2 meters deepth,match with pulp chest of 2 meters deepth.not included support bracket.
|
|
| Vibration Screen |
3kw/h customized Some type machine donnot need this equipment |
Screen area:0.9m2 including protective casing.
|
|
| forming system | 8 faces Rotary forming machine |
40pcs forming molds and 5 pcs transfer molds and 5 pcs press molds
|
PLC control,stainless steel pulp tank,the surface of platens covered with stainless steel,the products should be transferred to a plate manually.The main electrical elements is Siemens brand. |
| Auto Drain System | Match with Forming System include Air-water Separation Tank,Auto Drain Tank,Support,Check Valve, Electromagnetic Valve, Inductor,etc | ||
|
Control Cabinet for Forming System
|
/ | Control the forming machine.The main electrical elements is Germany brand. | |
| Drying system | 6-layer Drying Line | 16kw/h |
Effective length 100m, transfer speed adjustable. Fuel : Diesel oil/Nature gas/LPG
|
|
Control Cabinet for Drying System
|
380v/50hz 440v/60hz |
Control the drying system.The main electrical elements is Taiwan brand.
|
|
| Burner | Riello Brand | ||
| Boiler | China Famous Brand | ||
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory | ||||
| Delivery time | About 30 working days after receiving the deposit. | ||||
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC | ||||
| Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||||
| Warranty time | Two years after the Egg tray machine received. | ||||
| TERMS OF DELIVERY | FOB Qingdao Port, China | ||||

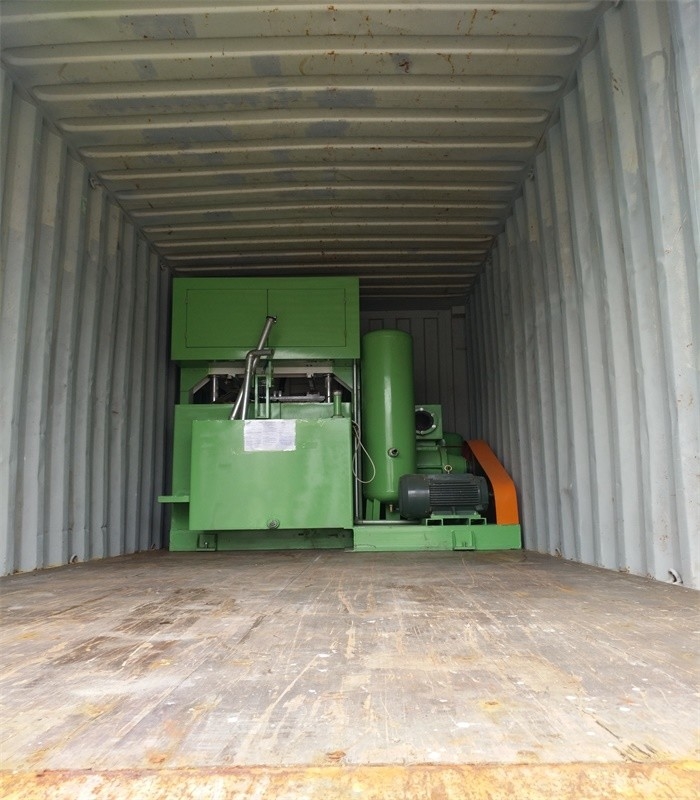

| Package | In container | ||||
| Certification | CE | ||||
Jinan Runliang Packing Machinery Co.,Ltd is a famous packing machinery company which has a good mix of science, industry and trade.
It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.
These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.
Don’t miss the chance of promoting the production efficiency of your company.
Welcome to contact us.
Machine Molds
End products of our machine
