Place of Origin:
Jinan, Shandong, China
Brand Name:
Wanyou
Certification:
CE
Model Number:
WY-D
Video
Video

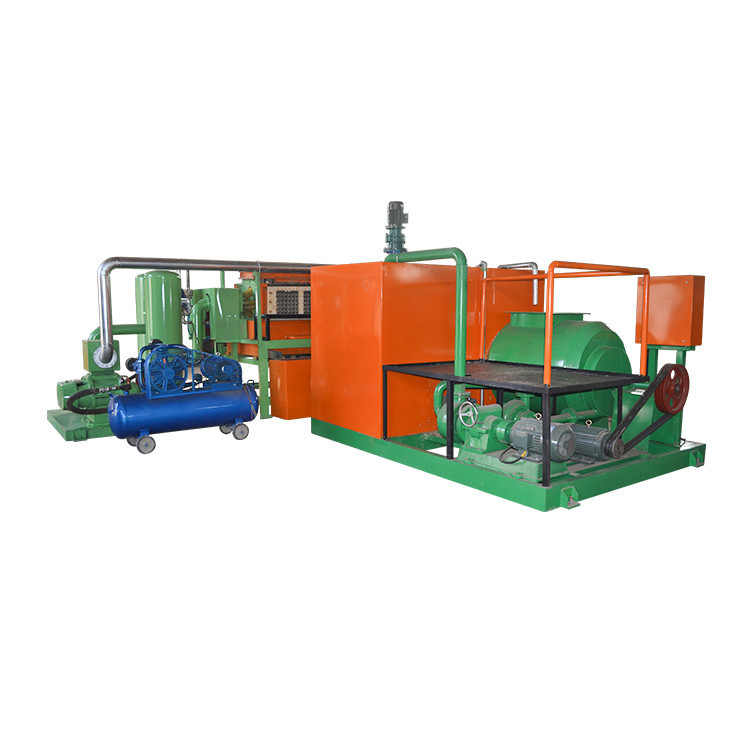

Automatic small recycled paper pulp tray machine production line
This type semi-automic production line wasn't equipped with drying system, after pulp making process and automatic forming process, the wet prodcuts should be moved to another place for drying by workers, and then prodcut can be dried by sunshine.
Parameters of small pulp tray machine:
| 1. | Egg tray mould quantity | 2pcs |
| 2. | Raw material | Waste paper |
| 3. | Output for egg tray | 700pcs/hour |
| 4. | Net weight per piece (gram) | 70g-75g |
| 5. | The volume of waste paper consumed | 0.06ton / hour |
| 6. | The volume of water consumed | |
| 7. | Operators number | 3-4workers |
| 8. | Area of workshop | More than 240M² |
| 9. | Capacity of power | 40KW |
The production line is mainly combined by THREE PARTS:
1. Pulping system
(meaning: Use waste paper and water as raw material and pulp up) ;

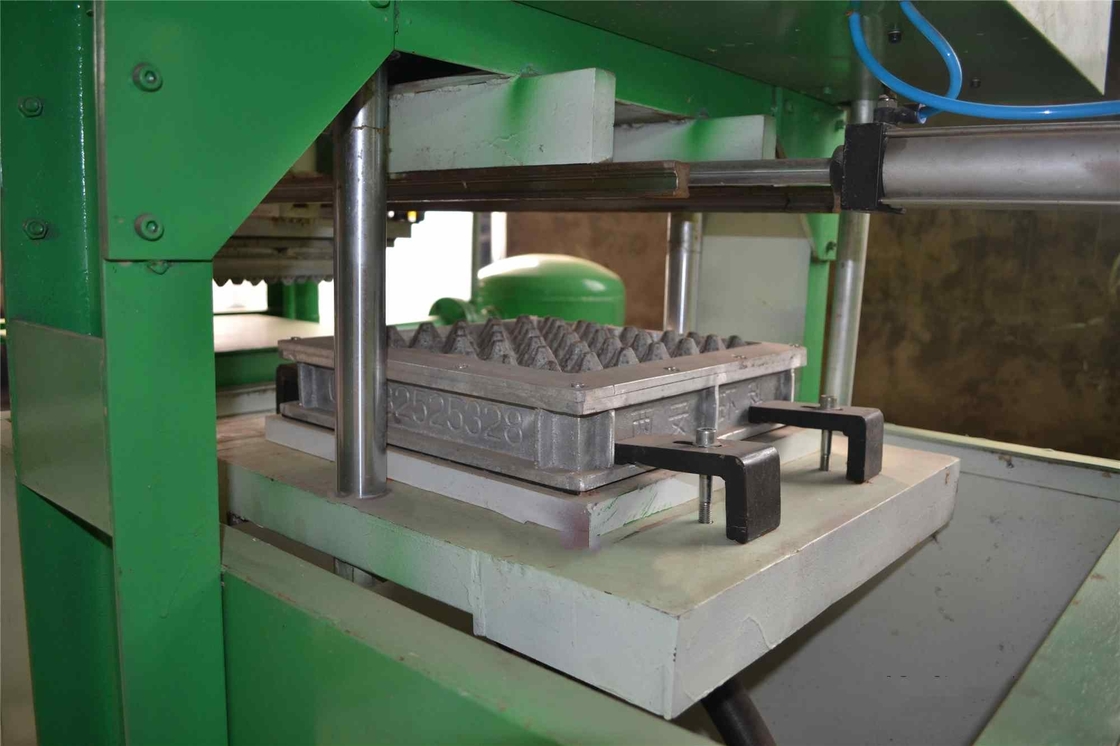

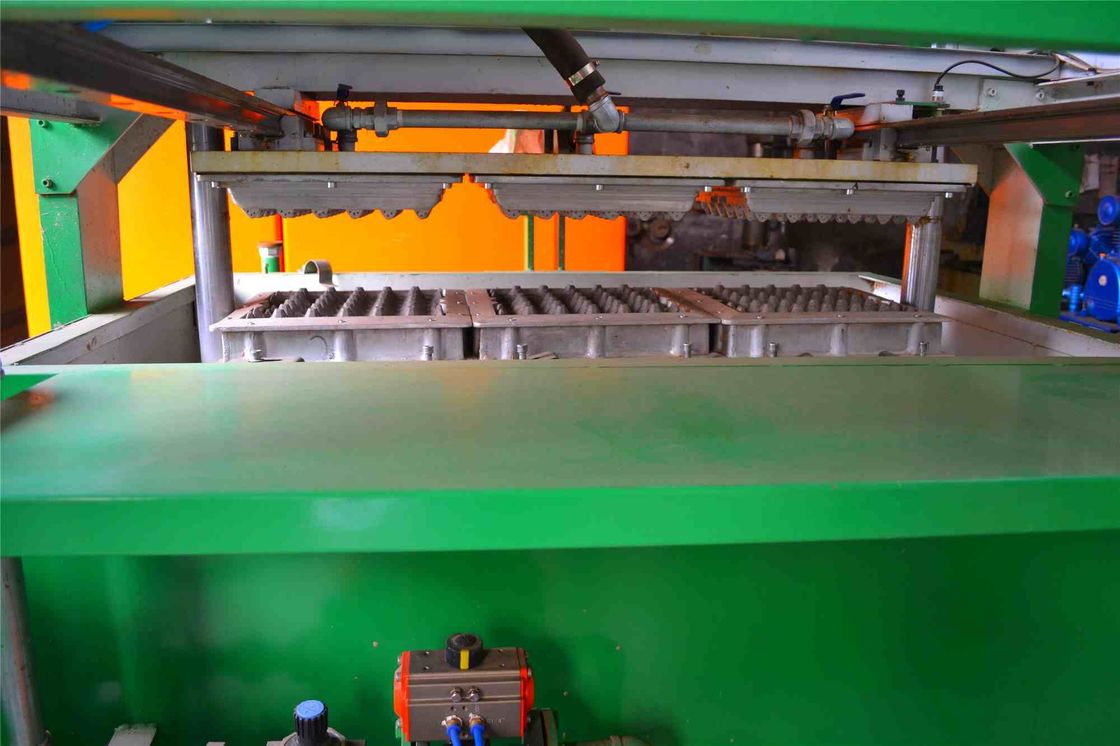

2. Forming system
(meaning: The pulped material being delivered to Egg tray moulds, and forming to the Egg tray plate shape)
3. Drying system
(Meaning : The formed Egg tray plate being delivered to Dryer, and come up to Completed Strong Egg tray plate) .
About the drying,you have 3 methods,by nature,by brick kiln and by metal dryer.
Advantage : 1.capacity 350/700/1000/1300/2000/3000/4000/5000/6000pcs per hour
2.wast paper as raw materials
3.machine including making pulp unit ,moluding unit and dryer unit
4.computer control
Standard configuration of small pulp tray machine:
| Main parts | Quantity | |
|
Pulping system
|
Including : mill pulp pump water pump pulp pump 1M³pulping machines |
1set |
|
Forming system
|
Including 2 moulds forming machine Vacuum pump Compressor Washer Vacuum tank Air tank |
1set |
