Paper Apple Tray / Fruit Tray Making Machine Germany Valve High Performance

Paper Apple Tray / Fruit Tray Making Machine Germany Valve High Performance

Paper Apple Tray / Fruit Tray Making Machine Germany Valve High Performance
video
Paper Apple Tray / Fruit Tray Making Machine Germany Valve High Performance
Product Details:
Place of Origin: Jinan, Shandong, China
Brand Name: Wanyou
Certification: CE
Model Number: ZSJ-1300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: in container
Delivery Time: 40 working days after get deposit payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1 sets per month
Contact Now
Detailed Product Description
Color: As Customer Needs Raw Material: Waste Paper, Waste Cardboard, Carton
Guarantee: 2years Egg Tray Forming Type: Rotary Or Reciprocating Egg Tray Machine
Processing Type: Pulp Molding Machine Power: 20KW-100KW
High Light:

egg tray manufacturing machine

,

egg tray machine

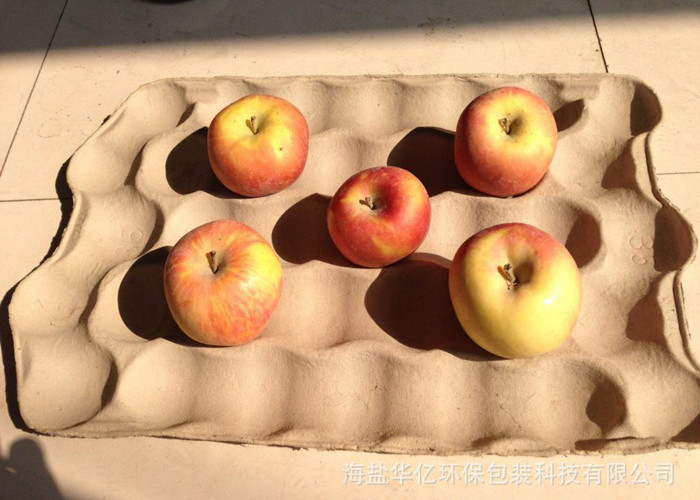

  Paper Apple Tray / Fruit Tray Making Machine Computer Control Germany Valve

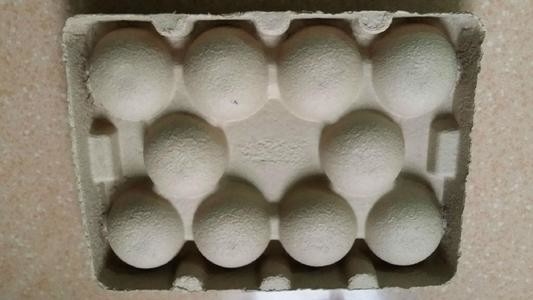

This machine can also be used for making egg trays, egg cartons, and other simple structure product in big demand.

Paper Apple Tray / Fruit Tray Making Machine Computer Control Germany Valve includes:

1. Pulping System:

Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .

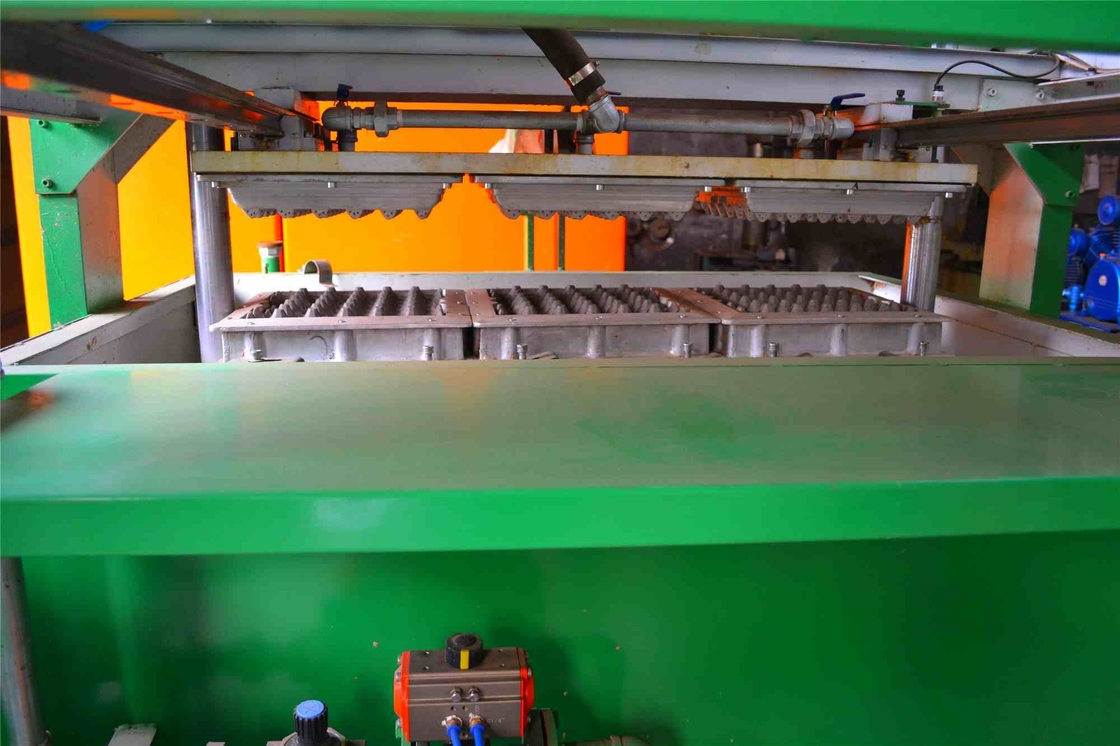

2. Forming System :

The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.

3. Drying system (can use gas,dissel,coal for Boiler burner)

There are burners and blowers on the two sides of the drying line. Burner creates the hot air and the blower increases it. There will be hot air mouth in the drying line also blow the hot air. The drying line is protected by the insulation board. The temperature inside the oven can reach 200 degree.

4. Automatic counting:

After drying line ,the egg trays go to the automatic counting and stacking system. You can preset the quantity of one pile ,such as 100pcs or 200pcs, when the quantity no is done, the counting device will be alarmed. And the products stacked at the same time. You can packaged them directly .



Our machine can be designed to make different products at same time by one Working Table (with 2 Molds or even 3 molds)

All the machine is in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.

Our Paper Egg Tray Machine saves production cost, and saves space. it is quitely used by small medium enterprises.

Our machine can turn your waste paper and books into Money!





Quick Detail



Condition:  New

Product Type: Egg Tray Machine

Processing Type: Pulp Molding Machine

Place of Origin: Shandong, China (Mainland)

Brand Name: Wanyou

Voltage: 220-440V

Power(W): Different Machine Model

Dimension(L*W*H): different egg tray machine model depends

Weight: 8 tons-15tons

Certification: CE & ISO

Warranty: 2 years

After-sales Service Provided:  Engineers available to service machinery overseas

Capacity: 350pcs/h -2500pcs/h

Color: As  customer needs

Frequency:  50Hz-60Hz

Application:   egg tray,fruit tray,bottle tray

Workshop required:  150-300㎡

Worker required:  5-6 persons

Fuel:  Coal, Natural Gas, Disel, LPG and so on

Automation: Automatic and fully automatic

Keyword: Egg tray machine



Egg Tray Machine Composition



Main Parts Description Quantity Motor power

Pulping system



Pulping machine 1set 7.5kw
Pulp Pump 1set 4kw
Pulp pump 1set 1.5kw
Mill pulp pump 1set 7.5kw
Water pump 2sets 0.75kw*2=1.5kw
Mixer 1set 1.5kw
Pulp pool and Water pool 1set

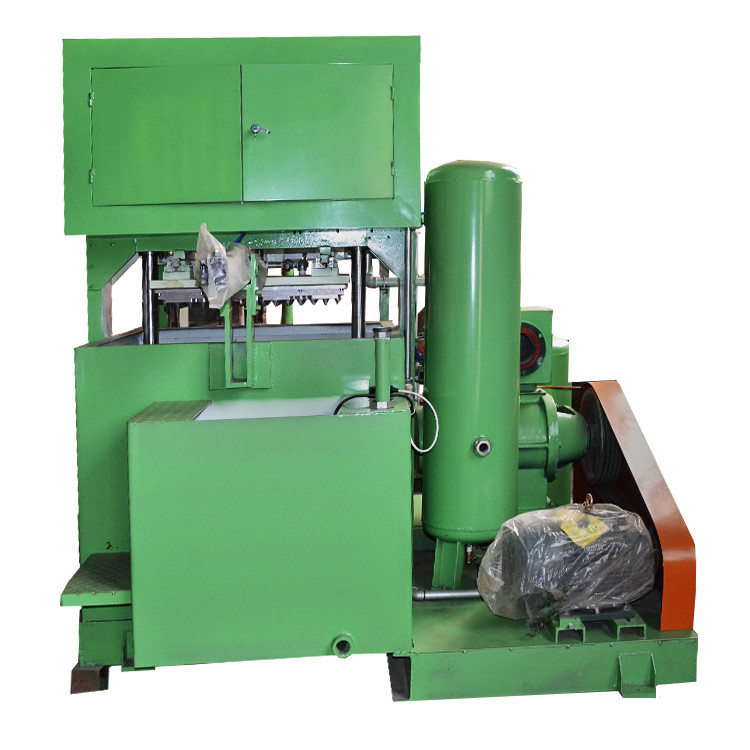

Forming system































Moulding machine



1set 1pcs Aluminum Forming Molds
Vacuum pump 1set 7.5kw
Mold Washer 1set 1.1kw
Pulp pump 1set 1.5kw
Air Compressor 1set 11kw
Vacuum tank 1set
Air tank 1set



Technical data

Egg Tray Mold Quantity 1pcs 2pcs 3pcs 4pcs
Raw material Waste paper Waste paper Waste paper Waste paper
Egg tray Capacity 350pcs/hour 700pcs/hour 1000pcs/hour 1300pcs/hour
Net weight per piece (gram) 70g-75g 70g-75g 70g-75g 70g-75g
Waste paper consumption 0.025ton / hour 0.06ton / hour 0.1ton / hour 0.13ton / hour
Water Consumption 0.05ton / hour 0.1ton/hour 0.15ton / hour 0.2ton / hour
Natural Gas Consumption of Dryer 12cbm/h 25cbm/h 35cbm/h 50cbm/h
Worker requirement 2-3workers 3-4workers 4-6workers 4-6workers
Power Requirement Without dryer 20KW 30KW 40KW 45KW
With dryer 30KW 45KW 60KW 65KW
Area of workshop Without dryer More than100M² More than 100 M² More than 120 M² More than 150 M²
With dryer More than200 M² More than 240 M² More than300M² More than 320 M²
Container Requirement Without dryer 20ft*1 20ft*1 40ft*1 40ft*1
With dryer 40ft*1+20ft*1 40ft*2+20ft*1 40ft*2+20ft*1 40ft*3
FOB Price Without dryer 20000usd 29000usd 32000usd 40000usd
With dryer 70000usd 80000usd 92000usd 100000usd
Remarks: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.

Payment and delivery



Trade terms  FOB Qingdao or EXW Factory
Delivery time  Depends on different egg tray machine model
Payment term  BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE



Installation
1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day )

Our Machine Advantages:

1. Controlled by automatic computer soft ware
2. No need for installation, machine can start running only after connecting some pipes, power and water, and preparing the material
3. Some parts are Germany brand or other famous brand
4. Our egg tray machine can make different trays at same time by using different moulds
5. Besides egg tray, fruit trays, our machine also can produce industrial package
6. All installation and debugging work will be done before shipment.
7. 20 years' experience on egg tray machine
8. 2 years warranty time



Factory Introduction


Jinan Wanyou Packing Machinery Co.,Ltd is a famous packing machinery company which has a good mix of science, industry and trade.

It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.

It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.

These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.



Paper Apple Tray / Fruit Tray Making Machine Germany Valve High Performance 0



FAQ :



1. What is Semi Automatic type ?



If only order the pulping system and the forming system, that's Semi Automatic type.

And you'll have to do the work of drying up the trays manually;



2. What is Fully Automatic type ?

The Fully Automatic production line includes the Drying system and the whole procedure can be done Automatically .

Of course, the price and the required work space would have big difference from the semi-automatic type.

3. Quality

--- Our machines use UK Technics and part of the components are Germany-made (ex: Ball valve) .



-- Our machine is made by Tooling NOT by Welding , insuring a minimum of 10 years’ lifespan .

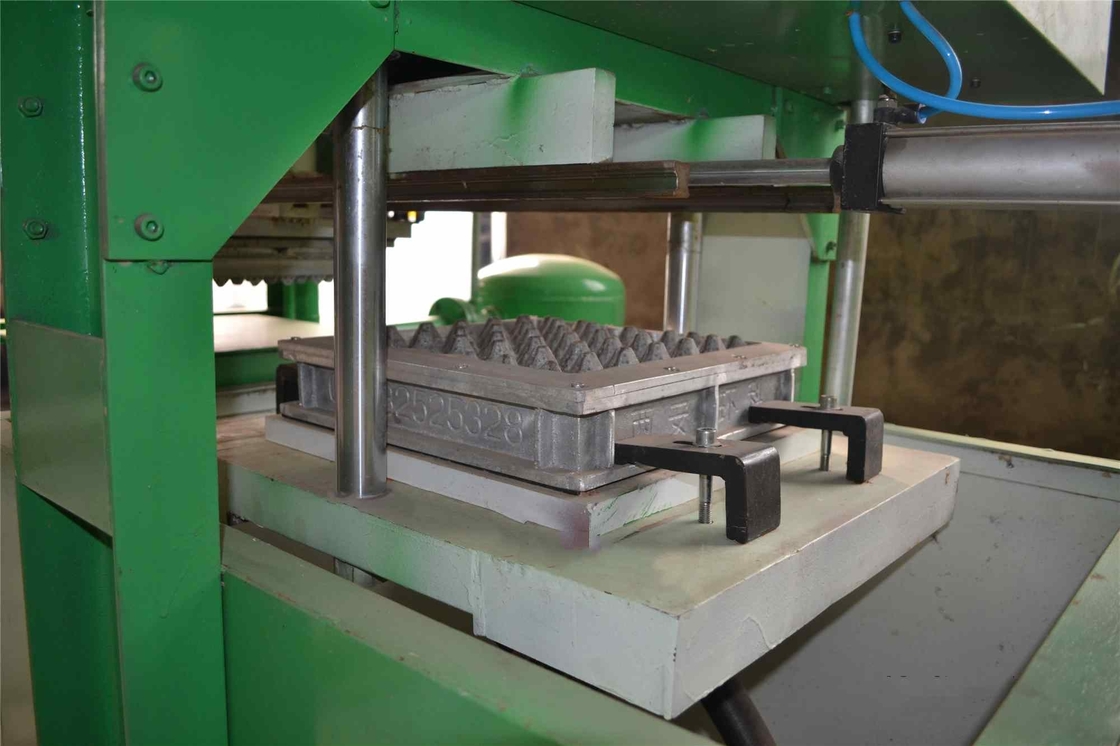

-- The Egg tray molds material is Aluminum which can keep the fixed shape much better than that made of rubber material.



--- 99.9% of Success rate: Even if there is a failed egg tray , just throw it back to Pulping area and it can be re-used avoiding waste ;



--- Our machine has been sold to worldwide for over 10 years with continued re-order by some customers with their business grow .



---Some spare parts are made by famous company in Germany
