Place of Origin:
Jinan, Shandong, China
Brand Name:
Wanyou
Certification:
CE
Model Number:
RL- ZJM

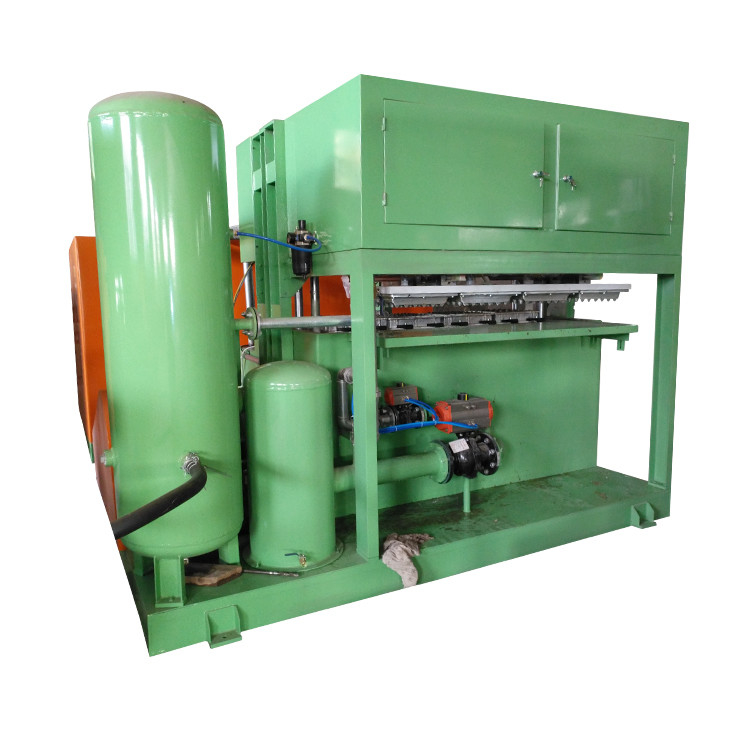

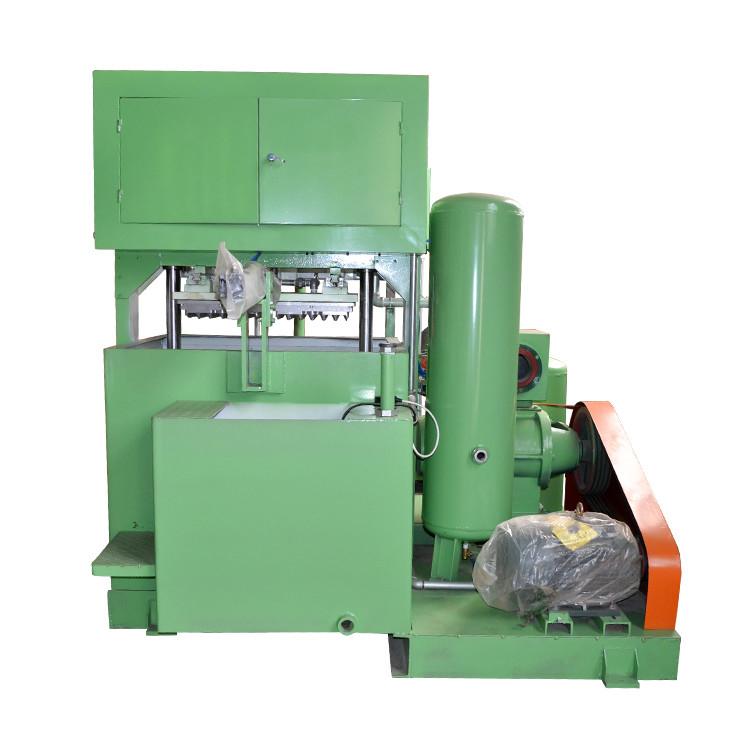

Recycled Waste Paper Egg Carton Making Machine Pulp Molding Machine For Egg Tray Making Egg Packing
Recycled Waste Paper Egg Carton Making Machine Pulp Molding Machine For Egg Tray Making Egg Packing
This type machine uses waste paper as raw material to produce the egg trays for chicken farm factory or other customer who needs the trays. It has 2 types forming method: one is Reciprocating Type, the other is Rotary Type Egg Tray Making Machine. It can make many simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc..using waste paper as raw materia
It is composed of following parts:
1. Pulping System:
Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .
2. Forming System :
The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.
3. Drying system: The formed Product Tray plate being delivered to Dryer, and come up to Completed Strong Product Tray plate The drying system is with one boiler. The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production. Our production line has Fully Automatic and Semi Automatic two types , both have computer control system. If you don’t want this drying system, it is also OK. Then you will have to do the work of drying up the product trays manually. Our machine can be designed to make different products at same time by one Working Table (with 2 Molds or even 3 molds)
The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production.
Our machine can turn your waste paper and books into Money!
Our machine can produce Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc) ,Fruit tray (for apple,tomato, pear and etc) ,Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays,some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.
Our machine can turn your waste paper and books into Money!
Machine Technical Parameters
| Model | Mechanization | Working mode | Capacity(Pcs/h) |
| ZJM-1800 | Semi-auto or Automatic | Rotary | 1800 |
| ZJM-2000 | Semi- auto or Automatic | Rotary | 2000 |
| ZJM-3000 | Automatic | Rotary | 3000 |
| ZJM-4000 | Automatic | Rotary | 4000-4500 |
| ZJM-5000 | Automatic | Rotary | 5000-5500 |
| ZJM-6000 | Automatic | Rotary | 6000 |
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory | ||||
| Delivery time | About 30 working days after receiving the deposit. | ||||
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC | ||||
| Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||||
| Warranty time | Two years after the Egg tray machine received. | ||||
| TERMS OF DELIVERY | FOB Qingdao Port, China | ||||
| Package | In container | ||||
| Certification | CE | ||||
Jinan Runliang Packing Machinery Co.,Ltd is a famous packing machinery company which has a good mix of science, industry and trade.
It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.
These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.
Don’t miss the chance of promoting the production efficiency of your company.
Welcome to contact us.
