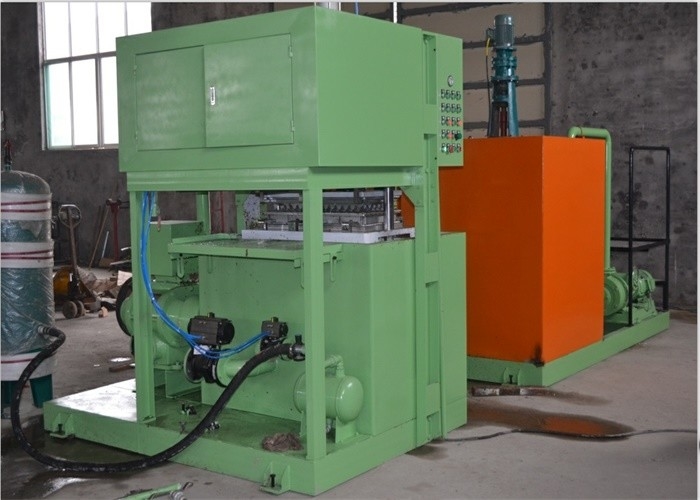

2 Molds Paper Pulp Egg Tray Making Machine Reciprocating Type Easy Operate

2 Molds Paper Pulp Egg Tray Making Machine Reciprocating Type Easy Operate

fruit tray making machine

paper pulp making machine

Place of Origin:

Jinan, Shandong, China

Brand Name:

Wanyou

Certification:

CE

Model Number:

ZSJ-700

Contact Us
Request A Quote
Product Details
Voltage:
220 V -440V
Drying Fuel:
Natural Gas, LPG, Coal, Electricity
Guarantee:
2years
Capapcity:
700pcs/h
Processing Type:
Pulp Molding Machine
Raw Material:
Waste Paper, Books, Cardboard, Paper Cups, Paper Tube
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
in container
Delivery Time
60-90 working days after get deposit payment
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
1 sets per month
Product Description



2 Molds Forming Up and Down Paper Egg Tray Making Machine Reciprocating Type Egg Tray Equipment



2 Molds Forming Up and Down Paper Egg Tray Making Machine Reciprocating Type Egg Tray Equipment uses waste paper as raw material to produce simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc..

Egg tray making process:

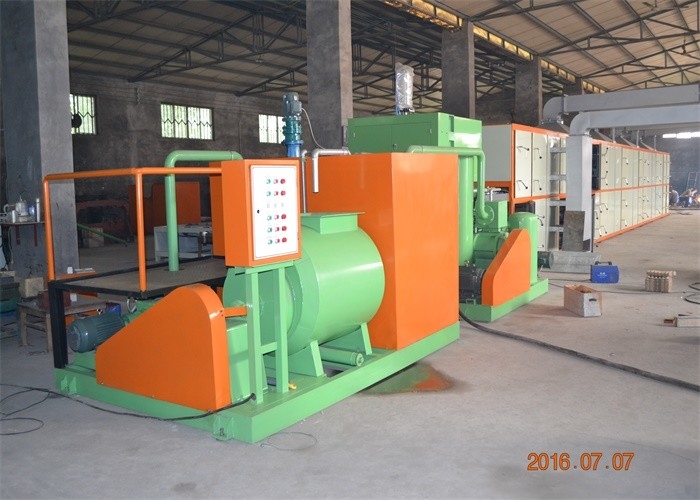

1.Pulp Making Process:

♦Put the waste paper into the hydraulic pulper. After about 40 minutes’ high consistency mixing, the waste paper will be made into rough pulp. The proportion is 1(paper) :3(water).

Then the rough pulp will flow into the homogenization pool. The rough pulp will be refined further by the pulp beater in the homogenization pool.

The appropriate concentration of the pulp will flow into the finished pulp to supply paper pulp to the forming machine.

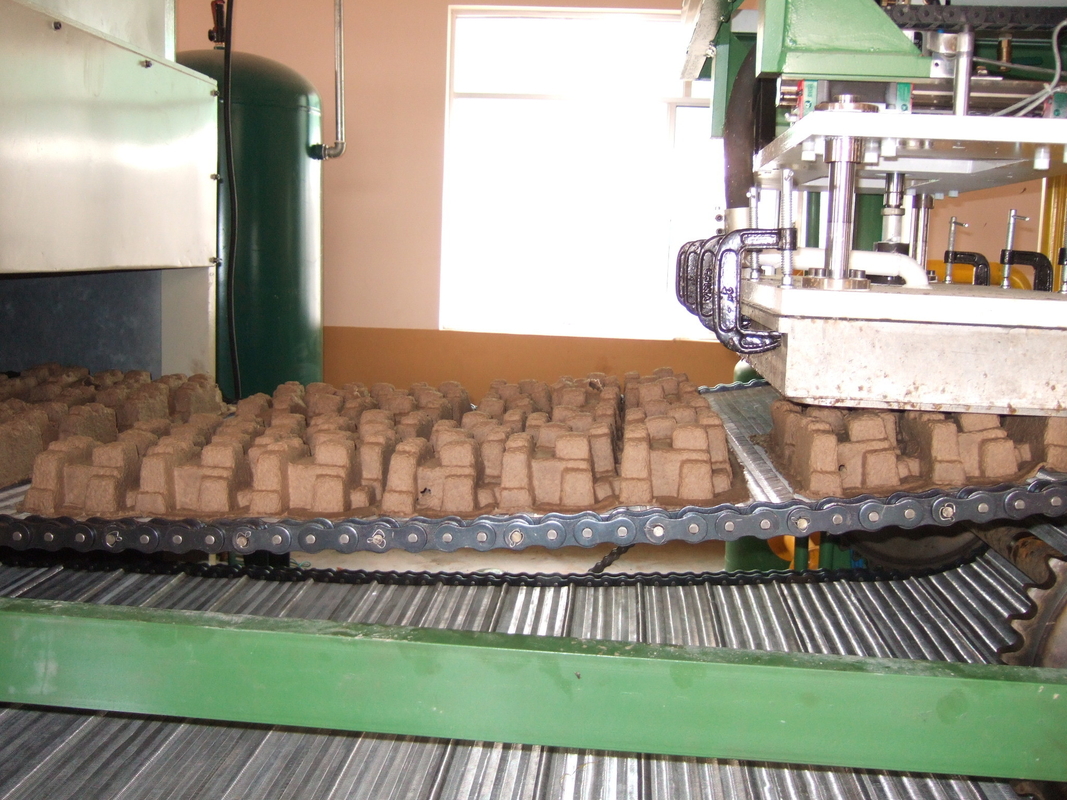

2.Molding Process:

By pulp pump, the finished pulp will be transported into the paper tray forming machine.

Under the suction power of vacuum pump, the pump will be adsorbed up on molds to form egg tray.

Under the blowing force of air compressor, the formed egg tray will drop off from molds.



3.Drying Process:

In the egg tray drying process, the extra water component in the wet egg trays can be evaporated. Drying is the essential process. After drying, paper egg trays are not easy for deformation and broken.

The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production.



For pulp molded 30-cell egg trays : first the worker will weight the raw material and put them into the conveyor. Then the pulping ,forming, drying and stacking will be finished automatically. After drying, the finished products will be packed by workers.

A hot pressing section should be added in the production of pulp molded egg box/carton(6-cell,10-cell,12-cell,6+6-cell,15-cell),fruit tray and cup carrier after drying because of shrinking.

2 Molds Paper Pulp Egg Tray Making Machine Reciprocating Type Easy Operate 0

The egg box/carton can be labelled or printed after hot pressing. These processes could be finsihed manually or automatically.

We have variety capacity egg tray machines from 350pcs/h to 2500pcs/h. We are OEM factory, we can manufacture the machine as per your requirement.

All the machine is in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.
Our Paper Egg Tray Machine saves production cost, and saves space. it is quitely used by small medium enterprises.




This production line is suitable for the following products:

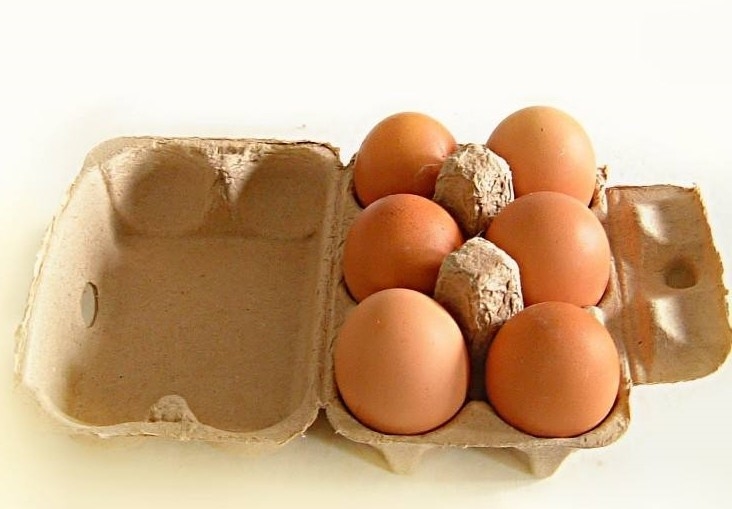

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)

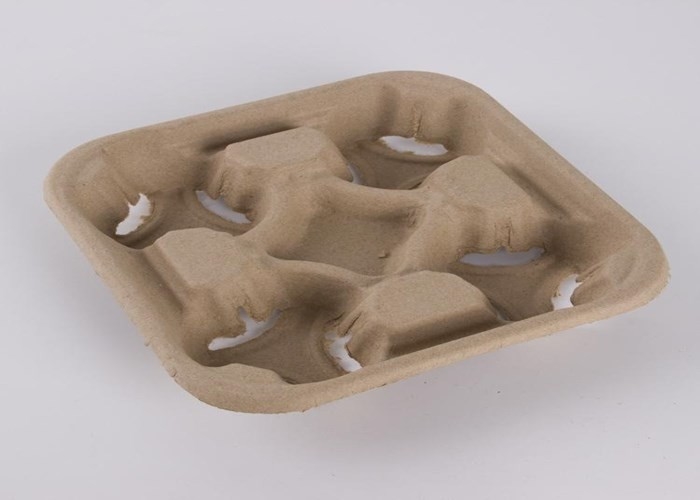

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.

Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.



Technical data



Egg Tray mould quantity 2pcs
Raw material Waste paper
Output for egg tray 700pcs/hour
Net weight per piece (gram) 70g-75g
The volume of waste paper consumed 0.06ton / hour
The volume of water consumed 0.1ton / hour
The LPG consumption of the Bolier(about) 20-25kg/h
Machine Weight 10-20tons
Egg tray Size 295mm*295mm 30eggs



Payment and delivery



Trade terms  FOB Qingdao or EXW Factory
Delivery time  About 30 working days after receiving the deposit.
Payment term  BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE



Factory Introduction


Jinan Wanyou Packing Machinery Factory is a famous packing machinery company which has a good mix of science, industry and trade.

It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.

It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.

These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.



Don’t miss the chance of promoting the production efficiency of your company.



Welcome to contact us.

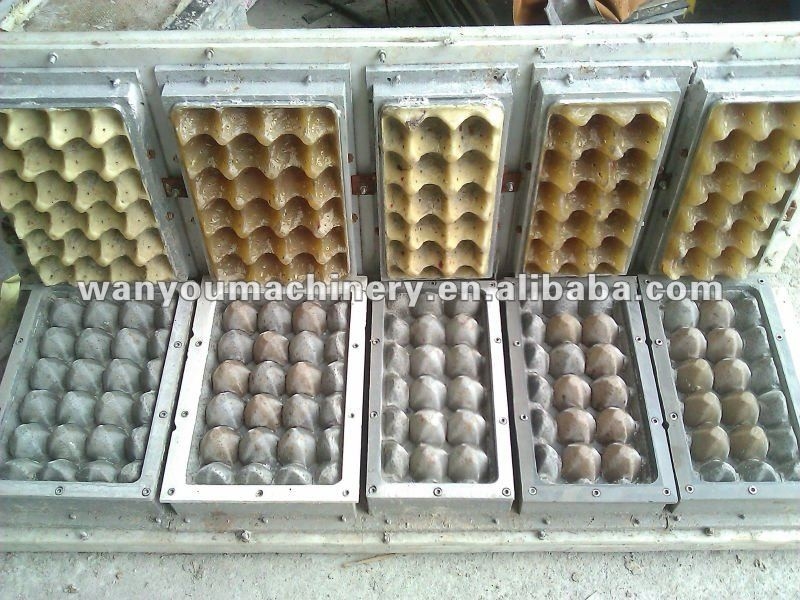

Machine Molds



2 Molds Paper Pulp Egg Tray Making Machine Reciprocating Type Easy Operate 1



End products of our machine

2 Molds Paper Pulp Egg Tray Making Machine Reciprocating Type Easy Operate 2
