Product Description:
Paper Pulp Molding Machine Egg Tray Machine Egg Tray Production Line Features
Pulping System
1. Put the raw material and water into the hydraulic pulper, you will get the paper pulp after mixed 10-20 minutes.
2. Pulp pump will transfer the finished paper pulp into the slurry pool.
3. The pulp pond beater will mix the pulp concentration.
4. The pulp pump will transfer the pulp into forming machine.
Molding System
1. The molding machine is to absorb the pulp to the molding mold, absorb the pulp to the molding mold through the suction of the vacuum system to absorb the excess water into the gas-water separation tank, and then pump the water to the tank for storage.
2. The molding mold absorbs the pulp and then forms it. and then the transfer mold takes out the finished product and sends it to the drying tray inside the dryer oven.
Drying System
1.Heat source: natural gas, diesel, liquefied petroleum gas and other combustion liquids and gases.The transmission mode adopts industrial transmission chain to drive the net plate transmission, which runs in the drying line.
Technical data of various model paper egg tray machine
|
Egg Tray Mold Quantity
|
2pcs
|
3pcs
|
4pcs
|
12pcs(3pcs*4)
|
16pcs(4pcs*4)
|
24pcs(3pcs*8)
|
32pcs(4pcs*8)
|
40(5pcs*8)
|
48(6pcs*8)
|
|
Raw material
|
Waste paper
|
Waste paper
|
Waste paper
|
Waste paper
|
Waste paper
|
Waste paper
|
Waste paper
|
Waste paper
|
Waste paper
|
|
Egg tray Capacity(pcs/hour)
|
700
|
1000
|
1300
|
2000
|
2500
|
3000
|
4000
|
5000
|
6000
|
|
Net weight per piece (gram)
|
70-75
|
70-75
|
70-75
|
70-75
|
70-75
|
70-75
|
70-75
|
70-75
|
70-75
|
|
Waste paper consumption
|
0.06ton / h
|
0.1ton / h
|
0.13ton / h
|
150kg/ h
|
150kg/h
|
188kg/h
|
225kg / hour
|
375kg/h
|
450kg/h
|
|
Water Consumption
|
0.15ton/h
|
0.22ton / h
|
0.3ton / h
|
0.45ton / h
|
0.6ton/h
|
0.68ton/h
|
0.9ton / h
|
1.1t/h
|
1.35ton/h
|
|
Natural Gas Consumption of Dryer
|
25cbm/h
|
45cbm/h
|
60cbm/h
|
75cbm/h
|
90cbm/h
|
110cbm/h
|
120cbm/h
|
150cbm/h
|
180cbm/h
|
|
Boiler model (natural gas fuel Kcal)
|
300*103
|
450*
|
600*103
|
800*103
|
1000*103
|
1200*103
|
1500*103
|
1800*103
|
2000*103
|
|
Worker requirement
|
3-4workers
|
4-6workers
|
4-6workers
|
5-7workers
|
5-7workers
|
8-10workers
|
8-10workers
|
10-12
|
10-12
|
|
Power Requirement
|
Without dryer
|
30KW
|
40KW
|
45KW
|
70KW
|
80KW
|
100KW
|
100KW
|
|
|
|
With dryer
|
45KW
|
60KW
|
65KW
|
100KW
|
120KW
|
130KW
|
150KW
|
180kw
|
200kw
|
|
Area of workshop
|
Without dryer
|
More than 100 M²
|
More than 120 M²
|
More than 150 M²
|
More than
200 M²
|
More than 200 M²
|
More than 250 M²
|
More than 250 M²
|
|
|
|
With dryer
|
More than 240M²
dryer-16M
|
More than300M²
Dryer-16M
|
More than 320 M²
dryer-18M
|
More than 400M²
Dryer18M
|
More than 400M²
Dryer20M
|
More than 520M² dryer30M
|
More than 520M²
Dryer32M
|
600m2
Dryer 36m
|
750m2
Dryer 40m
|
|
Container Requirement
|
Without dryer
|
20ft*1
|
40ft*1
|
40ft*1
|
40ft*1
|
40ft*1
|
40ft*1
|
40ft*1
|
|
|
|
With dryer
|
40ft*2+20ft*1
|
40ft*3
|
40ft*3
|
40ft*4
|
40ft*4
|
40ft*5
|
40ft*5
|
40ft*6+20ft*1
|
40ft*7
|
|
Remarks:
1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g).
2. Workshop size is for reference only and could be adjusted according to actual size of client's plant.
3. The above specification is for reference only, due to continuous technology development, data will be updated from time to time.
4. Pulp Molding Equipment are non-standard equipment, we are able to provide customized solution according to specific requirements from customer.
5. Welcome to contact us anytime, our professional team will provide more effective help and supports for you.
|

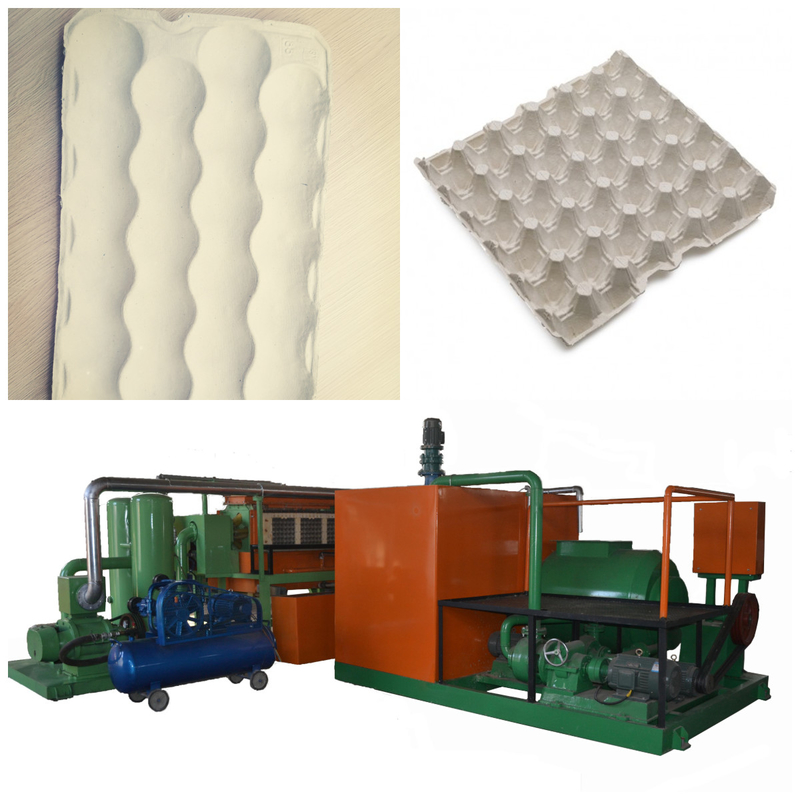

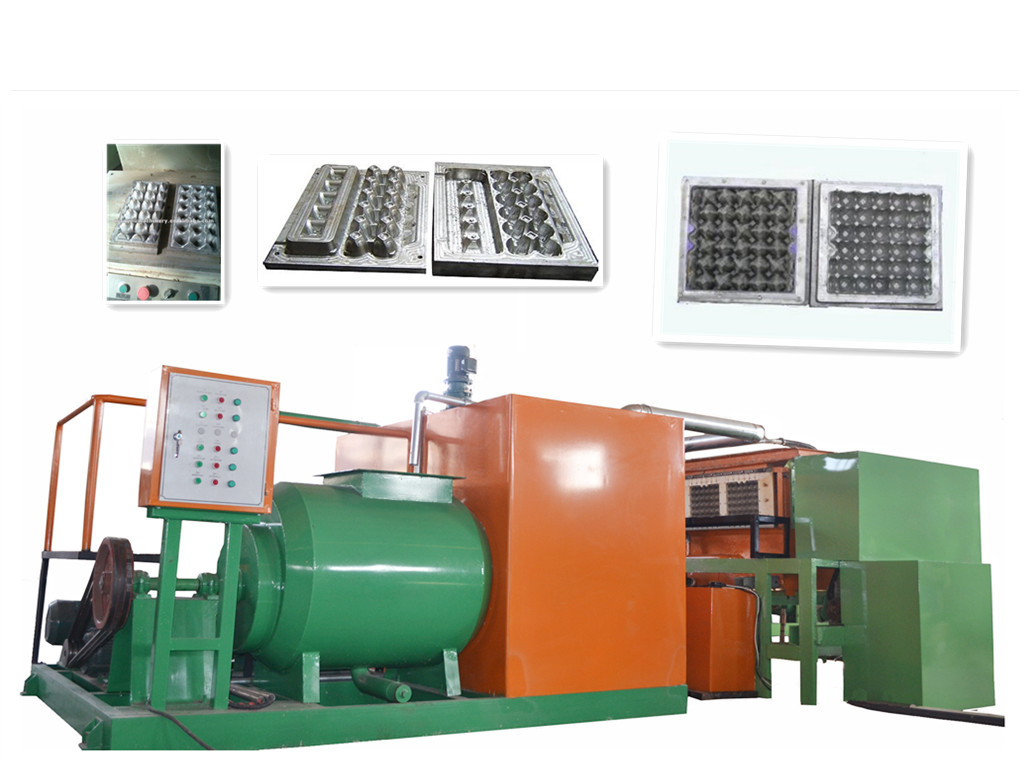

4*4 molds rotary forming type egg carton production line whole view

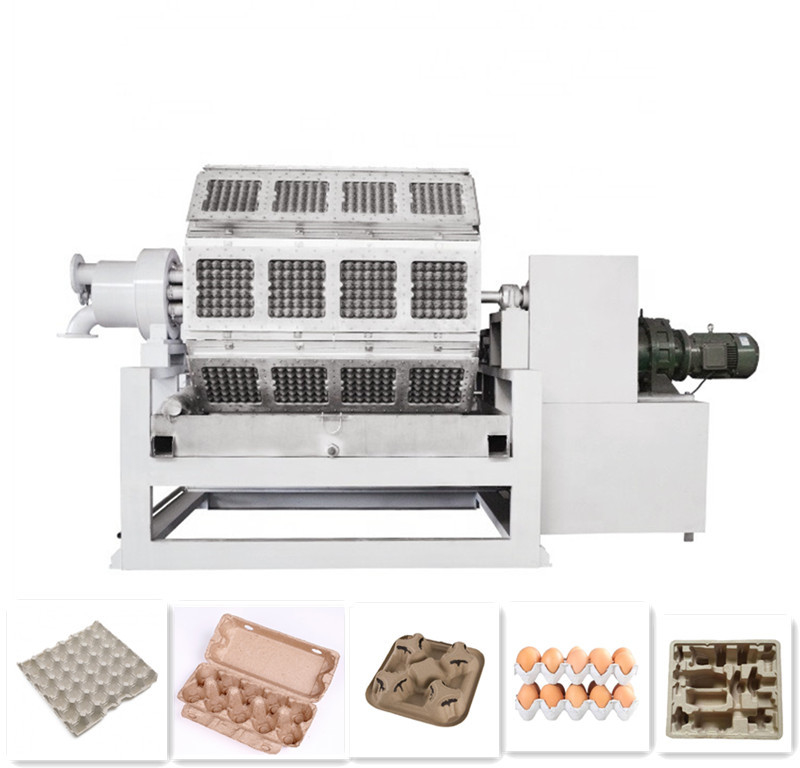

Forming system of 4*4 molds paper egg carton production line for 15 seats egg carton
Auto stacker for paper egg carton production line 4*4 molds. 2500-3000pcs/h capacity
Water pulp pools for 4*4 molds paper egg carton production line(this part is selectable as per customer's needs)

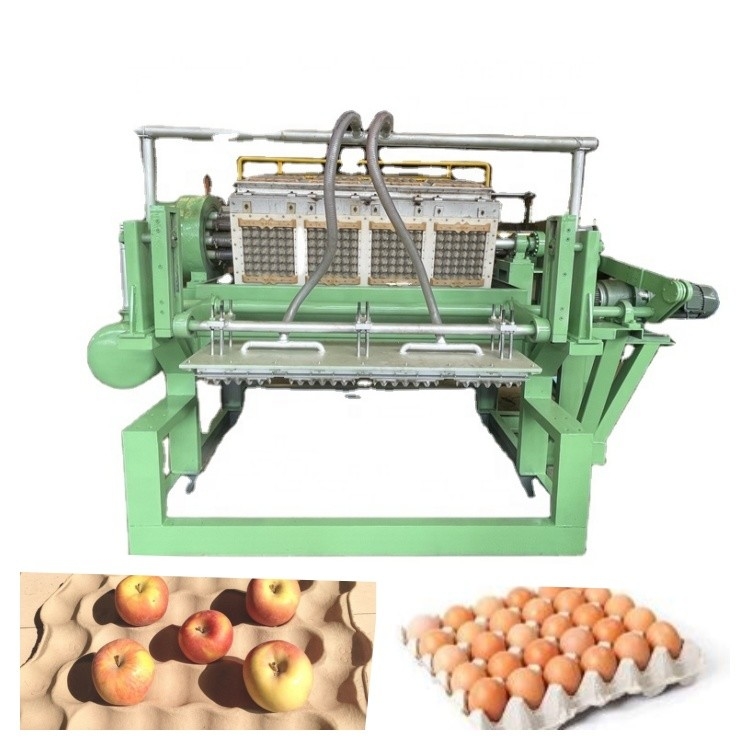

4*4 molds paper egg tray machine (only forming part)

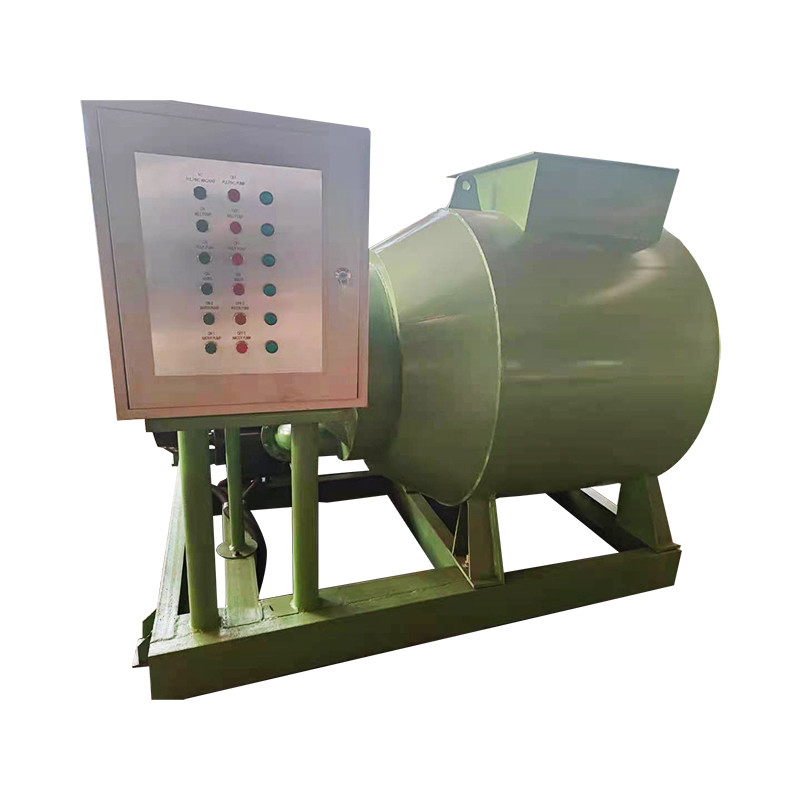

Hydraulic pulper for 4*4 molds paper egg tray machine/egg carton production line

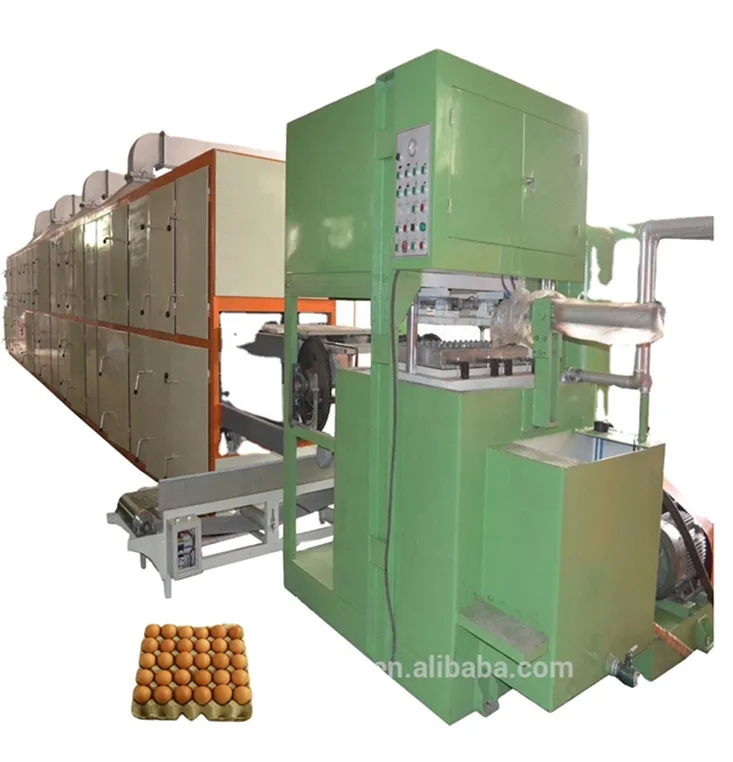

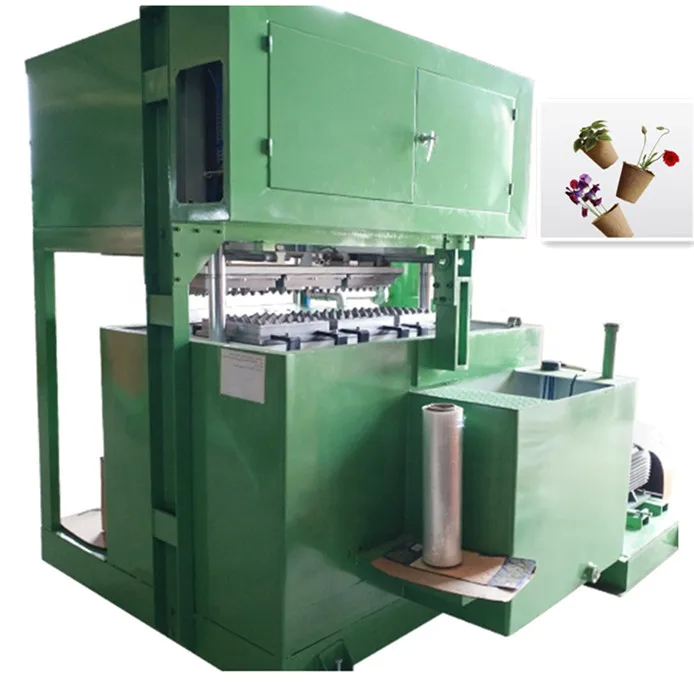

Other model egg tray machines
Applications:
The Egg Tray Production Line is equipped with a powerful motor that has a total power of 45KW-200kw.
The product size of the trays: 295*295mm.
The working speed: 6 seconds per tray,
The machine weight: 5-15T
The Egg Tray Production Line is ideal for Egg Tray Manufacturing Plants in high demand for paper trays.
The product is also suitable for use in industrial packaging, such as the food industry, the shoe industry, and the electronics industry.
The machine can produce a variety of trays, making it versatile and useful for a wide range of applications.
The WANYOU Egg Tray Production Line is an excellent investment for businesses that require reliable and efficient tray production equipment.
The product is easy to use, and the supply ability is 1 set per month.
The payment terms for the product are TT, which makes it easy for businesses to purchase the equipment.
The product is designed to be user-friendly, and it requires minimal maintenance, making it an ideal choice for businesses that require high-quality trays at an affordable price.
Technical data of 4*8 molds 4000pcs/h capacity rotary forming type paper egg trays machine molded pulp machine
| Egg Tray Mold Quantity |
32pcs(4*8) |
| Raw material |
Waste paper |
| Egg tray Capacity |
3000-4000pcs/hour |
| Net weight per piece (gram) |
70g-75g |
| Waste paper consumption |
225kg / hour |
| Water Consumption |
0.6ton / hour |
| Natural Gas Consumption of Dryer |
80cbm/h |
| Worker requirement |
8-10workers |
| Power Requirement |
Without dryer |
100KW |
| With dryer |
150KW |
| Area of workshop |
Without dryer |
More than 250 M² |
| With dryer |
More than 520M² |
| Container Requirement |
Without dryer |
40ft*1 |
| With dryer |
40ft*5 |
Remarks:
1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g).
2. Workshop size is for reference only and could be adjusted according to actual size of client's plant.
3. The above specification is for reference only, due to continuous technology development, data will be updated from time to time.
4. Pulp Molding Equipment are non-standard equipment, we are able to provide customized solution according to specific requirements from customer.
5. Welcome to contact us anytime, our professional team will provide more effective help and supports for you. |
|
Support and Services:
The Egg Tray Production Line is a highly advanced and efficient system for the automated production of egg trays.
Our technical support and services are designed to ensure that your production line operates at maximum efficiency with minimal downtime.
Our team of experienced technicians is available to provide assistance with installation, training, maintenance, and repairs.
We also offer customized solutions to meet your specific production needs, including equipment upgrades and modifications.
Our goal is to provide you with reliable and effective support so that you can focus on producing high-quality egg trays for your customers.
Packing and Shipping:
The Egg Tray Production Line will be packed in a sturdy wooden crate with protective measures to prevent any damage during transportation.
Shipping:
The Egg Tray Production Line will be shipped via sea or air, depending on the customer's preference and urgency.
We will arrange for a reliable and experienced shipping company to handle the transportation process and ensure timely delivery to the customer's designated location.
FAQ:
Q: What is the brand name of the Egg Tray Production Line?
A: The brand name of the Egg Tray Production Line is WANYOU.
Q: What is the model number of the Egg Tray Production Line?
A: The model number of the Egg Tray Production Line is WY-1.
Q: Where is the Egg Tray Production Line manufactured?
A: The Egg Tray Production Line is manufactured in Jinan, Shandong.
Q: What is the minimum order quantity for the Egg Tray Production Line?
A: The minimum order quantity for the Egg Tray Production Line is 1 set.
Q: What is the price range for the Egg Tray Production Line?
A: The price range for the Egg Tray Production Line is between 8000usd-9800$.
Q: What are the packaging details for the Egg Tray Production Line?
A: The packaging details for the Egg Tray Production Line are plastic films.
Q: What is the delivery time for the Egg Tray Production Line?
A: The delivery time for the Egg Tray Production Line depends on the order quantity and other factors.
Q: What are the payment terms for the Egg Tray Production Line?
A: The payment terms for the Egg Tray Production Line are TT (Telegraphic Transfer).
Q: What is the supply ability for the Egg Tray Production Line?
A: The supply ability for the Egg Tray Production Line is 1 set per month.
